Fill-Rite Automatic Diesel Fuel Nozzle with Hook 5-25 GPM 1 in Green Fuel Transfer Tank Accessories Truck & Automotive

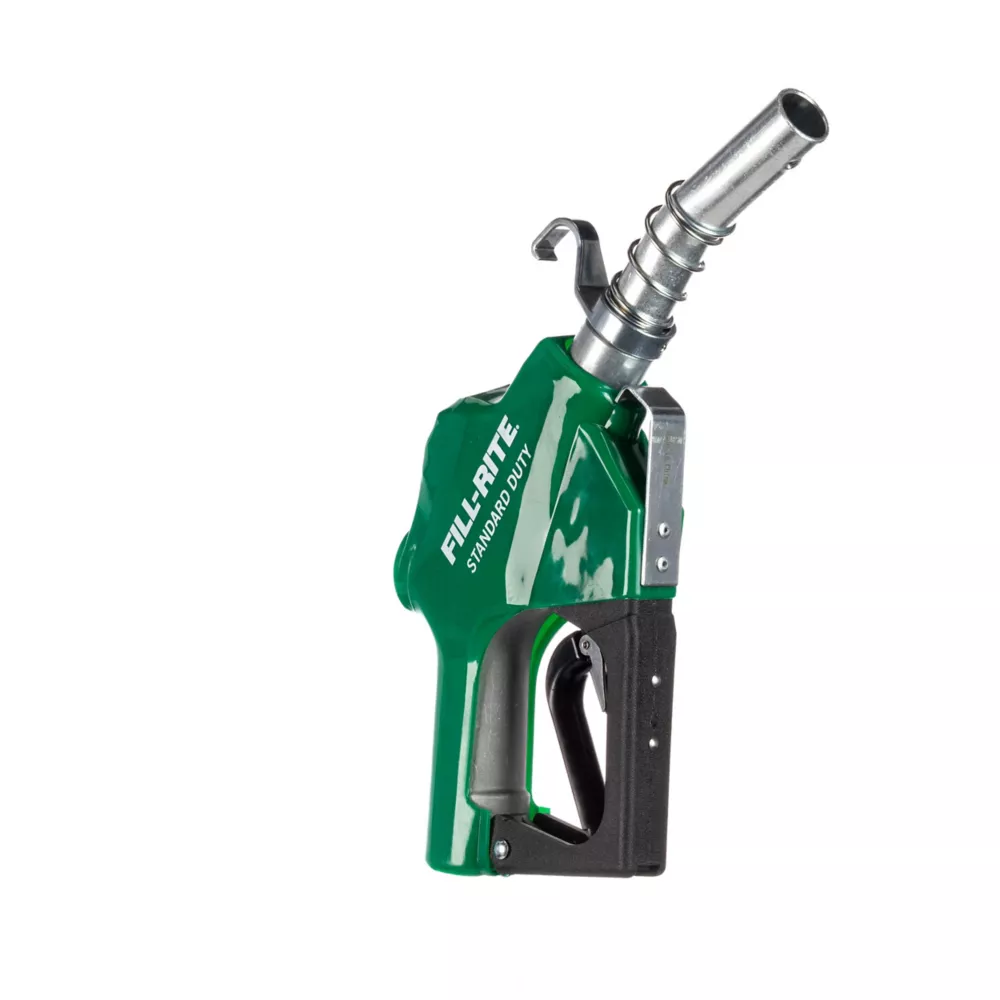

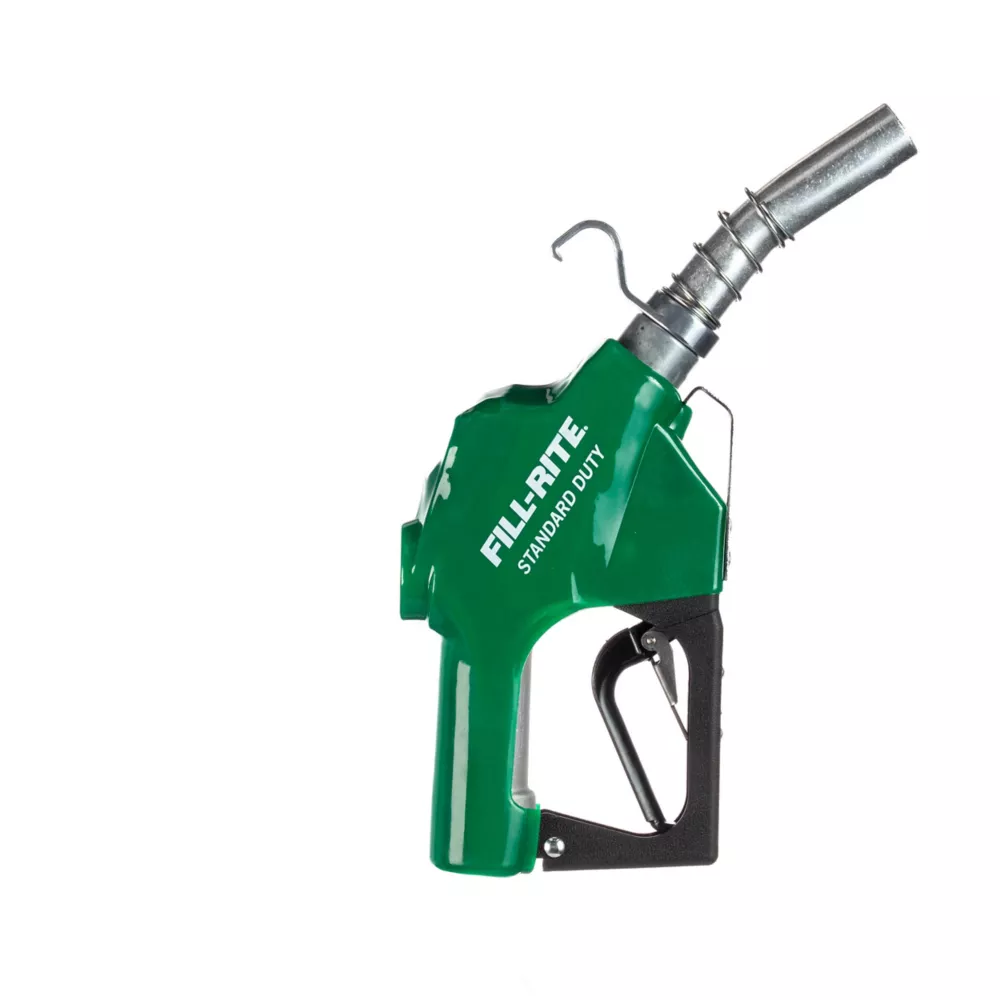

The Fill-Rite 5-25 GPM (19-95 LPM) Automatic Diesel Fuel Nozzle with Hook ushers in a new era of both value and performance. This standard-duty nozzle is built for use in light applications where heavy-duty performance is not needed. SD Series fuel nozzles are offered at competitive prices, yet still feature the trusted Fill-Rite reliability and durability customers expect! This model is a 1 in. (NPT threads) automatic diesel fuel nozzle for use with flow rates of 5-25 GPM and designed for diesel, biodiesel up to B20, E10, and kerosene.

Automatic shut off reduces mess by preventing overfilling and spilling
Fuel nozzle offers a spout hook that provides a convenient storage option
Angled inlet is designed to reduce hose wear
Fill-Rite nozzle features fluorocarbon seals
Spot size (OD): 1-1/8
Engineered with rugged cast-aluminum construction, built to last through the most demanding applications
Included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage
3 separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment

Fill-Rite Automatic Diesel Fuel Nozzle with Hook 5-25 GPM 1 in Green Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories

Specification	Description
Brand	Fill-Rite
Country of Origin	Imported
Body Materials	Aluminum
Compatible Fluids	Diesel
Discharge Connection	None
Discharge Diameter	1 in.
Duty Cycle	0 hr.
Features	Automatic Nozzle
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	25 GPM
Maximum Head Lift	0 in.
Maximum Operating Pressure	50 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	2 PSI
Minimum Operating Temperature	-20 deg.
Power Type	None
Product Height	14.5 in.
Product Length	9 in.
Product Weight	4 lb.
Product Width	2.2 in.
Warranty	1 Year
Manufacturer PartNumber	SDN100GAN
