Piusi USA 12V 15GPM Pitstop Diesel Transfer System Fuel Transfer Pumps Truck & Automotive

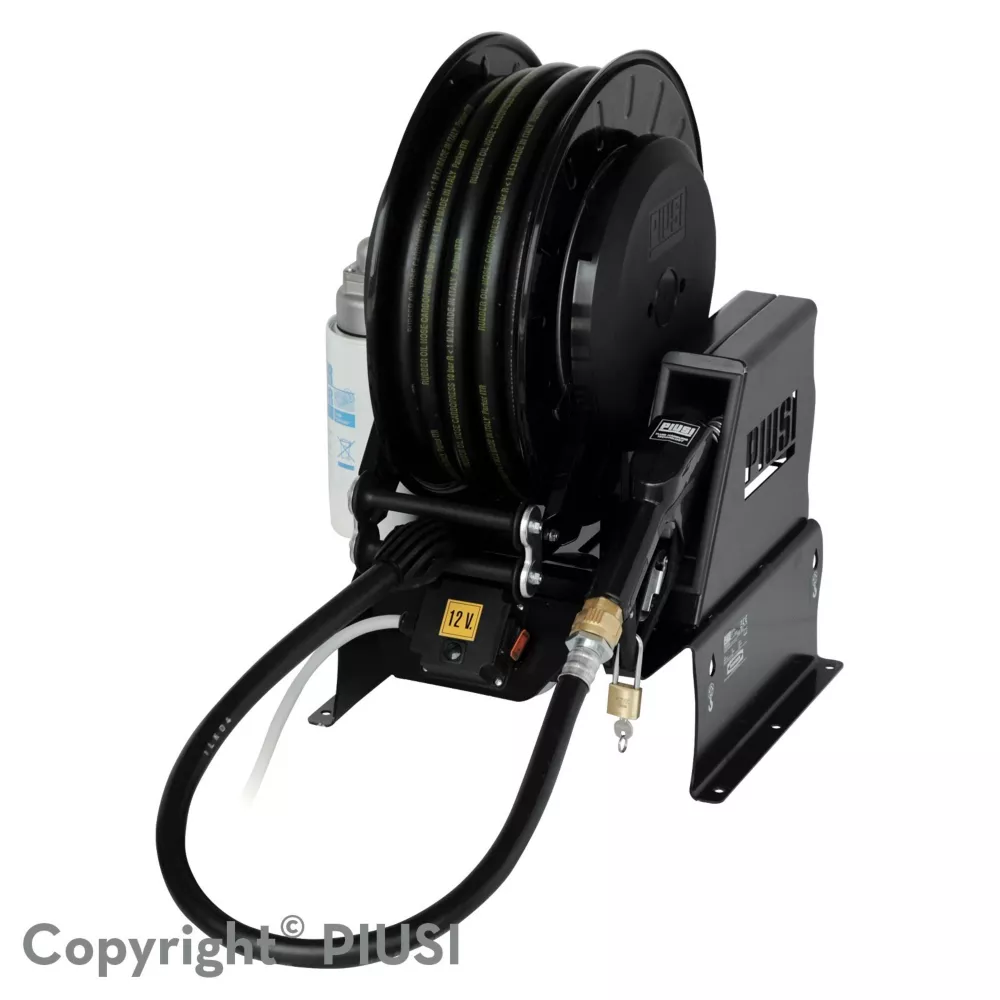

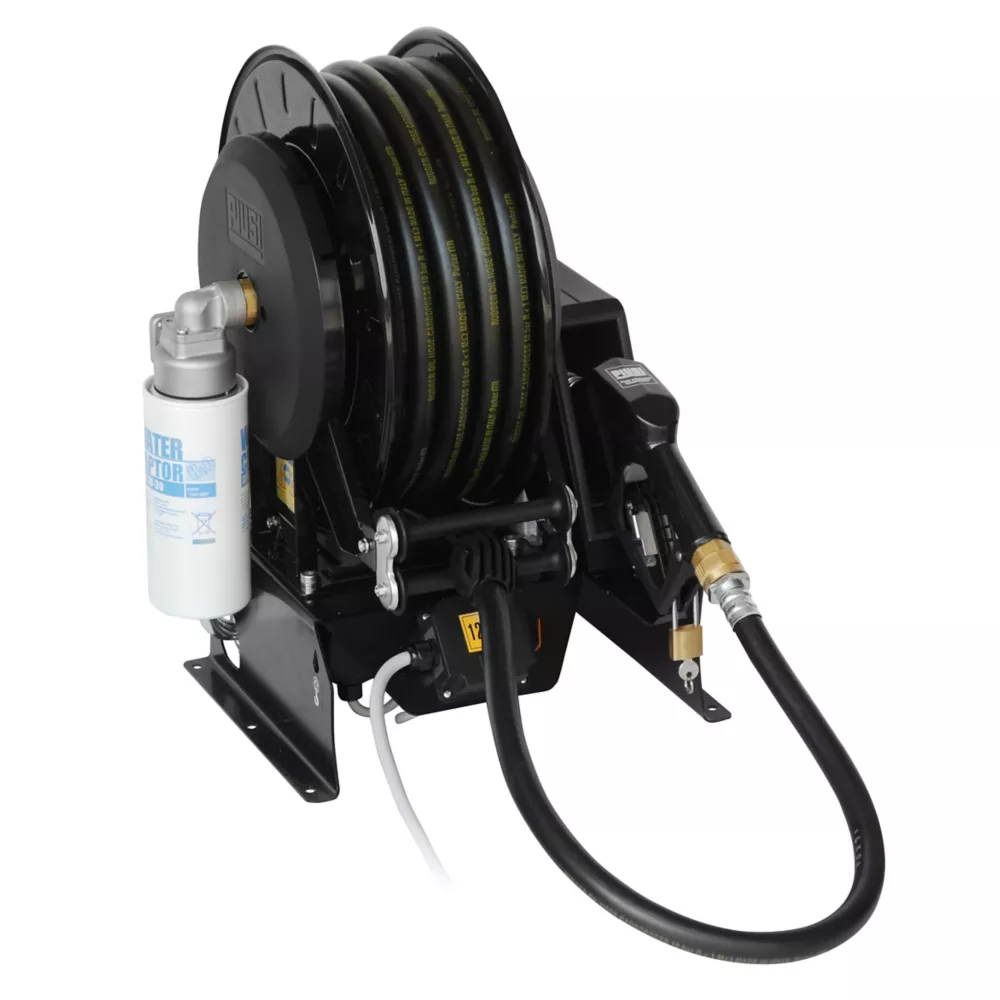

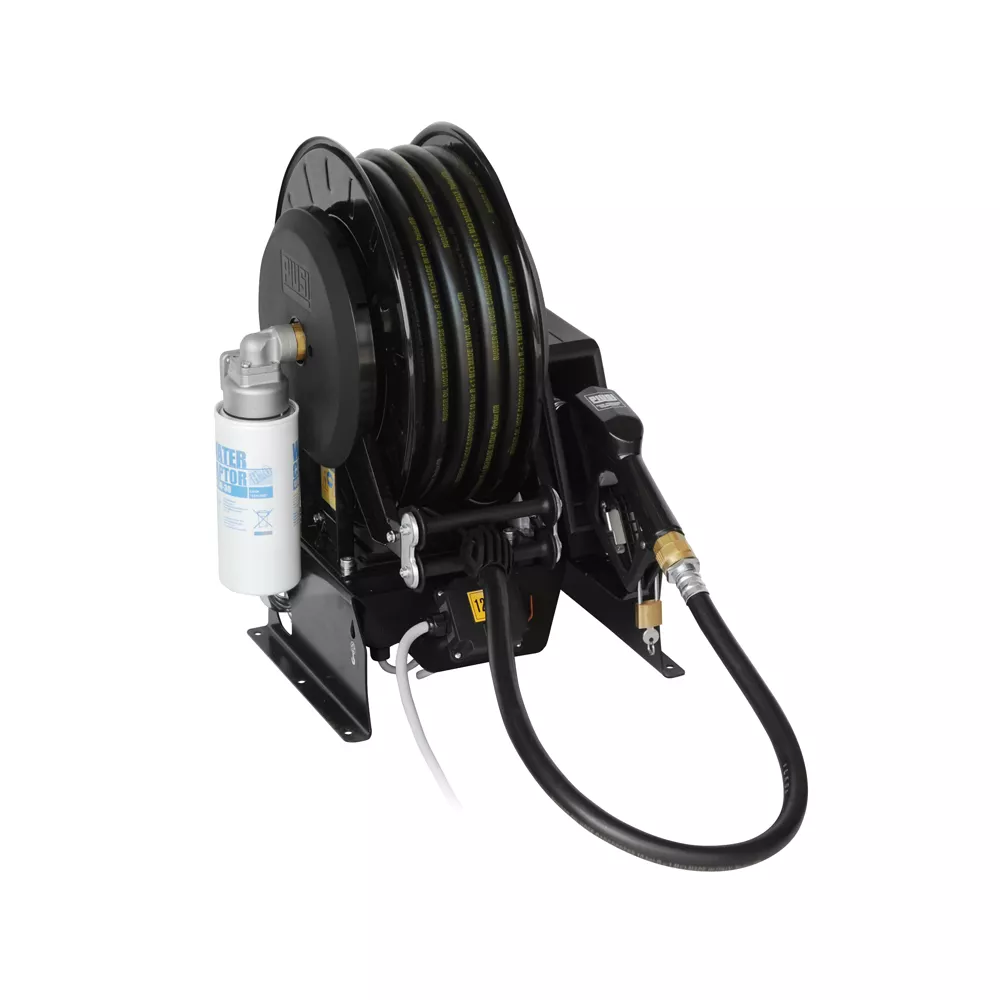

The Piusi USA 12V 15 GPM Pitstop Diesel Transfer System is a turnkey fuel transfer pump solution for on-site refueling at long distances. A complete dual diesel fuel transfer pump unit with a 50 ft. hose reel allows for flexibility when the fuel source is inaccessible by a conventional pump system. All mounted on a robust cast iron frame easily installed to fixed or mobile tanks, the Pitstop 12VDC fuel transfer pump system is a symbol of durability. Each of its components is specifically designed for longevity under vigorous conditions. It comes ready to install, so you can begin using your fuel pump system immediately. Order your Piusi fuel transfer pump system today.

Fuel transfer system delivers a flow rate up to 15 GPM for efficient performance

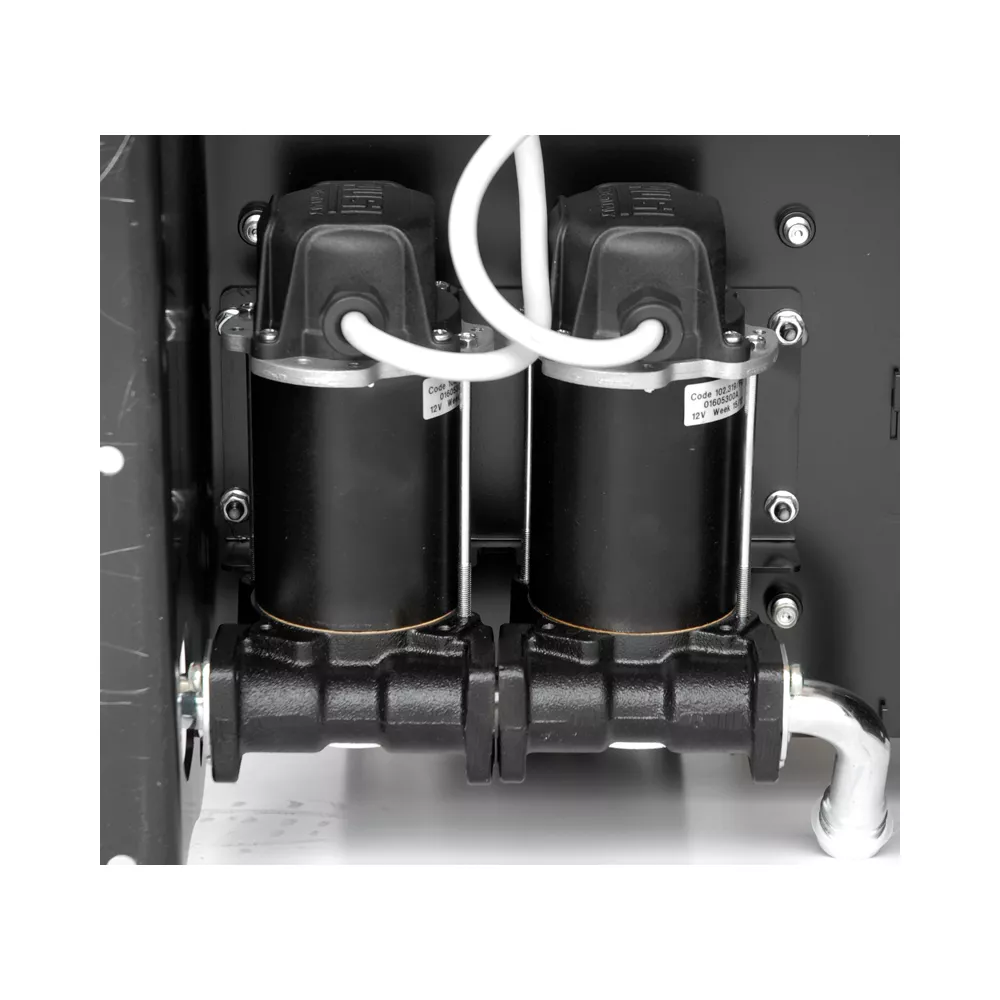

Two 12VDC BP 3000 fuel transfer pumps deliver up to 15 GPM
Wattage: 400W
Amperage: 33A
50 ft. automatic hose reel makes dispensing fuel simple
Diesel fuel transfer pump unit features side safety guards help protect users
Adjustable arms with end-of-travel hose stop for flexibility
12V fuel transfer pump system with integrated water absorption cartridge filter guarantees the quality of the transferred fuel free from impurities
Diesel hose interior: 3/4 in.
Conveniently located On/Off switch for easy operation

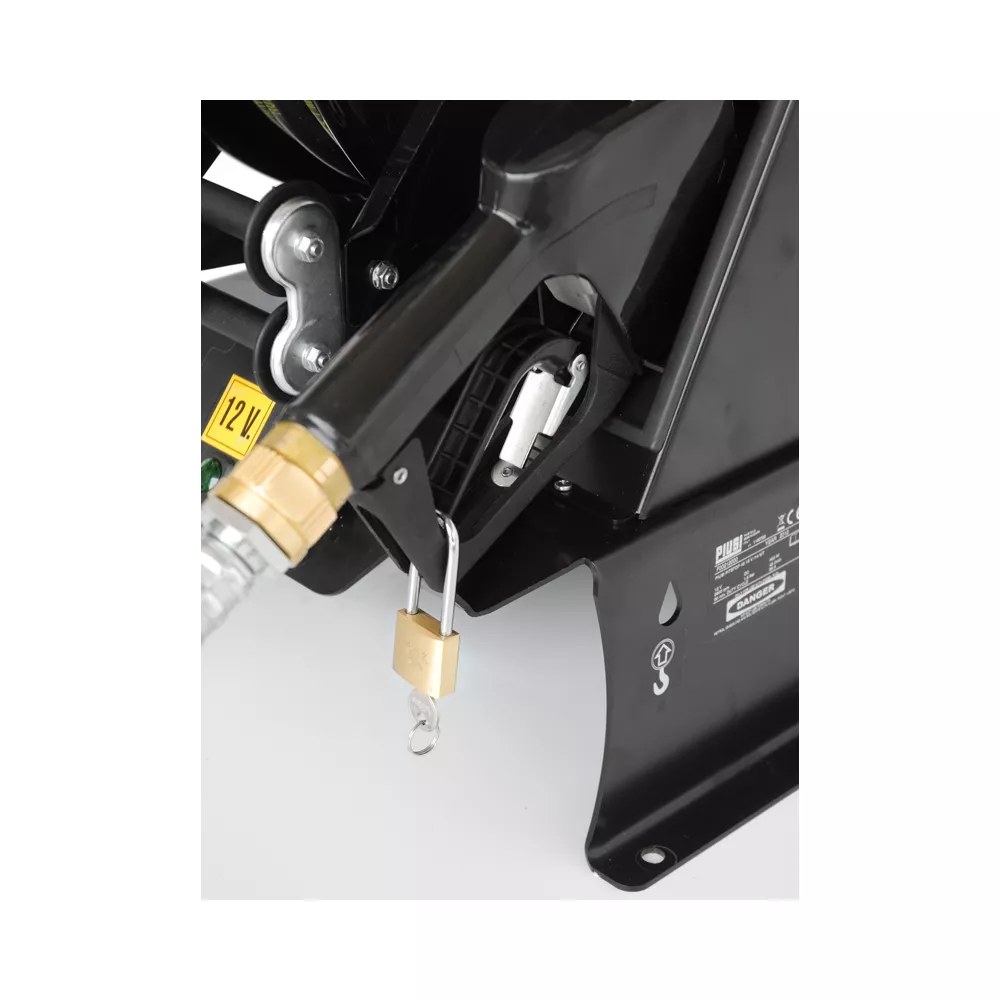

Automatic nozzle with swivel lets you fill up quickly
Sturdy metal supporting structure offers durability
Cables included with the fuel transfer pump
Ready to install, so you can begin using your fuel pump system immediately
Ideal to complete mobile or fixed tanks in agricultural, construction, automotive or naval applications

Piusi USA 12V 15GPM Pitstop Diesel Transfer System Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	33A
Body Materials	Cast iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	30 min. on/off
Features	Self-Priming
Inlet Connection	Threaded Female
Inlet Diameter	0.75 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	6 ft.
Power Cord Length	50 ft. hose reel
Power Type	12 Volt
Product Height	25 in.
Product Length	24 in.
Product Weight	100 lb.
Product Width	14 in.
Voltage	12V
Manufacturer PartNumber	F00212020

Piusi USA 12V Pitstop Diesel Transfer System, 15 GPM Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply DC Amperage 33A Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Male Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. On/Off Features Self-priming inlet connection 0.75 in. threaded female inlet diameter. Intended Use Commercial Grade Maximum Flow 15 GPM Maximum Head Lift 6 ft. Power cord length 50 ft. Hose Reel Power Type 12 Volt Product Height 25 in. Product length 24 in. Product weight 100 lbs. Product width 14 in. Voltage 12 V Manufacturer part number F00212020
