Fill-Rite DEF 1/4 HP 120V Electric Transfer Pump with Power Cord 8 GPM Fuel Transfer Pumps Truck & Automotive

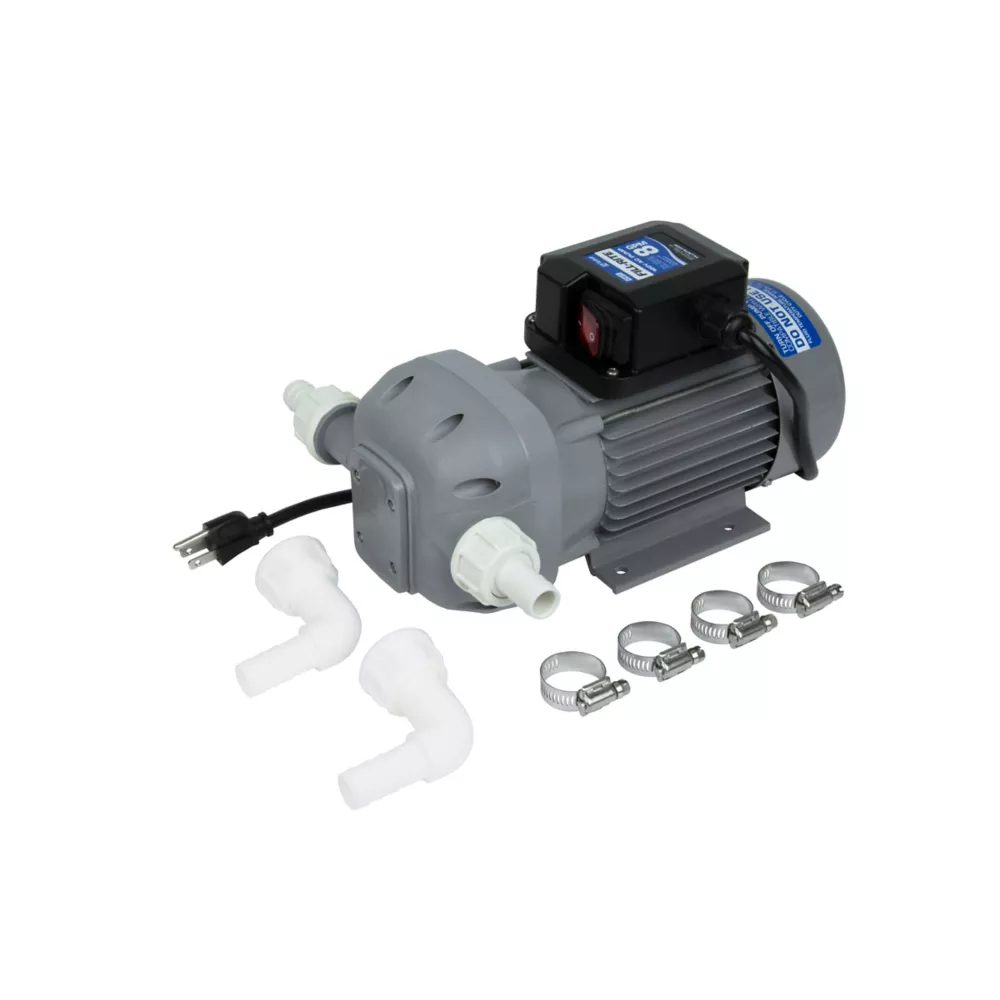

The Fill-Rite 8 GPM 120V DEF Transfer Pump with Power Cord is a 115V AC DEF transfer pump. The durable transfer pump includes installation components and no additional accessories. This transfer pump features consistent flow performance, quick installation and convenient mounting brackets for IBC totes and barrel drums.

Engineered with multi-diaphragm technology and EPDM seals, this transfer pump excels in daily DEF transfer
Integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal
Fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization
Convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
Create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
Includes installation components and no additional accessories
EPDM seals and stainless steel exterior hardware for durability
Transfer pump is proudly manufactured in the U.S.A.
Constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure and both on and off-road applications

Fill-Rite DEF 1/4 HP 120V Electric Transfer Pump with Power Cord 8 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Amperage	2.4A
Body Materials	Polypropene
Compatible Fluids	Exhaust Fluid
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min
Features	Self Priming
Horsepower	0.25 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	8 GPM
Maximum Head Lift	96 in.
Maximum Operating Pressure	34 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	Electric
Product Height	6.5 in.
Product Length	7.5 in.
Product Weight	13.3 lb.
Product Width	11.25 in.
Voltage	120V
Warranty	2 Year
Manufacturer PartNumber	DF120N
