Fill-Rite Manual Rotary Fuel Transfer Hand Pump with Pour Spout 10g/100 Turns Fuel Transfer Pumps Truck & Automotive

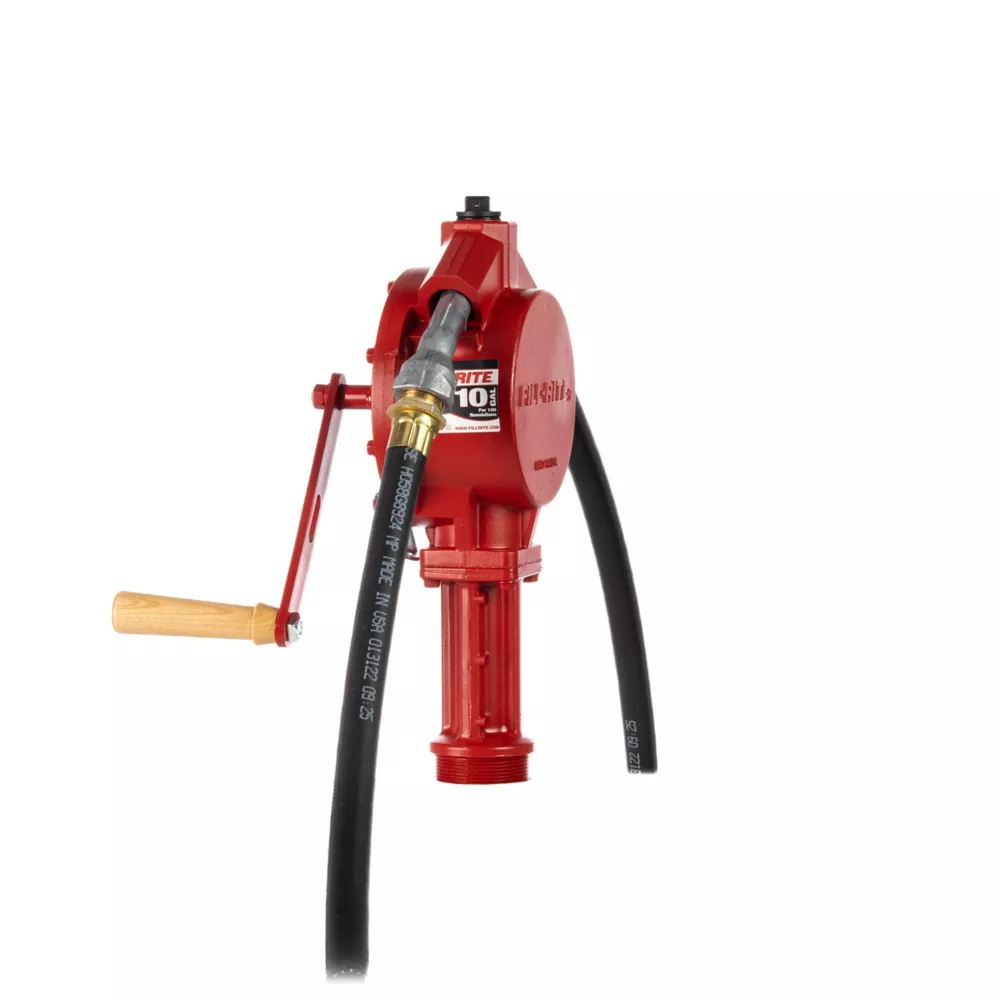

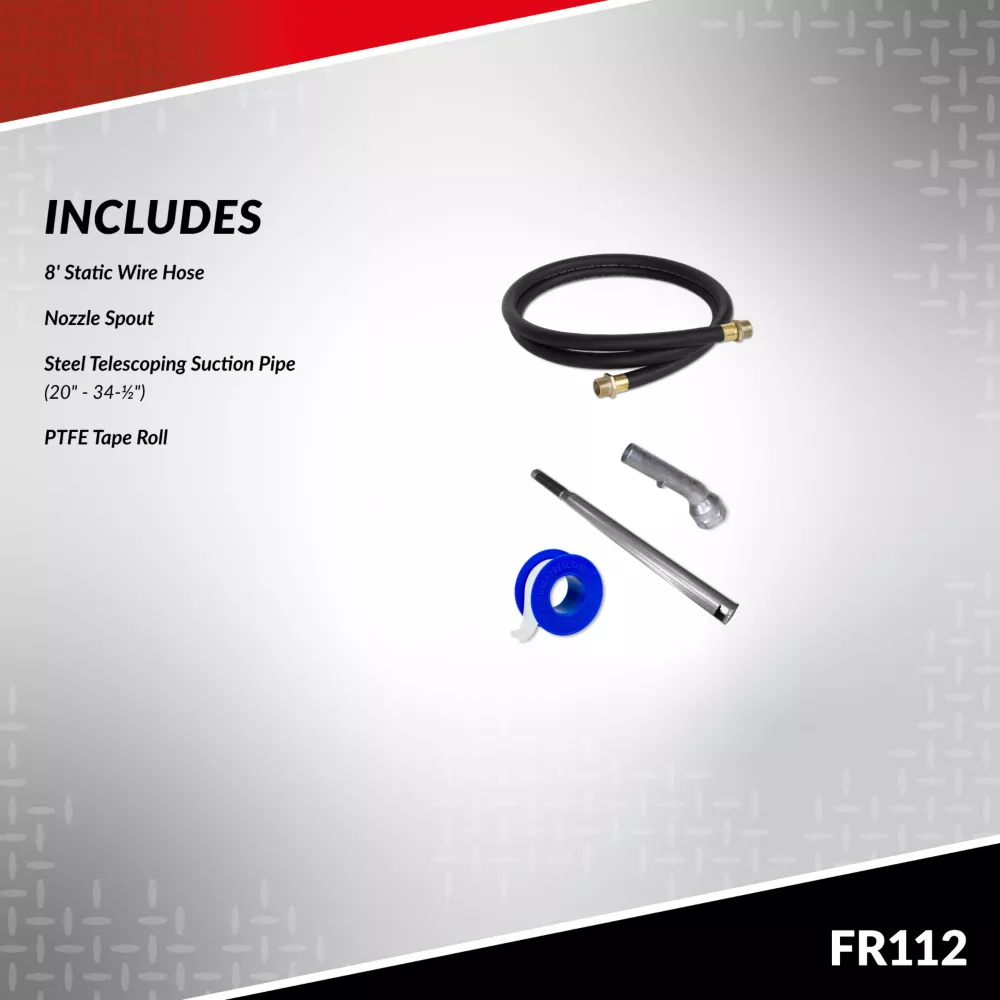

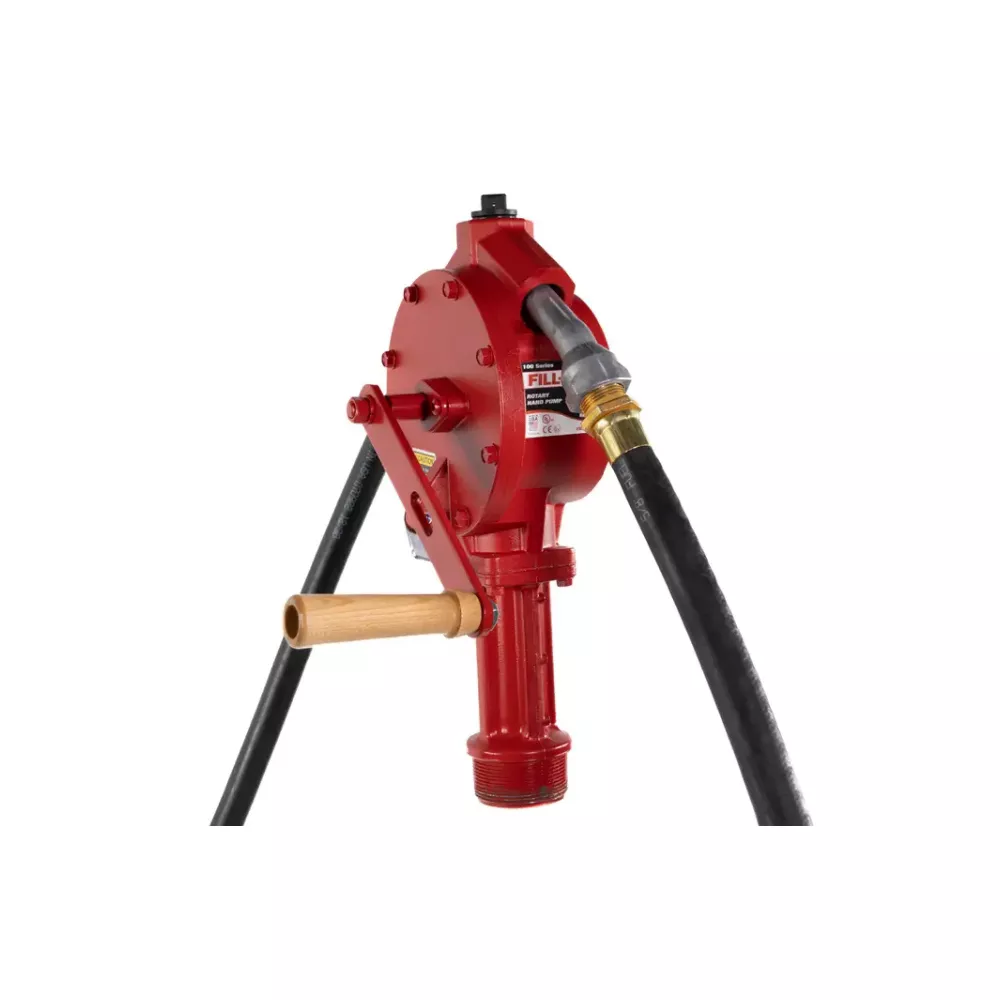

The Fill-Rite Rotary Hand-Operated Fuel Transfer Pump with Nozzle Spout is a hand-operated, heavy-duty fuel transfer pump that delivers 10 gal. per 100 rotations. This hand pump and accessory bundle comes complete with a hose, a nozzle spout, a suction pipe, and installation components. The cast-aluminum Fill-Rite pump provides smooth, continuous transfer of medium viscosity liquids, as well as oil, gasoline and diesel fuel. An improved seal keeps water out, and the unit offers a built-in check valve and strainer. The pump easily mounts to a standard drum with 2 in. NPT. Padlock-compatible pump can be set up for reverse flow and is adaptable for drums, kegs or storage tanks.

Built to last with rugged, cast-aluminum construction and designed for maximum durability and lifetime corrosion resistance
Reversible flow design allows you to use your fuel transfer pump for fueling and draining vehicle fuel tanks
Ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
Padlock-compatible handle adds security to protect your investment
Included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety
Included strainer keeps large particulate contaminants out of your equipment
Designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits

Fill-Rite Manual Rotary Fuel Transfer Hand Pump with Pour Spout 10g/100 Turns Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	0 hr.
Features	Compatible with Diesel, Gasoline, Mineral Spirits, Light Oils
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	10g per 100 revolutions
Maximum Head Lift	0 in.
Maximum Operating Pressure	0 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	Hand Crank
Product Height	5 in.
Product Length	5 in.
Product Weight	8 lb.
Product Width	8 in.
Warranty	Limited Lifetime
Manufacturer PartNumber	FR112

Fill-Rite Manual Rotary Fuel Transfer Hand Pump with Nozzle Spout, 10g/100 Revolutions Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA Body Materials Cast Iron Compatible Fluids Diesel Discharge Fitting Female Threaded Discharge Diameter 0.75 in. Duty cycle 0 h. Features Compatible with diesel, gasoline, mineral spirits and light oils Hose diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow 10 g per 100 revolutions Maximum Head Lift 0 in. Maximum Operating Pressure 0 PSI Maximum Operating Temperature 105 degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power Type Crank Product Height 5 in. Product Length 5 in. Product Weight 8 lb. Product Width 8 in. Limited Lifetime Warranty Manufacturer Part Number FR112
