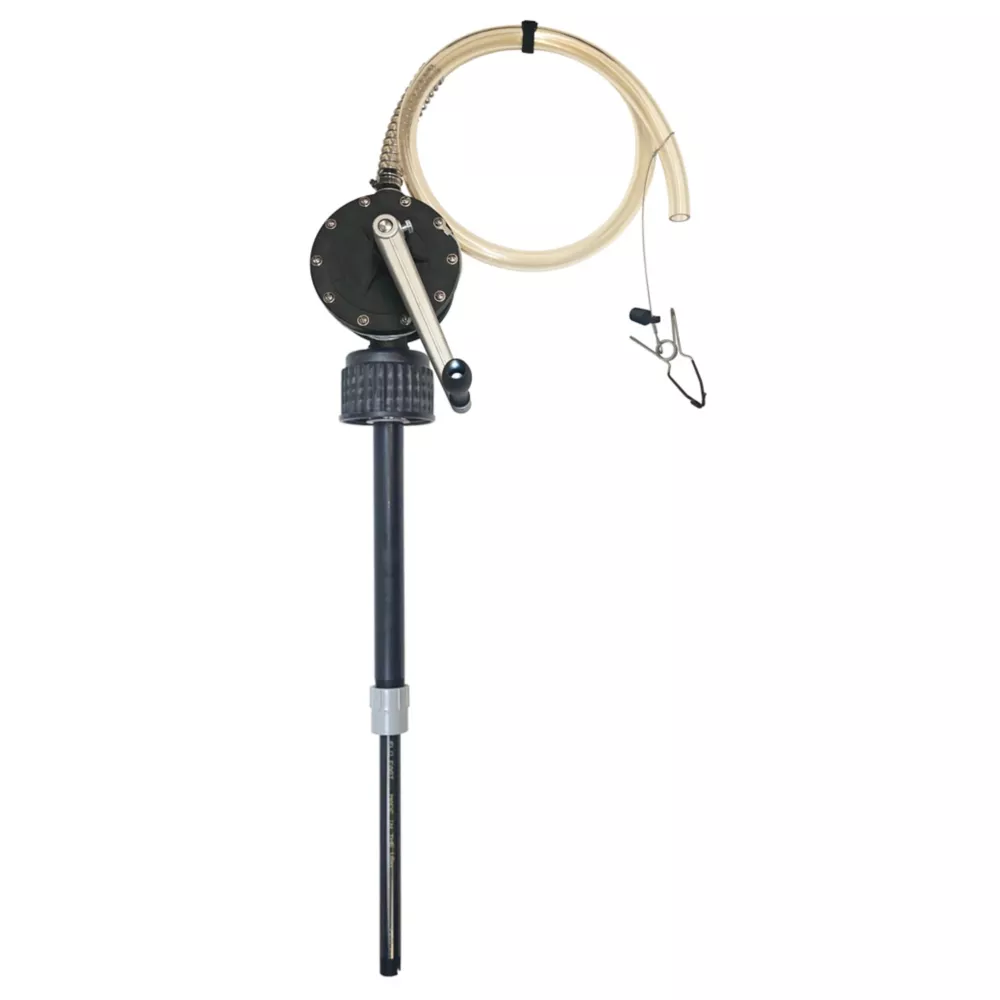

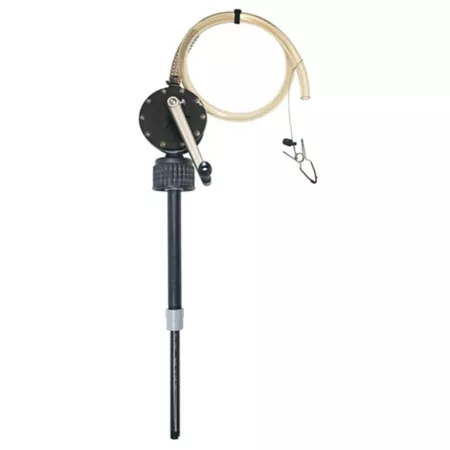

FLO-RAPIDE 17 oz Plastic Diesel Exhaust Fluid (DEF) Pump for Containers Fuel Transfer Pumps Truck & Automotive

The FLO-FAST 17 oz. Plastic Diesel Exhaust Fluid (DEF) Pump for Containers is designed for a variety of DEF transfer applications. The professional-model pump, coupled with our patented technology, is designed to fit on the FLO-FAST containers. In addition, the DEF container pump can adapt to industry-standard 15, 30 and 55 gal. barrels with a bung adapter. The pump has three internal vanes that build pressure to pump and draw fluid at very high rate of 8 gal. per minute. The diesel exhaust fluid pump material and construction is made to last and will get your fluid transfer operations done safe, fast and with ease.

Pumps or draws (siphons) up to 8 gal. per minute (GPM)
Corrosion resistant 3-vane rotary DEF pump
Telescoping draw tube allows the flexibility to own multiple size containers with the need for only 1 pump
Cap includes an EPDM O-ring
DEF container pump is made in the USA
Opening diameter: 0.75 in.; maximum fill capacity: 17 oz.
Comes in black
Dimensions of the diesel exhaust fluid pump: 10 in. L x 14 in. W x 44.5 in. H; weighs 9 lb.
Backed by a 1 year warranty
Made of a plastic composite material that is compatible with DEF
Double-seal technology in effect holds up with all types of fluids, even the harshest chemicals
Self-priming construction allows for convenient use

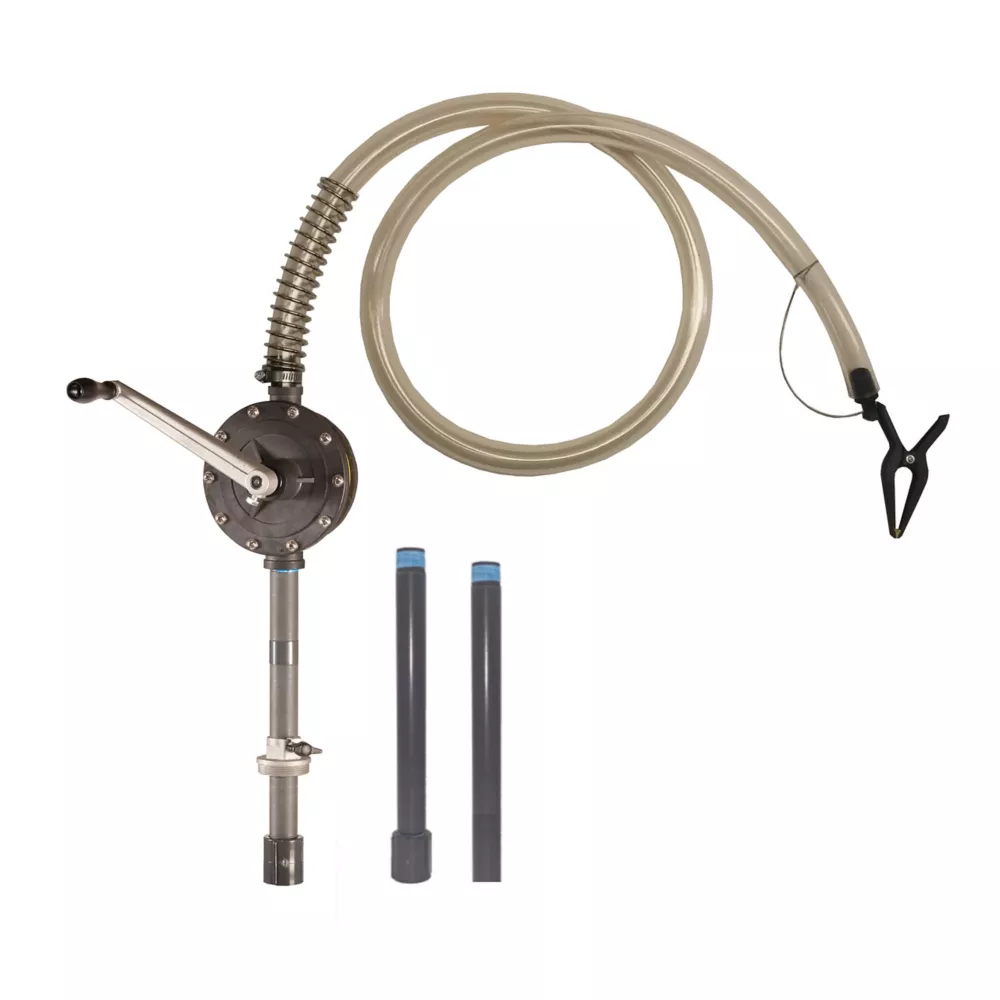

Includes pump housing, container cap, main draw tube, handle, 5 ft. of hose, relief spring, tether with plug and static line and telescoping draw tube
Before pumping and drawing: make sure safety tether squeeze clamp is attached to the equipment, utility vehicle or boat before transferring fluid; the purpose of the squeeze clamp is to ensure the hose will stay in the filler opening
Pumping and drawing: when pumping or drawing fluid with the FLO-FAST pump, you must properly vent the system; turn vent counterclockwise (turns into container) to open vent and clockwise (vent turns outward) to close the vent; if you are using the FLO-FAST pump with fluids that do not lubricate, over time you may have to prime the pump if you are trying to pump or draw fluid with a dry pump; you may need to prime the pump if you are trying to draw or suck fluid from more than 7 ft. away (each pump comes with 5 ft. of hose); 5 ft. accessory extension is for pumping purposes; if you are pumping or drawing at a rate of more than 60 revolutions per minute, you run the risk of over pressurizing the pump
When fluid transfer is complete: carefully raise the line out of the fluid opening and let any residual fluid drain back into the system container; do not set the hose down until all of the fluid has drained back into the container; place plug on the tether line into the aluminum tube to seal the hose; before removing the pump system from containers, make several counterclockwise rotations to pull residual fluid out of the pump housing; leave the pump on container for a minimum of 15 minutes to ensure any fluid inside the pump housing drains back into the container; always remove the FLO-FAST pump from the container and place the original cap back onto the container to properly seal and store fluid; to eliminate any person from pumping fluid accidentally, do not store the FLO-FAST pump in the container; always return the pump and system to a safe area where children/others do not have access to it
Warnings; never allow individuals under licensed age to use the FLO-FAST pump or system; never let anyone use the FLO-FAST system or containers that has not read this instruction sheet in full; do not transport the FLO-FAST pump while it is in a container; only use the FLO-FAST pump on industry standard largemouth containers; pouring from these containers can be dangerous and is not recommended with a volatile or combustible fluids; for that reason, we have designed the FLO-FAST pump system to safely transfer these fluids; do not use the FLO-FAST pump on any container that does not fit the FLO-FAST pump; if you choose to use FLO-FAST with any type of volatile fluid like gasoline, methanol, kerosene or any harmful chemical, do not inhale vapors; when filling a container, always place the container on the ground; to allow for fluid expansion, do not overfill the container beyond manufacturers specified levels; if any component breaks on the FLO-FAST portable fluid transfer pump or system, do not use until you have replaced all of the broken components

FLO-RAPIDE 17 oz Plastic Diesel Exhaust Fluid (DEF) Pump for Containers Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	FLO-FAST
Country of Origin	Made in USA
Features	Liquid Transfer
Fill Opening Diameter	0.75 in.
Maximum Fill Capacity	17 oz.
Outlet Diameter	0.75 in.
Primary Color	Black
Primary Material	Plastic
Product Height	44.5 in.
Product Length	10 in.
Product Weight	9 lb.
Product Width	14 in.
Warranty	1 Year
Manufacturer PartNumber	55100-D
