GPI 0.4 HP 12V G20-012AD Mobile Fuel Transfer Pump 20 GPM Fuel Transfer Pumps Truck & Automotive

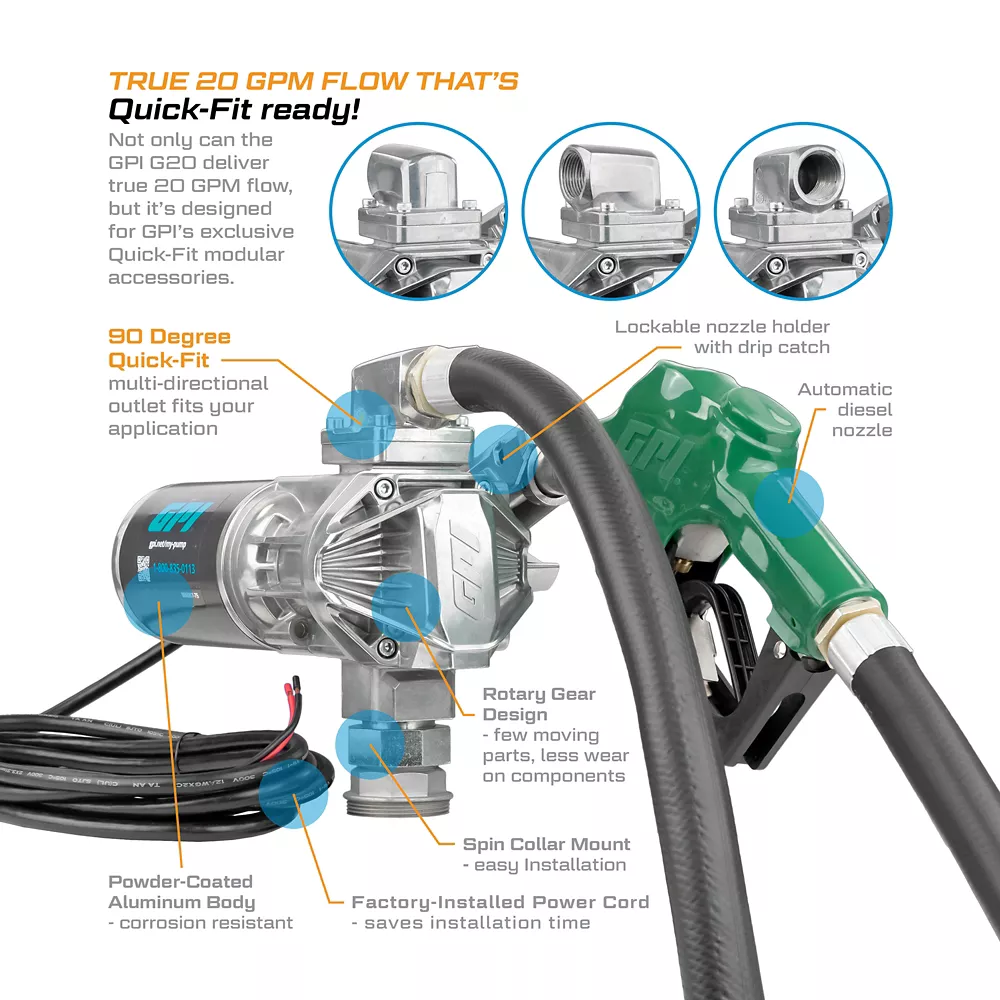

The GPI 20 GPM G20-012AD Mobile Fuel Transfer Pump features a new modular design with Quick-Fit accessories. Attach a filter, meter or both quickly and easily. Quick-Fit accessories include a simple flanged, four-bolt connection with O-ring for leak free, trouble free installation. This 12V pump delivers a true 20 GPM flow rate. The fuel transfer pump has a rotary gear pump and powder coated die-cast aluminum body to ensure a long life with minimal maintenance. UL listed to US and Canadian safety standards. Available in auto diesel, manual diesel and pump only models. 100% made in Wichita, KS.- Quick-fit modular design with simple four-bolt connection points allows you to attach a filter, meter or both easily and build a custom system to fit your needs
- Manufactured from high-quality die-cast aluminum, our 12V fuel pump with automatic nozzle is extremely dependable and lightweight
- Rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components; thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump
- 12VDC motor of our fuel transfer pump is highly efficient as it delivers gasoline, diesel fuel, ethanol blends, and kerosene at flow rates up to 20 GPM
- Fuel transfer pump has an integrated circuit breaker to prevent overheating, extending the overall pump life
- Innovative spin collar design of our fuel transfer pump 12V makes installation fast and easy
- Weight: 19 lb. (8.6 kg)
- Will put minimal stress on your tank bung
- Aluminum housing is rugged and corrosion-resistant to withstand years of work in any application
- Certifications: cULus Class 1, Div 2
- 2 year warranty
GPI 0.4 HP 12V G20-012AD Mobile Fuel Transfer Pump 20 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | GPI |
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 40A |
| Body Materials | Aluminum |
| Compatible Fluids | Kerosene |
| Discharge Connection | None |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. on/off |
| Features | Self-Priming |
| Horsepower | 0.4 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Standard |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 9 ft. |
| Maximum Operating Pressure | 15 PSI |
| Maximum Operating Temperature | 125 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | -20 deg. F |
| Power Cord Length | 18 ft. |
| Power Type | Electric, 12 Volt |

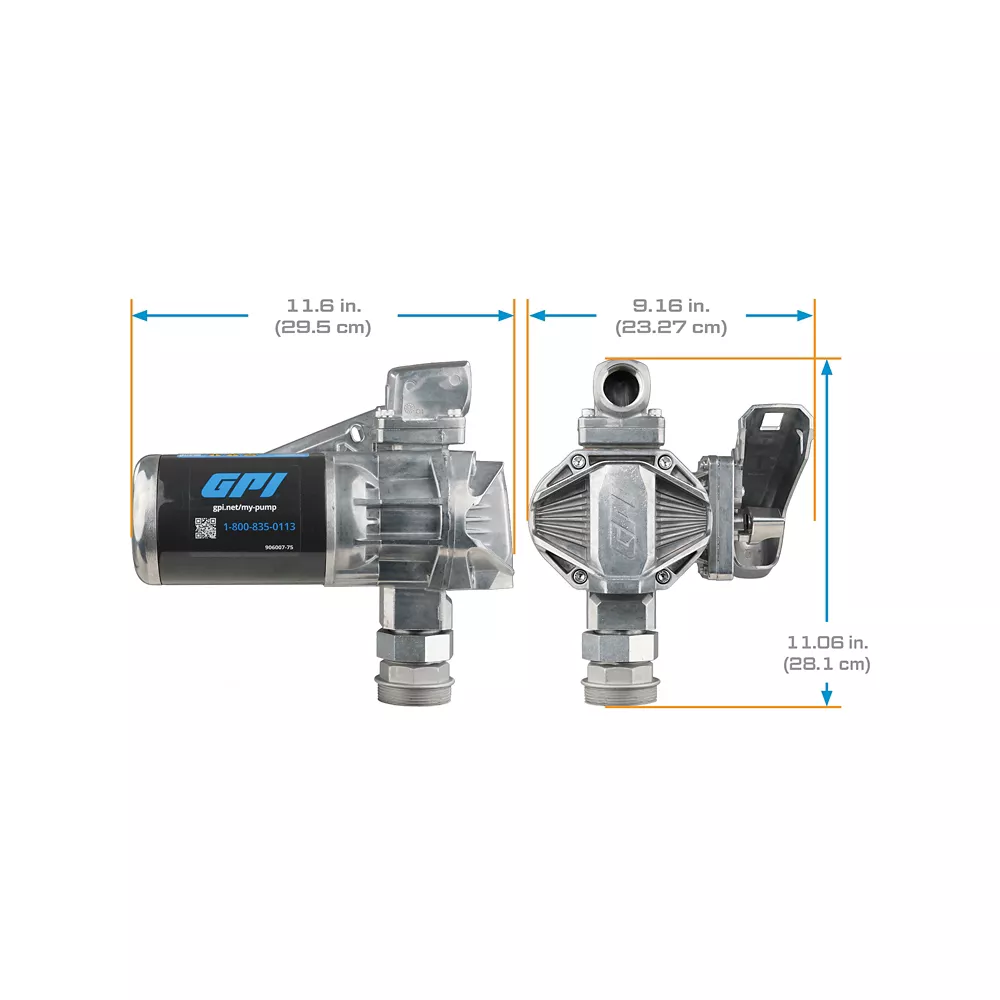

| Product Height | 9.24 in. |
| Product Length | 11.62 in. |
| Product Weight | 35 lb. |
| Product Width | 9.2 in. |
| Voltage | 12V |
| Warranty | 2 Year |
| Manufacturer PartNumber | 162000-03 |
