GPI M30-G6N Mechanical Fuel Meter Fuel Transfer Tank Accessories Truck & Automotive

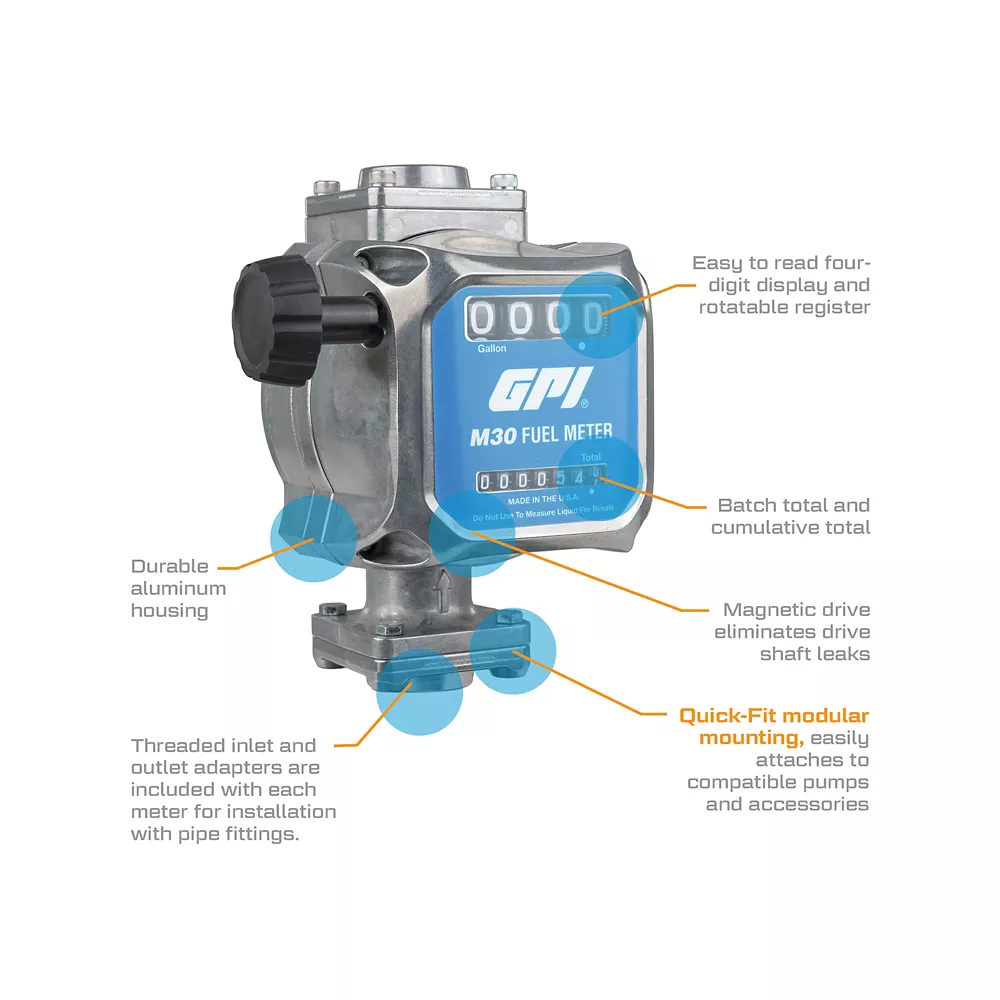

This quick-fit GPI Mechanical Fuel Meter is easy to install, easy to use, and easy to maintain. The mechanical fuel meter is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in the 5-30 GPM or 19 to 114 L/m flow range. Using mechanical gears, this fuel meter translates flow data from a nutating disk into calibrated units which are indicated on the face of the meter. It is equipped with both NPT and Flange connections which allows it to be installed on all threaded pump outlets or modular GPI products.- UL and cULus safety rated mechanical fuel meter made of long-lasting aluminum housing and has a magnetic drive that replaces the driveshaft and seal, eliminating leaks
- Simple four-bolt connections that allow the meter to be mounted in multiple directions
- Meter has a simple twist knob reset and features an easy to read, four digit batch total and cumulative total that displays in gal.
- Using mechanical gears, meter translates flow data from a nutating disk into calibrated units which measure within a +/-2% accuracy across a flow range from 5 to 30 GPM or 19 to 114 L/min
- Fuel meter is designed, manufactured, and supported through our Wichita, Kansas facility
- Easily attaches to the new G20 fuel transfer pump to build a custom system to fit your needs
- Equipped with both NPT and Flange connections for installing on all threaded pump outlets or modular GPI products
GPI M30-G6N Mechanical Fuel Meter Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories
| Specification | Description |
|---|---|
| Brand | GPI |
| Country of Origin | Made in USA |
| Compatibility | For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene |
| Package Quantity | 1 |
| Primary Color | Gray |
| Primary Material | Aluminum |
| Product Height | 7.88 in. |
| Product Length | 5.21 in. |
| Product Weight | 5.05 lb. |
| Product Width | 5.91 in. |
| Transfer Tank Accessory Type | Meters and Gauges |
| Warranty | 5 Year |
| Manufacturer PartNumber | 165100-03TSC |
