GPI Manual Lever Fluid Transfer Pump 50 gal./100 strokes Fuel Transfer Pumps Truck & Automotive

The GPI HP-100 Fluid Transfer pump is a premium fuel piston hand pump that is reliable and versatile, delivering the highest flow rate in the industry year after year. It is a single solution for multiple pumping applications, suitable for pumping fuels and motor oils. The HP-100 features a Dual-Flo handle providing the user with the flexibility of operating the pump at two flow rates. A setting of 1/2-gallon per stroke cycle provides faster high-capacity flow for fuels. A 1/4-gallon setting allows for easier pumping of thicker fluids, such as motor oil, even in cold temperature conditions (-25°F / -32°C).

Dual-Flo piston design pumps fluid on both the push and pull stroke, Built -in anti siphon valve.
Includes a low setting for low-volume, low-resistance pumping (1/4 gallon) and a high setting for high volume, high-resistance pumping (1/2 gallon).
Light-weight aluminum body provides corrosion resistance and reduces tank stress.
Lockable handle deters fluid theft. Fits a 2 in. NPT bung.
For use with diesel (diesel blends to B20), hydraulic fluid, kerosene and 30W oil.

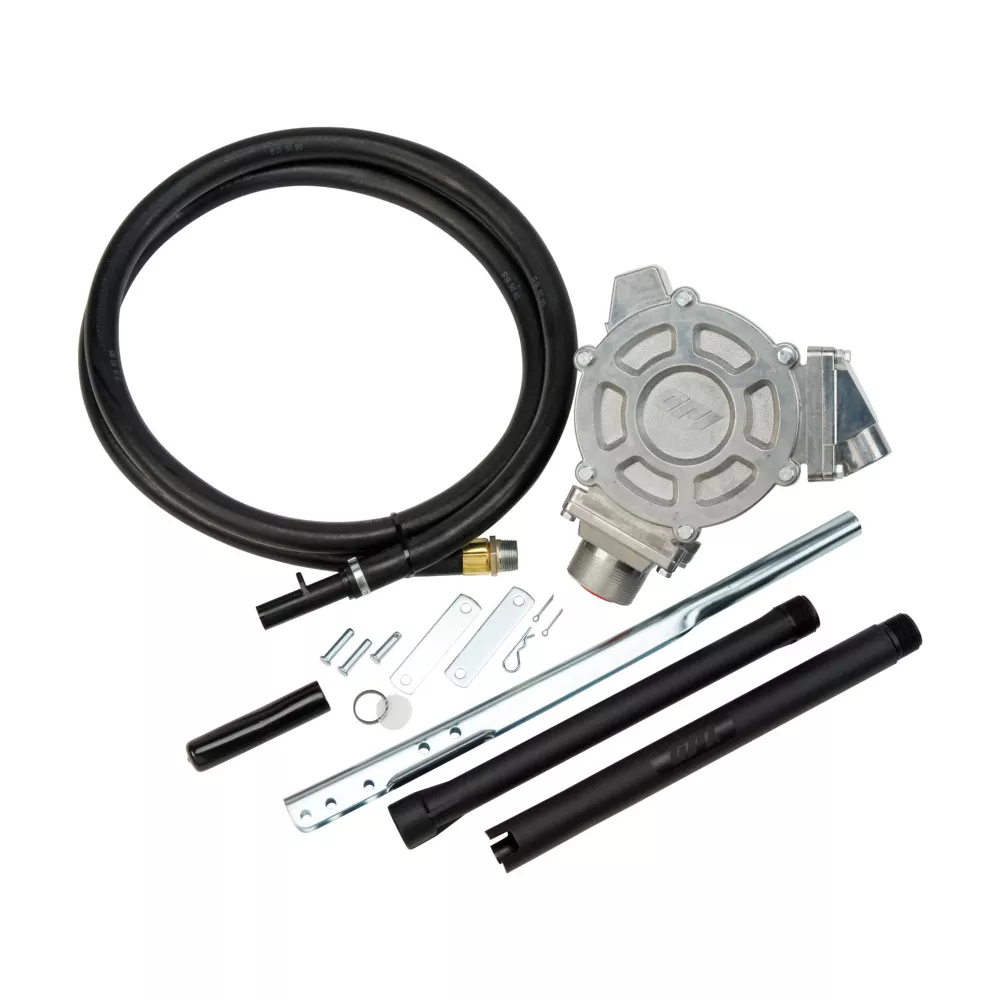

Includes a 3/4 in. x 8 ft. (2.44 m) fuel dispensing hose and thermoplastic nozzle.
2-yr Warranty
U.L. listed to U.S. and Canadian standards.

GPI Manual Lever Fluid Transfer Pump 50 gal./100 strokes Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in FNPT
Duty Cycle	50 gal. per 100 strokes
Features	The HP-100 generates twice the flow of any other hand pump. For heavier fluids or for easier pumping, use the second stroke setting. in either handle position, expect economical, trouble-free operation.
Horsepower	1 person
Inlet Connection	Threaded Female
Inlet Diameter	0.75 in.
Intended Use Grade	Standard
Maximum Flow Rate	50 gal. per 100 strokes
Power Type	Manual
Product Height	23 in.
Product Length	8.23 in.
Product Weight	13.9 lb.
Product Width	9.68 in.
Voltage	0v
Warranty	2 Year
Manufacturer PartNumber	114000-5TSC

GPI 50 gal./100 Strokes Manual Lever Action Fluid Transfer Hand Pump Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA Compatible Fluids Fuel Discharge Fitting Male Threaded Discharge Diameter 0.75 in. FNPT Duty Cycle 50 gal. per 100 strokes Features The HP-100 generates twice the flow rate of any other hand pump. For heavier fluids or for easier pumping, use the second stroke setting. in either handle position, expect economical and trouble-free operation. Horsepower 1 Person Inlet Connection Female Threaded Inlet Diameter 0.75 in. Intended Use Grade Standard Maximum Flow 50 gal. per 100 shots Power Type Manual Product Height 23 in. Product Length 8.23 in. Product Weight 13.9 lb. Product Width 9.68 in. Voltage 0 V Warranty 2 years Manufacturer Part Number 114000-5TSC
