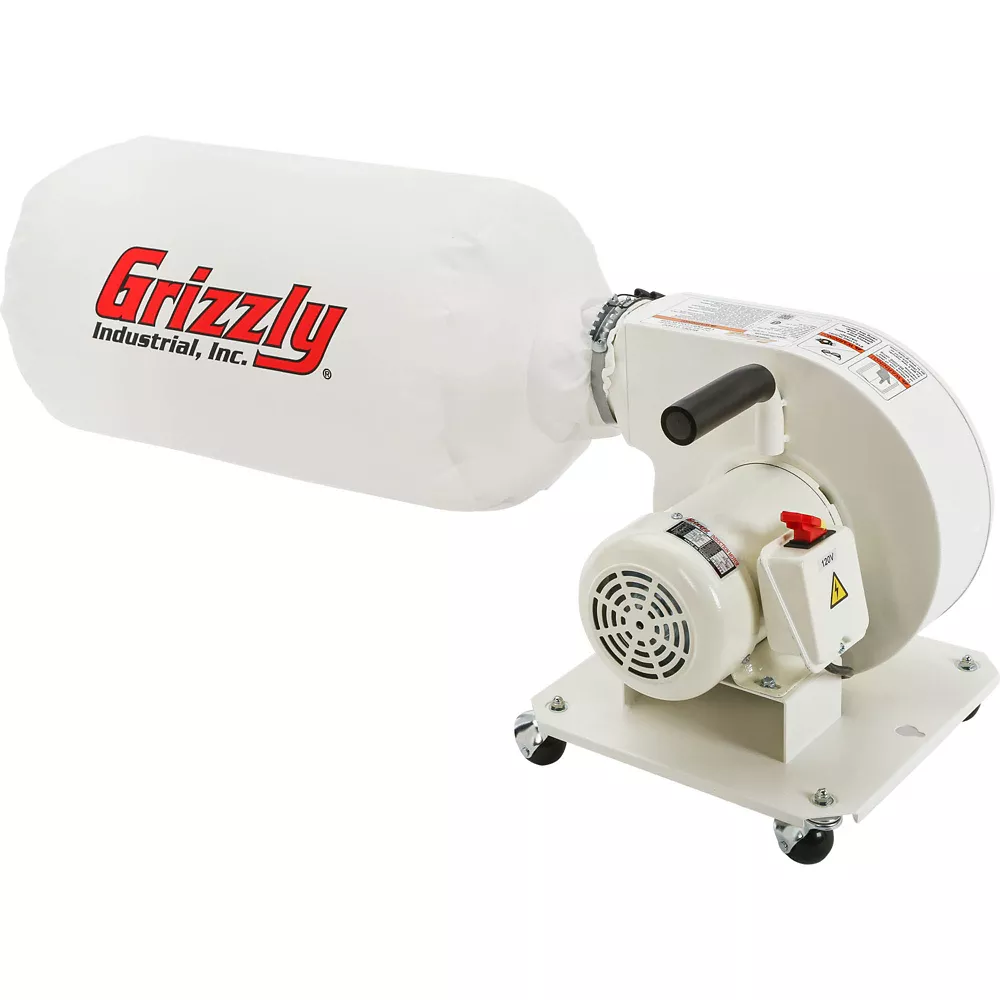

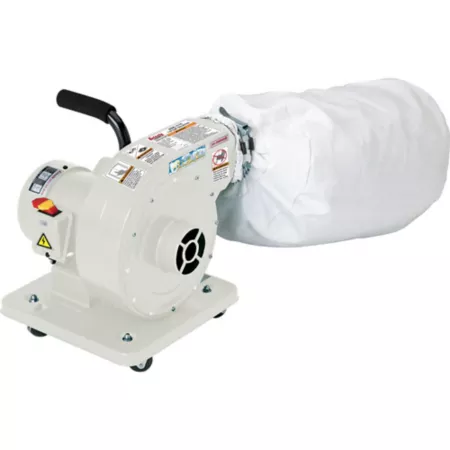

Grizzly G1163P-1 HP Light Duty Dust Collector - Dust Collectors Woodworking & Other Power Tools

Effective dust collection not only keeps your shop cleaner and more pleasant to work in, but it can also help reduce your overall exposure to dust. The G1163P 1 HP Light Duty Dust Collector is a point-of-use dust collector, which is designed to capture dust and wood chips from 1 woodworking machine at a time, such as a table saw, jointer or planer. It is small in size and has a low profile that make this a perfect point-of-use, dedicated dust collector. The air drawn in by the 10 in. cast aluminum impeller is filtered through a cloth collection bag that can be removed and emptied when full. The bag filtration is rated at 30 mic, which for a visual comparison, is about half the width of a human hair. This is smaller than the threshold the human eye can see. The G1163P is intended for single machine use. When the unit is not in use, it can be unplugged, unconnected and rolled away on its convenient casters. A carrying handle was designed to assist move the dust collector to and from where you will be using and storing it. When it's not possible to plumb your shop with a full dust collection system, put 1 of these next to every machine instead.Made in an ISO 9001 factory CSA certified

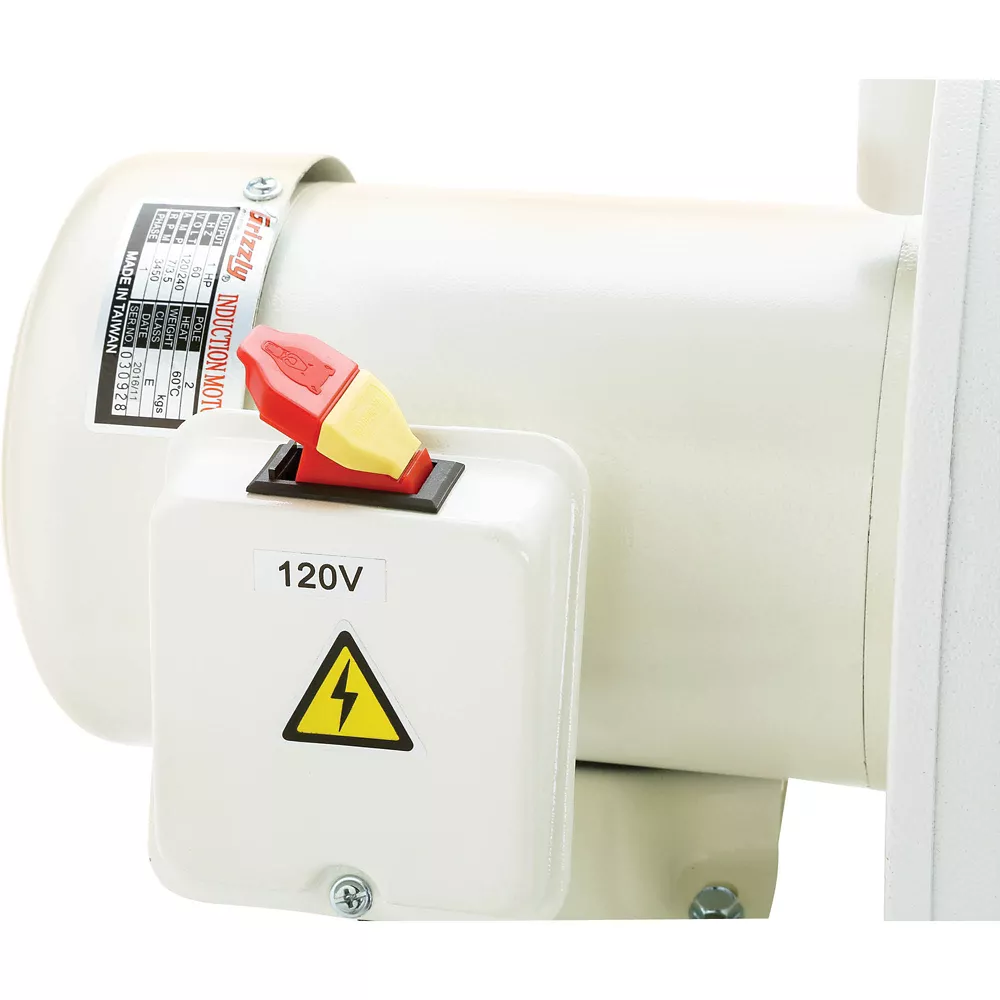

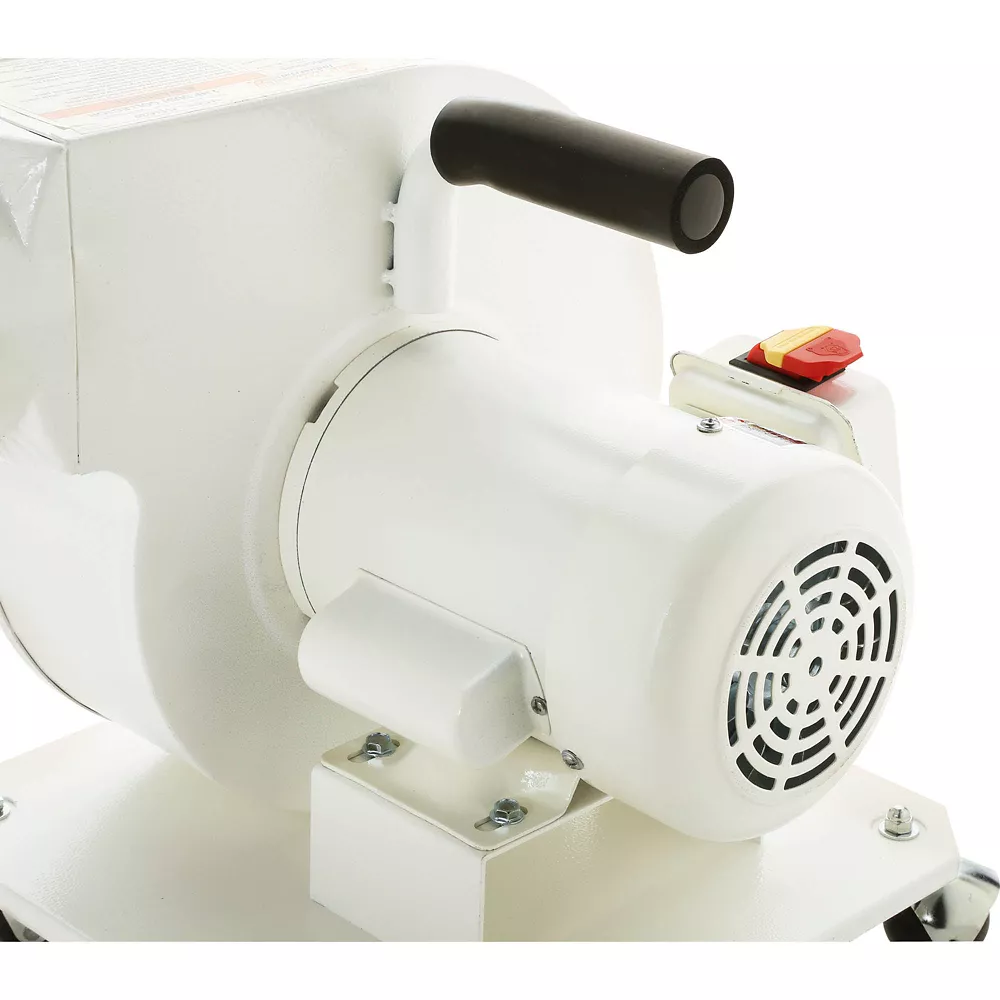

Motor size: 1 HP, 120V/240V (prewired for 120V), single-phase, 7A/3.5A
Air suction capacity: 537 CFM
Intake hole size: 4"
Static pressure: 7.2"
Impeller: 10", Balanced cast aluminum, radial fin
Bag size (diameter x depth): 13-1/2" x 24"
Material collection capacity: 11-gallon
Bag Filtration: 30-Micron
Overall dimensions: 44 W x 18" L x 19-1/2" H
Approximate shipping weight: 50 lbs.

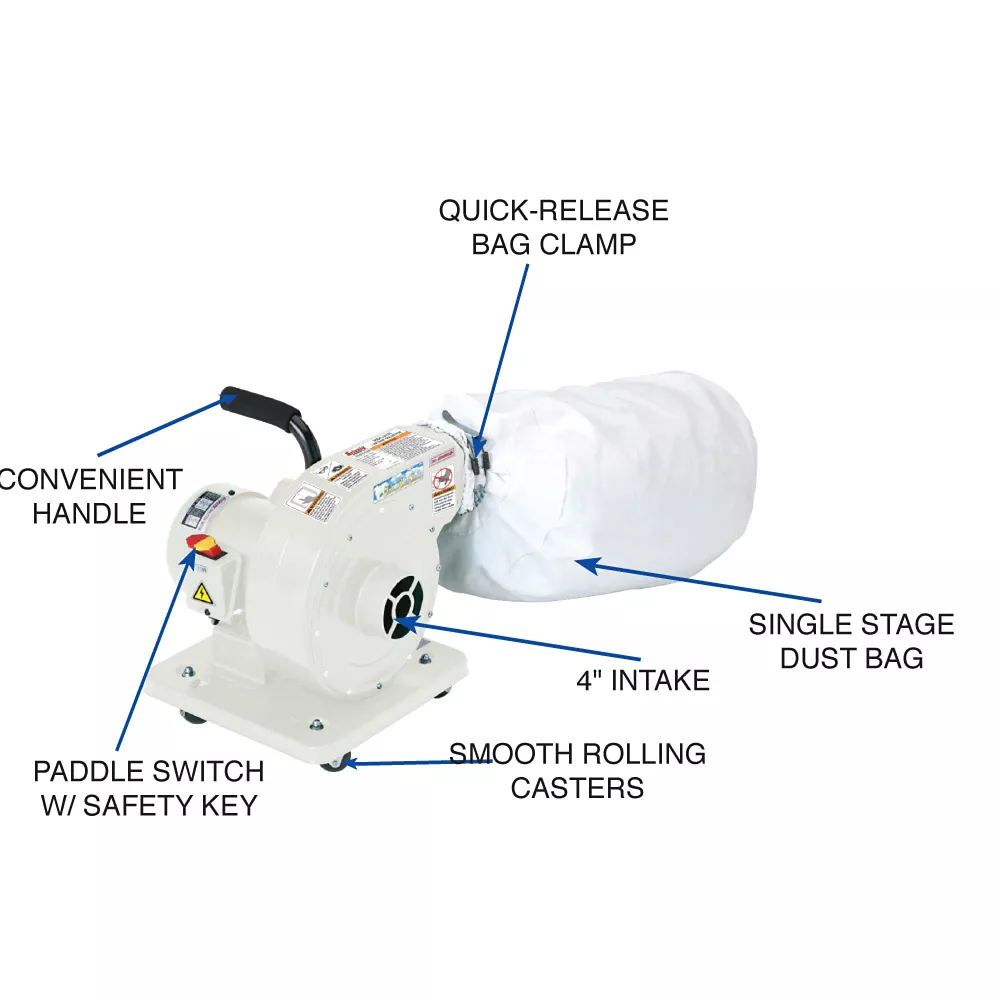

30-Micron bag filtration

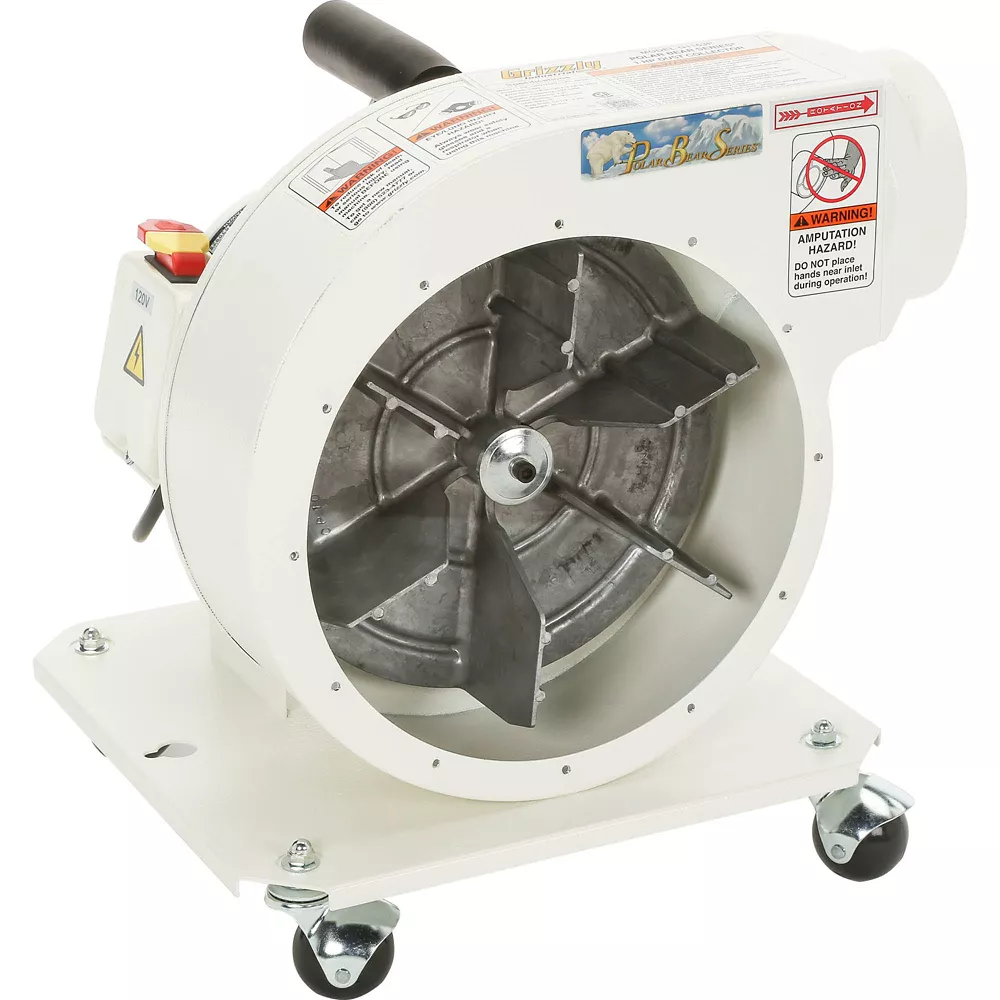

10" Cast aluminum impeller

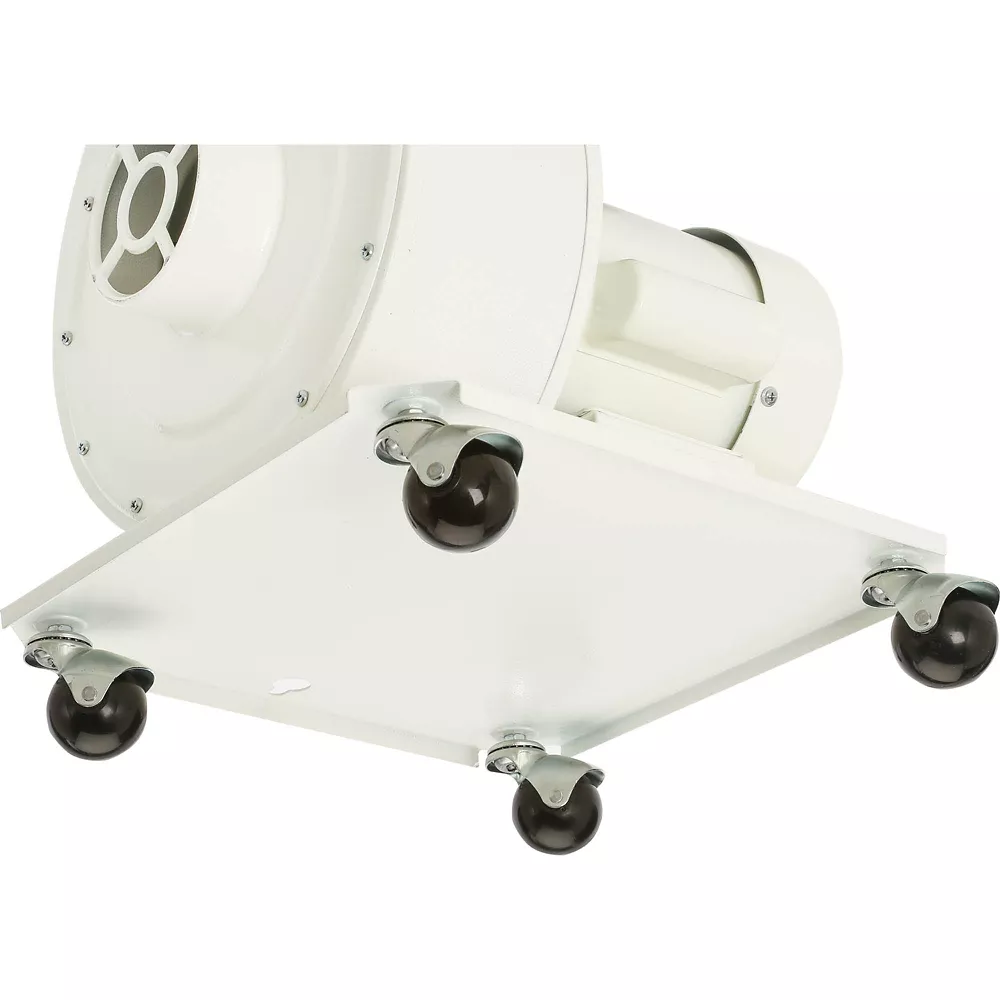

Steel base with casters for mobility
White powder coated paint

Grizzly G1163P-1 HP Light Duty Dust Collector - Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	7 Amps
Compatibility	See manual
Decibel Rating	79 dBA
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Aluminum
Horsepower	1 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	537 CFM
Operating Velocity	537 CFM
Product Height	19.5 in.
Product Length	44 in.
Product Weight	45 lb.
Product Width	18 in.
Warranty	1
Manufacturer PartNumber	G1163P

Grizzly G1163P-1 HP Light Duty Dust Collector - Specifications Expand/Collapse Specification Description Brand Grizzly Country of Origin Imported Amperage 7 A Compatibility View Manual Decibel Rating 79 dBA Phase Single Phase Features No Additional Features Filter Efficiency 0 - Not Measured Filtration Material Aluminum Power 1 hp Pipe Diameter 0 in. Hose Length 0 in. Maximum Air Flow 537 CFM Operating Speed 537 CFM Product Height 19.5 in. Product length 44 in. Product weight 45 lbs. Product width 18 in. Warranty 1 Manufacturer part number G1163P.
