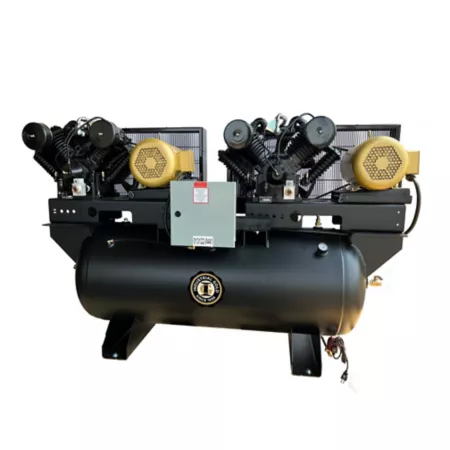

Industrial Gold 7.5 HP 120 gal Duplex Reciprocating Air Compressor 208 to 230 V Single Phase 60 Hz Stationary Air Compressors Air Compressors
The Industrial Gold 7.5 HP Duplex Reciprocating Air Compressor is the perfect addition to your tools and accessories. Equipped with a 208 to 230V 1 phase motor, this reciprocating air compressor is sure to hold up for long-lasting use. The air compressor also features a 120 gallon 200 PSI ASME/CRN certified air receiver.- Delivers 28 CFM at 175 PSI per side; 56 CFM at 175 PSI total
- Compressor silencing system for quiet operation
- Equipped with a 208 to 230V 1 phase motor
- 120 gallon 200 PSI ASME/CRN certified air receiver
- Air compressor includes a 2-piece tank and top plate
- Belt guard after cooler for safe use
- Full saddle mounting feet for stability
- Cast iron air compressor pumps for durability
- Redundancy control system for convenience
Industrial Gold 7.5 HP 120 gal Duplex Reciprocating Air Compressor 208 to 230 V Single Phase 60 Hz Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | Industrial Gold |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 90 PSI | 60CFM |
| Airflow Volume | 28 CFM @ 175 PSI per side, 56 CFM @ 175 PSI Total |
| Air Outlet Size | 3/4 in. |
| Compressor Horsepower | 7.5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 120 gal |
| Compressor Type | Horizontal |
| Compressor Voltage | 208V/230V |
| Drain System | Manual |
| Drive Type | Electric |
| Features | Cast Iron |
| Fuel Tank Capacity | 120 gal. |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 78 in. |
| Product Length | 86 in. |
| Product Weight | 1,100 lb. |
| Product Width | 24 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 120 gal. |
| Tank Orientation | Horizontal |
| Warranty | 1 Year |
| Manufacturer PartNumber | DCI7521E120H-CI10-P |
