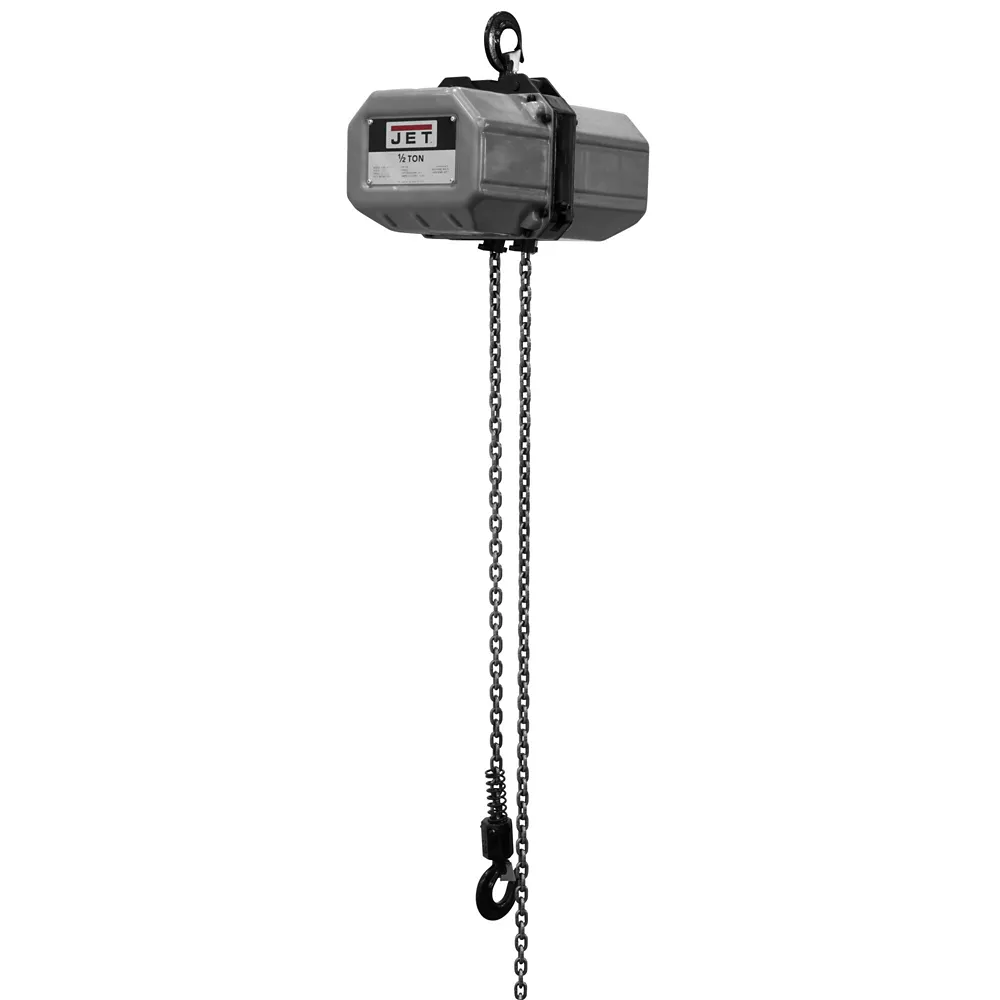

JET Electric Chain Hoist 1/2 Ton Single Phase 115/230 V 20 ft Lift Electric Hoists Ceiling Hoists

The JET 1/2 Ton, 1Ph, 20 ft. Lift, 115/230V Electric Chain Hoist combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC series electric hoist is available in 1/2 ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
Thermal Overload Protection- Protects the hoist from overheating in low voltage situations
DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist
2 Year

JET Electric Chain Hoist 1/2 Ton Single Phase 115/230 V 20 ft Lift Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	20 ft.
Features	Black oxide coated load chain
Lift Assist Ratio	N/A
Lift Height	20 ft.
Maximum Pull Length	20 ft.
Maximum Weight Capacity	1/8 Ton
Phase	Single
Primary Material	Steel
Product Height	11.42 in.
Product Length	14.57 in.
Product Weight	31 lb.
Product Width	10.83 in.
Voltage	115V/230V
Warranty	2 Year
Manufacturer PartNumber	121200

JET 1/2 Ton Electric Chain Hoist, 1 Ph, 115/230V, 20 ft. Lift Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Chain Length 20 feet Features Black Oxide Coated Lift Chain Lift Assist Ratio N/A Lift Height 20 feet Maximum Pull Length 20 feet Capacity maximum weight 1/8 ton Phase Single Primary Material Steel Product Height 11.42 in. Product length 14.57 in. Product weight 31 lbs. Product width 10.83 in. Voltage 115V/230V Warranty 2 years Manufacturer part number 121200
