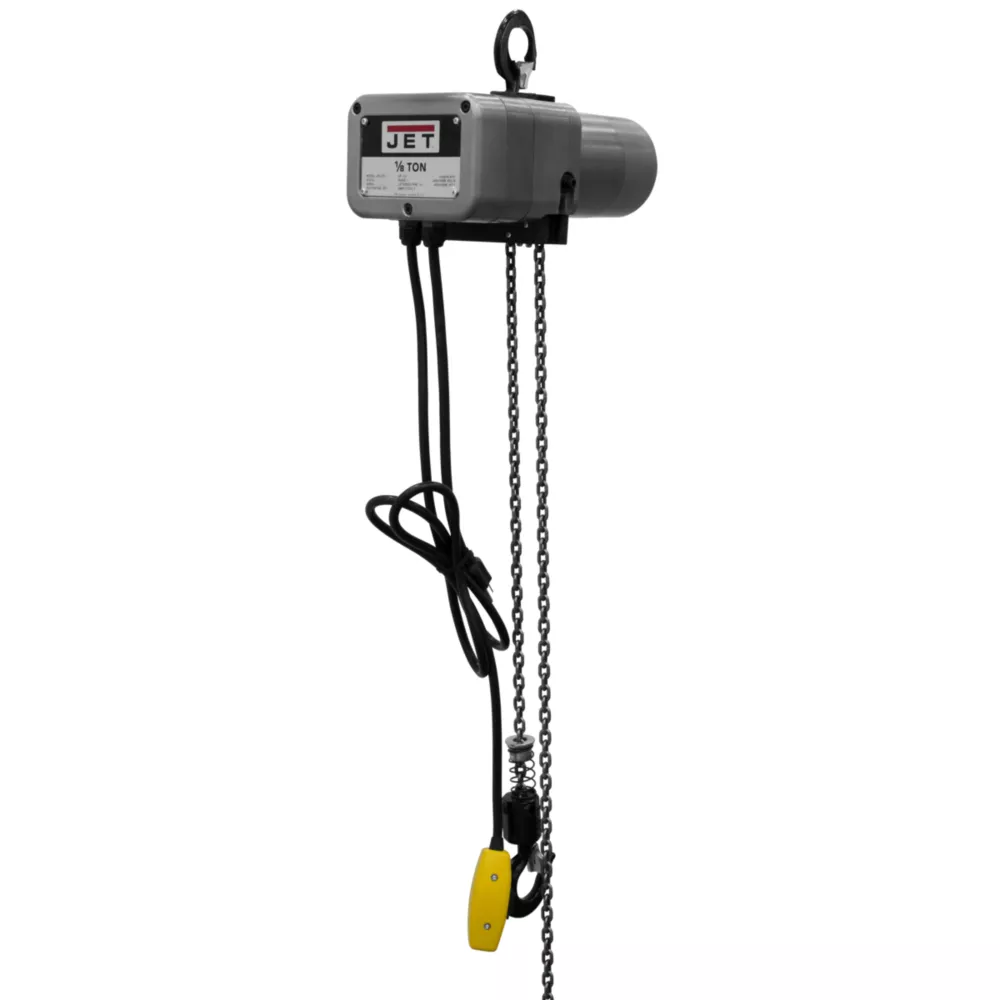

JET Electric Hoist JSH Series 1/8 Ton with 20 Feet Lift 115V Electric Hoists Ceiling Hoists

The JET JSH Series 1/8-Ton Electric Hoist with 20 ft. Lift combines safety, durability and portability to operate in light-duty commercial and industrial applications. The die cast aluminum housing keeps the durable electric hoist lightweight and easily portable. All electric hoist models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity.

Aluminum alloy housing decreases the weight for convenient transportation
Electric hoist has a grade 80 black oxide coated load chain for durability
Heat treated alloy steel geared drive train for long-lasting durability
JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments
Upper and lower limiting switches increase safety by preventing the load chain from over traveling
Available in 1/8 ton and 1/4 ton capacities with standard lifts of 10, 15 and 20 feet (custom lifts available)
Maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance
Industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load
Electric hoist has a built-in thermal overload protection system that keeps the hoist from overheating

JET Electric Hoist JSH Series 1/8 Ton with 20 Feet Lift 115V Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Amperage	3A
Chain Length	20 ft.
Chain Width	0 in.
Features	Black oxide coated load chain
Full Load Lifting Speed	16FPM
Full Load Lowering Speed	16FPM
Hoist Mount Type	Hook mount
Number Of Speeds	1
Horsepower	1/6 HP
Lift Assist Ratio	0
Lift Height	20 ft.
Lift Mechanism	Other
Maximum Pull Length	20 ft.
Maximum Weight Capacity	250 lb.
Phase	Single
Primary Material	Steel
Product Height	11.4 in.
Product Length	14.6 in.
Product Weight	34.0 lb.
Product Width	10.8 in.
Voltage	115V
Warranty	2 Year
Manufacturer PartNumber	110120

JET 1/8 Ton JSH Series Electric Hoist with 20 ft. Lift, 115V Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Amperage 3A Chain Length 20 ft Chain Width 0 in Features Black Oxide Coated Lift Chain Lift Speed at Full Load 16 FPM Lower Speed at Full Load load 16 FPM Hoist mounting type Hook mounting Number of speeds 1 Horsepower 1/6 HP Lift assist ratio 0 Lift height 20 ft. Lifting mechanism Other maximum pull length 20 ft. Maximum weight capacity 250 lbs. Primary monomaterial phase Steel Product height 11.4 in. Product length 14.6 in. Product weight 34.0 lbs. Product width 10.8 in. Voltage 115 V Warranty 2 years Manufacturer part number 110120
