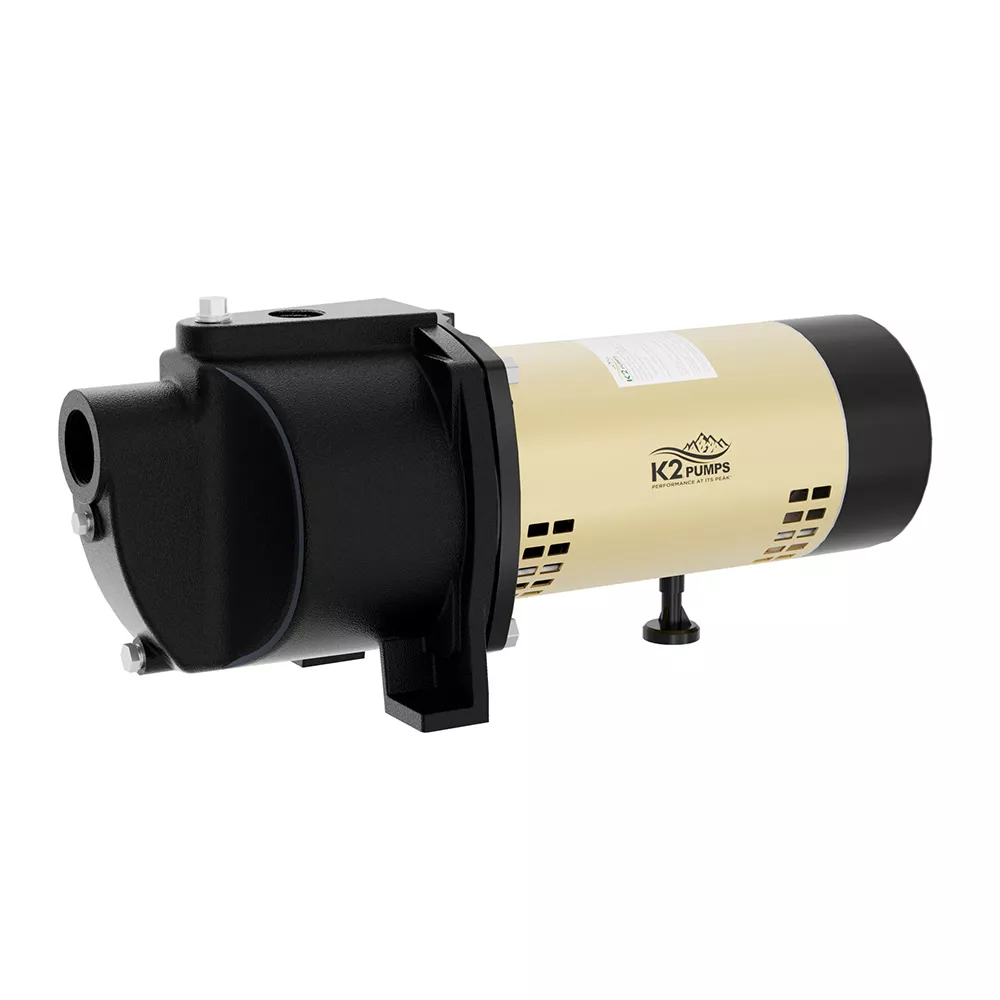

K2 Pumps 1/2 HP 115/230 Volt Cast Iron Electric Shallow Well Jet Pump 14.5 GPM Lead Free Well Pumps Home Improvement

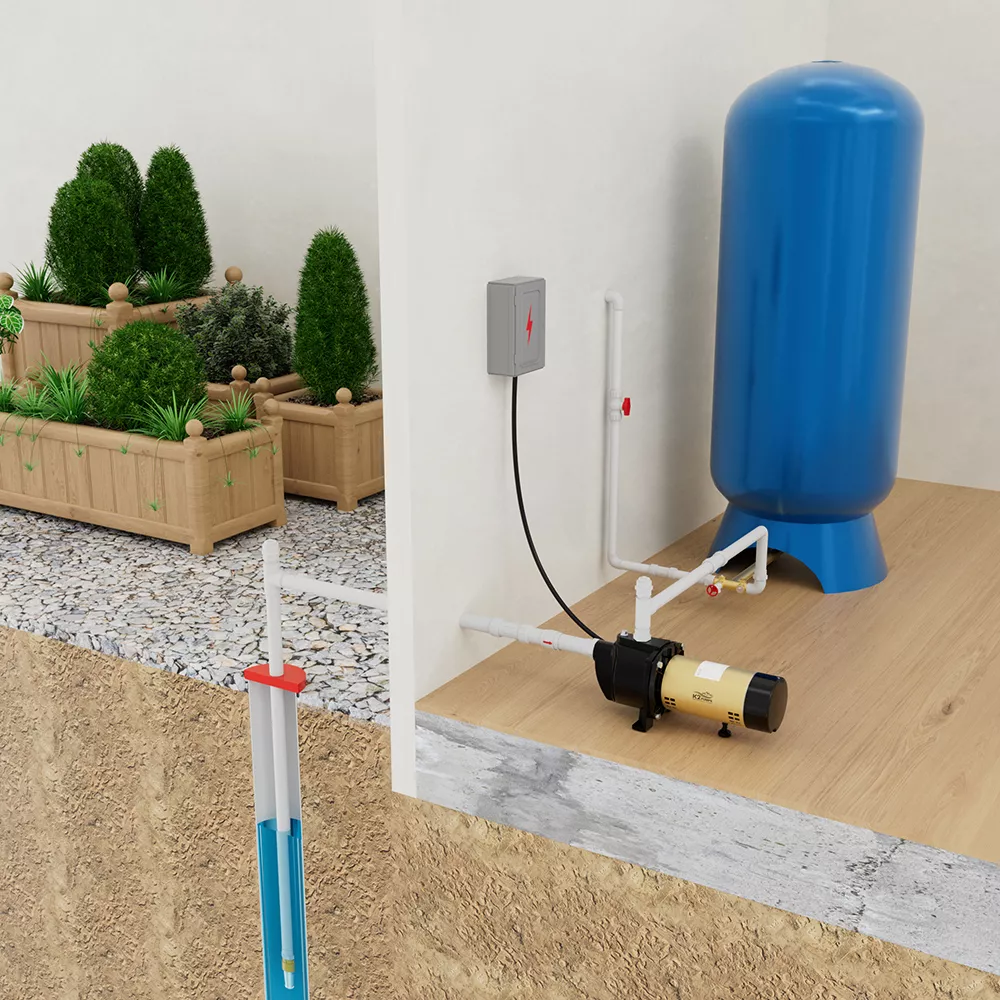

the K2 Pumps 1/2 HP Lead-free shallow well jet pump is engineered for higher performance. The pump will keep the water flowing into your home, cabin or farm. Constructed of durable cast iron, with stainless steel motor shaft and fasteners. The pump delivers water at a flow rate of 14.5 GPM (690 GPH) at 0 ft. of lift. Pre-wired Pressure Switch, preset at 30/50 PSI. Maximum pressure shutoff at 70 PSI. The motor is safeguarded by an auto reset thermal overload protector to prevent overheating.- Installed above ground for shallow wells with depth to water up to 25 ft. deep
- Flow rate of 14.5 GPM at 0 ft. of lift
- Fan-cooled motor extends the life of the pump
- Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
- 115/230V Dual voltage motor, preset at 230V
- 1-1/4 in. NPT Suction and 1 in. NPT Discharge
- Self-priming after pump housing is initially filled
- 3 Year Warranty
K2 Pumps 1/2 HP 115/230 Volt Cast Iron Electric Shallow Well Jet Pump 14.5 GPM Lead Free Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | K2 Pumps |
| Country of Origin | Imported |
| Amperage | 12.4 A/6.2 A |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 0 N/A |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 14.5 GPM |
| Discharge Rate at 25 ft. | 7 GPM |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 115/230 Dual voltage motor, preset at 230V |
| Horsepower | 1/2 HP |
| Impeller Material | Thermoplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1-1/4 in. |
| Maximum Flow Rate | 14.5 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 95 deg. |
| Minimum Operating Temperature | 32 deg. |
| Power Type | Electric |
| Product Height | 8.8 in. |
| Product Length | 10.4 in. |
| Product Weight | 32.12 lb. |
| Product Width | 19.3 in. |
| Motor Type | CSIR |
| Voltage | 115v/230v |
| Warranty | 3 Year |
| Manufacturer PartNumber | WPS05004K |
