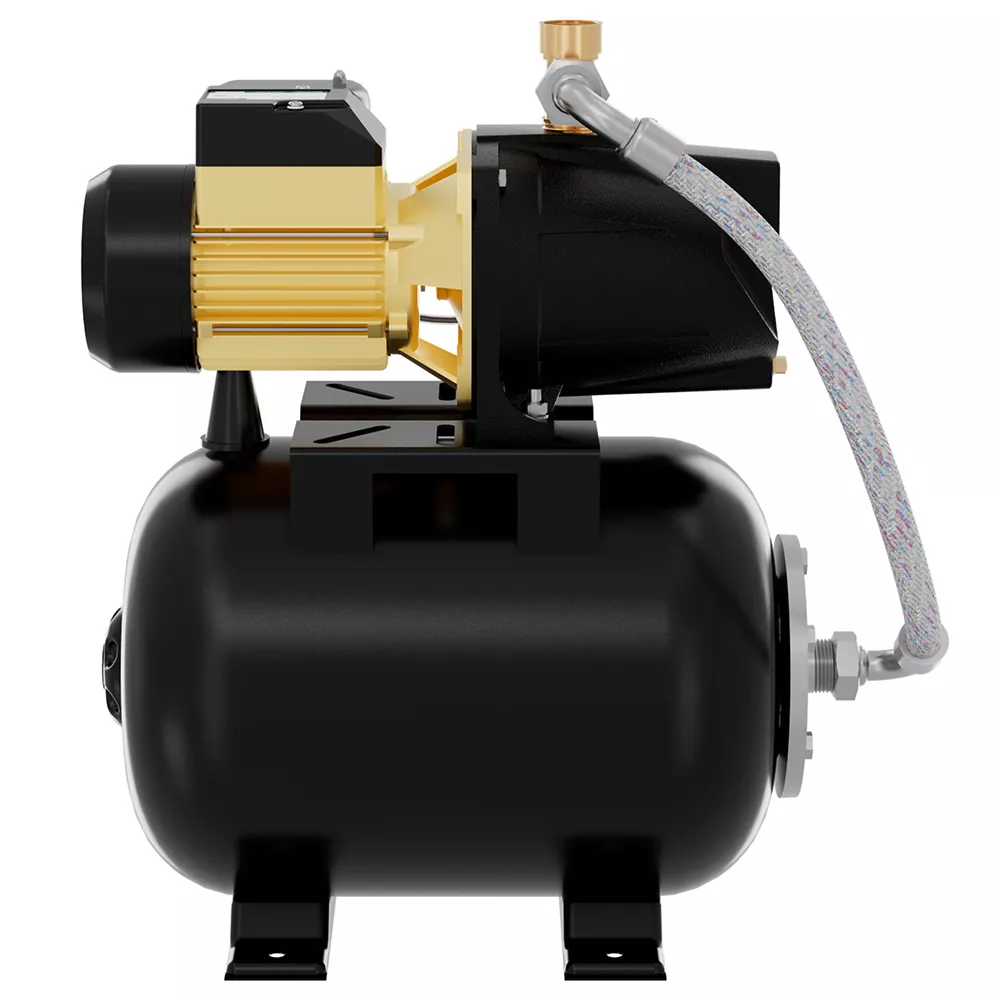

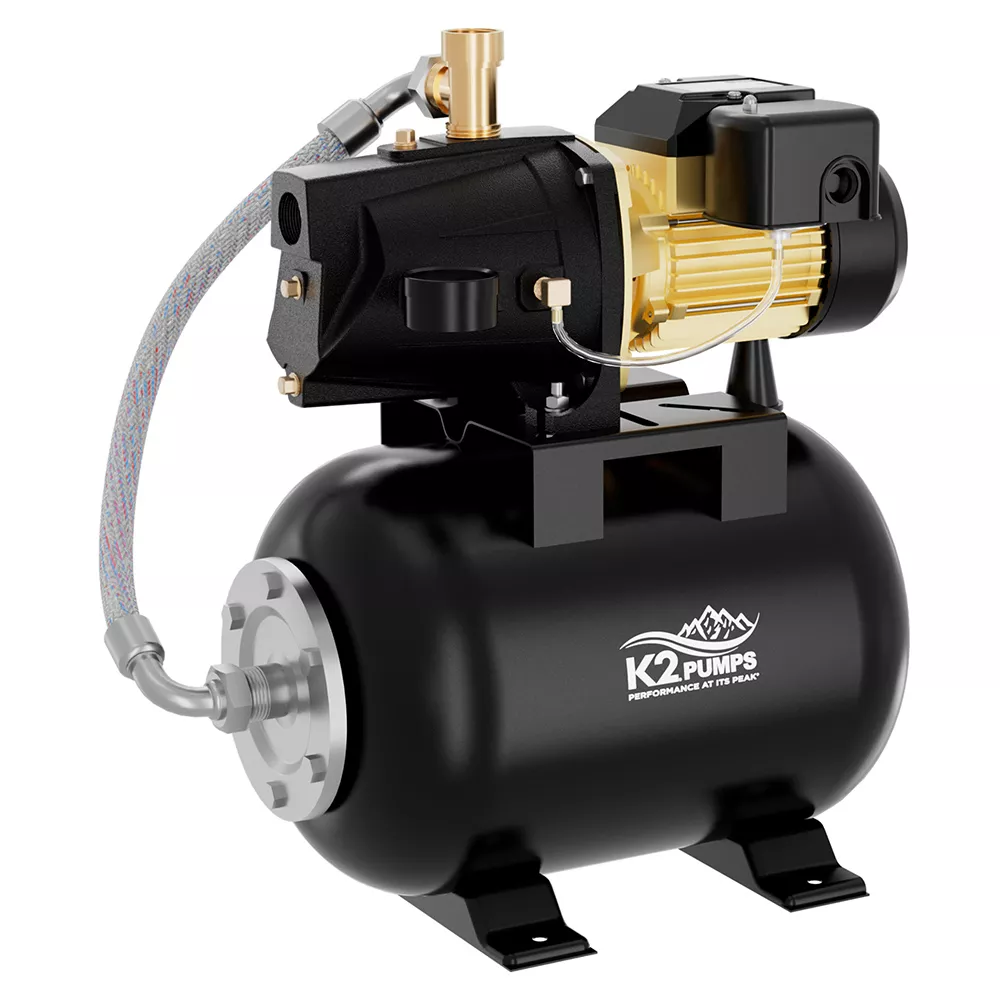

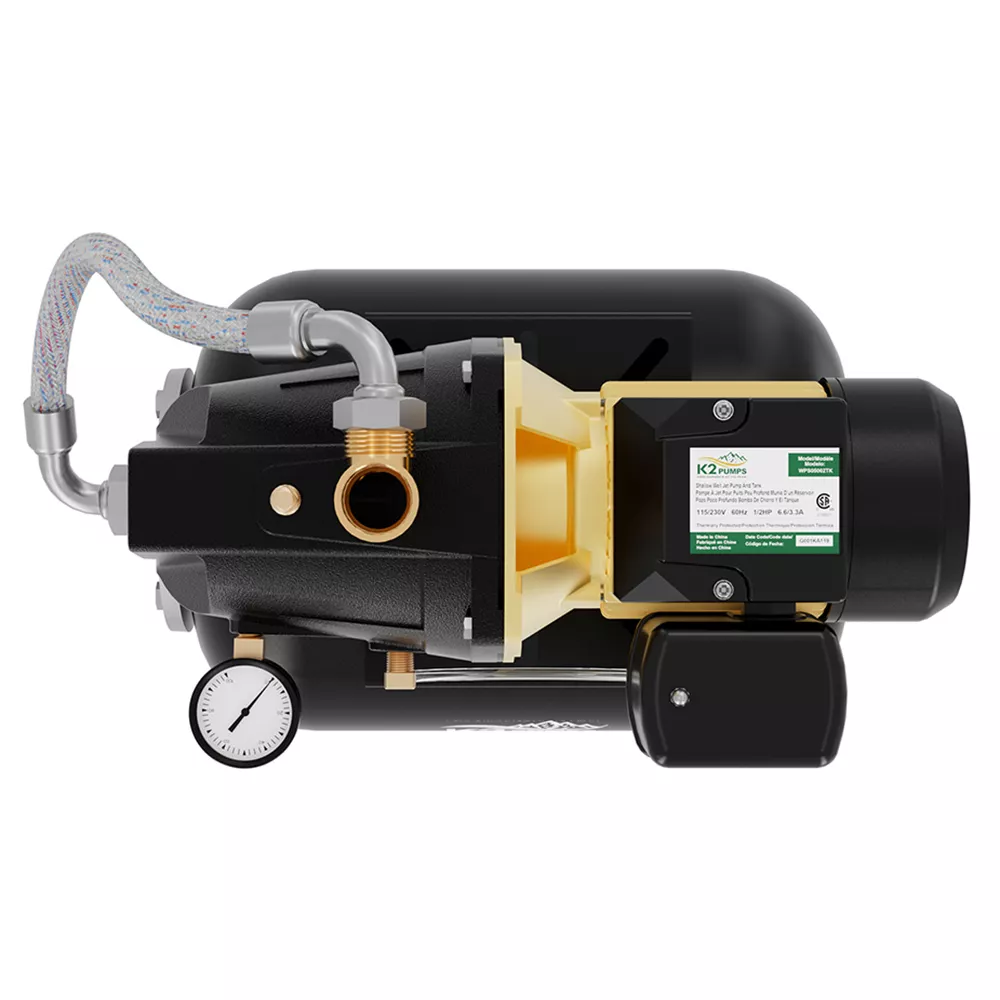

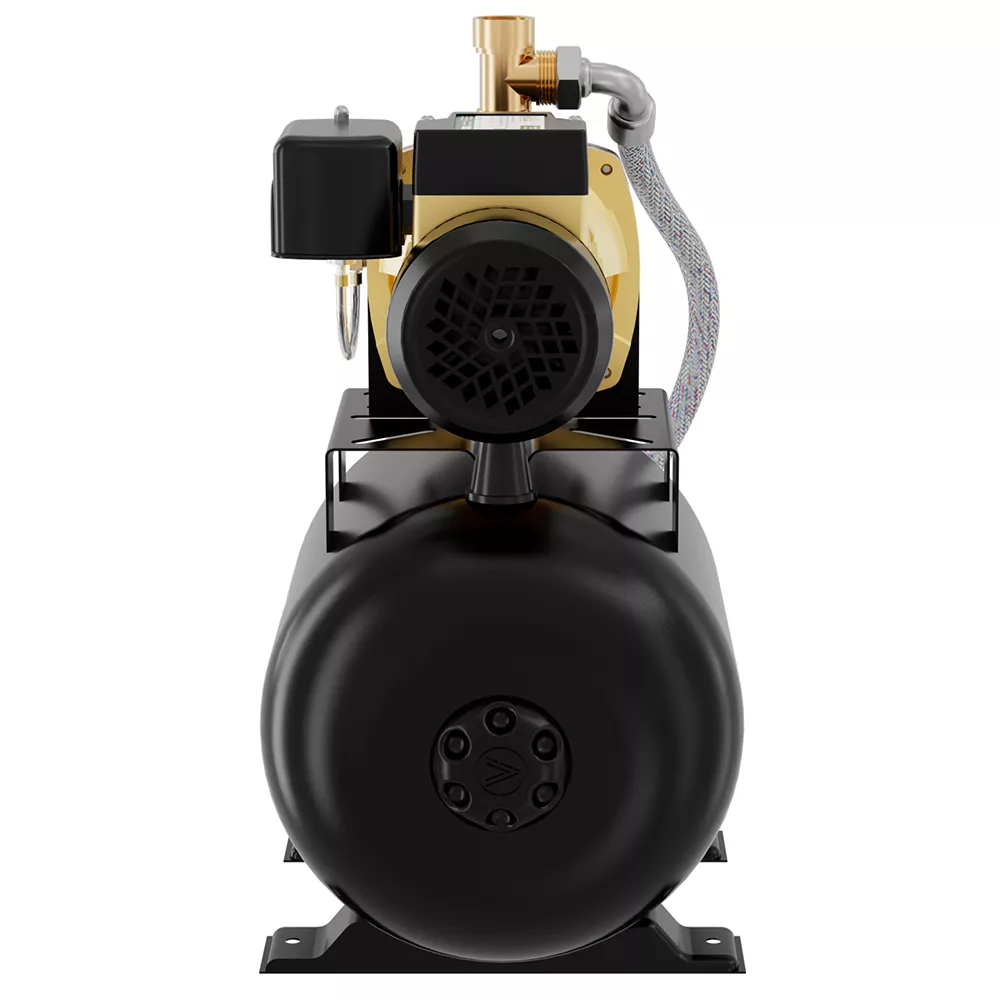

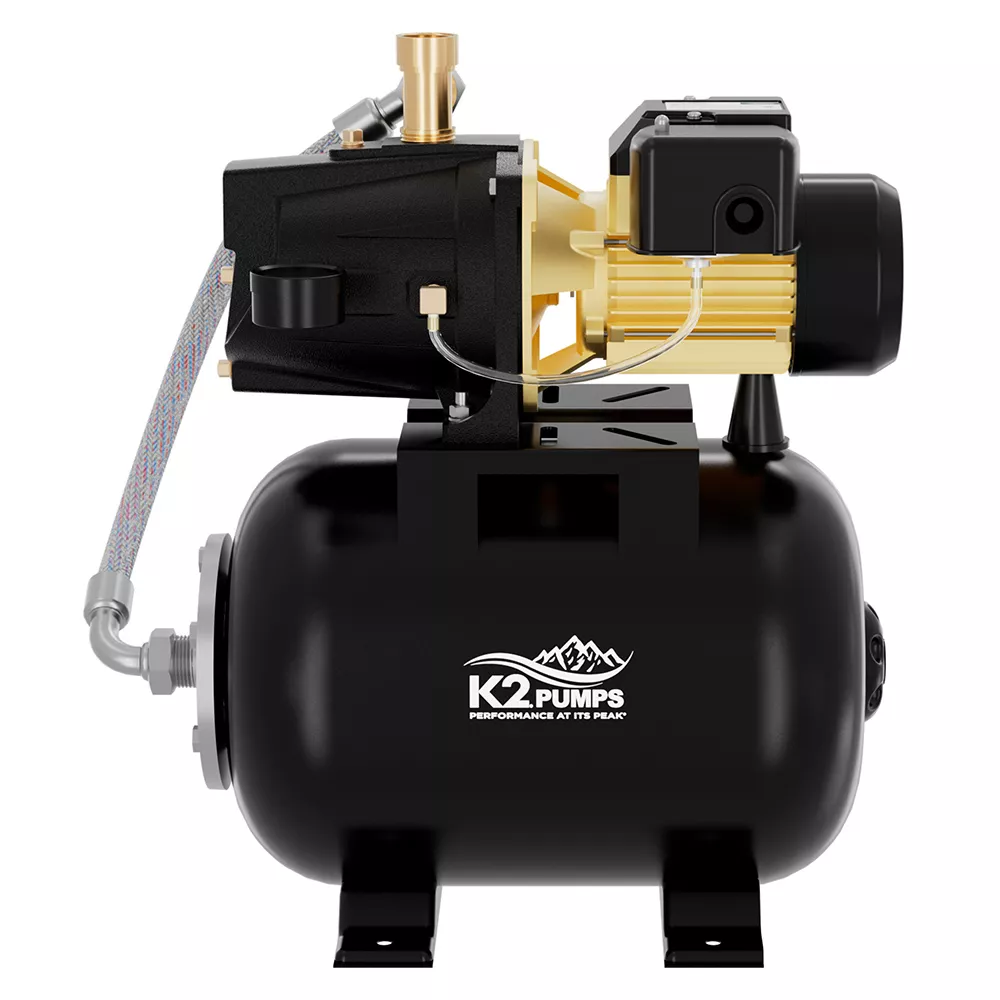

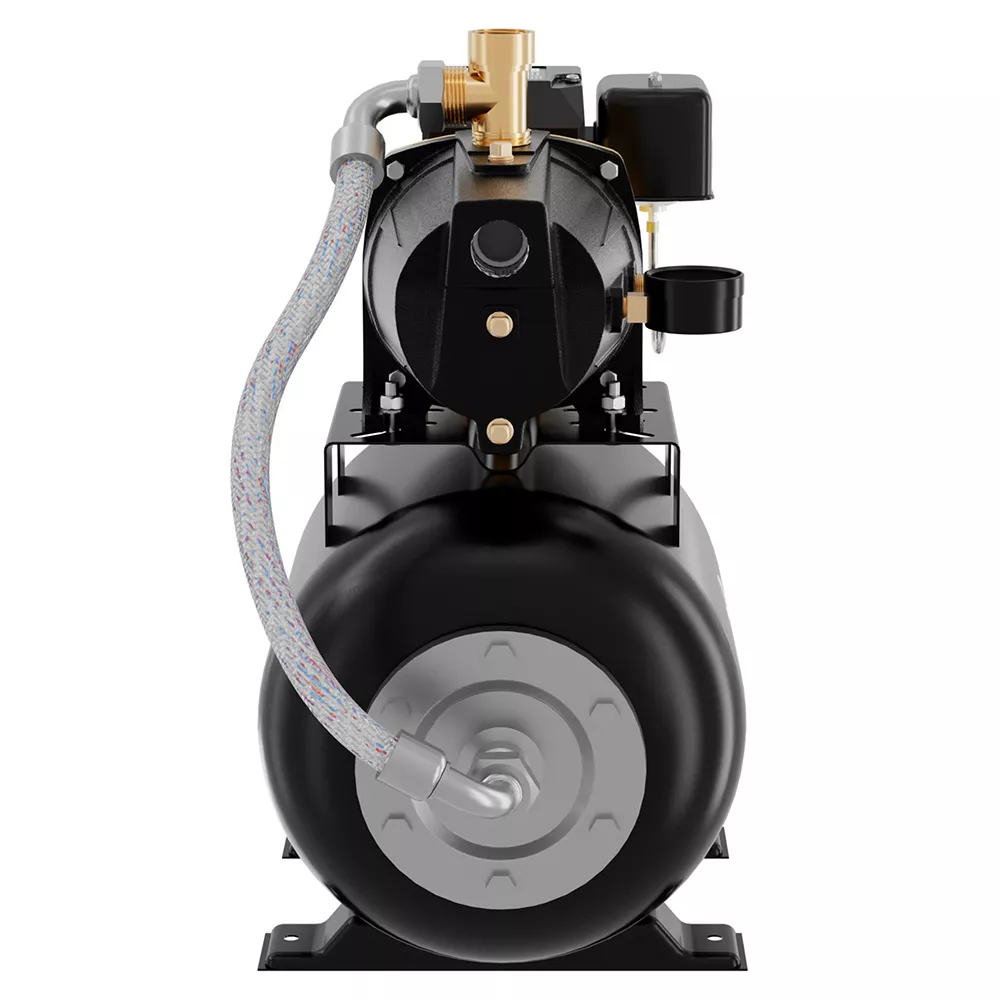

K2 Pumps 1/2 HP 115/230V Shallow Well Electric Jet Pump and Tank System 7 GPM Lead Free Well Pumps Home Improvement

The K2 Pumps 1/2 HP Shallow Well Jet Pump and Tank System is constructed of rugged cast iron. The System is ready to install above-ground for wells with depth to water from 0 ft. to 25 ft. The pump comes with a 115/230V dual-voltage motor which is preset at 230V, and a 30/50 pressure switch. The pump delivers up to 7.2 GPM at 0 ft. of lift, with a maximum pressure shut off at 66 PSI.

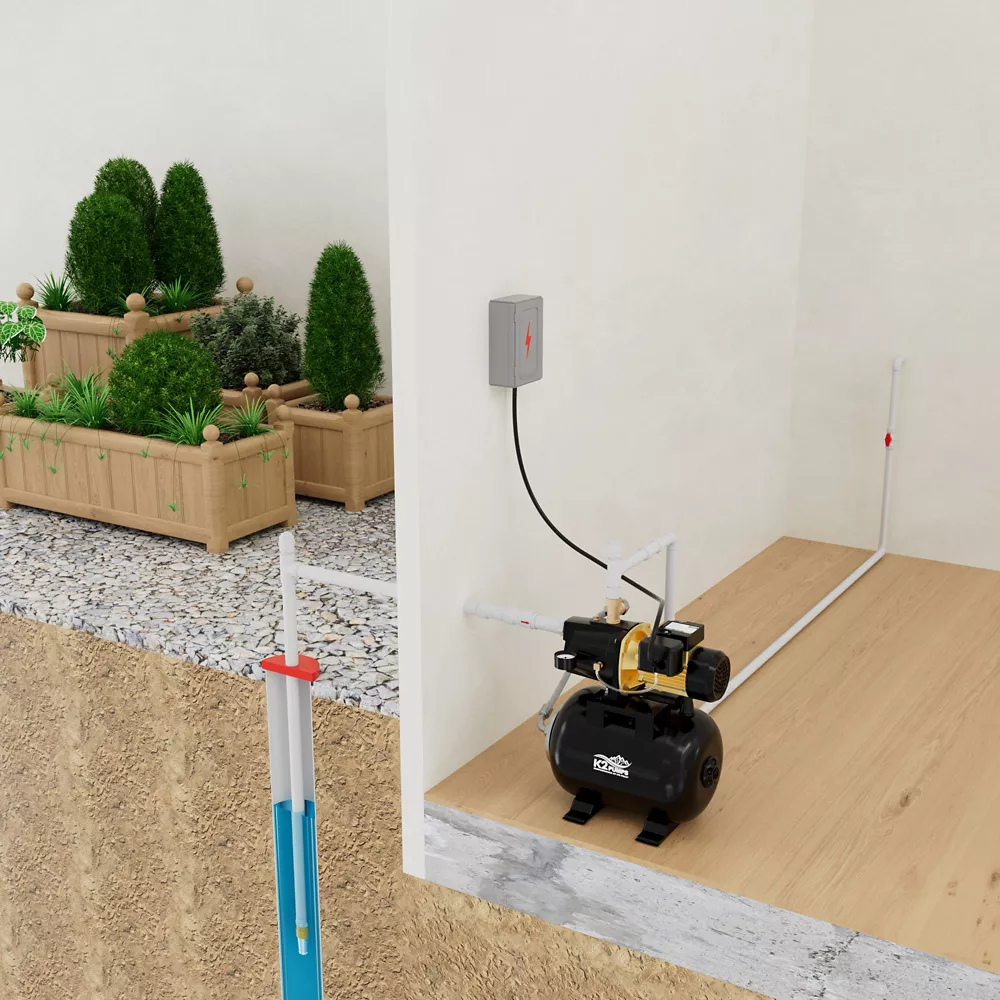

Complete jet pump and tank system for shallow well applications at water depths up to 25 ft.
Flow rate of 12.7 GPM at 0 ft. of lift
6-Gallon diaphragm pressure tank, precharged at 28 PSI
Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
Heavy-duty, dual voltage 115/230V motor, preset at 230V
Self-priming after pump is initially filled
1" NPT Suction and Discharge
3 Year Warranty

K2 Pumps 1/2 HP 115/230V Shallow Well Electric Jet Pump and Tank System 7 GPM Lead Free Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	6.6 A/3.3 A
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	0 N/A
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	7 GPM
Discharge Rate at 25 ft.	4.5 GPM
Discharge Rate at 50 ft.	0 N/A
Features	115/230 Dual voltage motor, preset at 230V
Horsepower	1/2 HP
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	7 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	95 deg.
Minimum Operating Temperature	32 deg.
Power Type	Electric
Product Height	20.28 in.
Product Length	12.9 in.
Product Weight	31.7 lb.
Product Width	18.9 in.
Motor Type	Permanent Split Capacitor (PSC)
Voltage	115v/230v
Warranty	3 Year
Manufacturer PartNumber	WPS05002TK

K2 Pumps 1/2 HP 115/230V Electric Shallow Well Jet Pump and Tank System, 7 GPM, Lead-Free Specifications expand/collapse Specification Description Brand K2 Pumps Country of Origin Imported Amperage 6.6A/3.3A Body Material Cast Iron Compatible Pipe Material PVC Compatible Well Diameter 0 N/A Discharge Connection Female Threaded Discharge Diameter 1 in. Discharge rate at 0 ft. 7 Discharge rate GPM at 25 ft. 4.5 GPM Discharge rate at 50 ft. 0 N/A Features Dual voltage motor 115/230, preset to 230 V Power 1/2 HP Impeller material Thermoplastic Inlet Connection Female Threaded Inlet Diameter 1 in. Maximum flow 7 GPM Maximum head lift 25 feet. Maximum operating depth 25 feet. Maximum operating temperature 95 degrees. Minimum operating temperature 32 degrees. Power Type Electric Product Height 20.28 in. Product Length 12.9 in. Product Weight 31.7 lb. Product Width 18.9 in. Motor Type Permanent Split Capacitor (PSC) Voltage 115V/230V Warranty 3 years Manufacturer part numbercant WPS05002TK
