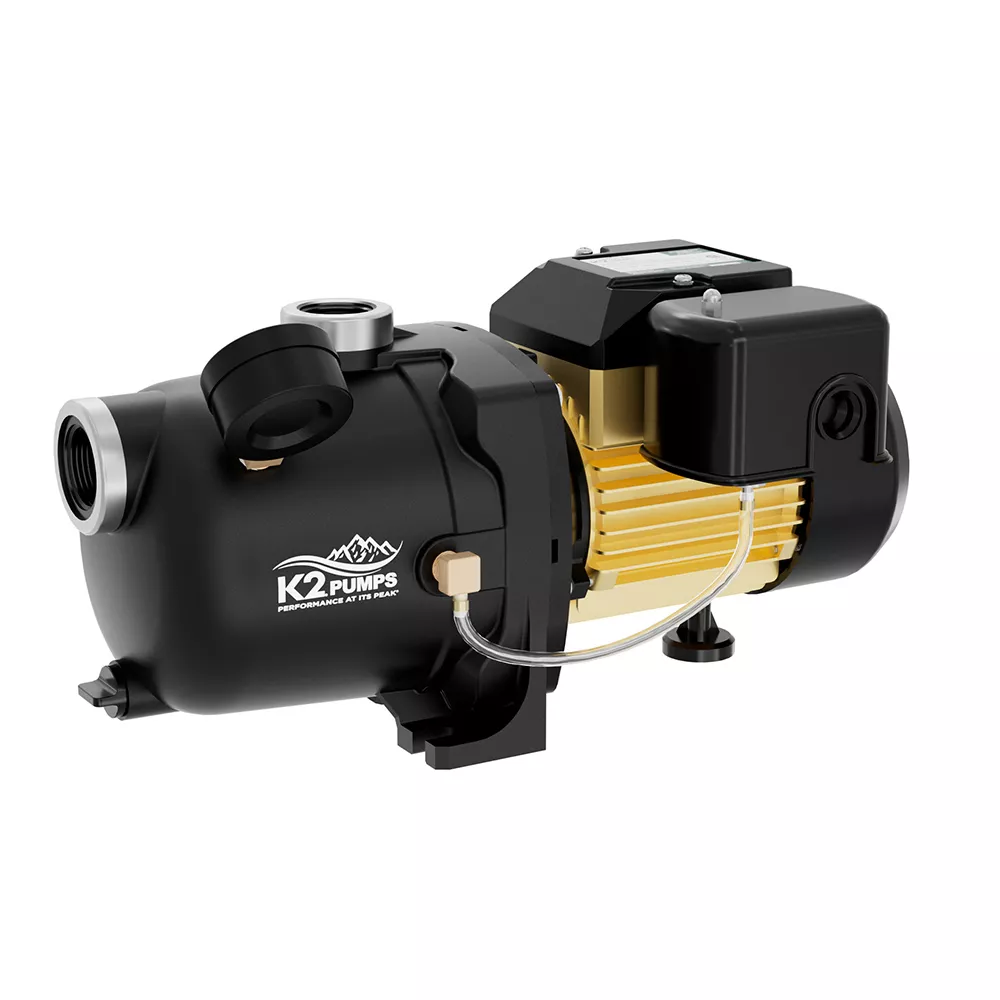

K2 Pumps Thermoplastic Shallow Well Electric Jet Pump 1/2 HP 115/230V 7 GPM Lead Free Well Pumps Home Improvement

The K2 Pumps 1/2 HP Lead-free shallow well jet pump operates at depths to water up to 25 ft. The pump is installed above ground for shallow wells with depth to water from 0 to 25 ft. Maximum pressure shutoff 66 PSI. Constructed of corrosion-resistant reinforced thermoplasic. Pre-installed pressure gauge. Fan cooled motor extends the life of the pump. Self-priming after pump is initially filled.

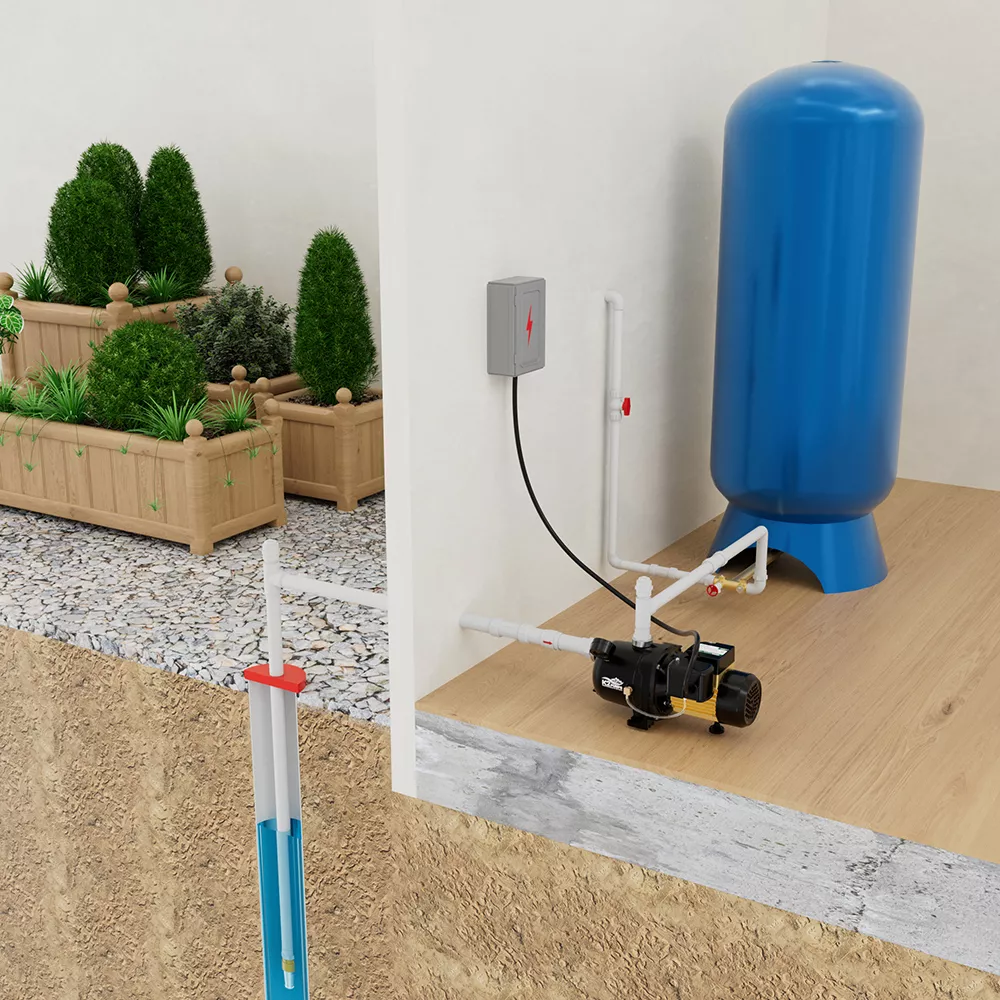

Installed above ground for shallow wells with depth to water up to 25 ft. deep
Flow rate of 7 GPM at 40 psi
115/230V Dual voltage motor, preset at 230V
Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
30/50 Pressure switch
1-1/4 in. NPT Suction and 1 in. NPT Discharge

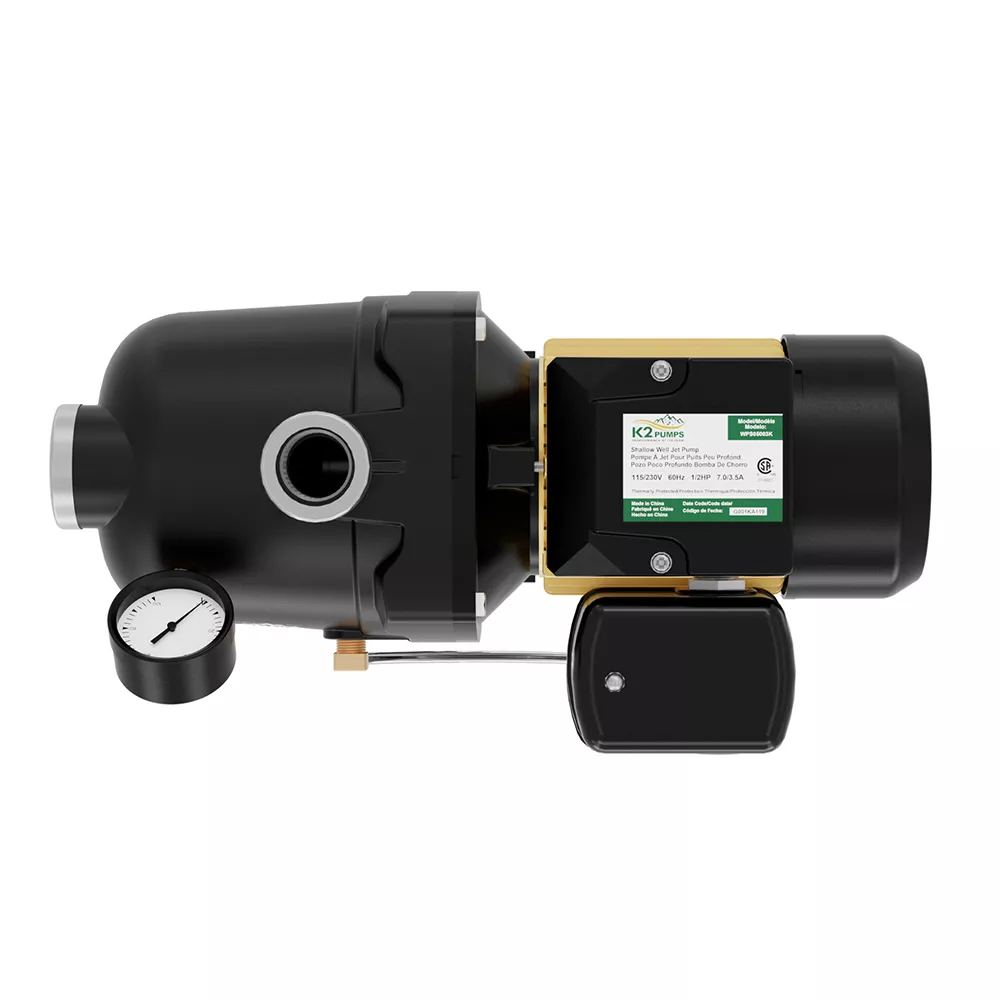

Pre-installed Pressure Gauge
1 Year Warranty

K2 Pumps Thermoplastic Shallow Well Electric Jet Pump 1/2 HP 115/230V 7 GPM Lead Free Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	12.4 A/6.2 A
Body Material	Thermoplastic
Compatible Pipe Material	PVC
Compatible Well Diameter	0 N/A
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	14.5 GPM
Discharge Rate at 25 ft.	7 GPM
Discharge Rate at 50 ft.	0 N/A
Features	115/230 Dual voltage motor, preset at 230V
Horsepower	1/2 HP
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	1-1/4 in.
Maximum Flow Rate	7 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	95 deg.
Minimum Operating Temperature	32 deg.
Power Type	Electric
Product Height	8.8 in.
Product Length	10.4 in.
Product Weight	37.4 lb.
Product Width	19.3 in.
Motor Type	Permanent Split Capacitor (PSC)
Voltage	115v/230v
Warranty	1 Year
Manufacturer PartNumber	WPS05003K

K2 Pumps 1/2 HP 115/230V Electric Thermoplastic Shallow Well Jet Pump, 7 GPM, Lead-Free Specifications expand/collapse Specification Description Brand K2 Pumps Country of Origin Imported Amperage 12.4A/6.2A Body Material Thermoplastic Compatible Hose Material PVC Compatible Well Diameter 0 N/A Discharge Connection Female Threaded Discharge Diameter 1 in. Discharge rate at 0 ft. 14.5 GPM Discharge rate at 25 ft. 7 GPM Discharge rate at 50 ft. 0 N/A Features 115/230 dual voltage motor, preset to 230 V Power 1/2 HP Impeller material Thermoplastic Inlet Connection Female Threaded Inlet Diameter 1-1/4 in. Maximum flow 7 GPM Maximum head lift 25 feet Maximum operating depth 25 feet Maximum operating temperature 95 degrees. Minimum operating temperature 32 degrees. Power Type Electric Product Height 8.8 in. Product Length 10.4 in. Product Weight 37.4 lb. Product Width 19.3 in. Motor Type Permanent Split Capacitor (PSC) Voltage 115V/230V Warranty 1 an Part numberfrom the manufacturer WPS05003K
