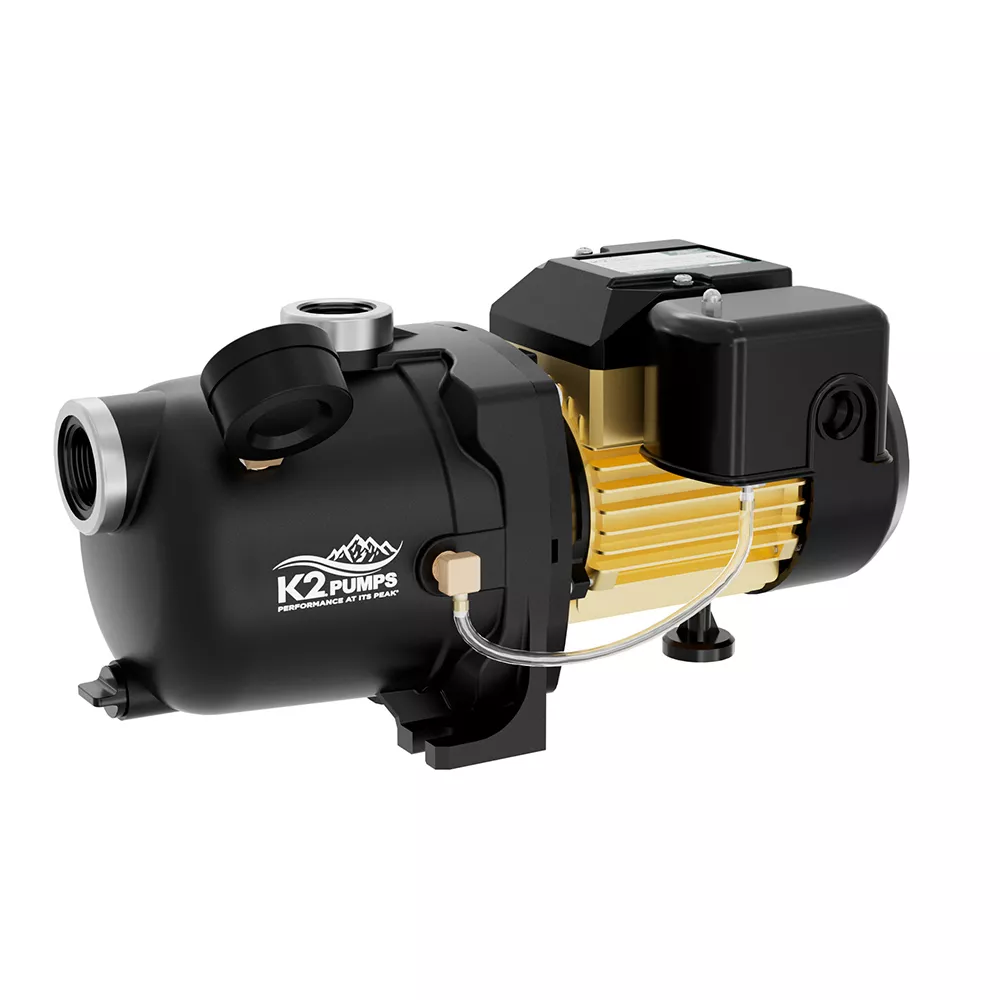

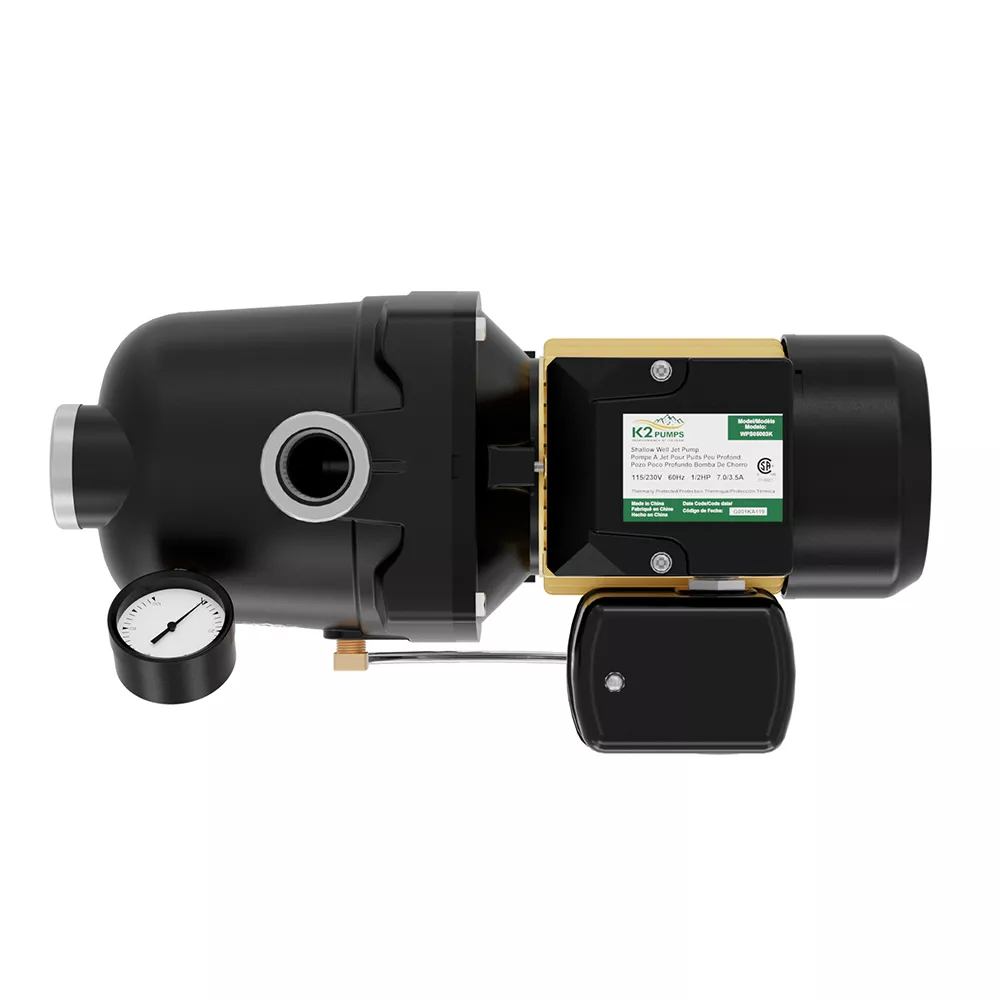

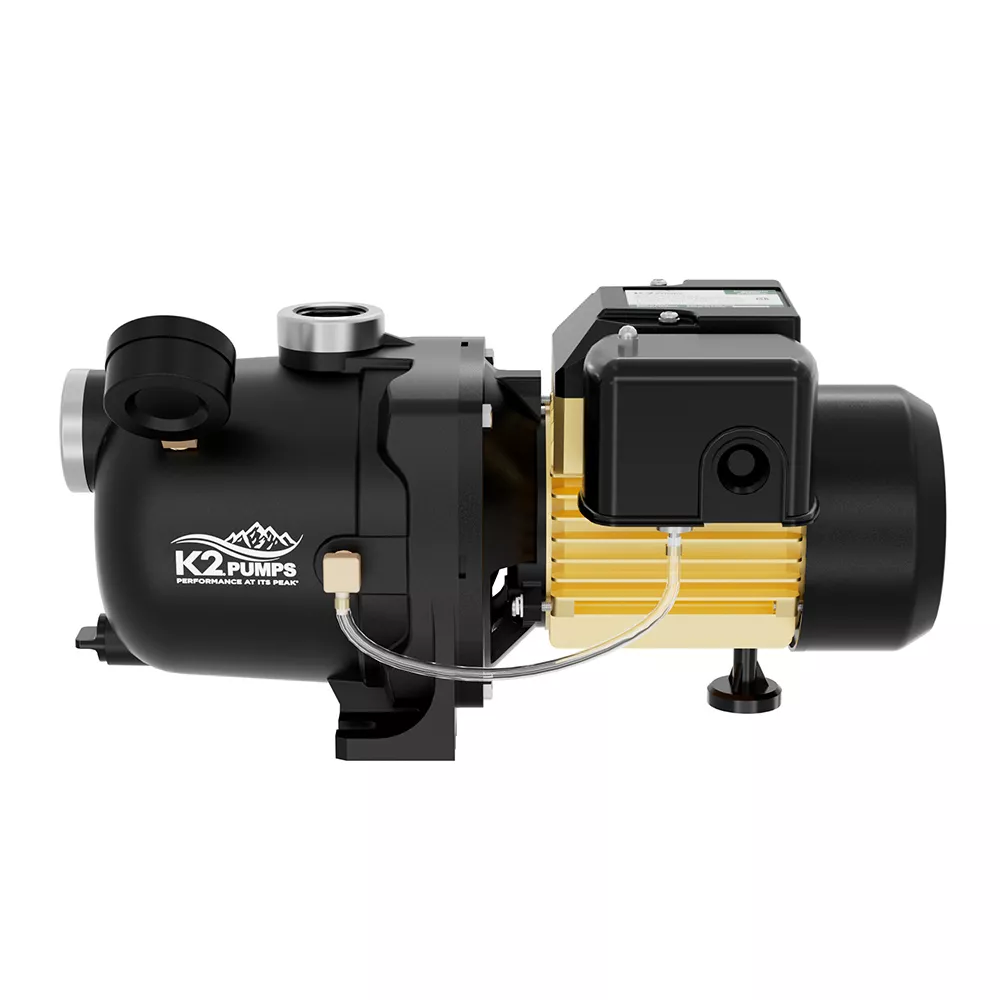

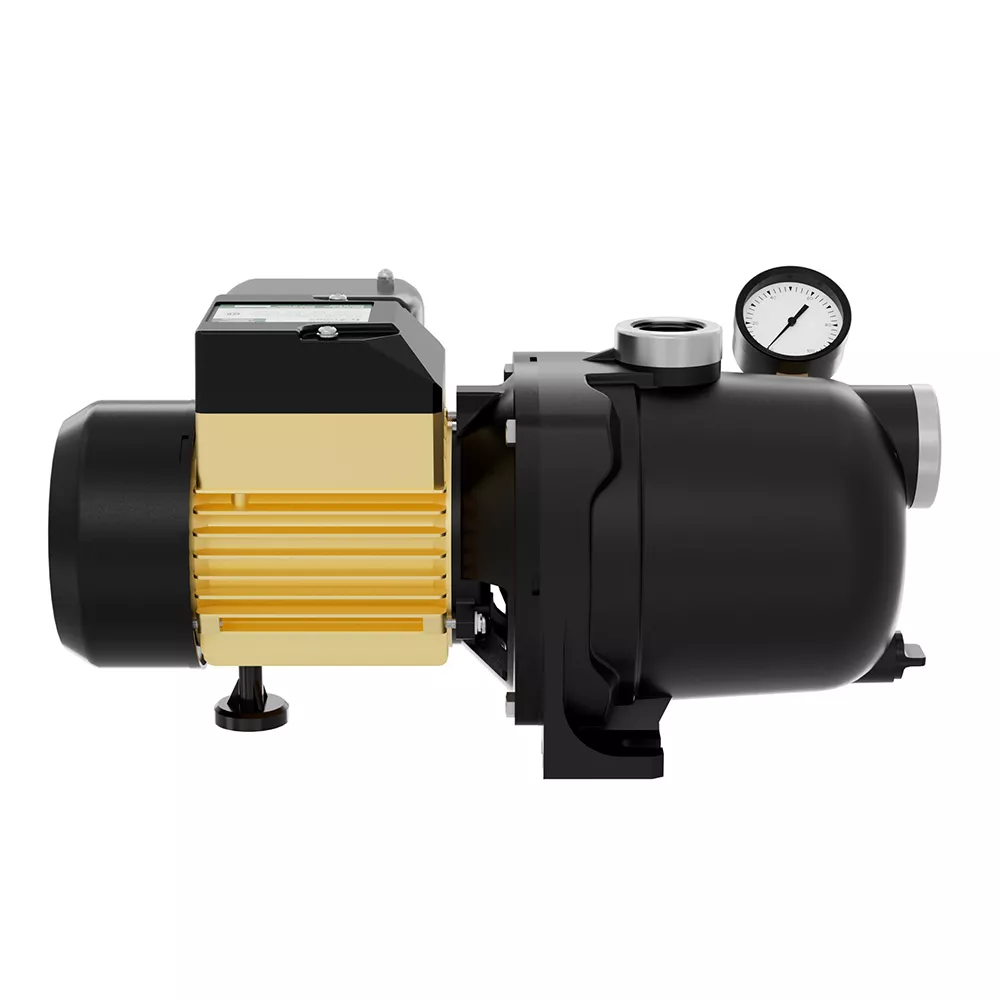

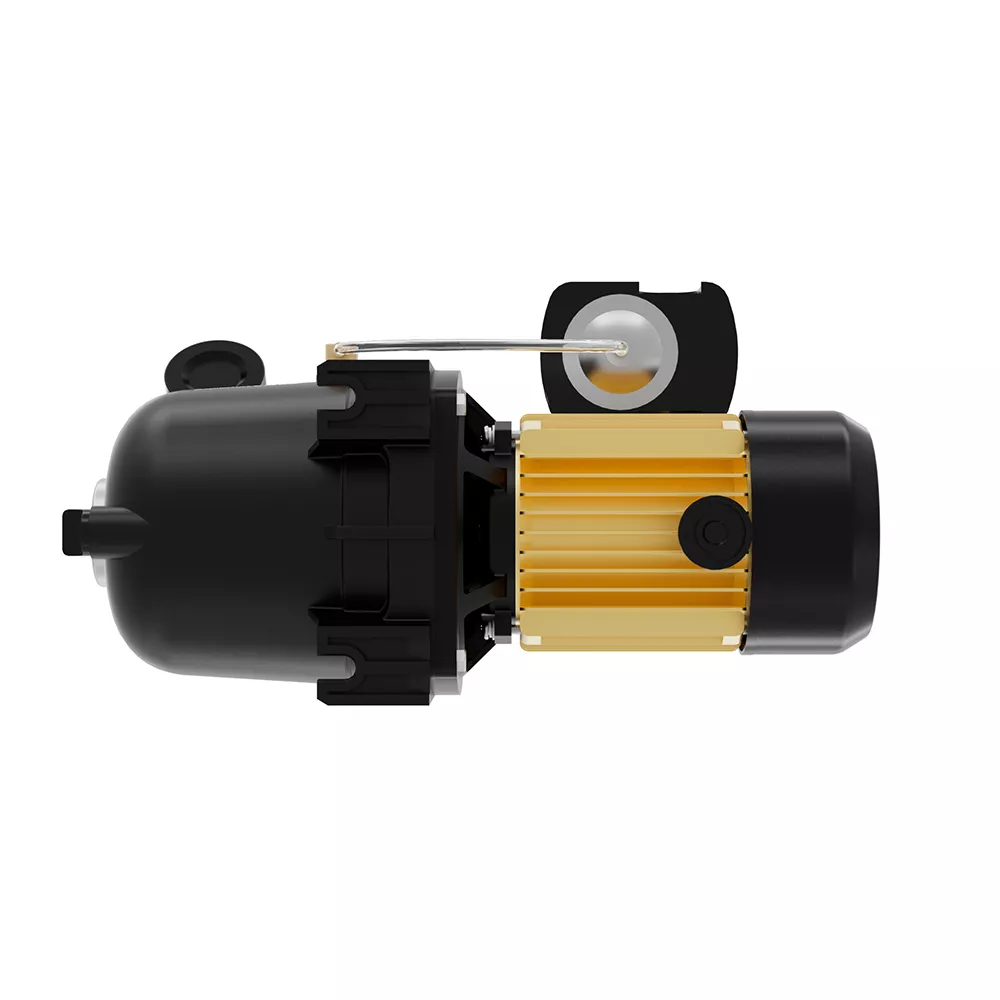

K2 Pumps Thermoplastic Shallow Well Electric Jet Pump 3/4 HP 115/230V 9.2 GPM Lead Free Well Pumps Home Improvement
The K2 Pumps 3/4 HP Lead-free shallow well jet pump operates at depths to water up to 25 feet. Maximum pressure shutoff 67 PSI. Constructed of corrosion-resistant reinforced thermoplasic. Pre-installed pressure gauge. Fan cooled motor extends the life of the pump. Self-priming after pump is initially filled.- Installed above ground for shallow wells with depth to water up to 25 ft. deep
- Flow rate of 9.2 GPM at 40 psi
- 115/230V Dual voltage motor, preset at 230V
- Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
- 30/50 Pressure switch
- 1-1/4 in. NPT Suction and 1 in. NPT Discharge
- Pre-installed Pressure Gauge
- 1 Year Warranty
K2 Pumps Thermoplastic Shallow Well Electric Jet Pump 3/4 HP 115/230V 9.2 GPM Lead Free Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | K2 Pumps |
| Country of Origin | Imported |
| Amperage | 8 A/4 A |
| Body Material | Thermoplastic |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 0 N/A |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 9.2 GPM |
| Discharge Rate at 25 ft. | 5.8 GPM |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 115/230 Dual voltage motor, preset at 230V |
| Horsepower | 3/4 HP |
| Impeller Material | Thermoplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Maximum Flow Rate | 9.2 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 95 deg. |
| Minimum Operating Temperature | 32 deg. |
| Power Type | Electric |
| Product Height | 7.36 in. |
| Product Length | 7.99 in. |
| Product Weight | 15.7 lb. |
| Product Width | 15 in. |
| Motor Type | Permanent Split Capacitor (PSC) |
| Voltage | 115v/230v |
| Warranty | 1 Year |
| Manufacturer PartNumber | WPS07503K |
