Pacer Gasoline Chemical and Clear Water Transfer Pump 200 GPM Engine Driven Transfer Pumps Farm & Ranch

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a Honda GX200 Commercial duty gasoline engine with flow rates of up to 200 GPM or 120 ft. TDH. Please Call Pacer with any chemical compatibility or application questions.

2" Suction & Discharge ports
200 Max GPM
120 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers

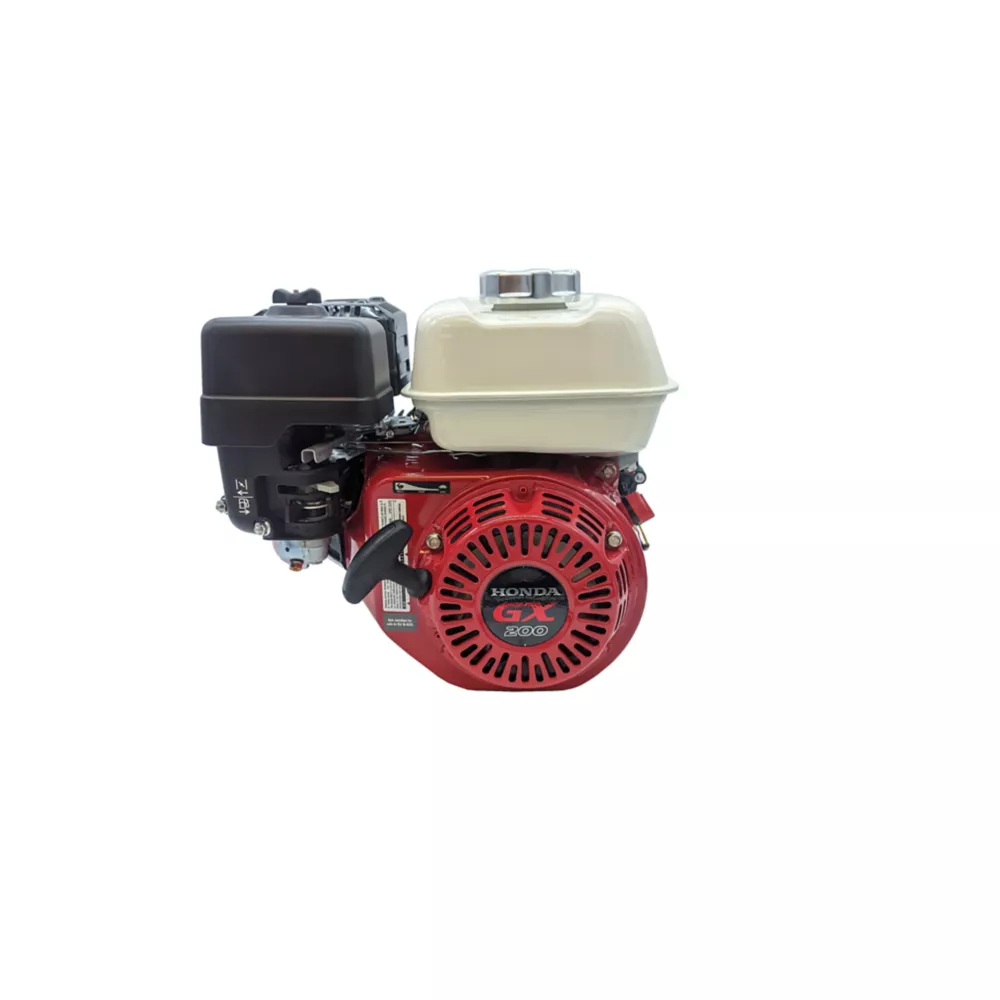

Honda GX200 Commercial duty gasoline engine
Honda Feature - OHV design, Cast iron cylinder sleeve, Low oil shut off
Honda Feature - Meets carb and EPA emission standards
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Gasoline Chemical and Clear Water Transfer Pump 200 GPM Engine Driven Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	200 GPM
Discharge Rate at 10 ft.	180 GPM
Engine Brand	Honda
Engine Displacement	196cc
Features	2 in. Suction and Discharge NPT ports, 200 Max GPM, 120 ft. TDH max, 25 ft suction lift, Built in check valve, Honda GX200 commercial duty gasoline engine, Low oil shut off, Meets carb and EPA standards, Molded and assembled in the USA
Hose Diameter	2 in.
Impeller Material	Polyester
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	200 GPM
Maximum Head Lift	120 ft.
Maximum Operating Pressure	48 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Gas
Product Height	16 in.
Product Length	21 in.
Product Weight	50 lb.
Product Width	18 in.
Pump Mechanism	Centrifugal
Motor Type	Gasoline
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-12U4-E6HCP
