Lubeworks Extension Tube for TRI-ET1000-F Oil Pump Oil Pumps Truck & Automotive

Oil Transfer Pump Extension Tube 30" inch Shaft 42mm / 1-5/8" Inch Diameter Heavy Duty Air Operated Pneumatic Oil Pumps for Motor, Synthetic Hydraulic, Gear Oil, Transmission, Anti-Freeze

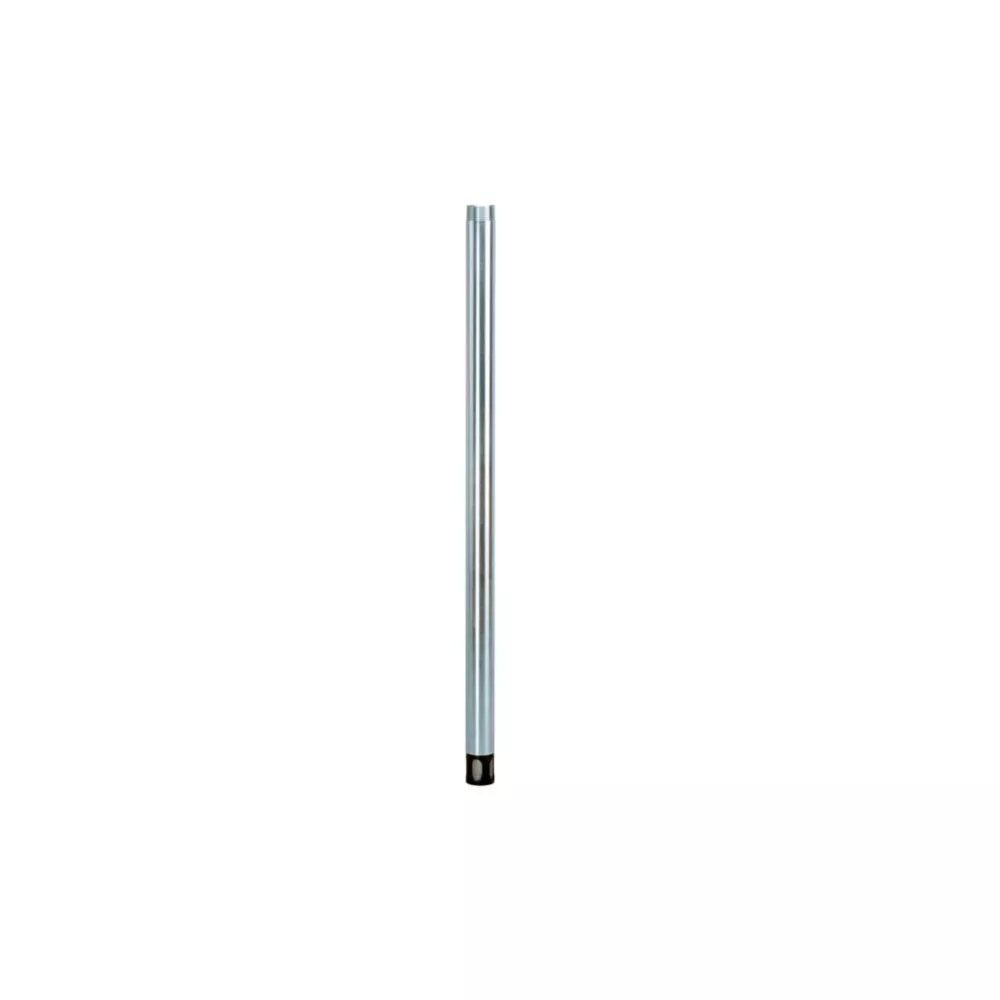

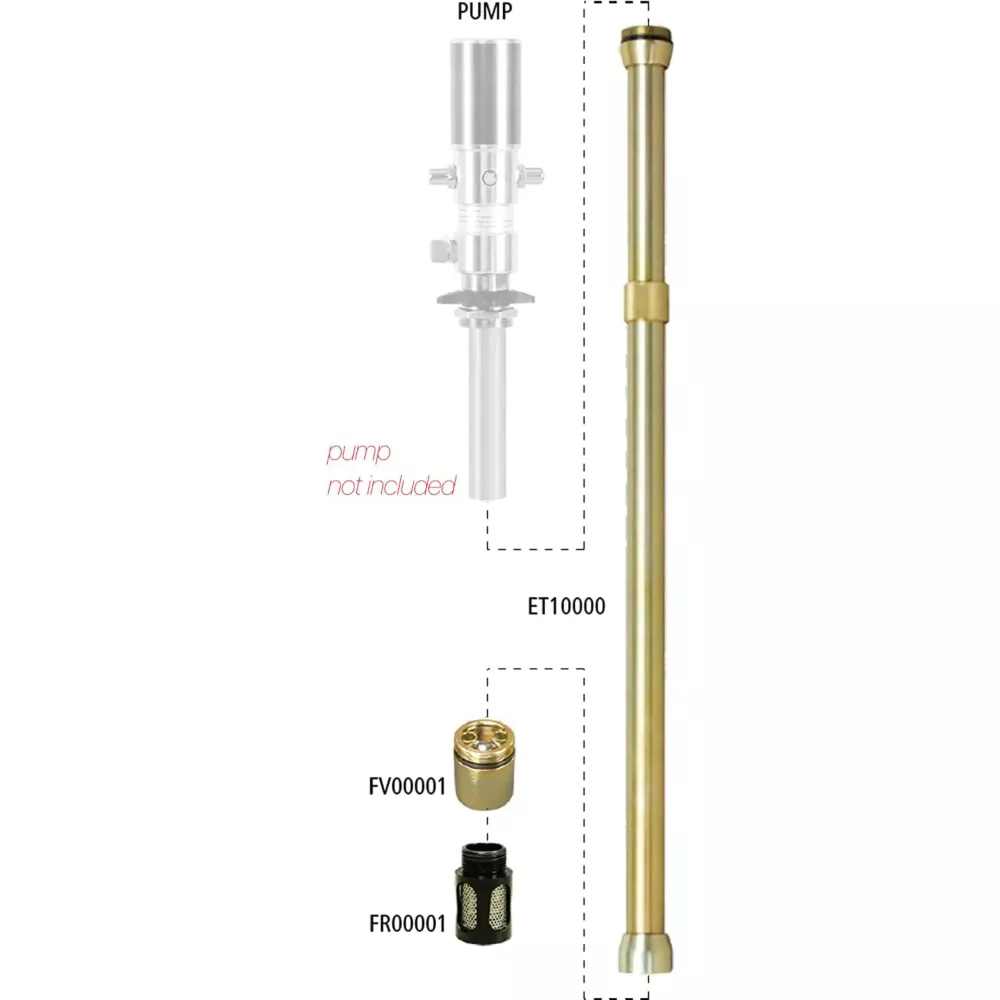

TUBE SPECS - Our Rigid Lubeworks Extension Tubes are made of heavy-duty resilient steel, designed to work with our Heavy-Duty Corrosion-Resistant 3:1 or 5:1 pump series (PUMP NOT INCLUDED); Universally Compatible with other TOP-TIER Standard and High-Flow Transfer Pump Brands such as AlphaWorks, Lubeworks, & AmazonCommercial; This specific Extension Tube gives an additional 30" inch (762mm) of extension with a diameter of 42mm / 1-5/8" inch

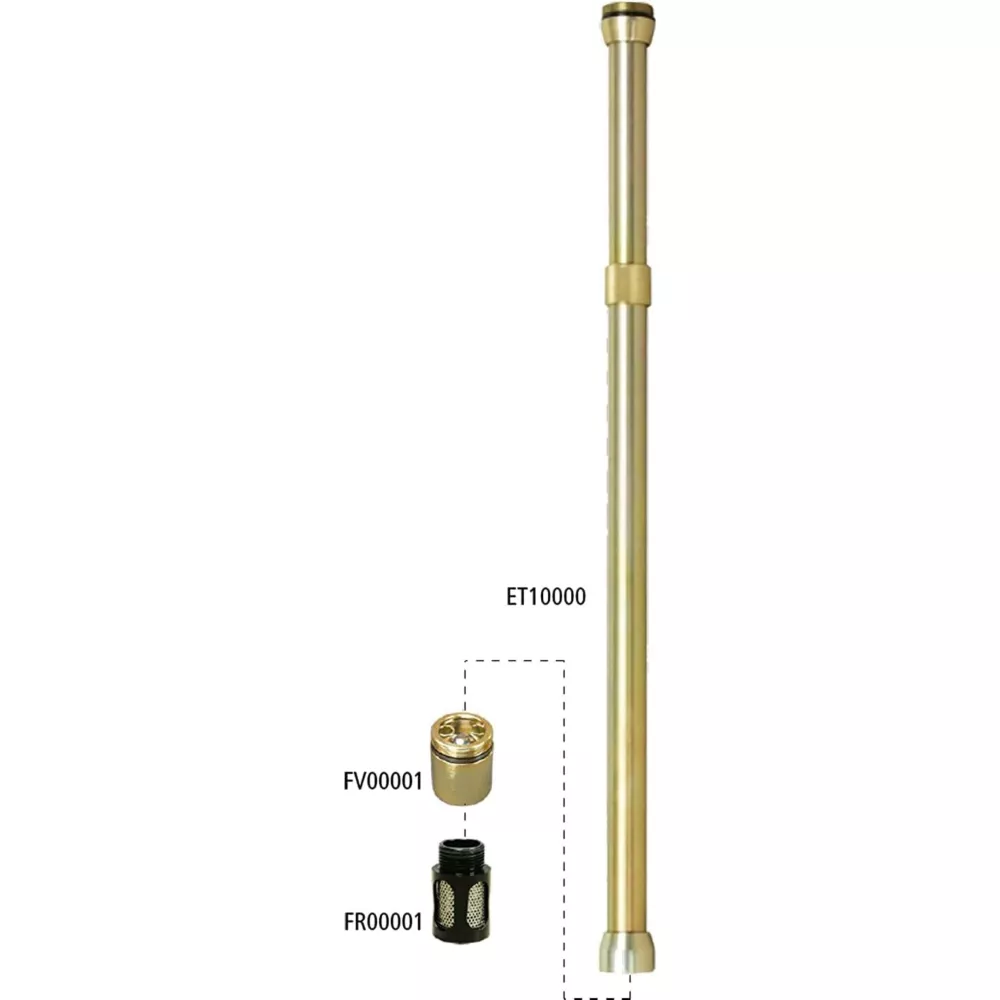

EFFICIENT and VERSATILE - High-quality pipe milling, delivering a secure fit and strong tube that won't break; Resilient oil filter to catch unwanted debris, removable by twisting the heavy-duty threads; Includes an O-ring to create a tight seal, stopping unwanted leakage; Typical fluids acceptable include: motor oil, synthetic oil, hydraulic fluid, crankcase, gear oil, AGMA grade, ISO/VG, waste/anti-freeze fluids and automatic transmission fluid; Suitable for oil/fluids up to SAE130 viscosities
SAFETY and PROPER USE - Lubeworks Oil Pump Extension Tubes are only suitable for: oils, motor oils, synthetic hydraulic oil, gear oil and transmission fluids, w/ a MAX working temperature of -10C/ 14F to 60C/ 140F; Follow manual instructions for setup and always wear protective glasses/goggles or gear when operating lubrication/transfer equipment
12 months limited parts warranty

Lubeworks Extension Tube for TRI-ET1000-F Oil Pump Oil Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Grease & Lubrication Tools> Oil Pumps

Specification	Description
Brand	Lubeworks
Country of Origin	Imported
Compatible Fluids	Motor Oils, Diesel, Engine Oil, Gear Oil, Hydraulic Fluids, Transmission Fluid, Anti-Freeze
Discharge Connection	None
Discharge Diameter	1.625 in.
Features	Extension Tube
Hose Diameter	1.625 in.
Inlet Connection	Threaded Male
Inlet Diameter	1.625 in.
Maximum Flow Rate	31 or 51 this is an extension only
Power Type	Air operated
Primary Material	Steel
Product Height	5.1 in.
Product Length	33 in.
Product Weight	41 lb.
Product Width	5.1 in.
Motor Type	No Motor, extension only
Warranty	12 months limited parts warranty
Manufacturer PartNumber	TRI-ET1000-F

Lubeworks Extension Tube for Oil Pump TRI-ET1000-F Specifications expand/collapse Specification Description Brand Lubeworks Country of Origin Compatible Imported Fluids Engine Oils, Diesel, Motor Oil, Gear Oil, Hydraulic Fluids, Transmission Fluid, Antifreeze Discharge Fitting None Discharge Diameter 1.625 in. Specifications Extension tube pipe diameter 1.625 in. Inlet Connection Male Threaded Inlet Diameter 1.625 in. Maximum flow 31 or 51 this is an extension only. Power Type Pneumatic Control Main Material Steel Product Height 5.1 in. Product length 33 in. Product weight 41 lbs. Product width 5.1 in. Engine type no. Motor, extension only Warranty 12-month limited parts warranty Manufacturer part number TRI-ET1000-F
