Piusi USA SuzzaraBlue 0.67 HP 120V Basic+ Electric Fuel Pump Kit 9 GPM Auto Nozzle Fuel Transfer Pumps Truck & Automotive

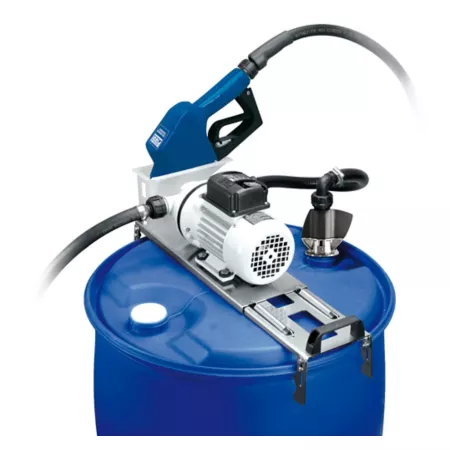

The Piusi SuzzaraBlue DEF Drum Basic+ 120V Kit is the perfect solution for a mobile DEF drum application. The system is readily equipped with a heavy-duty 9GPM DEF transfer pump, an easily transferable top-mount bracket, an automatic metered nozzle, 20 ft. of dispense hose and 1.5 ft of suction hose.

7-9 GPM flow rate
120V / 60Hz
20 min. on/ 20 min. off duty cycle
6.5 minute auto-shutoff timer board protection
20ft. delivery hose & 1.5ft of suction hose
6.7 ft. max. suction height to accommodate your needs
cCSAus-certified membrane pump
Automatic shut-off nozzle

Piusi USA SuzzaraBlue 0.67 HP 120V Basic+ Electric Fuel Pump Kit 9 GPM Auto Nozzle Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	2A
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on20 min. off
Features	6.5 minute timer board, membrane design
Horsepower	0.67HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Standard
Maximum Flow Rate	9GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	26PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	12 deg. F
Power Cord Length	6 ft.
Power Type	Electric
Product Height	11 in.
Product Length	19 in.
Product Weight	31 lb.
Product Width	15 in.
Voltage	120V
Warranty	2 year
Manufacturer PartNumber	F00201A4H

Piusi USA 0.67 HP 120V Electric SuzzaraBlue Drum Fuel Pump Basic+ Kit, 9 GPM, Auto Nozzle Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply AC Amps 2A Body Materials Polypropylene Compatible Fluids Diesel Exhaust Fluid Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 20 min. over 20 min. off Features 6.5 Minute Timer Board, Membrane Design Power 0.67 HP Hose Diameter 0.75 in. Inlet Connection Male Threaded Inlet Diameter 1 in. F Minimum operating pressure 1 PSI Minimum operating temperature 12 deg. F Power cord length 6 ft. Power Supply Type Product Height 11 in. Product length 19 in. Product weight 31 lbs. Product width 15 in. Voltage 120 V Warranty 2 years Manufacturer part number F00201A4H
