Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 10 in Stroke 1.5 in Shank Diameter 288508 Hydraulic Cylinders

Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 10 in Stroke 1.5 in Shank Diameter 288508 Hydraulic Cylinders Tractor Repair & Parts

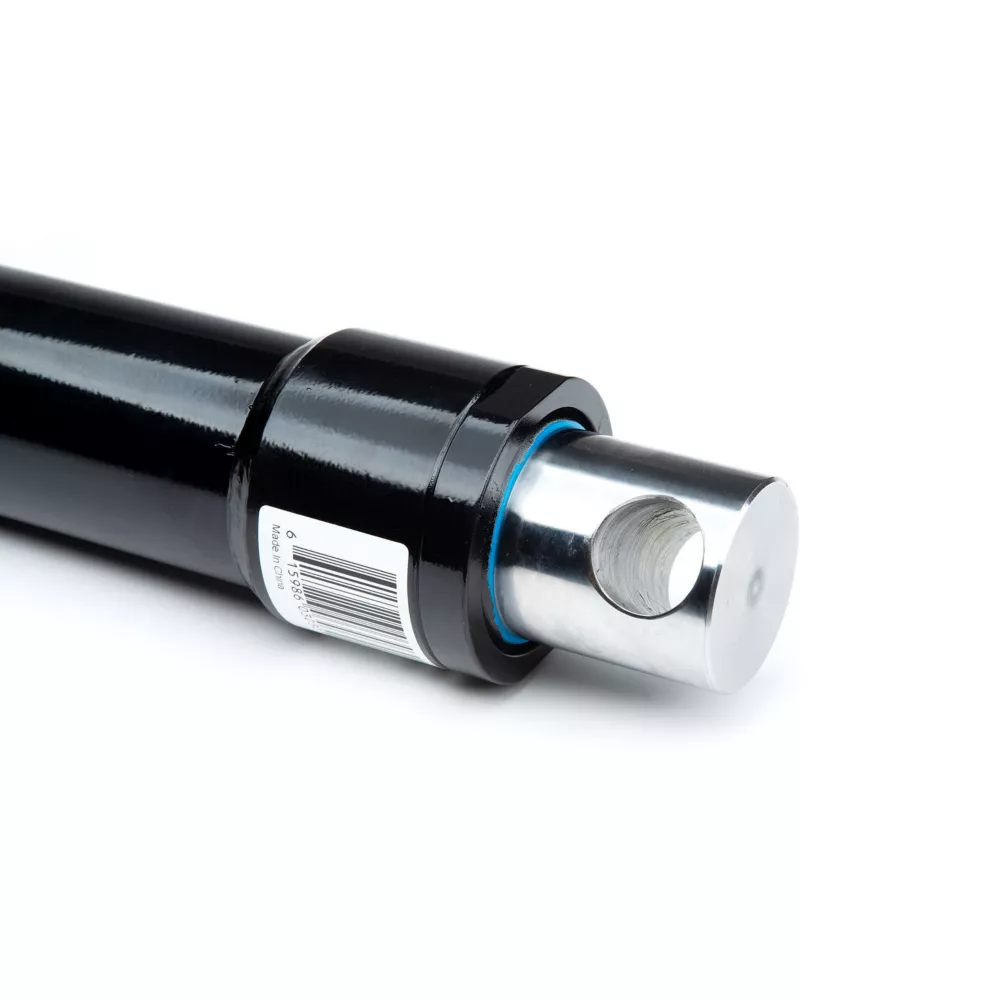

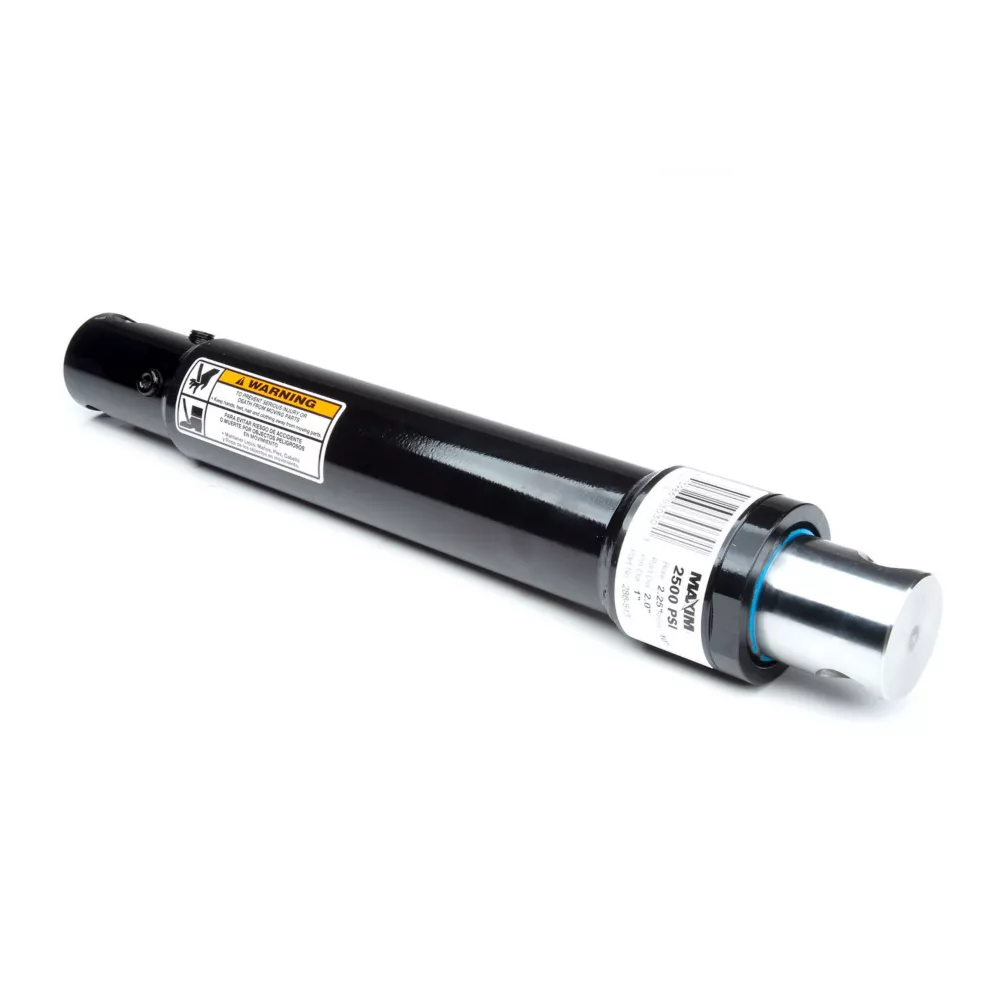

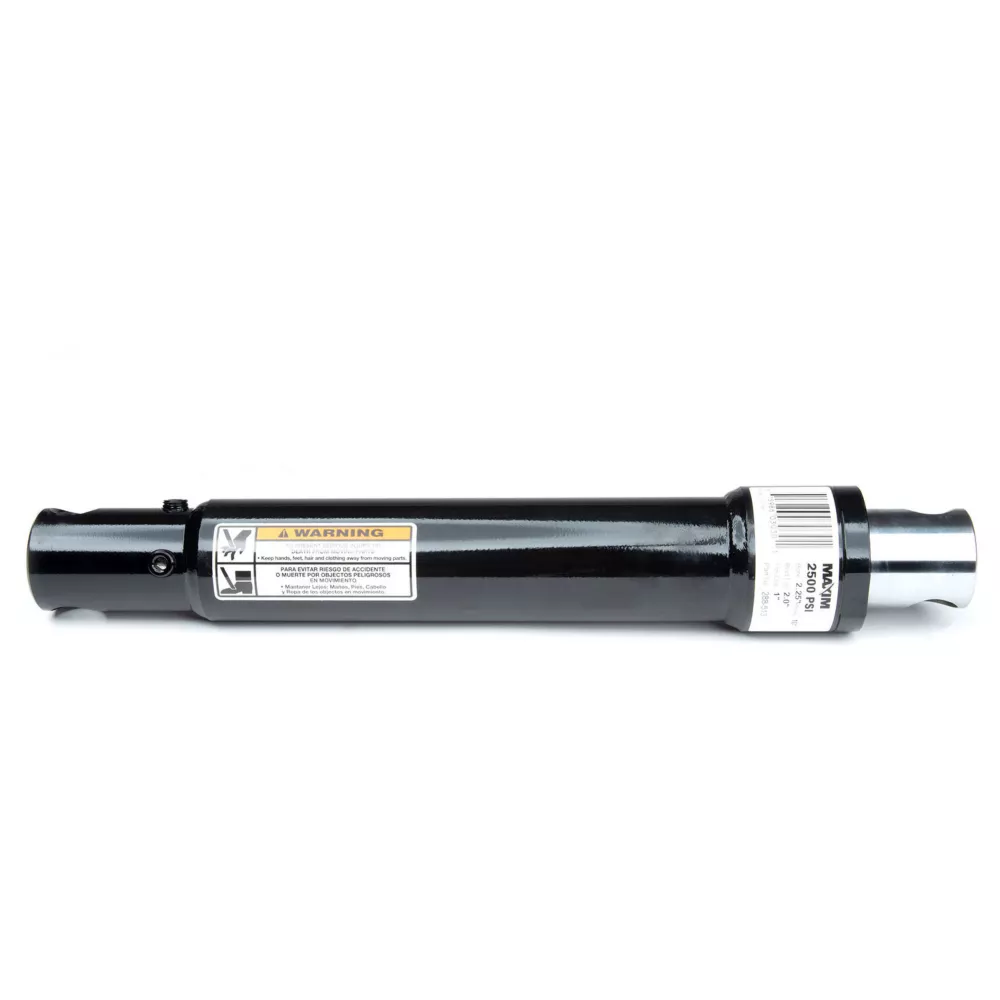

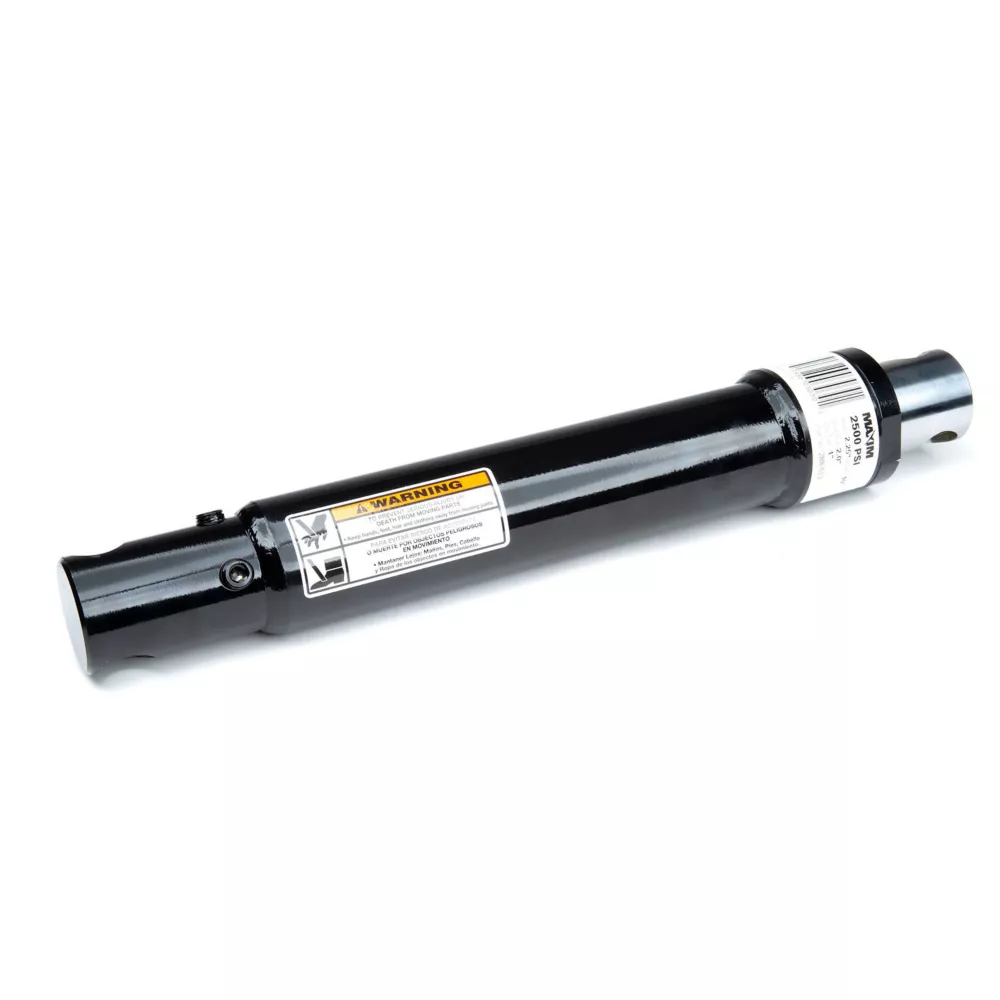

The Maxim 1.5 in. Bore x 10 in. Stroke Single-Acting Snowplow Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 ports 90 degrees apart to accommodate variable installation requirements. Hard work is never fun, that's why this hydraulic cylinder has been made with exacting precision to help make your work easier and faster!

• Two 1/4 ports 90 deg apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
• 2,500 maximum PSI
• Pin hole center in the single acting hydraulic cylinder is 11/16 in. from rod end
• Pin diameter of 1 in. and rod diameter of 1.5 in.
• Hydraulic cylinder measures 17.25 in. retracted and 27.25 in. extended
• 1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 10 in Stroke 1.5 in Shank Diameter 288508 Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	3 in.
Extended Length	27.25 in.
Hydraulic Cylinder Type	Snowplow
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	13 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	N/A
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	13 lb.
Product Width	N/A
Retracted Length	17.25 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Single acting
Stroke Distance	10 in.
Warranty	1 Year
Manufacturer PartNumber	288508

Maxim 1.5 in. Bore x 10 in. Stroke Single-Acting Snowplow Cylinder, 1.5 in. Rod Diameter, 288508 Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 1.5 in. Brand Compatibility Universal compatibility 3 in. Extended length 27.25 in. Hydraulic Cylinder Type Snow Plow Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 13 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 1 in. Port Size N/A Main Material Steel Product Height N/A Product Length N/A Product Weight 13 lbs. Product Width N/A Retracted Length 17.25 in. Shank diameter 1-1/2 in. Single/Double Action Single Acting Stroke Distance 10 in. 1 year warranty Manufacturer part number 288508
