Maxim Welded Toilet Cylinder 2.5 in Bore x 30 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts
The Maxim 2.5 in. Bore x 30 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.- Painted black
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube is precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod for durability
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

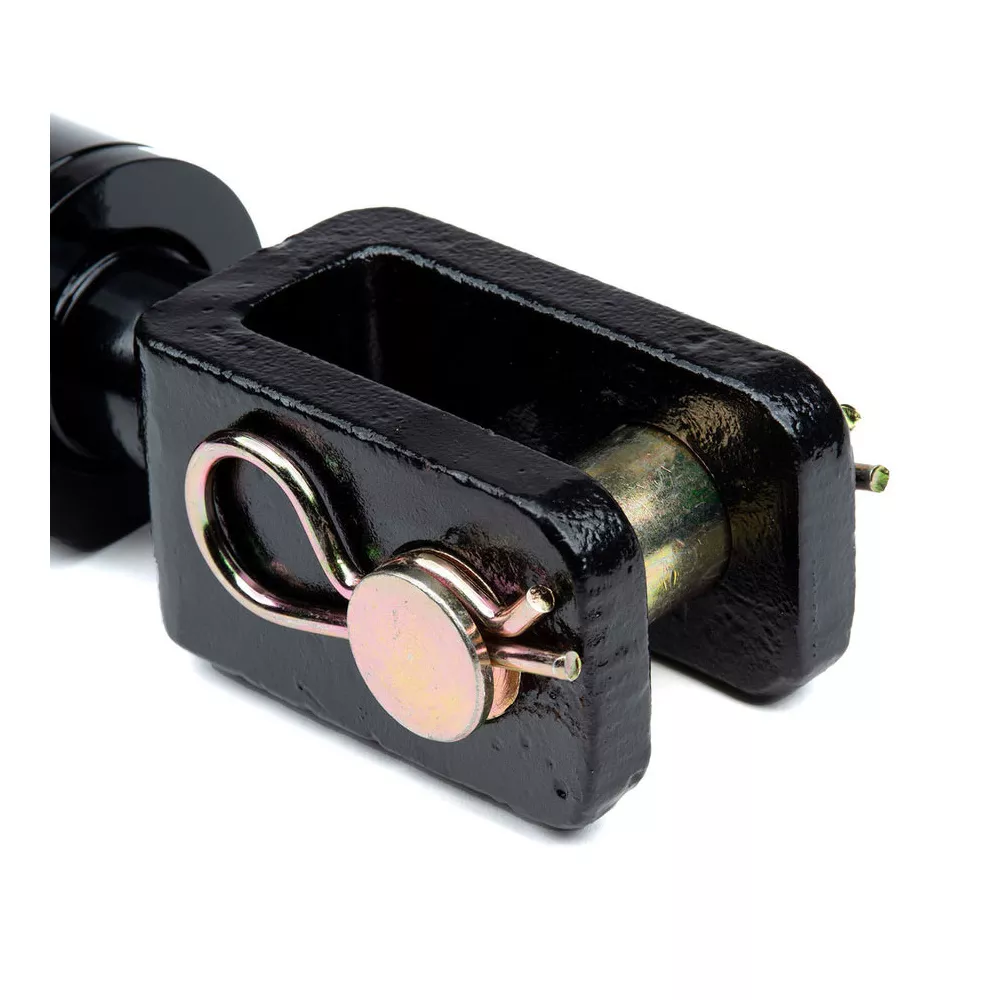

- Cast female clevises with pins and clips are the hydraulic cylinder's end mounts
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Welded hydraulic cylinder has a 2.5 in. bore and 30 in. stroke length
- Measures 40.25 in. retracted and 70.25 in. extended
- Column load: 10,960 lb.
- Pin diameter of 1 in. and rod diameter of 1.5 in.
- 1 year warranty
Maxim Welded Toilet Cylinder 2.5 in Bore x 30 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Maxim |
| Country of Origin | Imported |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 70.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 10,960 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 46 lb. |
| Product Width | N/A |
| Retracted Length | 40.25 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 30 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 288424 |
