Maxim Welded Toilet Cylinder 3.5 in Bore x 16 in Stroke 1.75 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

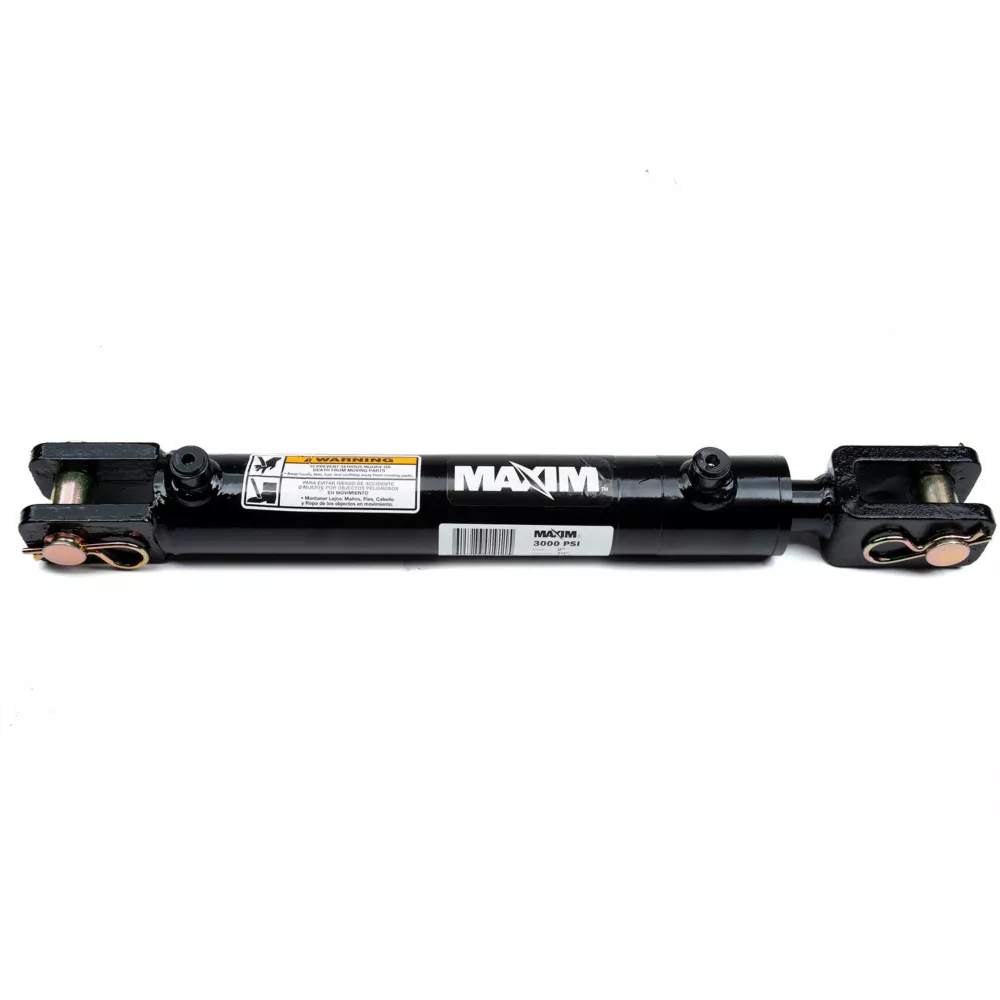

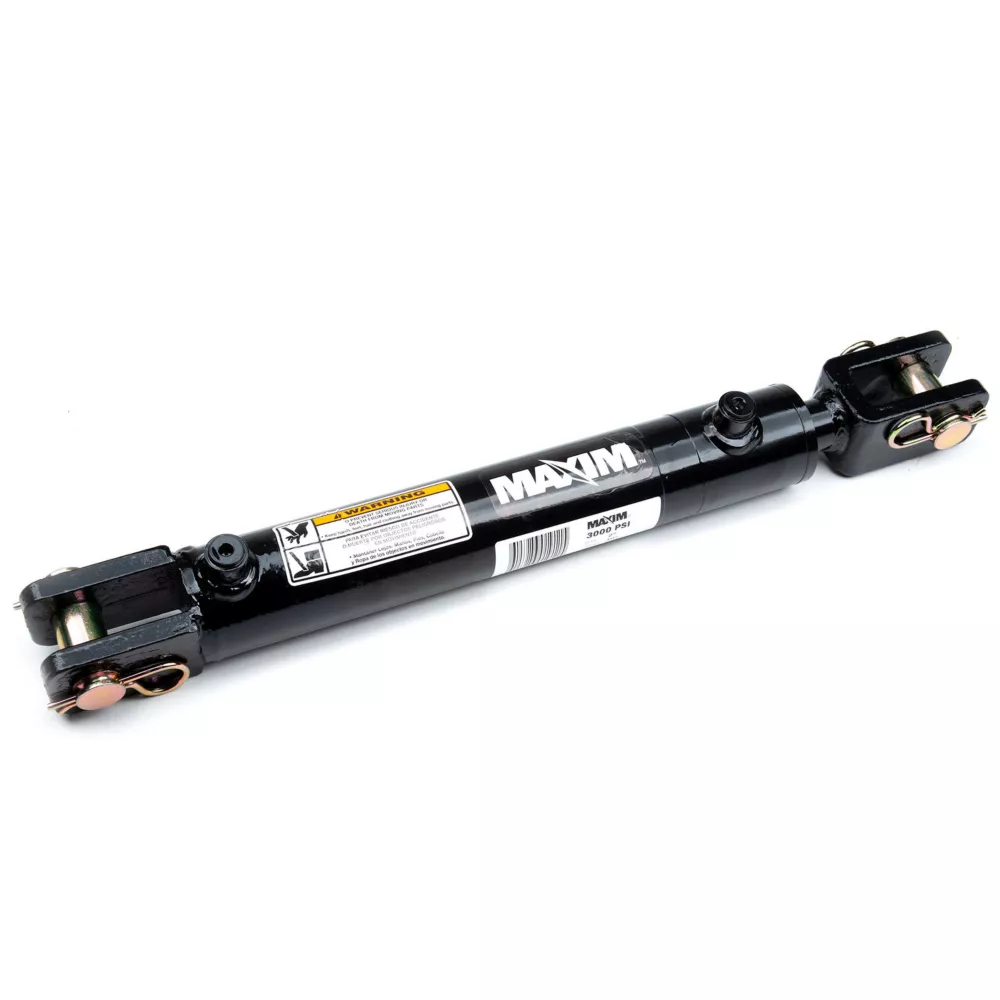

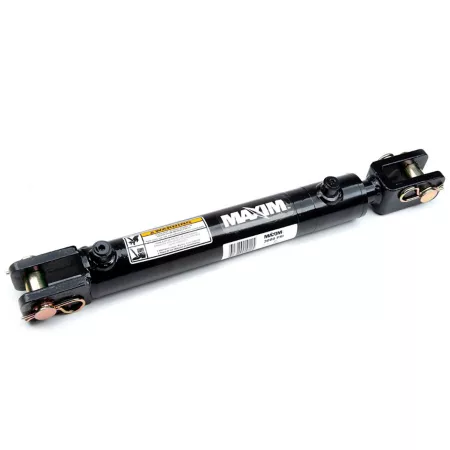

The Maxim 3.5 in. Bore x 16 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.

Painted black
Intended for double-acting applications
Piston: ductile iron ASTM A536 65-45-12 for excellent life
Piston lock nut: grade 8, high-tensile zinc-plated
Gland: ductile iron ASTM A536 65-45-12
High-tensile cold drawn tube is precision-honed for extended seal life
Tube seal: nitrile O-ring with polytemp hytrel back-up
High-tensile ground and polished hard chrome-plated rod for durability
Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
Wiper: polyurethane

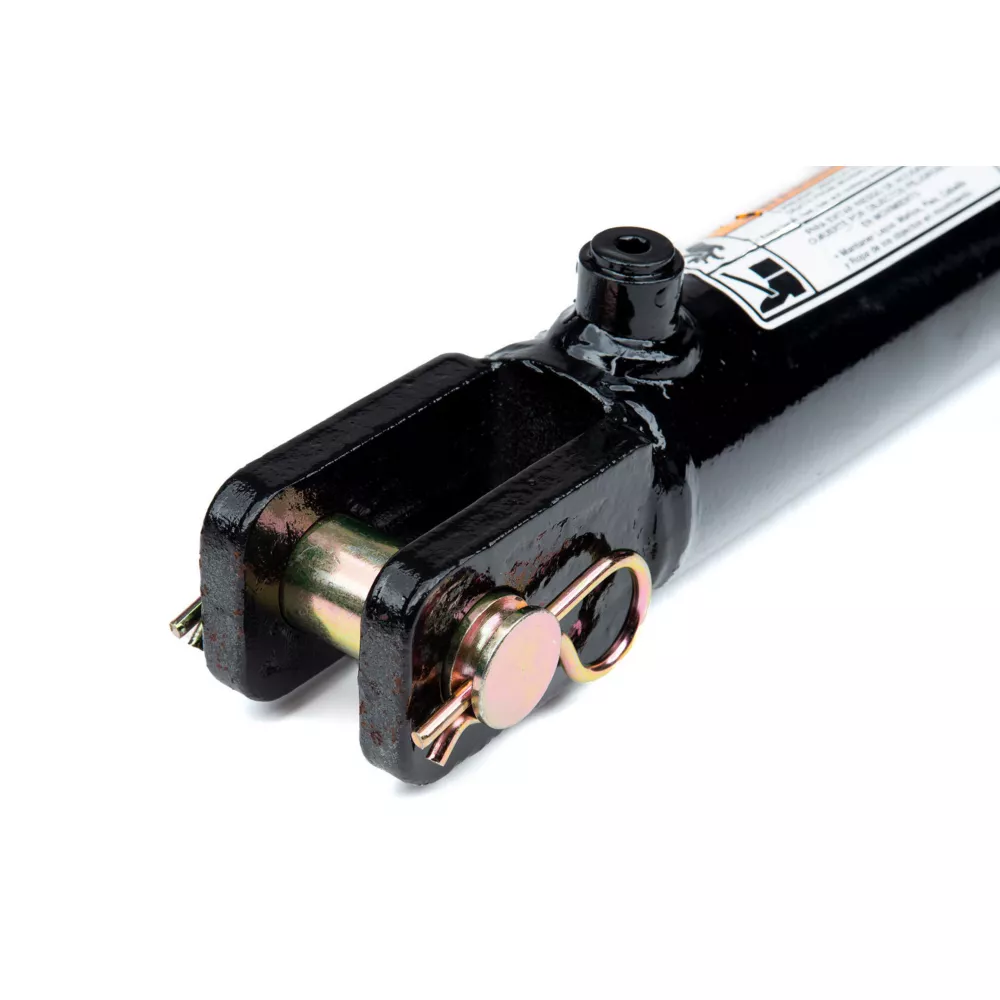

Cast female clevises with pins and clips are end mounts for the hydraulic cylinder
Pin and pin clip: high-tensile zinc-plated steel
Piston ID seal: O-ring
Piston OD seal: Hallite 755 piston seal
Ports: SAE O-rings
Welded hydraulic cylinder has a 3.5 in. bore and 16 in. stroke length
Measures 26.25 in. retracted and 42.25 in. extended
Column load: 28,860 lb.
Has a 3.5 in. bore and 16 in. stroke length
Pin diameter of 1 in. and rod diameter of 1.75 in.
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded Toilet Cylinder 3.5 in Bore x 16 in Stroke 1.75 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Universal
Extended Length	42.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	28,860 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	46 lb.
Product Width	N/A
Retracted Length	26.25 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	16 in.
Warranty	1 Year
Manufacturer PartNumber	288446
