Maxim Welded WSB Swivel Ball Cylinder 2.5 in Bore x 36 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

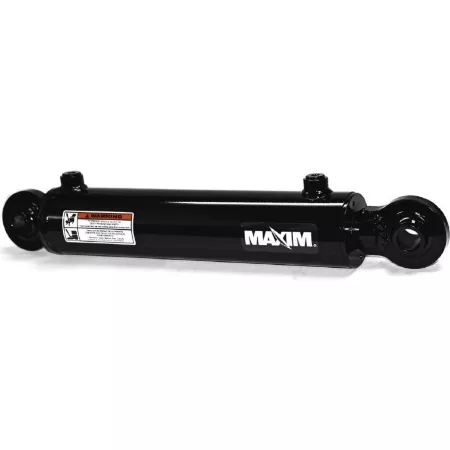

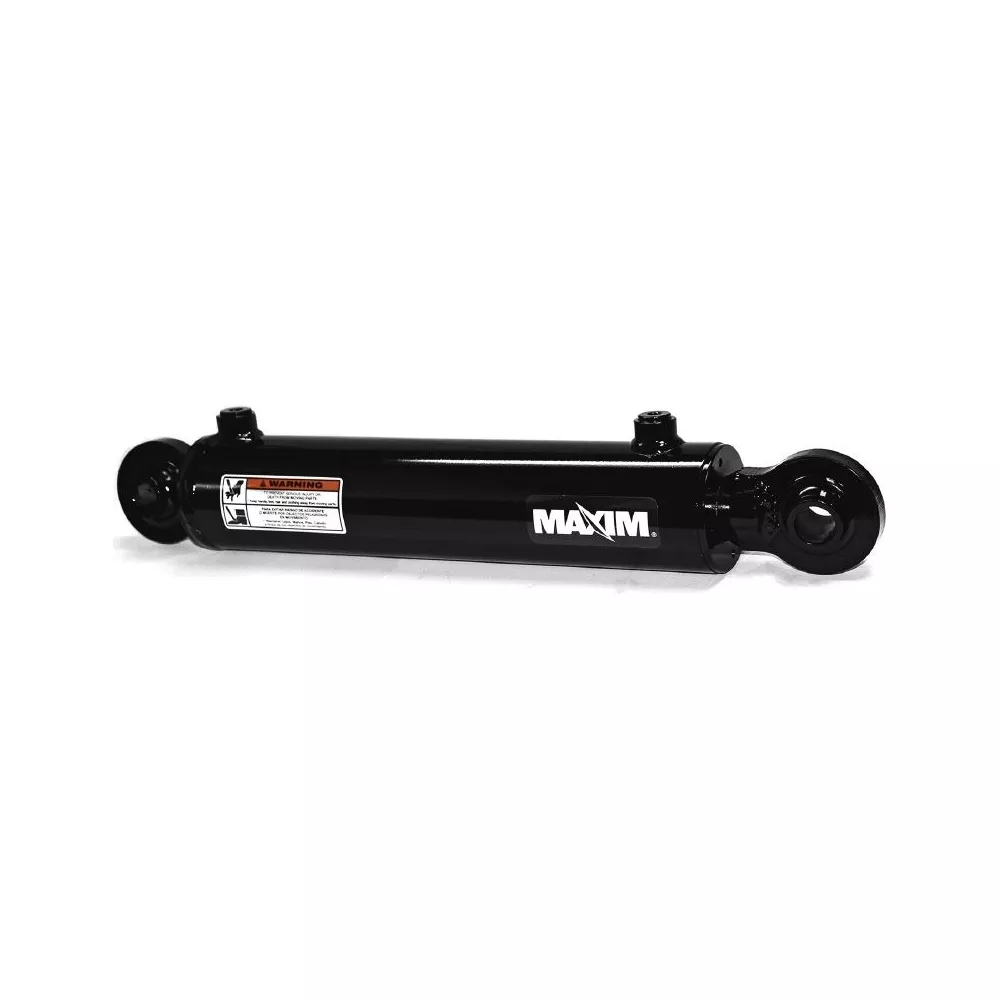

The Maxim 2.5 in. Bore x 36 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Made for versatility, this hydraulic cylinder is designed for use in any double-acting applications.

Intended use of swivel ball hydraulic cylinder: double-acting applications
Piston: ductile iron
Piston lock nut: nylock nut
Gland: ductile iron with rod wear band
Tube: steel tube honed or skived for extended seal life
Tube seal: O-ring and backup
Rod: ground and polished hard chrome-plated rod
Rod seal: U-cup
Wiper: polyurethane
End mounts: spherical
All seals are manufactured to US specifications
Ports: O-ring boss
Max PSI: 3,000
Column load: 14,720 lb.
Hydraulic cylinder measures 44 in. retracted and 80 in. extended
Pin diameter of 1 in. and rod diameter of 1.75 in.
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded WSB Swivel Ball Cylinder 2.5 in Bore x 36 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Extended Length	80 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14,720 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Steel
Product Weight	58 lb.
Retracted Length	44 in.
Rod Diameter	2-3/4 in.
Stroke Distance	36 in.
Warranty	1 Year
Manufacturer PartNumber	400526
