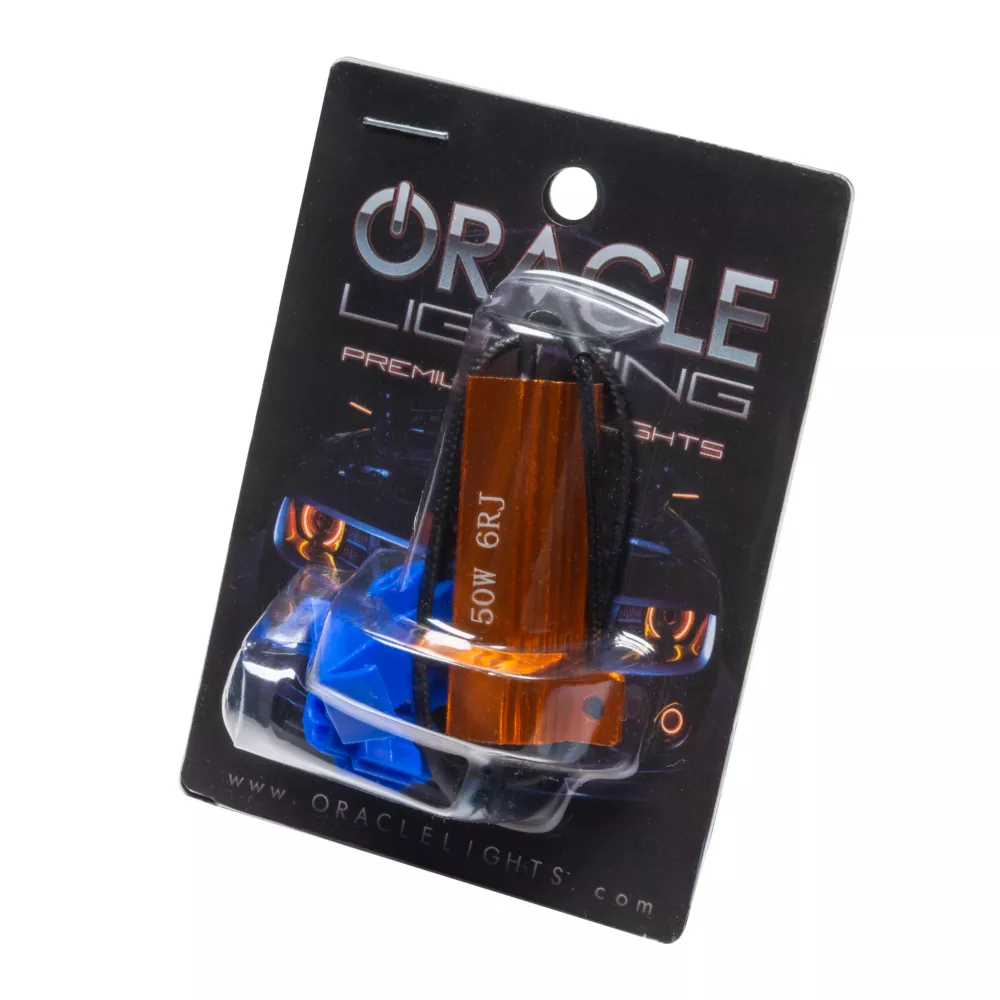

ORACLE Lighting 50W/6ohm LED Load Equalizer Resistor for Fast Flashing Flash Automotive Light Mounts & Accessories Truck & Automotive

This 50W / 6ohm LED load equalizer is a must if you do not want to get a "rapid flash" when installing LED turn signal bulbs. The "rapid-flash" occurs because the high-efficiency LED bulb does not draw enough power for the vehicle to recognize it and assumes the bulb is missing. It causes the turn signal to blink rapidly to notify you there is something odd. Installation is simple, just connect the Load Equalizer to the positive and negative wires going to the turn signal bulb. This Load Equalizer is required wherever LED Signals have been used to replace normal incandescent or halogen bulbs. Most cars and motorcycles monitor the resistance in the turn signal circuit and will increase the flash rate when it senses too little resistance. The system was designed this way so the driver will know when a bulb has burnt out, but it will also flash faster if LEDs are installed since they have almost no load resistance.

This unit will increase the load presented to the system so it will use the proper flash rate.
This Load Equalizer is encased in a waterproof aluminum housing complete with heat sink fins to dissipate heat and operate at a safe temperature.
Dimensions are approx. 2" x .6" x .6"

ORACLE Lighting 50W/6ohm LED Load Equalizer Resistor for Fast Flashing Flash Automotive Light Mounts & Accessories Truck & Automotive> Automotive Lighting> Automotive Light Mounts & Accessories

Specification	Description
Brand	ORACLE Lighting
Country of Origin	Imported
Battery Size	N/A
Bulb Count	N/A
Bulb Type	LED
Compatibility	N/A
Coverage Area	1 ft.
Features	This Load Equalizer is encased in a waterproof aluminum housing complete with heat sink fins to dissipate heat and operate at a safe temperature.
Finish	Aluminum
Housing Color	Orange
Indoor/Outdoor	Outdoor
Light Type	N/A
Lumen Rating	0 lm
Package Quantity	3
Power Type	12 Volt, 12V
Primary Material	Aluminum
Product Height	9 in.
Product Length	9 in.
Product Weight	1 lb.
Product Width	4 in.
Voltage	12V
Wattage	50W
Manufacturer PartNumber	5013-504

ORACLE Lighting LED Load Equalizer 50W / 6ohm Resistor for Turn Signal Rapid Flash Specifications expand/collapse Specification Description Brand ORACLE Lighting Country of Origin Imported Battery Size N/A Number of Bulbs N/A Bulb Type LED Compatibility N/A Coverage Area 1ft Features This charge equalizer is enclosed in A waterproof aluminum housing with heat sink fins to dissipate heat and operate at a safe temperature. Finish Aluminum Housing Color Orange Indoor/Outdoor Outdoor Light Type N/A Lumen Rating 0 lm Package Quantity 3 Power Type 12 Volt, 12 V Main Material Aluminum Product Height 9 in. Product length 9 in. Product weight 1 lb. Product width 4 in. Voltage 12 V Power 50 W Manufacturer part number 5013-504
