Pacer 1 in Metal 15 GPM Clear Water Transfer Pump Transfer Pumps Farm & Ranch

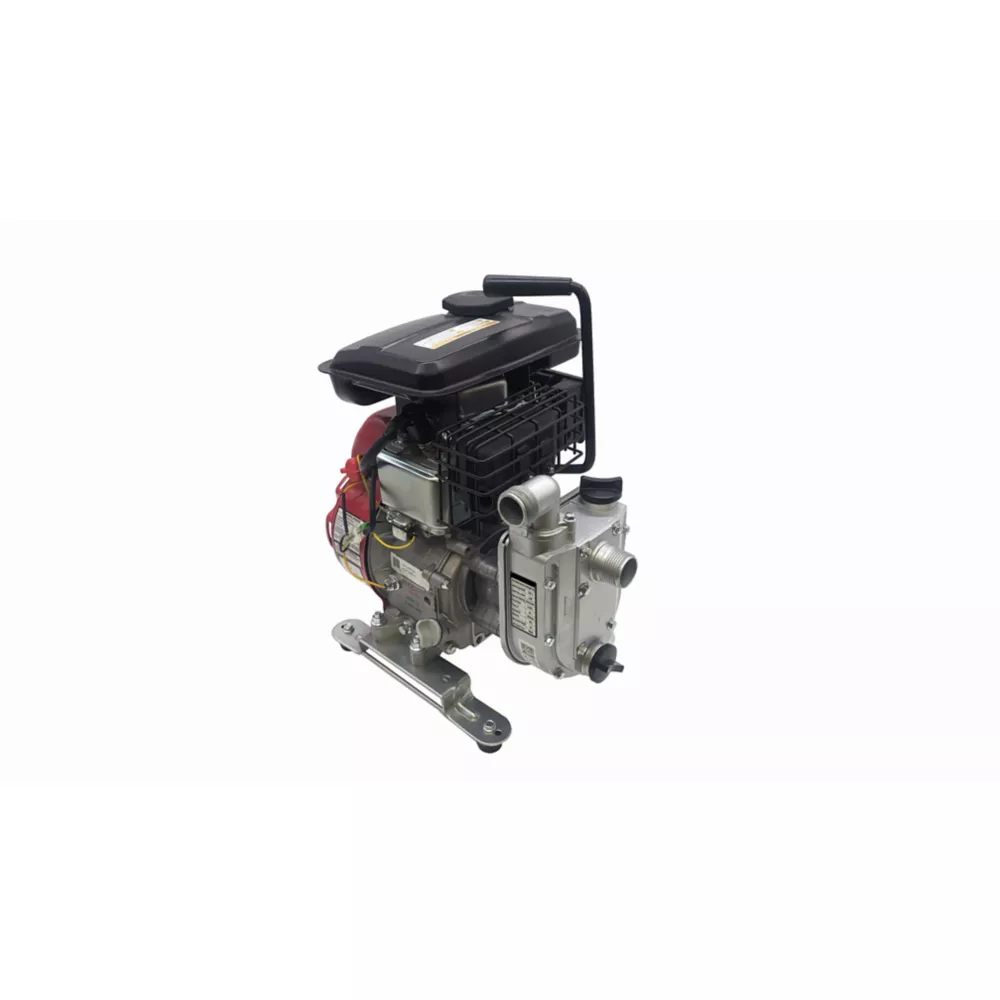

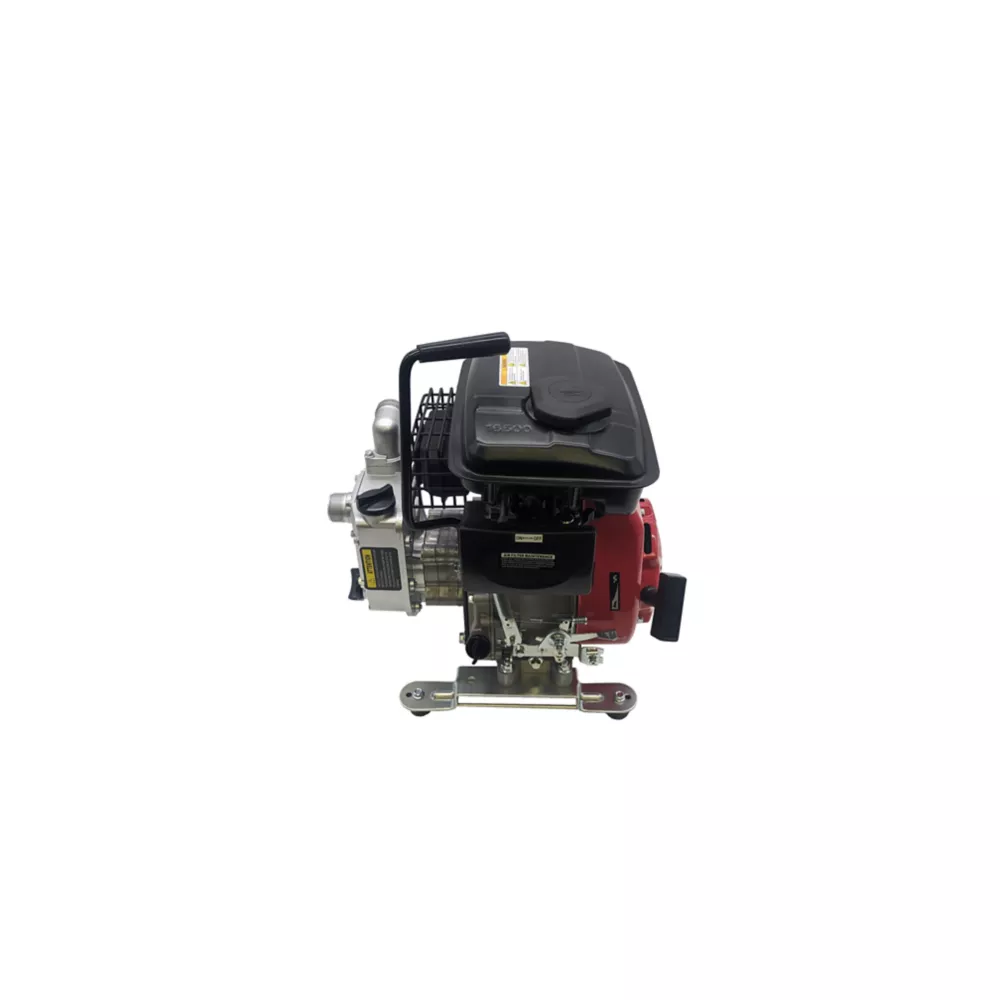

Pacer's MWP' Series Self-Priming Centrifugal pumps are lightweight, portable. and are great for general service on water. They feature a cast aluminum housing, Buna elastomers and a silicon carbide seal. It features a 1" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 2.5 HP gasoline engine with flow rates of up to 15 GPM. This motor has a low oil shut-off and meets EPA standards. Please Call Pacer with any chemical compatibility or application questions.

1" Suction and Discharge Port
Max Flow of 15 GPM
Max TDH 20 ft
Cast Aluminum Housing
Cast Iron Impeller
Buna Elastomers
Silicon Carbide Shaft Seal
Low Oil Alert

Pacer 1 in Metal 15 GPM Clear Water Transfer Pump Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Imported
Body Material	Cast aluminum
Compatible Pipe Material	Metal
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	15 GPM
Discharge Rate at 10 ft.	10 GPM
Engine Displacement	79cc
Features	Buna Seals, Silicon Carbide Shaft seal, cast iron impeller, cast aluminum housing
Horsepower	2.5hp
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	15 GPM
Maximum Head Lift	20 ft.
Maximum Operating Pressure	8 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	15 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0 deg. F
Power Type	Gas
Product Height	18 in.
Product Length	17 in.
Product Weight	32 lb.
Product Width	13 in.
Pump Mechanism	Centrifugal
Motor Type	Gasoline
Warranty	1 Year Limited
Manufacturer PartNumber	MWP-1

Pacer 1 in. Metal, Clear Water Transfer Pump 15 GPM Specifications expand/collapse Specification Description Brand Pacer Country of Origin Imported Body Material Cast Aluminum Compatible Hose Material Metal Discharge Fitting Female Threaded Discharge Diameter 1 in. Discharge Rate at 0 ft. 15 GPM Discharge Rate at 10 ft. 10 GPM Engine Displacement 79 cc Features Buna Seals, Silicon Carbide Shaft Seal, Cast Impeller, Cast Aluminum Housing Power 2.5 hp Diameter pipe 1 in. Inlet fitting Female threaded Inlet diameter 1 in. Maximum flow 15 GPM Maximum head lift 20 ft. Maximum operating pressure 8 PSI Maximum operating temperature 130 degrees. F Maximum suction height 15 feet. Minimum operating pressure 0 PSI Minimum operating temperature 0 deg. F Power Type Gas Product Height 18 in. Product length 17 in. Product weight 32 lbs. Product width 13 in. Pump mechanism Centrifugal motor type 1 year gasoline warrantyLimited Manufacturer Part Number MWP-1
