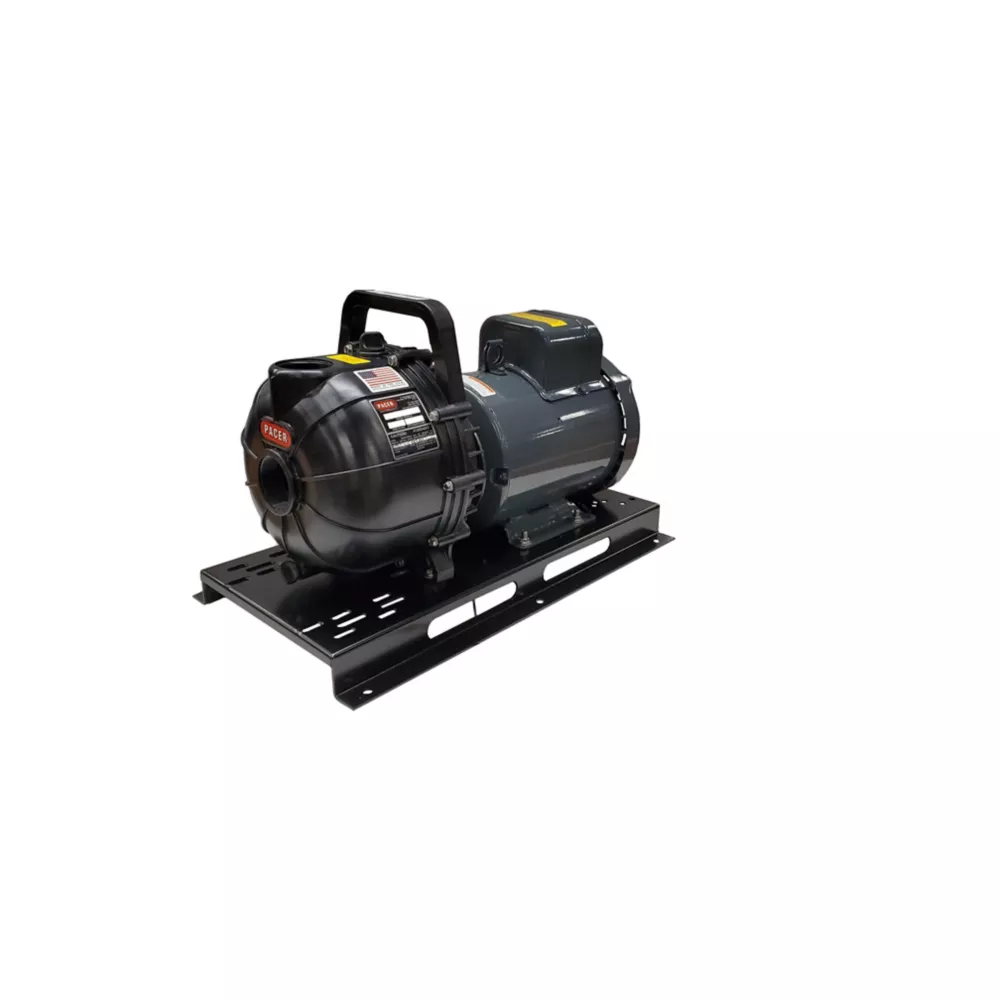

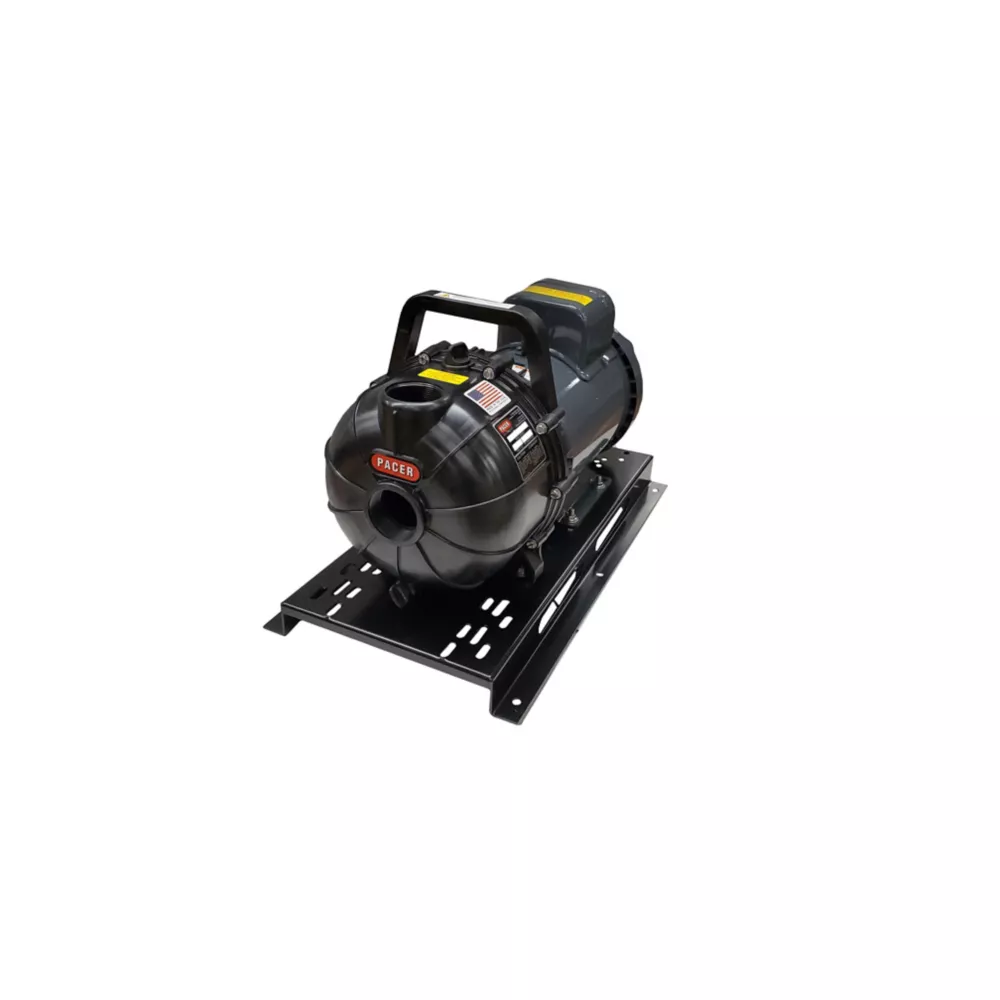

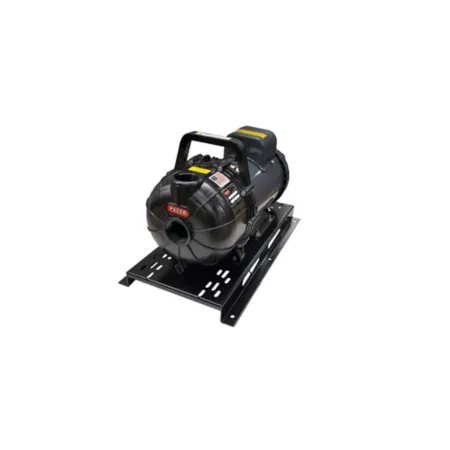

Pacer 3 HP Electric Chemical and Clear Water Transfer Pump 115/230 V 180 GPM Single Phase Electric Motor Transfer Pumps Farm & Ranch

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 3 hp, single-phase electric motor with flow rates of up to 180 GPM or 85 ft. TDH at 60 Hz for powerful pumping. It is recommended a certified electrician install this pump. Please Call Pacer with any chemical compatibility or application questions.

2" Suction & Discharge ports
180 Max GPM
85 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers
3 HP
Single-Phase electric motor
115/230 V
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer 3 HP Electric Chemical and Clear Water Transfer Pump 115/230 V 180 GPM Single Phase Electric Motor Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	180 GPM
Discharge Rate at 10 ft.	160 GPM
Engine Displacement	3 HP
Features	2 in. suction and discharge, NPT female threads, 180 Max GPM, 85 ft. Max TDH, 25 ft. suction lift, Built in check valve, Stainless steel hardware, 3 HP single phase electric motor
Horsepower	3 hp
Hose Diameter	2 in.
Impeller Material	Polyester
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	180 GPM
Maximum Head Lift	85 ft.
Maximum Operating Pressure	35 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Electric
Product Height	18 in.
Product Length	30 in.
Product Weight	110 lb.
Product Width	16 in.
Pump Mechanism	Centrifugal
Motor Type	Electric
Voltage	115,230 v
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-12H4-C3.0C

Pacer 3 HP 115/230V Electric Chemical and Clear Water Transfer Pump, 180 GPM, Single Phase Electric Motor Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 2 in. Discharge Rate at 0 ft. 180 GPM Discharge Rate at 10 ft. 160 GPM Motor Displacement 3 HP Features 2 in. suction and discharge, NPT female threads, 180 GPM maximum, 85 ft. maximum TDH, 25 ft. suction height , built-in check valve, stainless steel hardware, 3 HP single phase electric motor Horsepower 3 hp Pipe diameter 2 in. Impeller material Polyester Inlet connection Female threaded Inlet diameter 2 in. Maximum flow 180 GPM Maximum head lift 85 feet. Maximum operating pressure 35 PSI Maximum operating temperature 130 deg. F Maximum suction height 25 feet Minimum operating pressure 0 PSI Minimum operating temperature -10 deg. F Type power Electric Product height 18 in. Product length 30 in. Product weight 110 lbs. Product width 16 in. Pump Mechanism Centrifugal Motor Type Electric Voltage 115.230 V 1 Year Limited Warranty Manufacturer Part Number P-58-12H4-C3.0C
