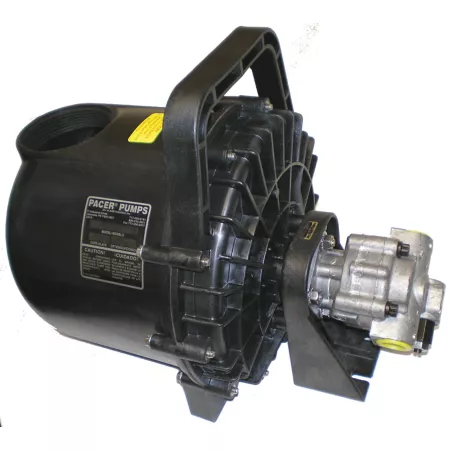

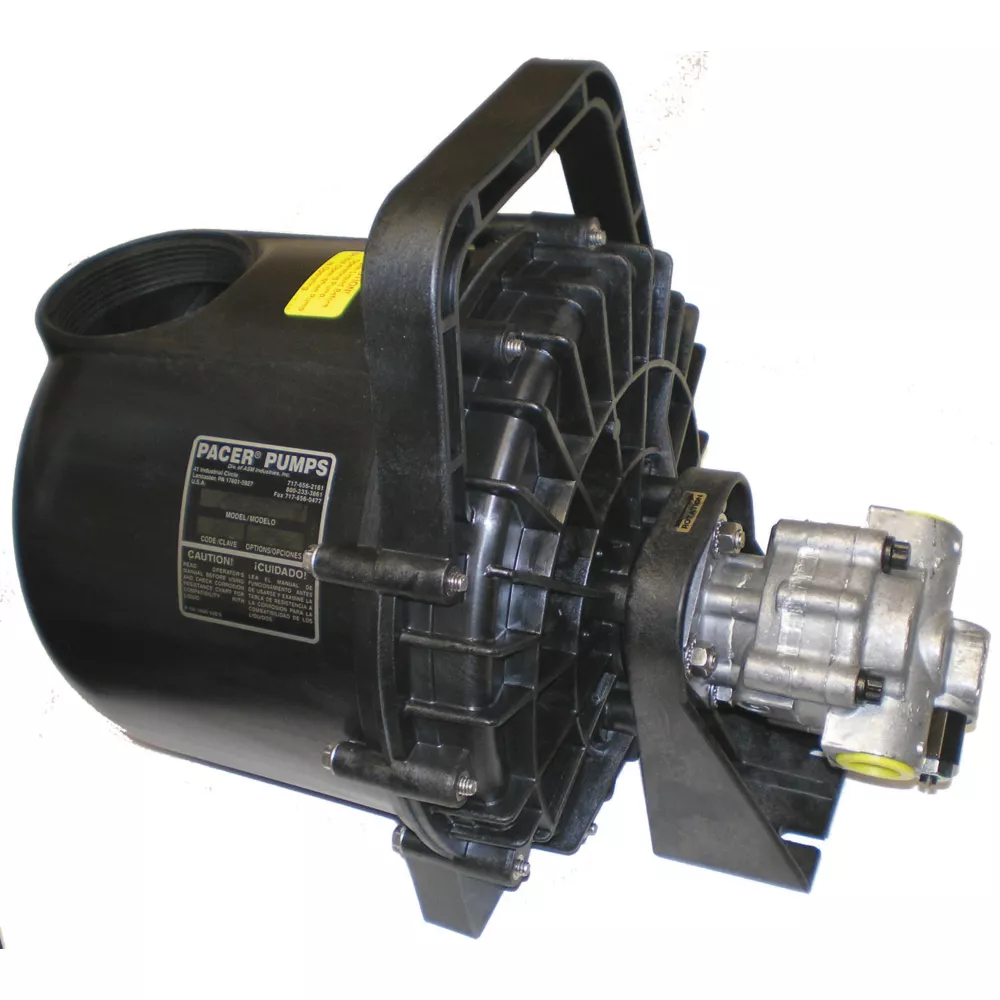

Pacer Chemical and Clear Water Transfer Pump 280 GPM Hydraulic Motor Transfer Pumps Farm & Ranch

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 3" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a Hydraulic motor with flow rates of up to 280 GPM or 75 ft. TDH and 25 ft. suction lift. Please Call Pacer with any chemical compatibility or application questions.

3" Suction & Discharge ports
280 Max GPM
75 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers
Parker Hydraulic motor
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Chemical and Clear Water Transfer Pump 280 GPM Hydraulic Motor Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	3 in.
Discharge Rate at 0 ft.	280 GPM
Discharge Rate at 10 ft.	260 GPM
Engine Displacement	1,200 PSI 9 GPM
Features	3 ft. suction and discharge port, 280 GPM Max, 75 ft. TDH max, 25 ft. suction lift, Built in check valve, Stainless steel hardware, EPDM elastomers, Molded and assembled in the USA
Hose Diameter	3 in.
Inlet Connection	Threaded Female
Inlet Diameter	3 in.
Maximum Flow Rate	280 GPM
Maximum Head Lift	75 ft.
Maximum Operating Pressure	38 PSI
Maximum Operating Temperature	130 deg.F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	-10 deg.F
Power Type	Other
Product Height	14 in.
Product Length	18 in.
Product Weight	18 lb.
Product Width	14 in.
Pump Mechanism	Centrifugal
Motor Type	Hydraulic
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-13L4-HYC

Pacer Chemical and Clear Water Transfer Pump, 280 GPM, Hydraulic Motor Driven Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 3 in. Discharge flow at 0 ft. 280 GPM Discharge flow at 10 ft. 260 GPM Motor displacement 1,200 PSI 9 GPM Includes 3 ft. suction and discharge port, 280 GPM max, 75 ft. TDH max, suction head 25 feet, integrated check valve, stainless steel hardware, EPDM elastomers, molded and assembled in the United States, pipe diameter 3 inches. Inlet Connection Female Threaded Inlet Diameter 3 in. Maximum Flow Rate 280 GPM Maximum Head Lift 75 ft. Maximum Operating Pressure 38 PSI Maximum Operating Temperature 130 deg.F Maximum Suction Height 25 ft. Minimum Operating Pressure 0 N/ A Minimum operating temperature -10 deg.F Power type Other product height 14 in. Lengthr of product 18 in. Product weight 18 lbs. Product width 14 in. Pump Mechanism Motor Type Centrifugal Manufacturer's 1 Year Limited Hydraulic Warranty Part Number P-58-13L4-HYC
