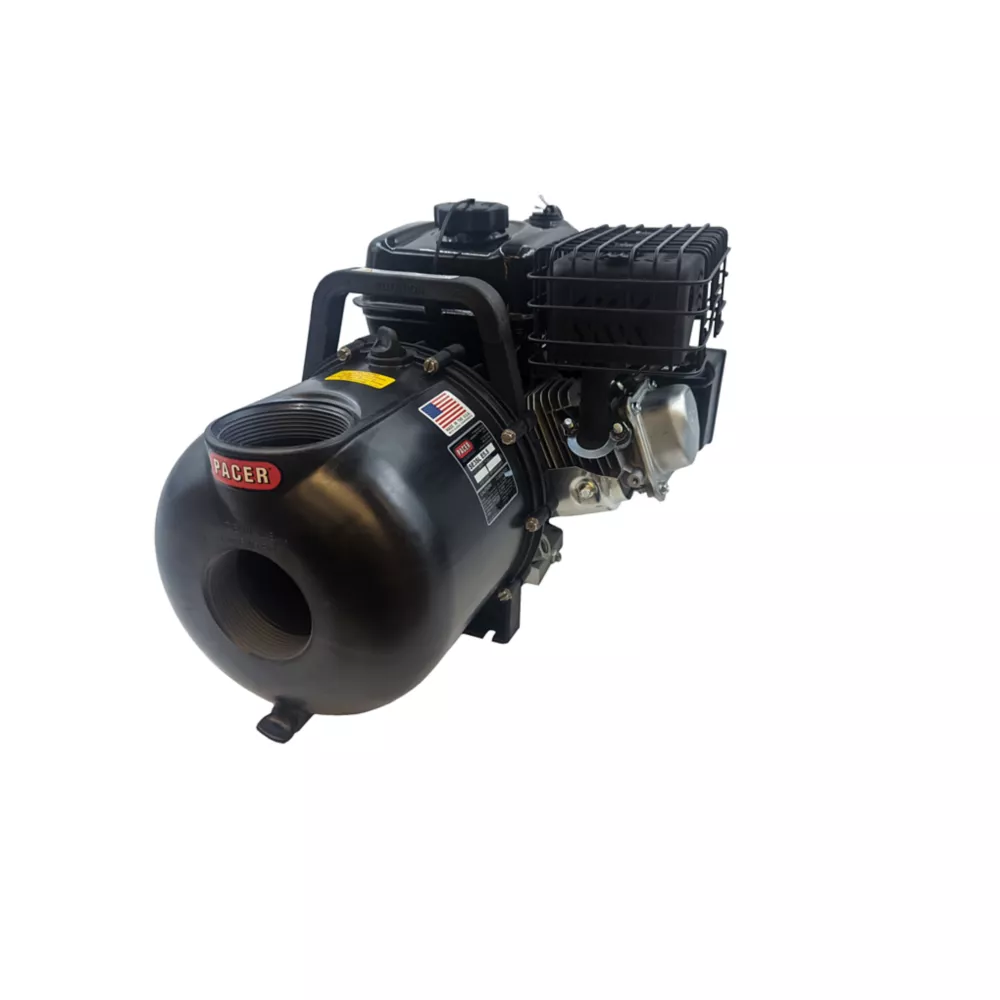

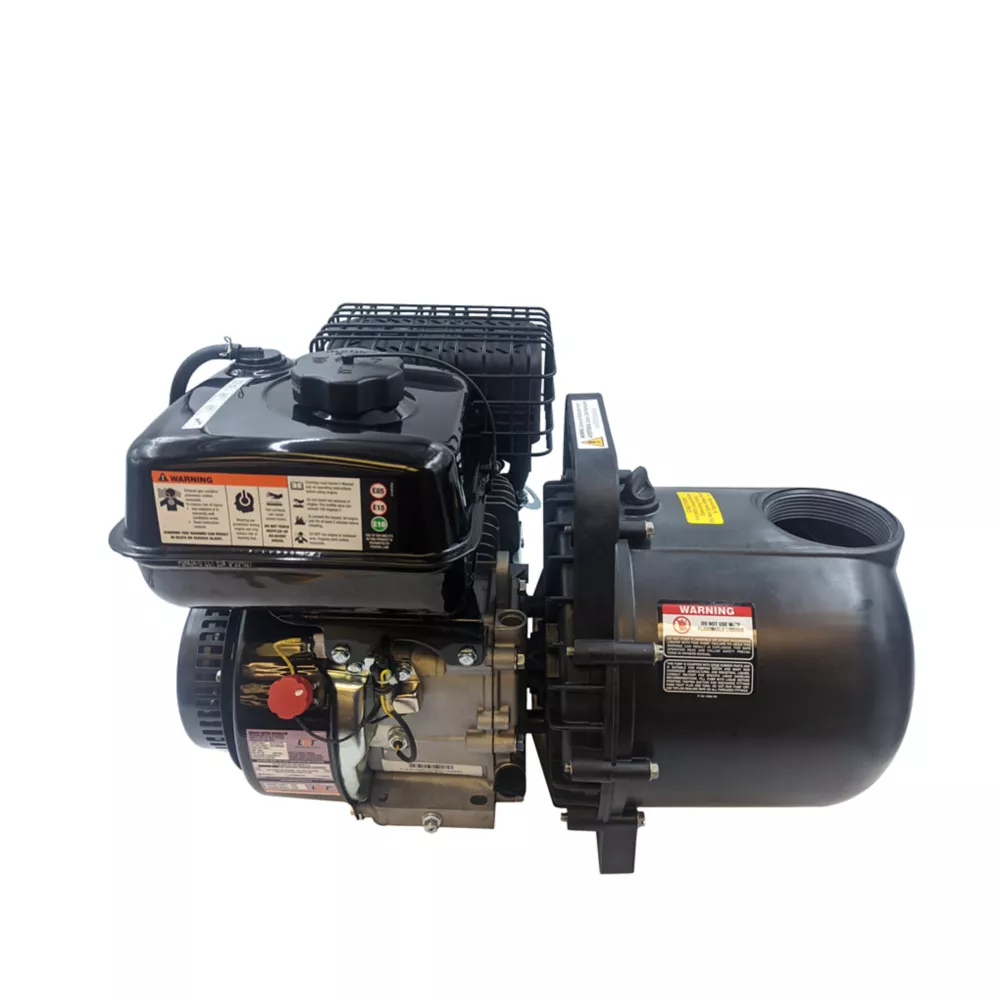

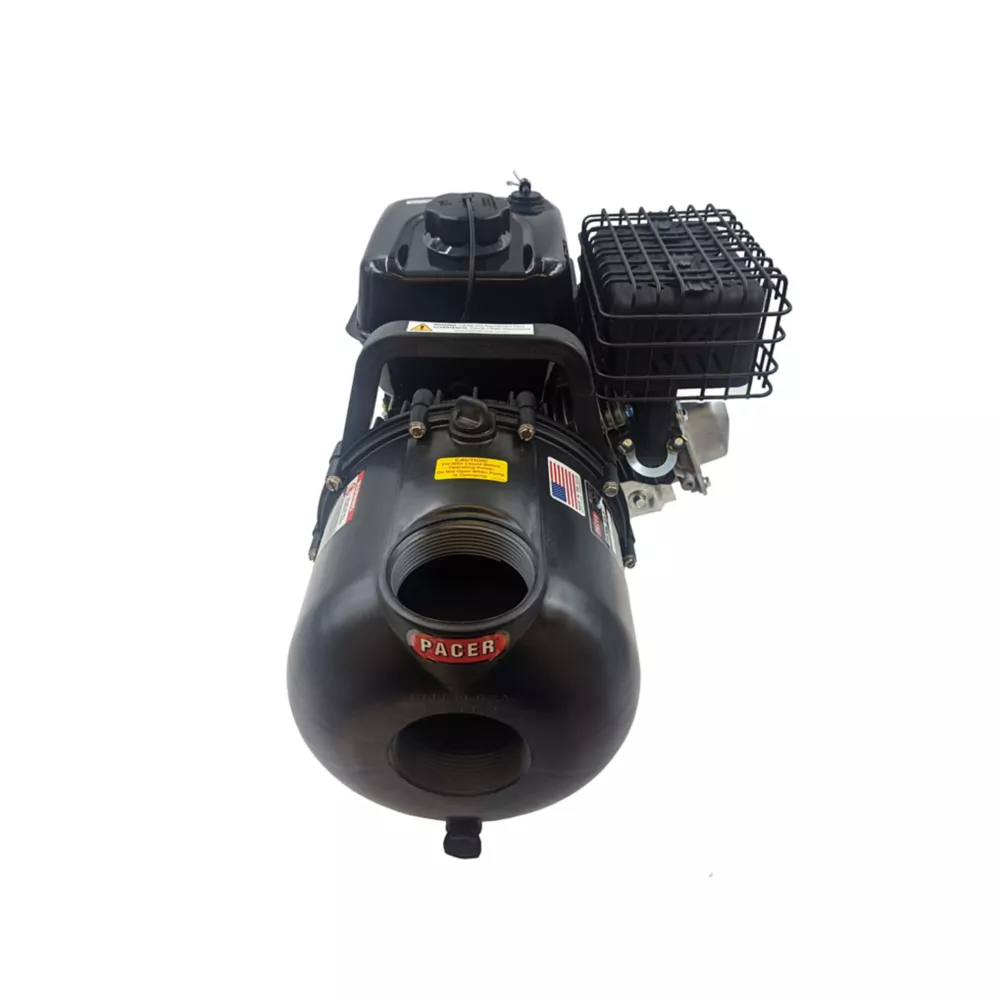

Pacer Gasoline Chemical and Clear Water Transfer Pump 280 GPM Engine Driven Transfer Pumps Farm & Ranch

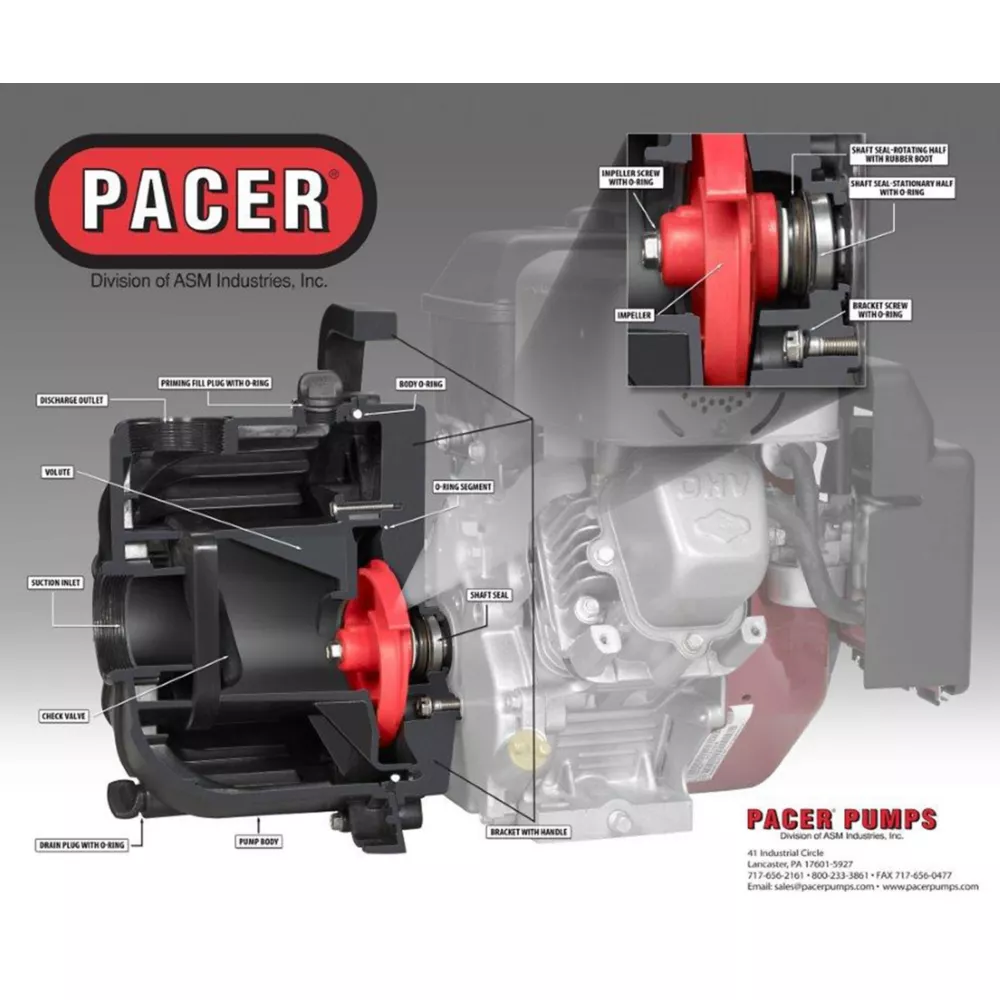

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 3" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by LCT MAXX 208cc gasoline engine with flow rates of up to 280 GPM or 83 ft. TDH. Please Call Pacer with any chemical compatibility or application questions.

3" Suction & Discharge ports
280 Max GPM
83 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers

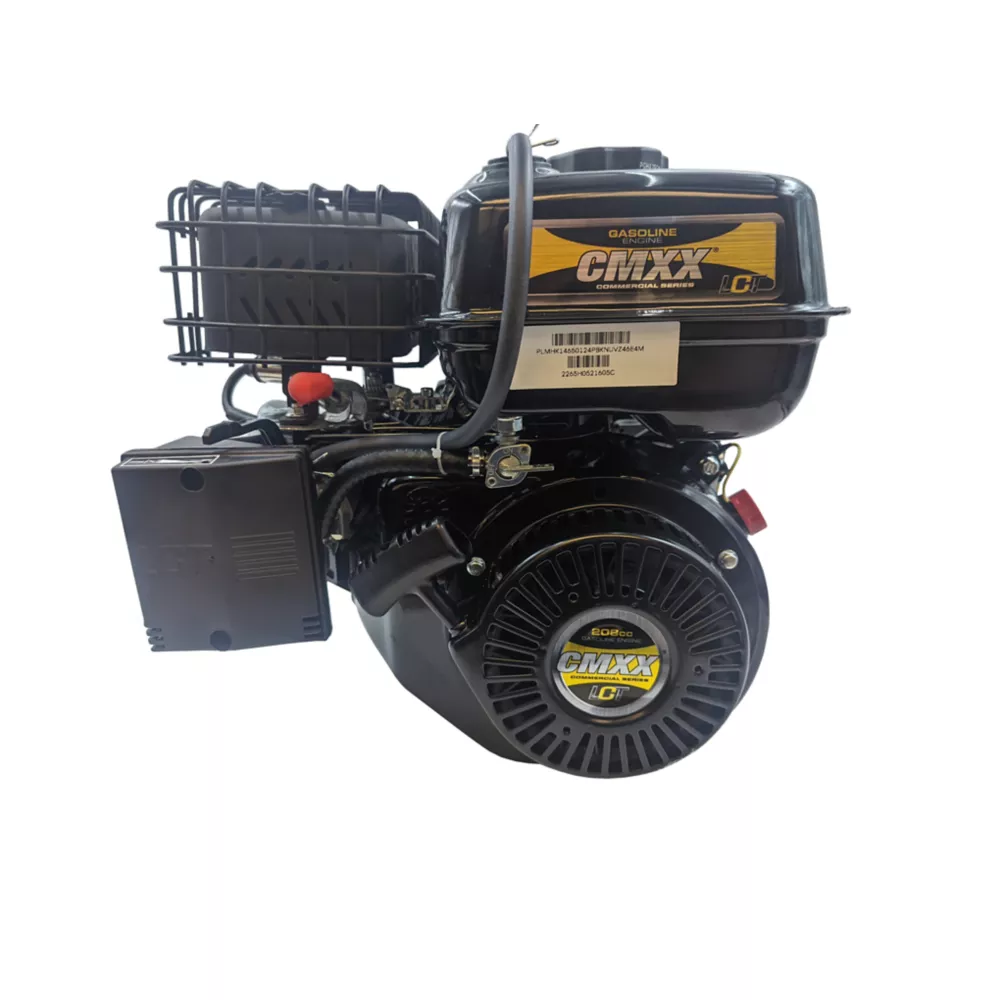

208 CC gasoline engine
LCT Feature - Low oil shut-off
LCT Feature - Cast iron cylinder sleeve, Dual ball bearings, and forged crankshaft
LCT Feature - Meets Carb & EPA standards
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Gasoline Chemical and Clear Water Transfer Pump 280 GPM Engine Driven Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	3 in.
Discharge Rate at 0 ft.	280 GPM
Discharge Rate at 10 ft.	260 GPM
Engine Brand	LCT
Engine Displacement	208cc
Features	3 in. Suction and discharge NPT ports, 280 Max GPM, 83 ft. Max TDH, 25 ft. suction lift, Build in check valve, Stainless steel hardware, LCT 208cc gasoline engine, Low oil shut-off, Meets carb and EPA standards, Molded and assembled in the USA
Hose Diameter	3 in.
Impeller Material	Polyester
Inlet Connection	Threaded Female
Inlet Diameter	3 in.
Maximum Flow Rate	280 GPM
Maximum Head Lift	83 ft.
Maximum Operating Pressure	35 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Gas
Product Height	17 in.
Product Length	25 in.
Product Weight	53 lb.
Product Width	19 in.
Pump Mechanism	Centrifugal
Motor Type	Gasoline
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-13S4-E5.5

Pacer Gas-Powered Chemical and Clear Water Transfer Pump, 280 GPM, Engine Driven Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 3 in. Discharge Rate at 0 ft. 280 GPM Discharge Rate at 10 ft. 260 GPM Engine Brand LCT Engine Displacement 208 cc Includes 3 in. NPT suction and discharge ports, 280 GPM maximum, 83 ft. maximum TDH, height 25 ft. vacuum, built-in check valve, stainless steel hardware, 208 cc LCT gas engine, low oil shutoff, carburetor compliant and EPA compliant, cast and assembled to United States Pipe Diameter 3 in. Impeller Material Polyester Inlet Connection Female Threaded Inlet Diameter 3 in. Maximum flow 280 GPM Maximum head lift 83 feet. Maximum operating pressure 35 PSI Maximum operating temperature 130 deg. F Maximum suction height 25 fteds Minimum operating pressure 0 PSI Minimum operating temperature -10 deg. F Power Type Gas Product Height 17 in. Product length 25 in. Product weight 53 lbs. Product Wi-Fi dth 19 in. Pump Mechanism Centrifugal Motor Type 1-Year Limited Gasoline Warranty Manufacturer Part Number P-58-13S4-E5.5
