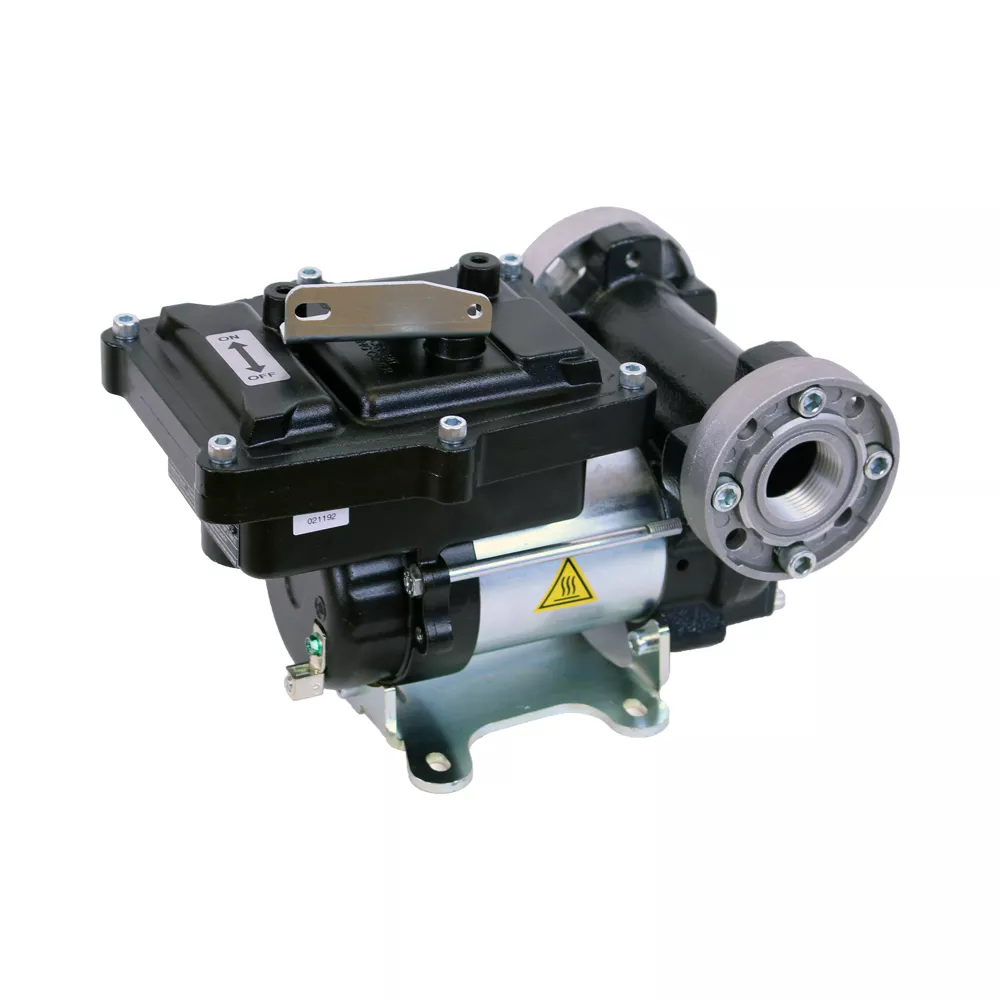

Piusi USA 1/4 HP 12V Fuel Pump EX50 UL 15 GPM Pump Only Pedestal Bracket Fuel Transfer Pumps Truck & Automotive

The 15GPM EX50 12VDC UL Fuel Transfer Pump is designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle!

UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D area
30% more compact with 30% more flow rate
High efficiency DC fuel transfer pump delivers up to 15GPM at the nozzle
Flanged components can be mounted or replaced without the use of sealant, making connections quick and secure
Bypass valve and spring-loaded, reinforced vanes are built-in to ensure efficiency and longevity
Thermal overload protection to prevent overheating

Piusi USA 1/4 HP 12V Fuel Pump EX50 UL 15 GPM Pump Only Pedestal Bracket Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	17A
Body Materials	Cast iron
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	30 min. on 30 min. off
Features	Self-Priming
Horsepower	0.25 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	15 GPM
Maximum Head Lift	13 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	10 deg. F
Power Type	Electric, 12 Volt
Product Height	11 in.
Product Length	14 in.
Product Weight	20 lb.
Product Width	16 in.
Voltage	12V
Warranty	2 Year
Manufacturer PartNumber	F0037150A

Piusi USA 1/4 HP 12V EX50 UL Fuel Pump, 15 GPM, Pump Only, Foot Mount Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply DC Amperage 17A Body Materials Cast Iron Compatible Fluids Fuel Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 30 min. over 30 min. off Features Self-Priming Power 0.25 HP Hose Diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Grade Residential Maximum Flow Rate 15 GPM Maximum Head Lift 13 feet Maximum Operating Pressure 16 PSI Maximum Operating Temperature 110 deg. F Minimum operating pressure 1 PSI Minimum operating temperature 10 deg. F Power supply type, 12 volts Product height 11 in. Product length 14 in. Product weight 20 lb. Product width 16 in. Voltage 12 V Warranty 2 years Manufacturer part number F0037150A
