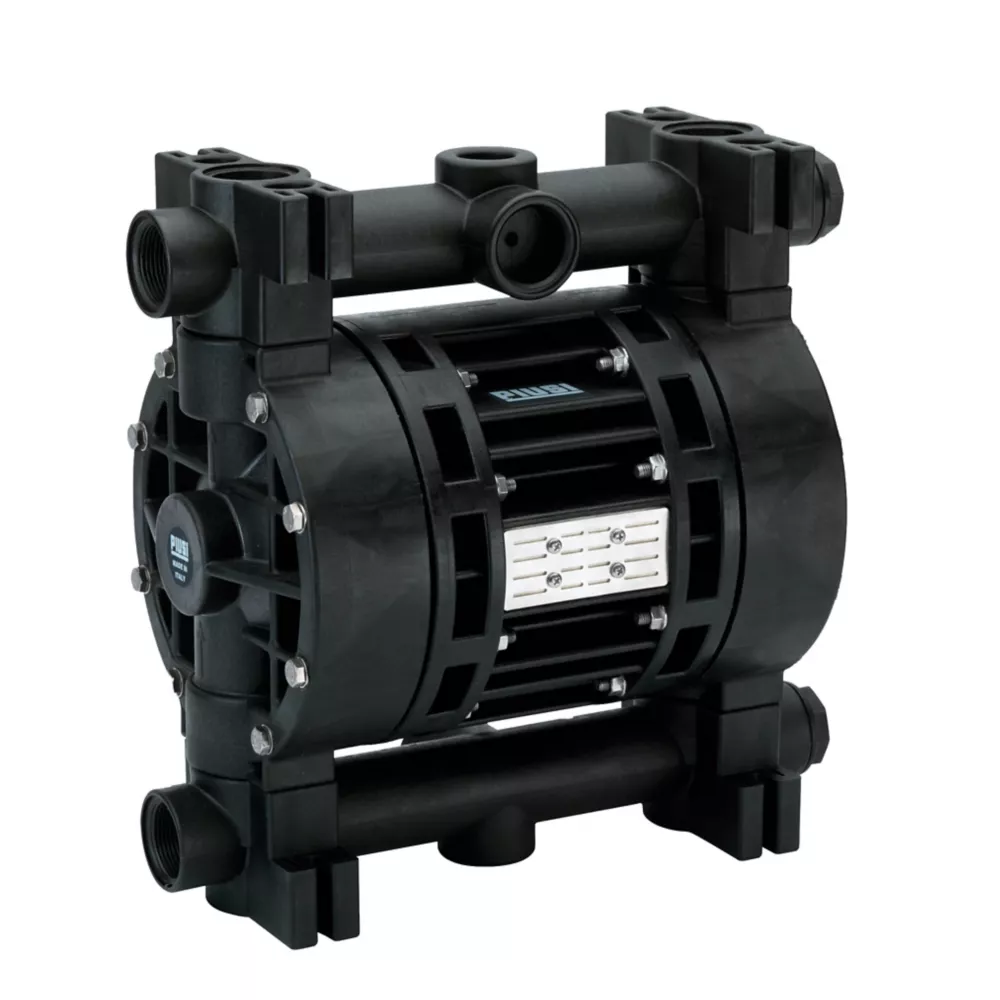

Piusi USA MP190 58 GPM Dual Diaphragm Air Operated DEF Transfer Pump Fuel Transfer Pumps Truck & Automotive

The MP190 Double Diaphragm 58GPM DEF Transfer Pump is designed to assure the utmost reliability and highest performance levels. The pump's sturdy central technopolymer body, the lateral half-shells, the suction and delivery manifolds, plus the use of high quality diaphragms make it possible for the fluid transfer pump to transfer water and chemicals such as DEF, antifreeze, and windshield washer fluid. The Piusi MP air-operated diaphragm DEF fluid transfer pump features an air motor feeding inversion system (IAMA) that allows rapid tuning of pump speed and flow rate by adjusting the quantity of air supplied.

1-1/4 in. inlet/outlet
1/2 in. air connection
58 GPM at 100 PSI for efficient performance
Self-priming diaphragm pump for simple operation
ATEX zone 2 certification for severe duty in potentially explosive atmospheres
DEF transfer pump can be run dry without causing damage
Fine tuning of flow rate without pressure loss
Long life diaphragm provides extended use
Built-in diffuser for optimal performance
Suitable for submersible installations in automotive and industrial applications
Heavy-duty, sturdy design ensures durability of the fuel transfer pump
Multi-purpose pump for flexibility
Air-operated diaphragm pump indicated for transferring various types of fluids including chemical liquids such as DEF, water, antifreeze or washer fluid
Pneumatic pump with double diaphragm is designed to ensure maximum reliability and high performance

Piusi USA MP190 58 GPM Dual Diaphragm Air Operated DEF Transfer Pump Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Body Materials	Plastic
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Female
Discharge Diameter	1.25 in.
Duty Cycle	30 min. on/off
Features	Self-Priming
Hose Diameter	1.25 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial
Maximum Flow Rate	58 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	100 PSI
Maximum Operating Temperature	100 PSI
Minimum Operating Pressure	10 PSI
Minimum Operating Temperature	10 deg. F
Power Type	Air operated, Oxygen
Product Height	12 in.
Product Length	19 in.
Product Weight	29 lb.
Product Width	19 in.
Warranty	2 year
Manufacturer PartNumber	F00208P60

Piusi USA MP190 Double Diaphragm DEF Transfer Pump 58GPM Air Operated Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply Body Materials Plastic Compatible Fluids Diesel Exhaust Fluid Discharge Fitting Female Threaded Discharge Diameter 1.25 in. Duty cycle 30 min. On/Off Features Self-Priming Hose Diameter 1.25 in. Inlet fitting Female threaded Inlet diameter 1.25 in. Intended Use Commercial Grade Maximum Flow 58 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 100 PSI Maximum Operating Temperature 100 PSI Minimum Operating Pressure 10 Minimum Operating Temperature PSI 10 degrees. F Power type Pneumatic operation, oxygen Product height 12 in. Product length 19 in. Product weight 29 lbs. Product width 19 in. 2 year warranty Manufacturer part number F00208P60
