Piusi USA Basic+ 1/8 HP 12V EX50 UL Fuel Pump Kit with Auto Nozzle 15 GPM Fuel Transfer Pumps Truck & Automotive

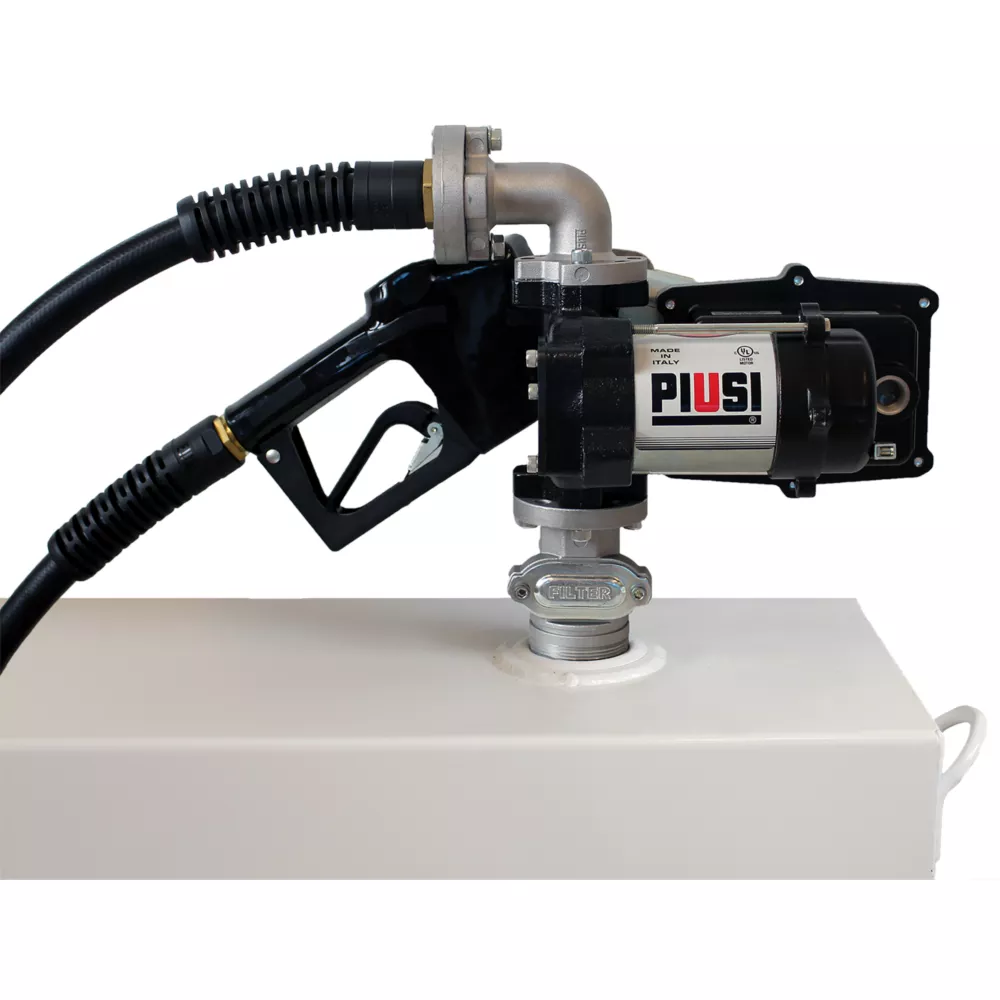

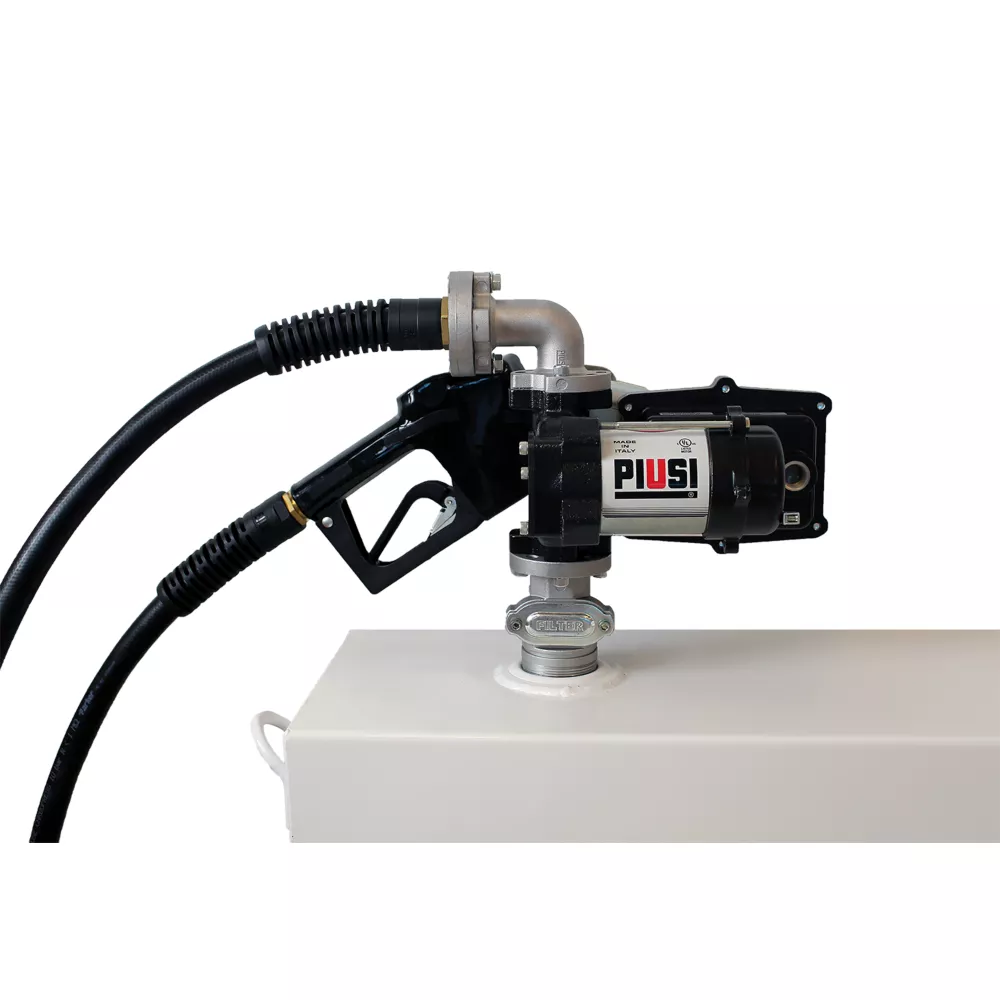

The 15GPM EX50 12VDC UL Fuel Transfer Pump Kit is designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle! This fuel transfer pump kit includes a 15GPM 12V fuel transfer pump, auto-nozzle, delivery hose, downtube, and tank connector.

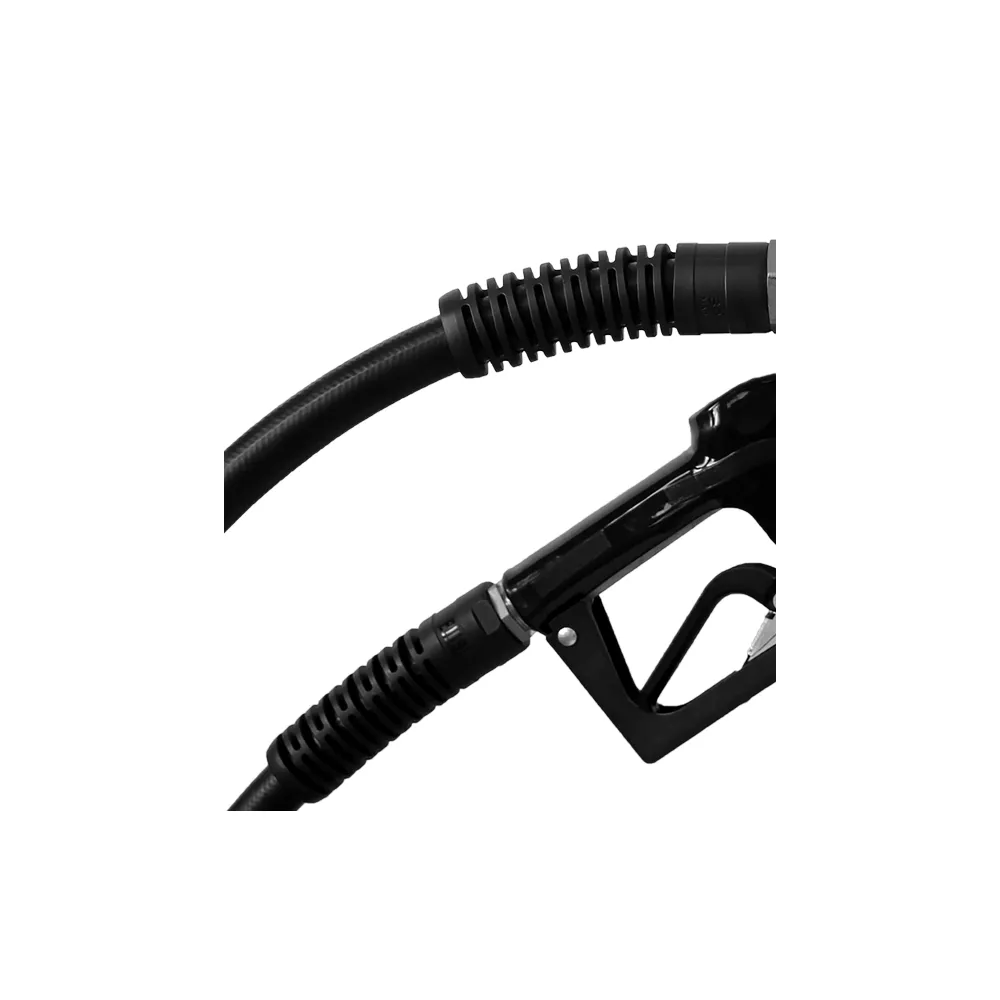

Anti-kink premium hose prevents the hose from kinking
Flanged components allow the fuel transfer pump unit to be installed or replaced without the use of sealant, making connections quick and easy
Bypass valve and spring-loaded, reinforced vanes are built-in to ensure efficiency and longevity
High efficiency fuel transfer pump delivers up to 15GPM at the nozzle
12VDC
3/4"NPT flange included
Automatic shut-off nozzle
30 minutes on, 30 minutes off duty cycle
UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D area
30% more compact with 30% more flow rate
Thermal overload protection to prevent overheating
Bung mount with integrated filter strainer keeps the pump free from debris

Piusi USA Basic+ 1/8 HP 12V EX50 UL Fuel Pump Kit with Auto Nozzle 15 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	17A
Body Materials	Cast iron
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	30 min. on30 min. off
Features	Self-Priming
Horsepower	1/8 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	10 deg. F
Power Cord Length	18 ft.
Power Type	Electric, 12 Volt
Product Height	11 lb.
Product Length	24 in.
Product Weight	31 lb.
Product Width	16 in.
Voltage	12V
Warranty	2 year
Manufacturer PartNumber	F0037251D
