Piusi USA EX50 UL Electric Fuel Pump Pro Kit 1/8 HP 120V 15 GPM Automatic/Metered Fuel Transfer Pumps Truck & Automotive

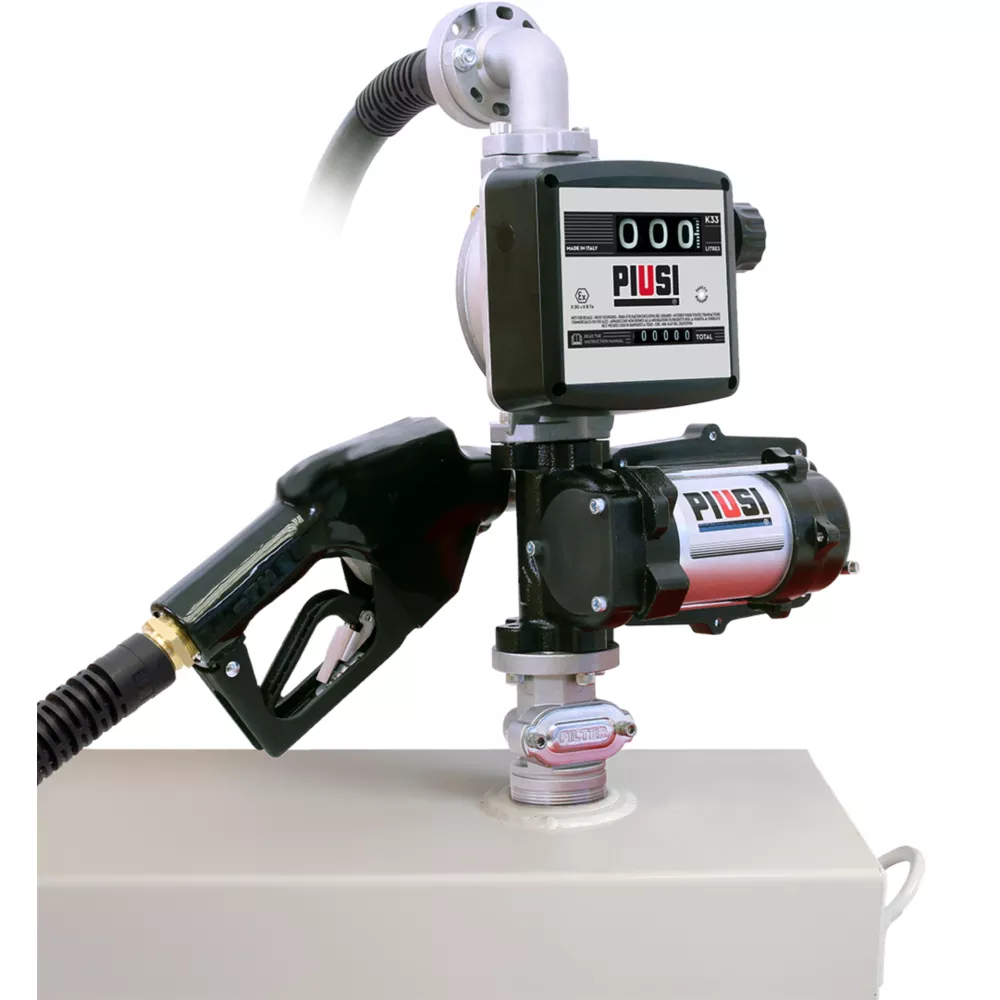

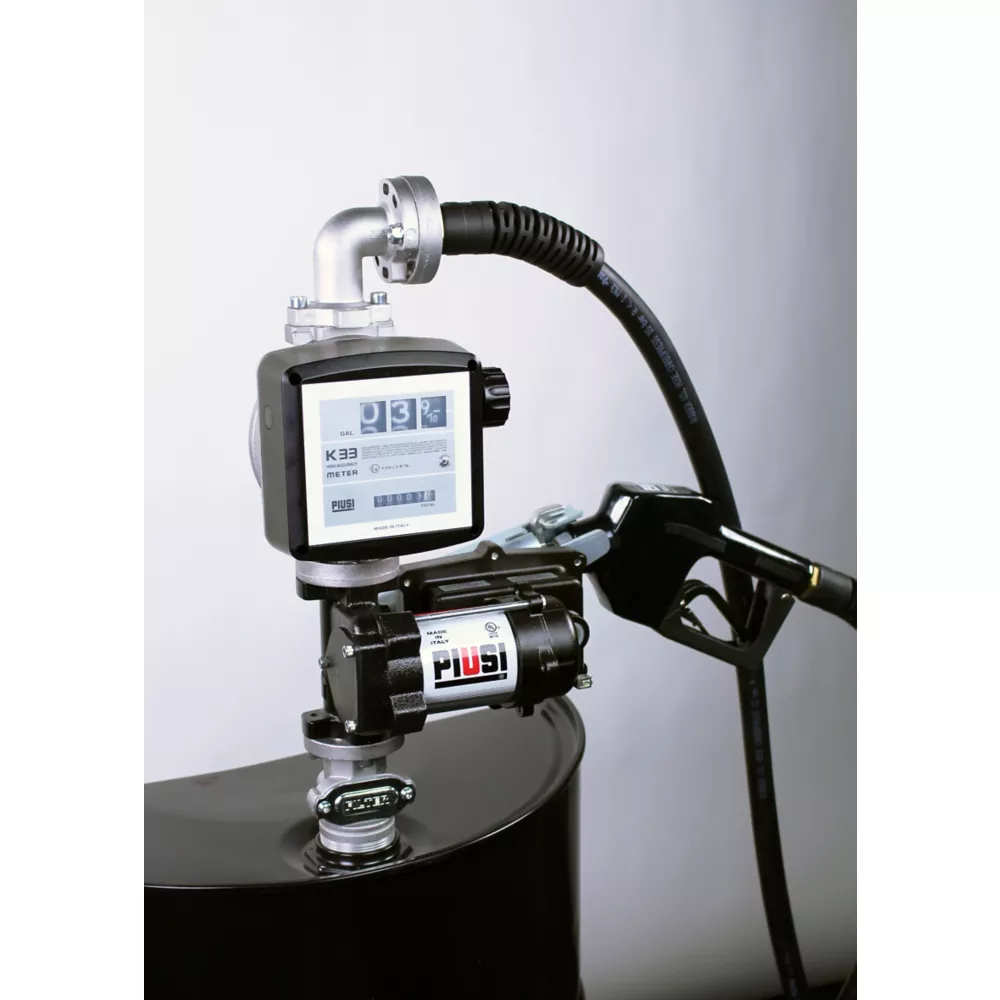

The EX50 120VAC 15GPM UL PRO Fuel Transfer Pump Kit is designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle! This fuel transfer pump kit includes a 15GPM 12V fuel transfer pump, auto-nozzle, mechanical meter, delivery hose, downtube, and tank connector.

30% more compact with 30% more flow rate
High efficiency electric fuel transfer pump delivers up to 15GPM at the nozzle
Anti-kink premium hose prevents the hose from kinking
Flanged components allow the fuel transfer pump unit to be installed or replaced without the use of sealant, making connections quick and easy
Bypass valve and spring-loaded, reinforced vanes are built-in to ensure efficiency and longevity
120V/60Hz
Amperage: 1.7A
Automatic shut-off nozzle
K33 mechanical meter
13 ft. dispense hose
Duty Cycle: 30 minutes on/ 30 minutes off
UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D area
Thermal overload protection to prevent overheating
Bung mount with integrated filter strainer keeps the pump free from debris

Piusi USA EX50 UL Electric Fuel Pump Pro Kit 1/8 HP 120V 15 GPM Automatic/Metered Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	1.7A
Body Materials	Cast iron
Compatible Fluids	Kerosene
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	30 min. on30 min. off
Features	Spring-loaded vanes, grooved-rotor, true 15GPM flow rate, thermal switch protection
Horsepower	0.125 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	1 in.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	10 deg. F
Power Type	Electric
Product Height	11 ft.
Product Length	24 ft.
Product Weight	30 lb.
Product Width	16 ft.
Voltage	120/60V
Warranty	2 year
Manufacturer PartNumber	F0037650D

Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump Pro Kit, 15 GPM, Auto/Meter Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply AC Amps 1.7 A Body Materials Cast Iron Compatible Fluids Kerosene Discharge Connection Male Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. on 30 min. Features Spring loaded vanes, grooved rotor, true 15 GPM flow rate, thermal switch protection Power 0.125 HP Hose diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow 15 GPM Maximum Head Lift 1 in. Maximum operating pressure 16 PSI Maximum operating temperature 110 degrees. F Minimum operating pressure 1 PSI Minimum operating temperature 10 deg. F Power Type Electrical Product Height 11 feet Product Length 24 feet Product Weight 30 lbs Product Width 16 feet Voltage 120/60 V Warranty 2 years Manufacturer Part Number F0037650D
