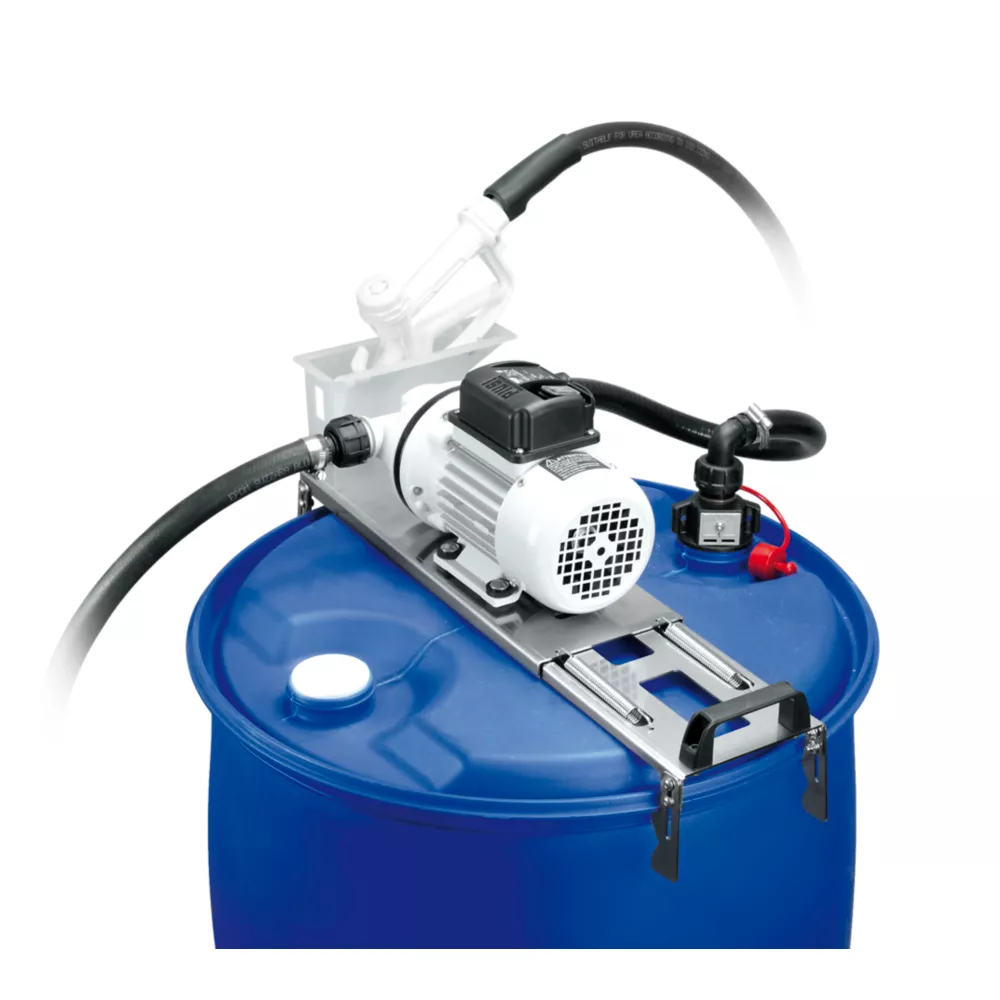

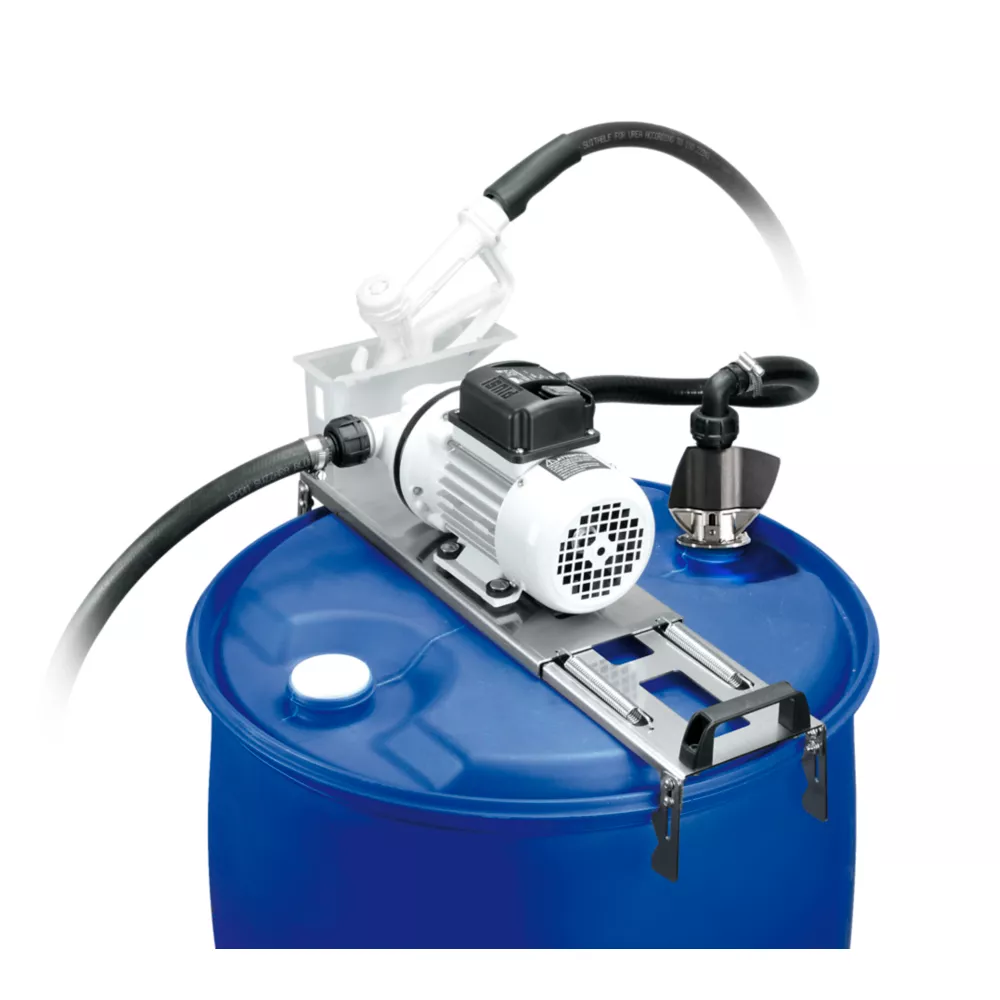

Piusi USA SuzzaraBlue 1/8 HP 120V Electric Fuel Pump Basic Kit with Manual Nozzle 9 GPM Fuel Transfer Pumps Truck & Automotive

The Piusi SuzzaraBlue DEF Basic Drum 120VAC Kit is the perfect solution for a stationary DEF drum application. The system is readily equipped with a heavy-duty 9GPM DEF transfer pump, an easily transferable top-mount bracket, a manual nozzle, 20 ft. of dispense hose and 1.5 ft of suction hose.

7-9 GPM flow rate for efficiency
120VAC DEF membrane pump
20 min. on/ 20 min. off duty cycle
25 PSI operating pressure
20 ft. delivery hose makes refueling easy
6.5 ft. suction height
3/4 in. inner hose diameter
6.5 minute auto-shutoff timer board protection

Piusi USA SuzzaraBlue 1/8 HP 120V Electric Fuel Pump Basic Kit with Manual Nozzle 9 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	2A
Body Materials	Polypropelyne
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	20 min. on/off
Features	6.5 timer board, membrane design to break up crystallization
Horsepower	0.125 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	26 PSI
Minimum Operating Temperature	12 deg. F
Power Cord Length	6 ft.
Power Type	Electric
Product Height	11 in.
Product Length	19 in.
Product Weight	27 lb.
Product Width	15 in.
Voltage	120V
Warranty	2 year
Manufacturer PartNumber	F00201A3H
