Fill-Rite 1/4 HP 12V Chemical Transfer Pump with 825 Meters 13 GPM Short Frame Chemtraveller Fuel Transfer Pumps Truck & Automotive

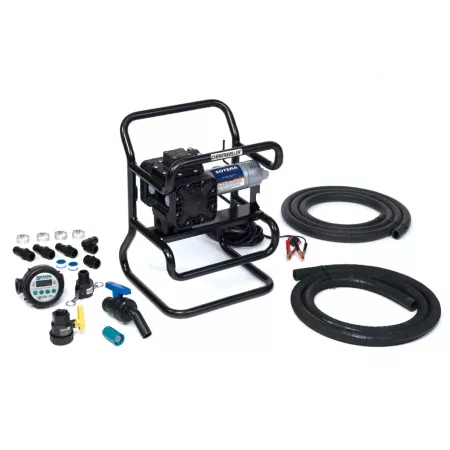

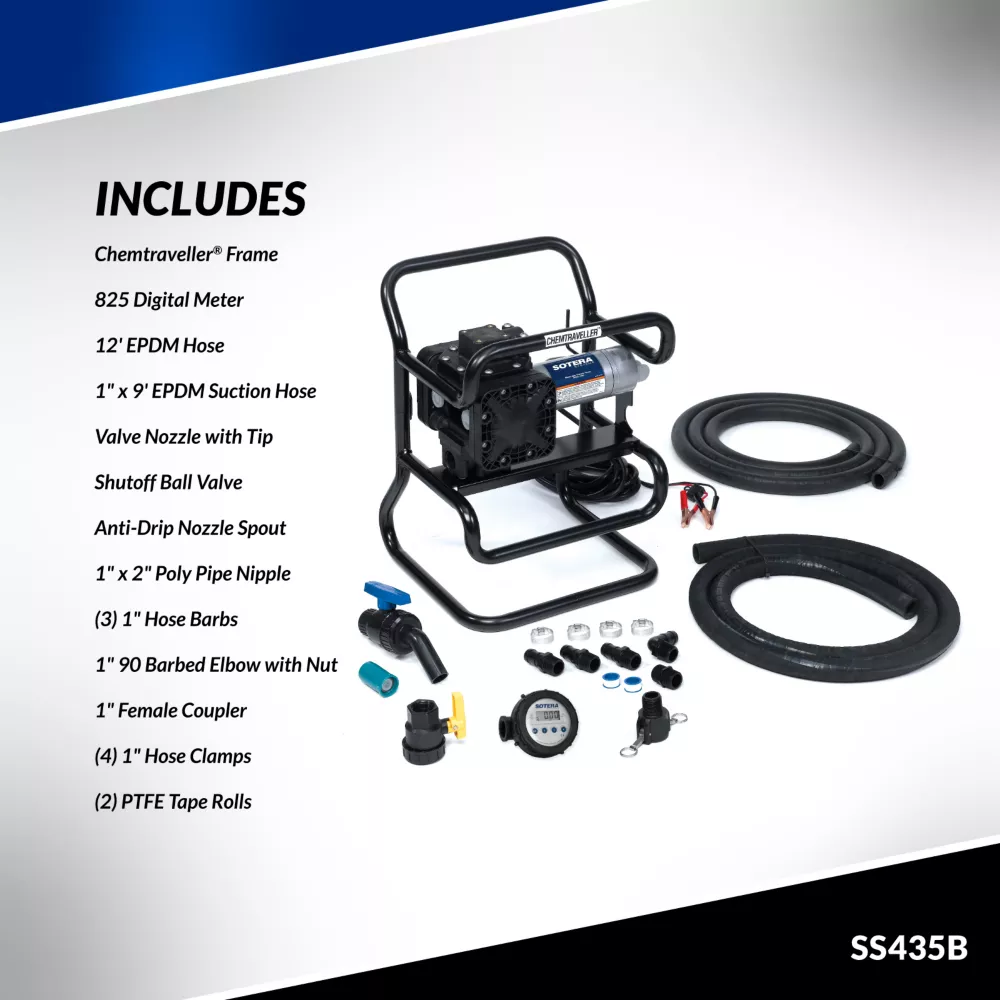

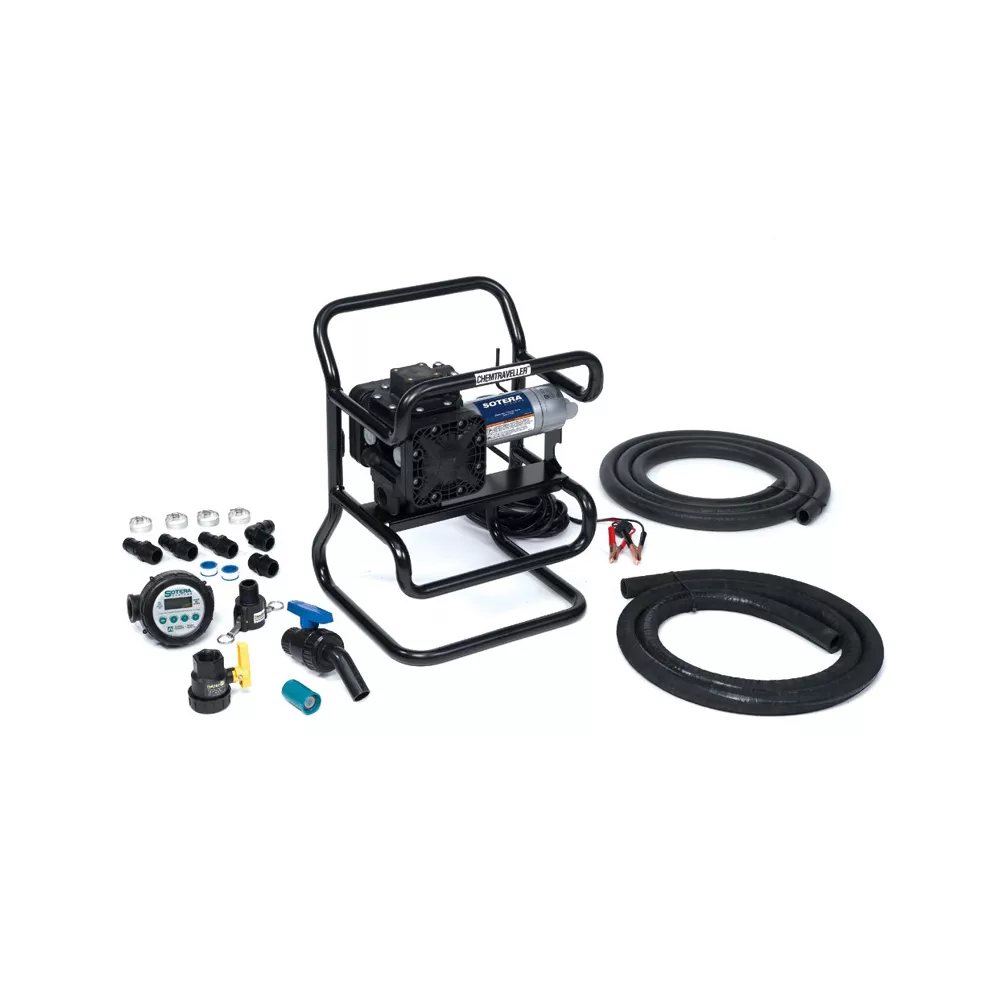

The Fill-Rite 12V 13 GPM Chemical Transfer Pump with 825 Meter (Short Frame Chemtraveller) is a Chemtraveller chemical transfer system. This Sotera Chemtraveller bundle includes a meter, suction hose, polypropylene nozzle, Norwesco anti-drip nozzle tip, and additional chemical fittings. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.

Engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
Santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water
Pump can run dry without causing any internal damage, giving you peace of mind with your investment
Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
We stand behind our fuel transfer pump with full 5-year warranty to protect your purchase and your business
Meter type included with the chemical pump bundle: 825 Digital Meter
Suction hose: 1 in. x 9 ft. EPDM suction hose
Discharge hose: 1 in. x 12 ft. EPDM hose
Cable connection: alligator clips
Additional accessories: shutoff ball valve

Fill-Rite 1/4 HP 12V Chemical Transfer Pump with 825 Meters 13 GPM Short Frame Chemtraveller Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Metal
Compatible Fluids	Chemicals
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	Self-Priming
Horsepower	0.25 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Industrial
Maximum Flow Rate	13 GPM
Maximum Head Lift	9 ft.
Maximum Operating Pressure	15 PSI
Maximum Operating Temperature	150 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-40 deg.
Power Cord Length	20 ft.
Power Type	Electric, 12 Volt
Product Height	14 in.
Product Length	20 in.
Product Weight	29.7 lb.
Product Width	15 in.
Voltage	12V
Warranty	5 Year
Manufacturer PartNumber	SS435B
