Piusi USA SuzzaraBlue Tote Electric Fuel Pump Pro Kit 0.67 HP 120V 9 GPM Automatic/Meter Fuel Transfer Pumps Truck & Automotive

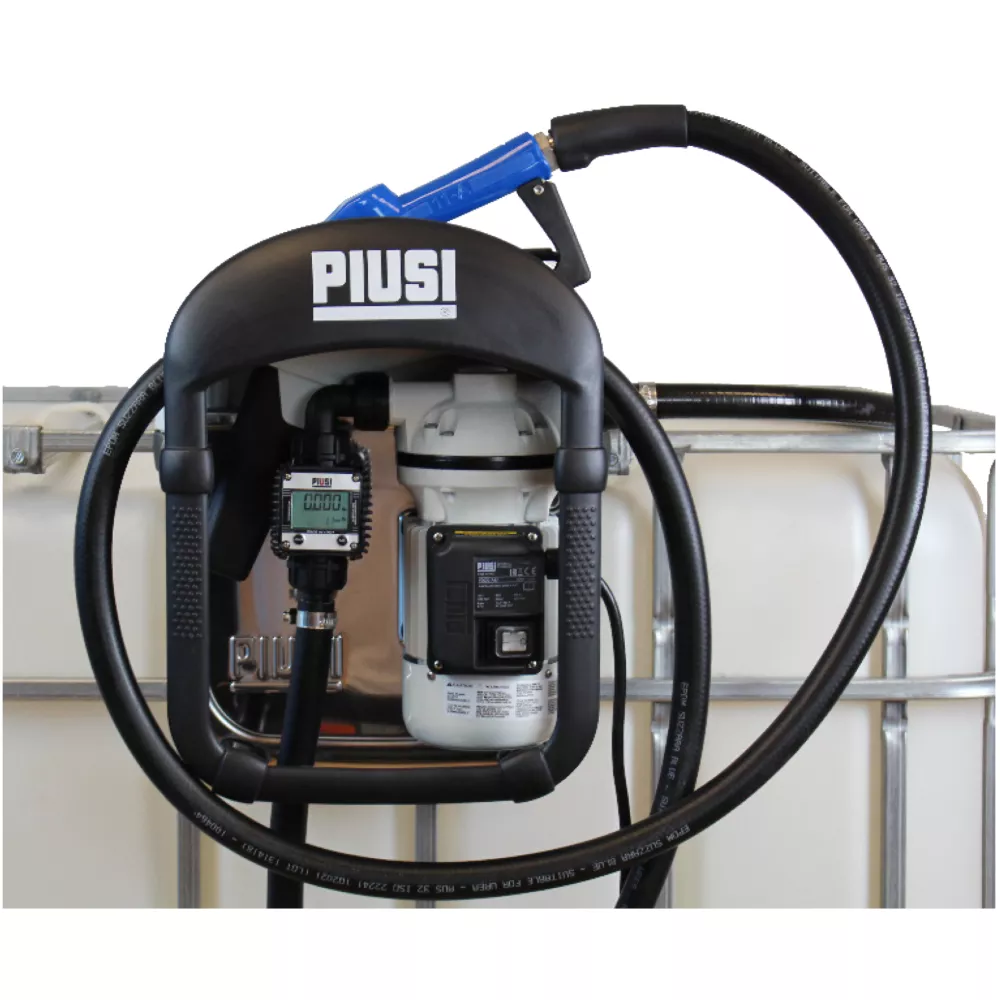

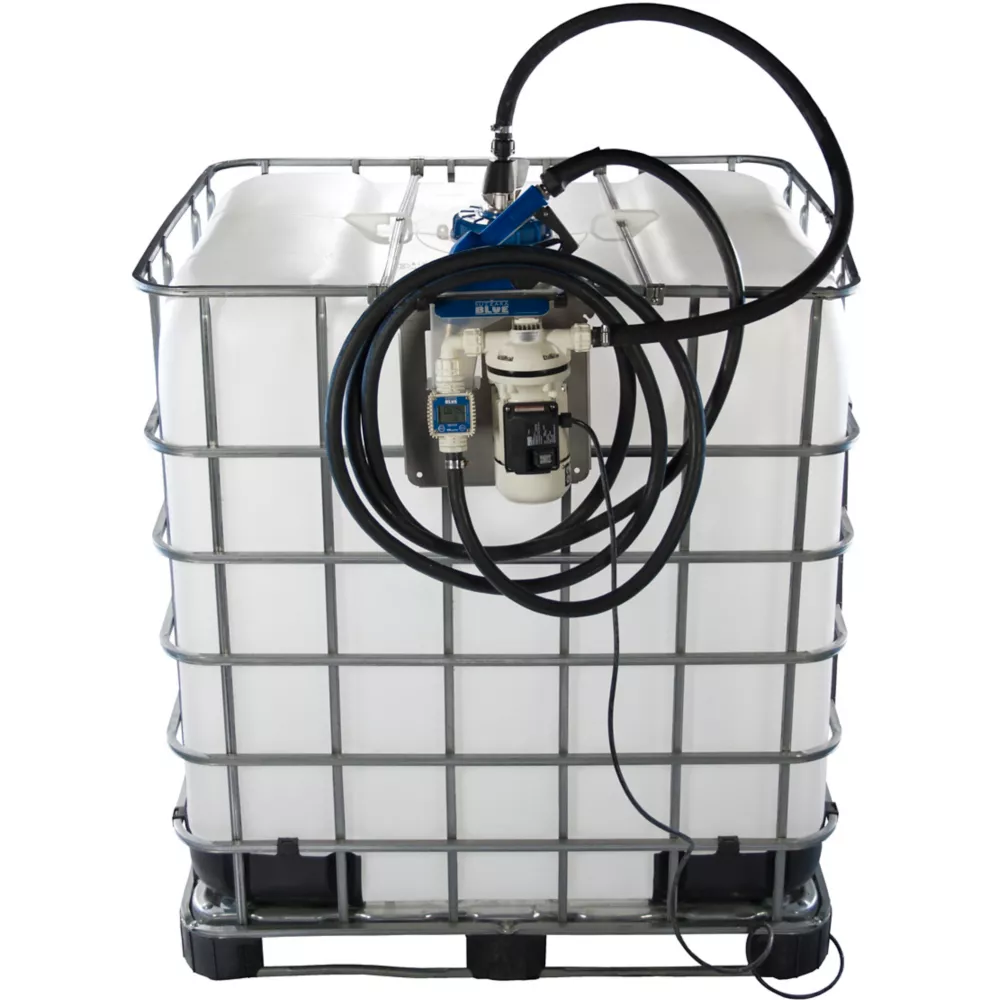

The Piusi SuzzaraBlue DEF 120V PRO Kit is the perfect solution for a DEF IBC tote or mini bulk application. The system is equipped with the SuzzaraBlue heavy-duty industry standard 9GPM DEF transfer pump, an easily transferable side-mount bracket, an auto nozzle, the K24 meter, 20 ft. of dispense hose and 4ft of suction hose.

7-9 GPM flow rate
120V/60hz
20 min. on/ 20 off duty cycle
25 PSI operating pressure
6.7 ft. suction height
3/4 in. inner diameter hose
cCSAus-certified membrane pump
6.5 minute safety shut-off timer

Piusi USA SuzzaraBlue Tote Electric Fuel Pump Pro Kit 0.67 HP 120V 9 GPM Automatic/Meter Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	4.7A
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on/off
Features	Self-Priming
Horsepower	0.67 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	12 deg. F
Power Cord Length	6 ft.
Power Type	Electric
Product Height	11 in.
Product Length	19 in.
Product Weight	35 lb.
Product Width	15 in.
Voltage	120 V
Warranty	2 Years
Manufacturer PartNumber	F00201A1J

Piusi USA 0.67 HP 120V Electric SuzzaraBlue Tote Fuel Pump Pro Kit, 9 GPM, Auto/Meter Specifications Expand/Collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply AC Amps 4.7 A Body Materials Polypropylene Compatible Fluids Diesel Exhaust Fluid Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 20 min. On/Off Features Self-Priming Power 0.67 HP Hose Diameter 0.75 in. Inlet Connection Threaded Male Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 9 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 25 PSI Maximum Operating Temperature 110 deg. F Minimum operating pressure 1 PSI Minimum operating temperature 12 deg. F Power cord length 6 ft. Power Supply Type Product Height 11 in. Product length 19 in. Product weight 35 lbs. Product width 15 in. Voltage 120 V Warranty 2 years Manufacturer part number F00201A1J
