Piusi USA SuzzaraBlue 120V 9 GPM Tote Basic+ Kit (Auto) Fuel Transfer Pumps Truck & Automotive

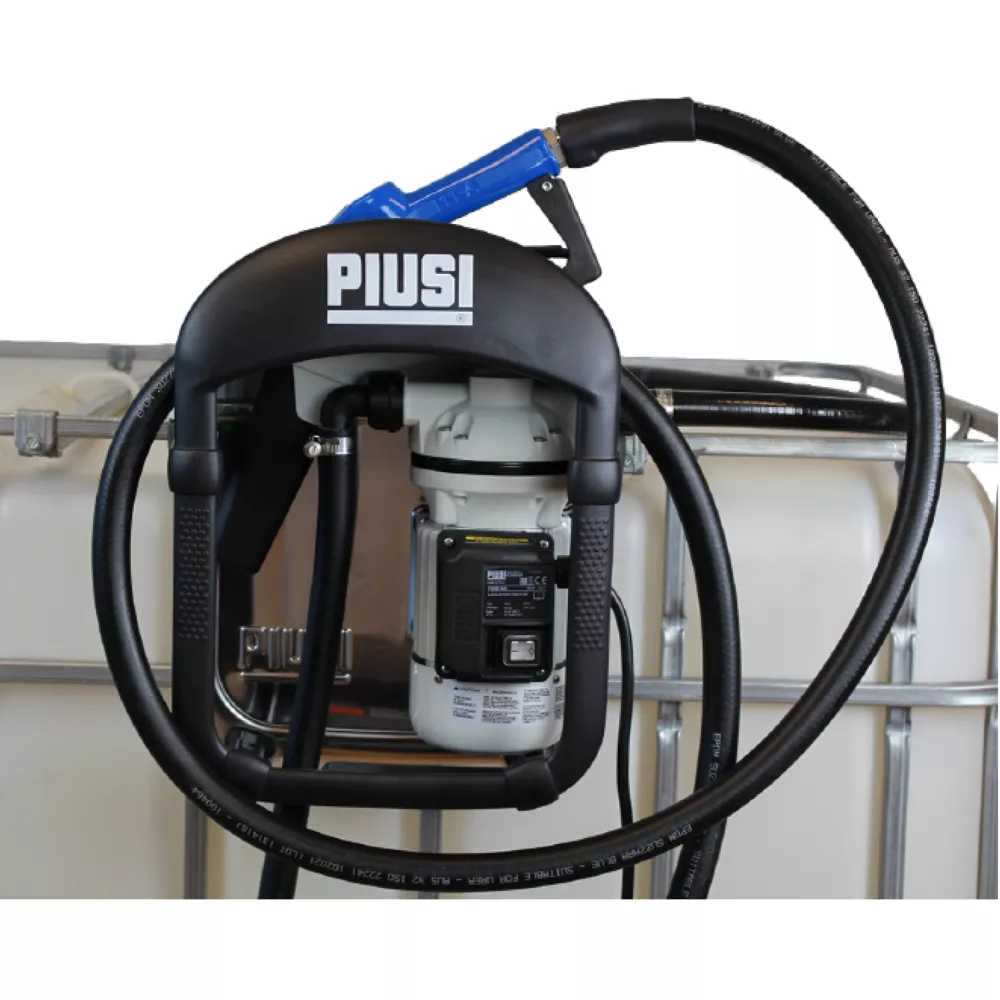

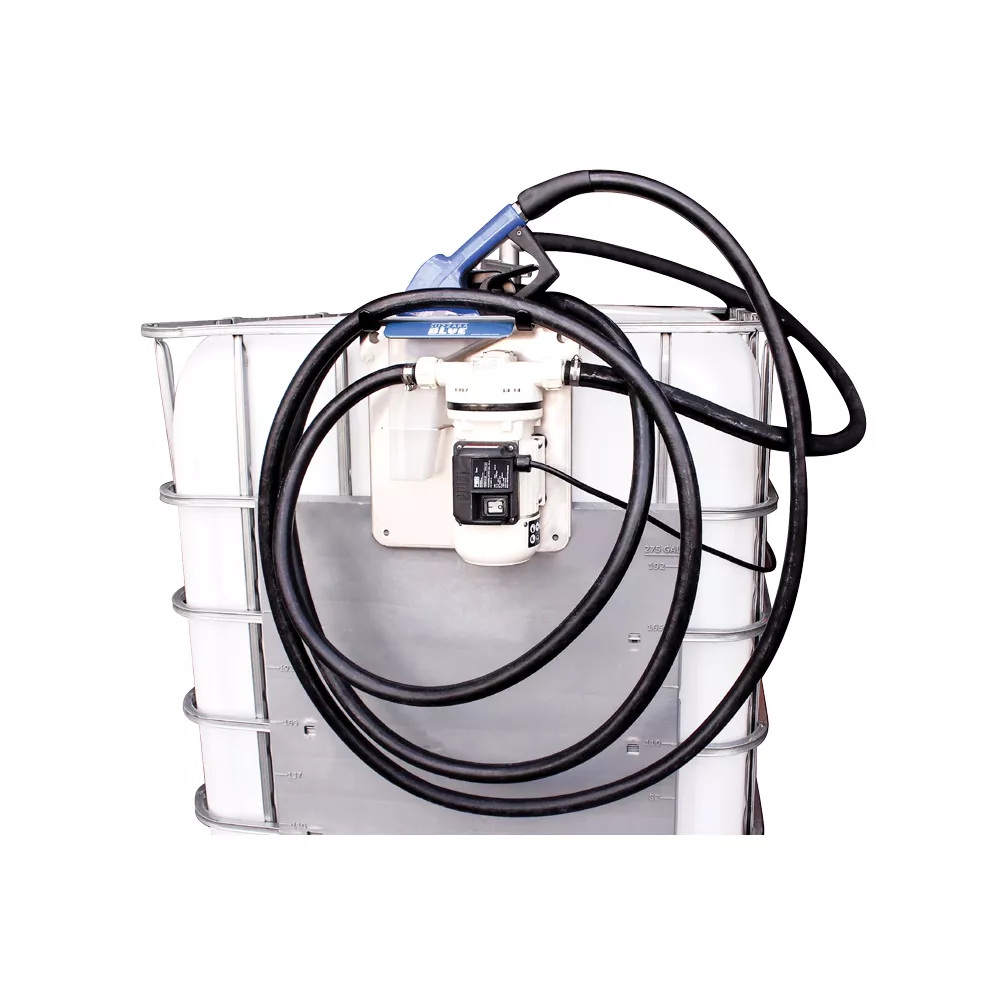

The Piusi SuzzaraBlue DEF 120V Basic+ Kit is the perfect solution for a DEF IBC tote or mini bulk application. The system is equipped with the SuzzaraBlue heavy-duty industry standard 9GPM DEF transfer pump, an easily transferable side-mount bracket, an automatic nozzle, 20 ft. of dispense hose and 1.5 ft of suction hose.

7-9 GPM flow rate
120V / 60Hz
20 min. on/ 20 off duty cycle
25 PSI operating pressure
6.7 ft. suction height
3/4 in. inner diameter hose
cCSAus-certified membrane pump
6.5 minute safety shut-off timer
Stainless steel automatic nozzle

Piusi USA SuzzaraBlue 120V 9 GPM Tote Basic+ Kit (Auto) Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	4.7A
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on/off
Features	Self-Priming
Horsepower	0.67 hp
Hose Diameter	0.75 in. ID
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6.5 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	120 deg. F
Minimum Operating Pressure	25 PSI
Minimum Operating Temperature	14 deg. F
Power Cord Length	6 ft.
Power Type	Electric
Product Height	11 in.
Product Length	19 in.
Product Weight	32 lb.
Product Width	15 in.
Voltage	120 V
Warranty	2 Years
Manufacturer PartNumber	F00201A5J

Piusi USA SuzzaraBlue 120V 9GPM Tote Basic+ Kit (Auto) Specifications Expand/Collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply AC Amps 4.7 A Body Materials Polypropylene Compatible Fluids Diesel Exhaust Fluid Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 20 min. On/Off Features Self-Priming Power 0.67 hp Hose Diameter 0.75 in. ID Inlet Connection Male Threaded Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 9 GPM Maximum Lift Height 6.5 Feet Maximum Operating Pressure 25 PSI Maximum Operating Temperature 120 Degrees. F Minimum operating pressure 25 PSI Minimum operating temperature 14 deg. F Power cord length 6 ft. Power Supply Type Product Height 11 in. Product length 19 in. Product weight 32 lbs. Product width 15 in. Voltage 120 V Warranty 2 years Manufacturer part number F00201A5J
