Red Lion 6.5 HP 170 GPM Gasoline Cast Iron Engine Fertilizer Pump Utility Pumps Farm & Ranch

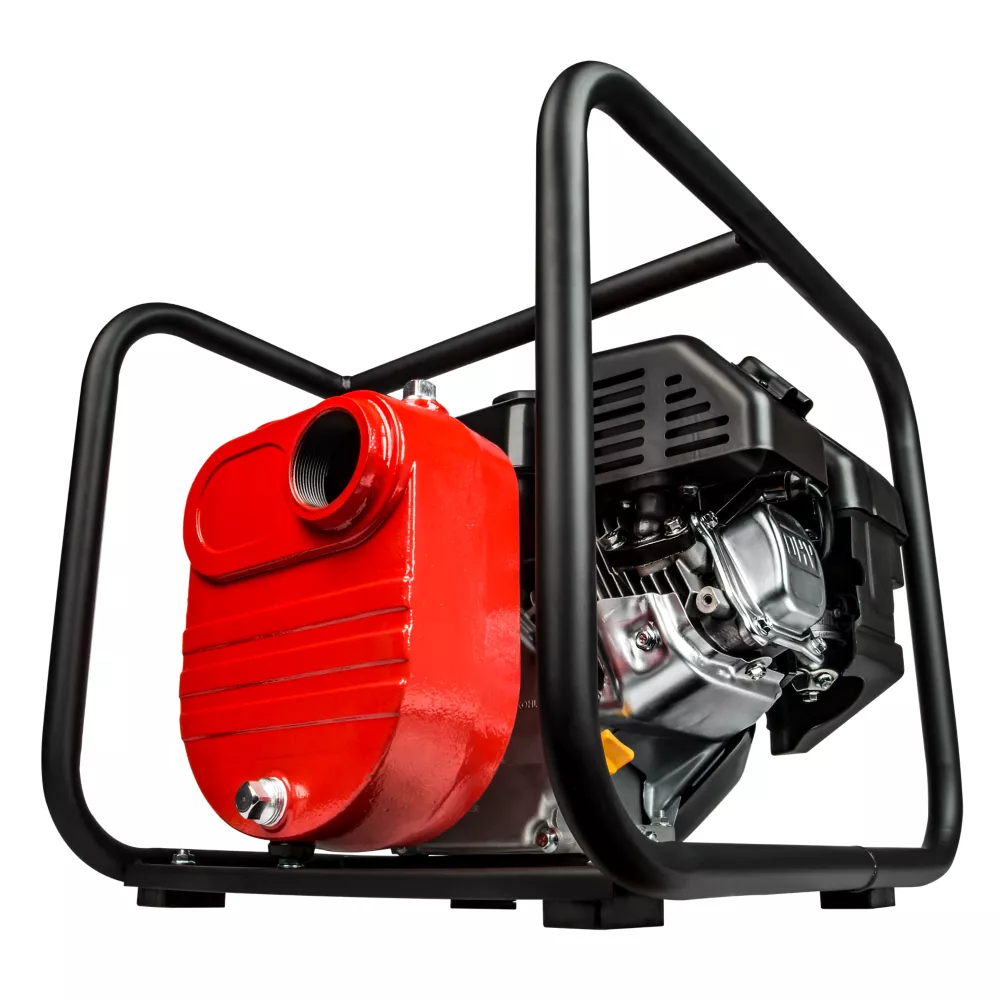

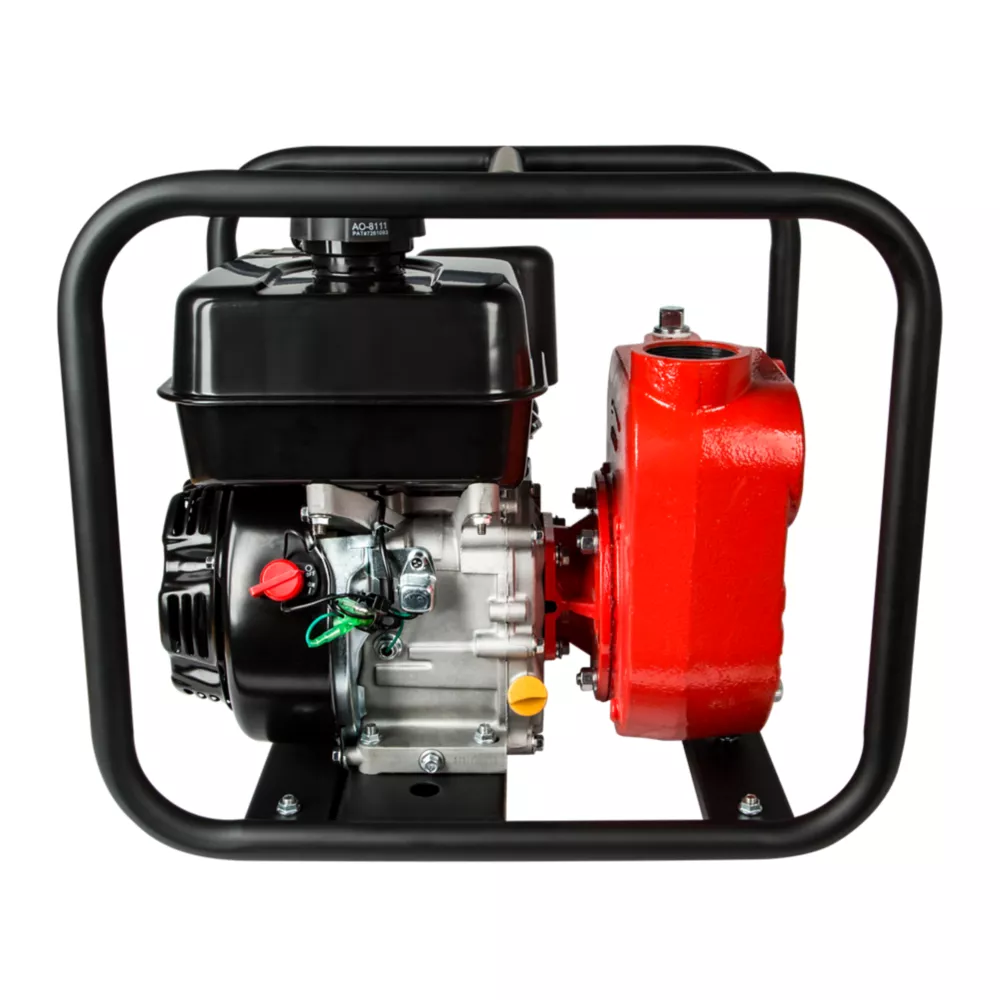

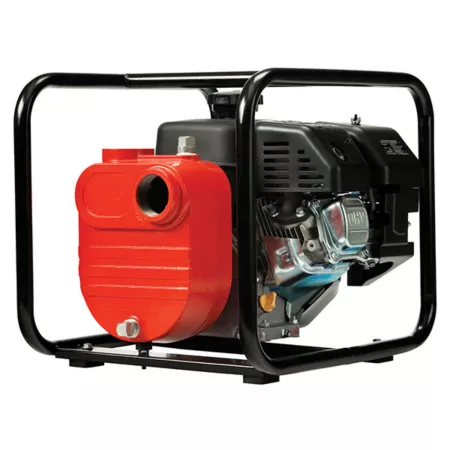

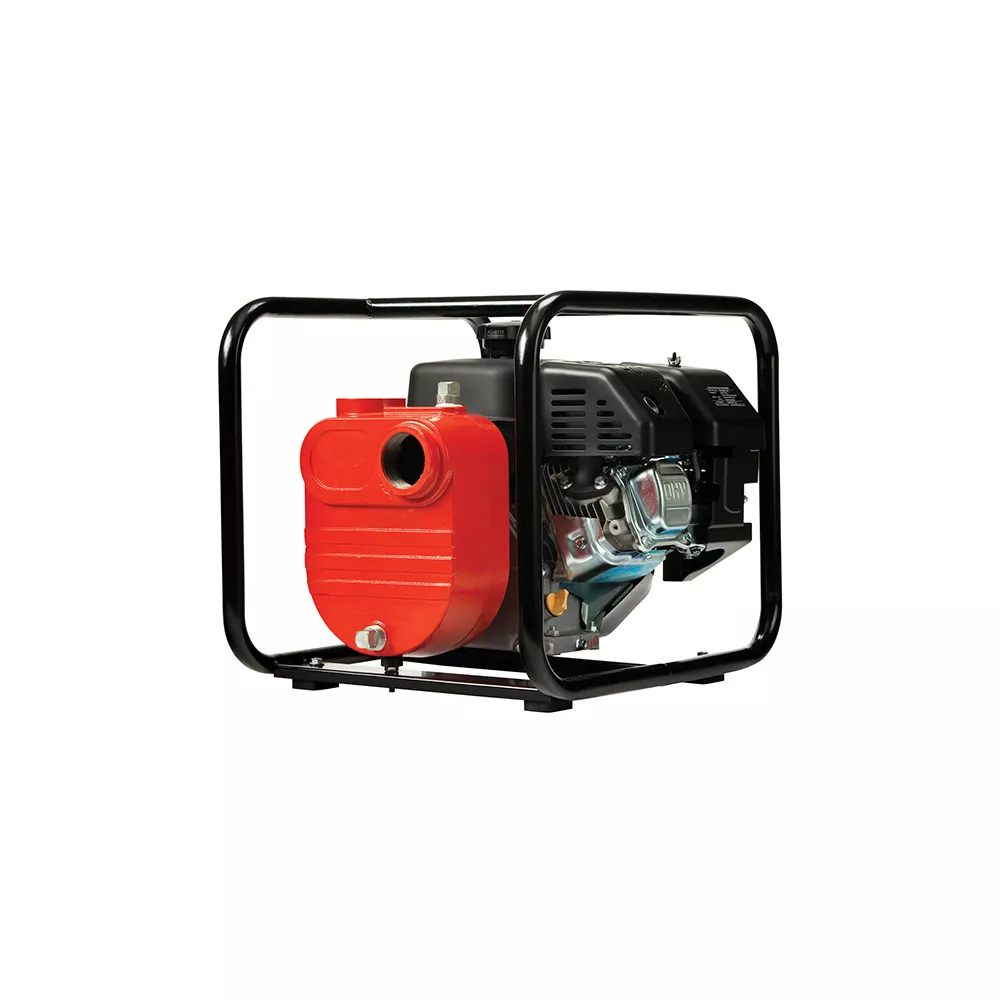

The Red Lion 5RLGF-8KRF Cast-Iron Multipurpose Fertilizer Pump is ideal for liquid transfer, including most agricultural chemicals and general dewatering where rugged portability is important. The utility transfer pump is designed with a strong, stainless-steel shaft sleeve and an EDPM elastomer seal. This engine driven cast iron pump includes a steel roll cage for easy portability to and from job sites.

Cast-iron water and Ag chemical utility transfer pump
Heavy-duty cast-iron pump casing
Durable cast-iron semi-open type impeller
Fertilizer pump offers a stainless-steel shaft sleeve and EDPM elastomer seal
Self priming down to 25 ft.
Handles most liquid agricultural chemicals
Handles up to 5/8 in. solid debris
2 ft. NPT suction and discharge for convenient hookup
Powered by a Kohler 3000 series engine
Includes heavy-duty roll frame

Red Lion 6.5 HP 170 GPM Gasoline Cast Iron Engine Fertilizer Pump Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	Red Lion
Country of Origin	Imported
Amperage	0 Amp
Body Material	Cast iron
Compatible Pipe Material	None
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	170 GPM
Discharge Rate at 10 ft.	170 GPM
Engine Brand	Kohler
Engine Displacement	196cc
Features	HD cast iron pump casing; durable cast iron semi-open type impeller; stainless steel shaft sleeve; EDPM elastomer seal; handles up to 5/8 in. solid debris, handles most liquid agricultural chemicals; easy to prime to 25 ft.
Fuel Capacity	0.95 US gal.
Horsepower	6.5 HP
Hose Diameter	2 in.
Impeller Material	Cast Iron
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	170 GPM
Maximum Head Lift	95 ft.
Maximum Operating Pressure	41 PSI
Maximum Operating Temperature	140 deg. F
Maximum Solids Diameter	5/8 in.
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	40 deg. F
Minimum Operating Temperature	40 deg. F
Oil Capacity	1 us quart
Power Cord Length	0 ft.
Power Type	Gas
Product Height	18 in.
Product Length	21 in.
Product Weight	74 lb.
Product Width	17.5 in.
Motor Type	Kohler, Air Cooled, 4 Stroke; OHV (196cc)
Utility Pump Type	Transfer utility
Voltage	0 V
Warranty	2 Year
Manufacturer PartNumber	617032

Red Lion 6.5 HP Gas-Powered Cast Iron Engine Driven Fertilizer Pump, 170 GPM Specifications expand/collapse Specification Description Brand Red Lion Country of Origin Imported Amperage 0 A Body Material Cast Iron Compatible Pipe Material None Discharge Connection Female Threaded Discharge Diameter 2 in. Discharge flow at 0 ft. 170 GPM Discharge flow at 10 ft. Kohler brand Engine displacement 196 cm3 Characteristics HD cast iron pump body; durable cast iron semi-open type impeller; stainless steel shaft sleeve; EDPM elastomer seal; handles up to 5/8 in. of solid debris, handles most liquid agricultural chemicals; easy to bait up to 25 feet. Fuel capacity 0.95 US gal. Power 6.5 HP Hose diameter 2 in. Impeller Material Inlet Fitting Cast Iron Female Threaded Inlet Diameter 2 in. Maximum flow 170 GPM Maximum head lift 95 feet Maximum operating pressure 41 PSI Maximum operating temperature 140 deg. F Maximum diameter of solids 5/8 in. Maximum suction heightale 25 feet. Minimum operating pressure 40 degrees. F Minimum operating temperature 40 degrees. F Oil capacity 1 us quart Power cord length 0 ft. Gas Power Type Product Height 18 in. Product length 21 in. Product weight 74 lbs. Product width 17.5 in. Engine type Kohler, air-cooled, 4-stroke; OHV (196cc) Utility Pump Type Transfer Cable Voltage 0V Warranty 2 Years Manufacturer Part Number 617032
