Shop Fox W1685-1-1/2 HP Dust Collector Dust Collectors Woodworking & Other Power Tools

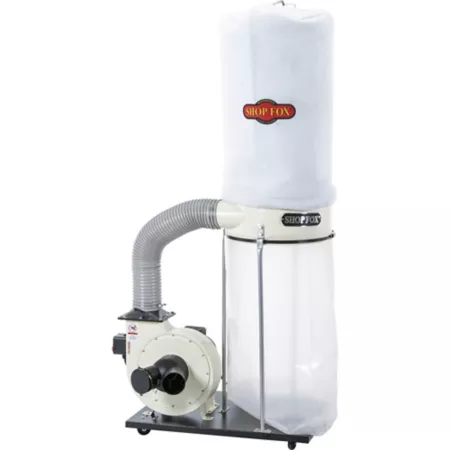

The W1685 is a powerful, yet portable dust collector with large collection capacity for a 1-1/2 HP model. This dust collector has air suction capacity of 1280 CFM and has a max static pressure of 10.1 inches. Static pressure is produced by the 12" balanced steel, radial fin impeller to move the wood chips into the collector. It's perfect for collecting wood, dust, and chips from sanders, router tables, jobsite table saws, benchtop jointers and planers, and other woodworking machines. The upper 2.5-micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them. The complete and easy-to-read W1685 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

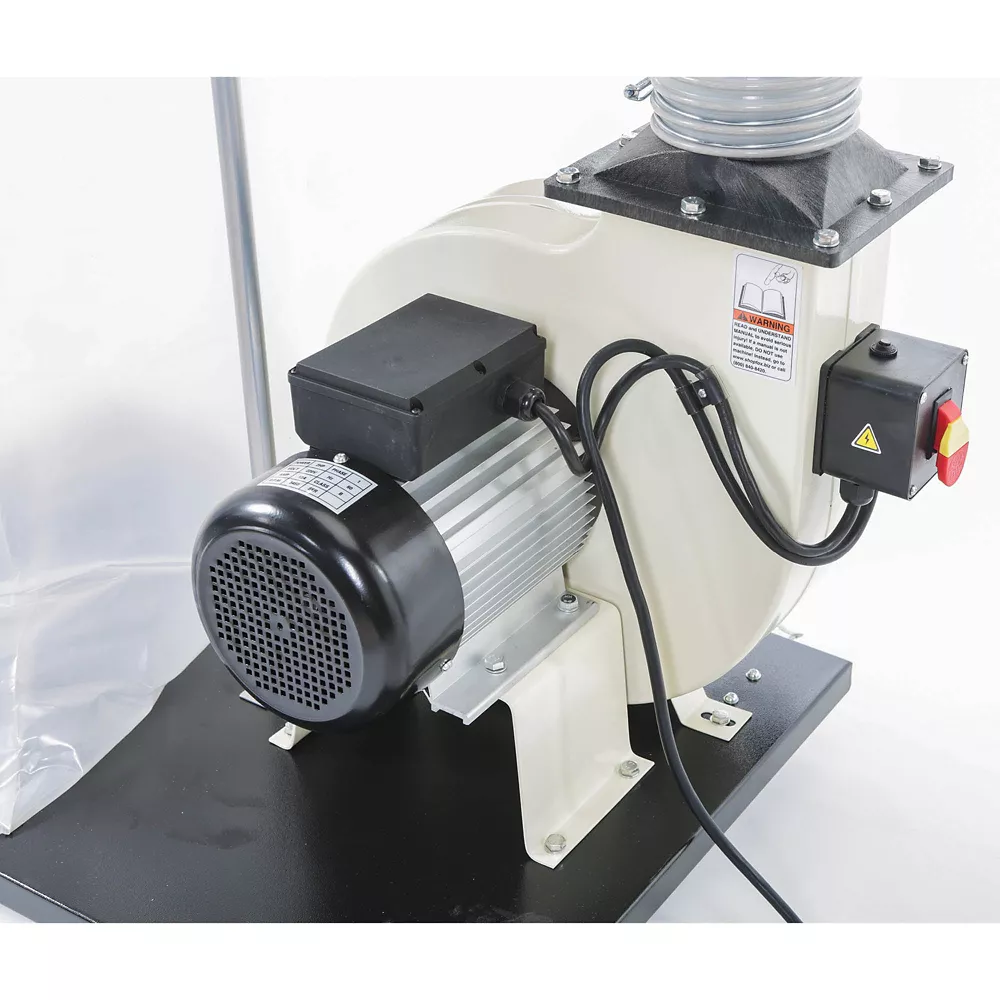

Motor: 1-1/2 HP, 110V, single phase, 16A
Air suction capacity: 1280 CFM
Static pressure: 10.1"
Intake hole size: 6"

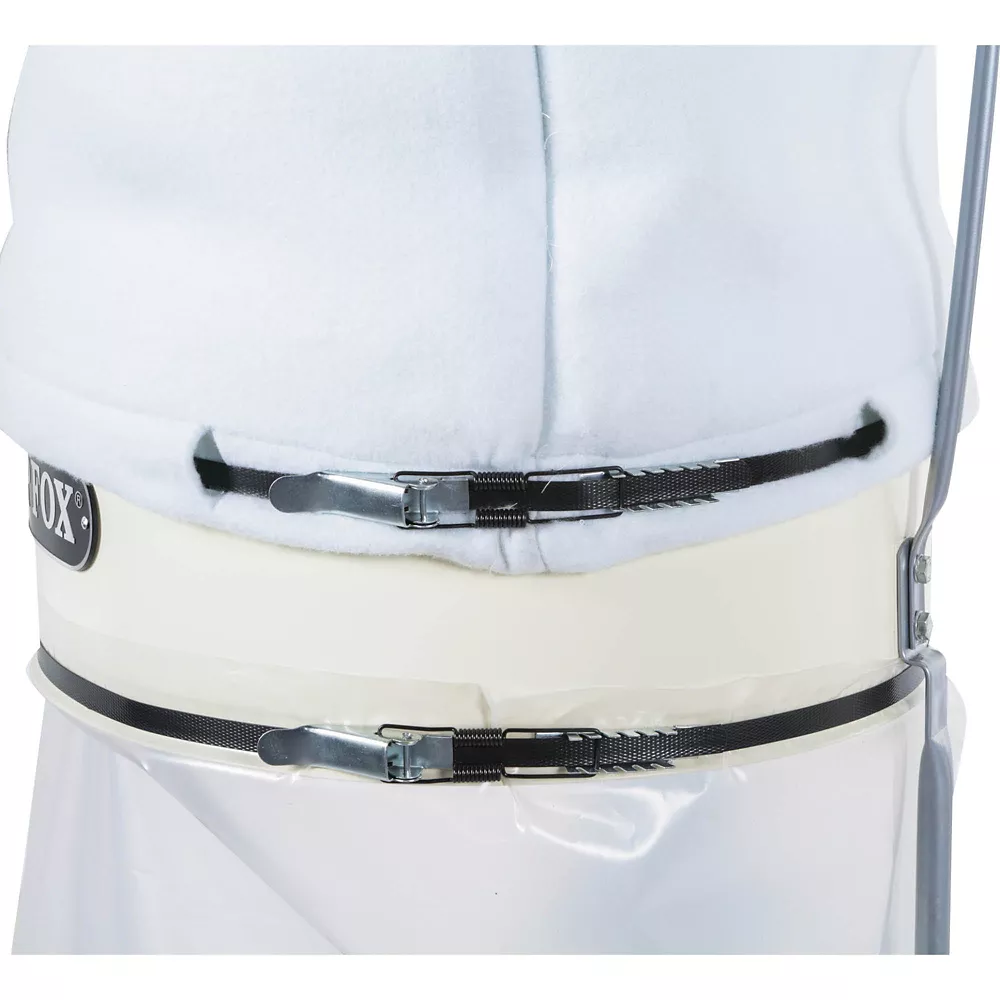

Bag sizes (diameter x length): 19" x 33"
Bag filtration: 2.5-Micron
Collection capacity: 40 Gallons
Impeller: 12" Balanced steel, radial fin
Powder coated finish

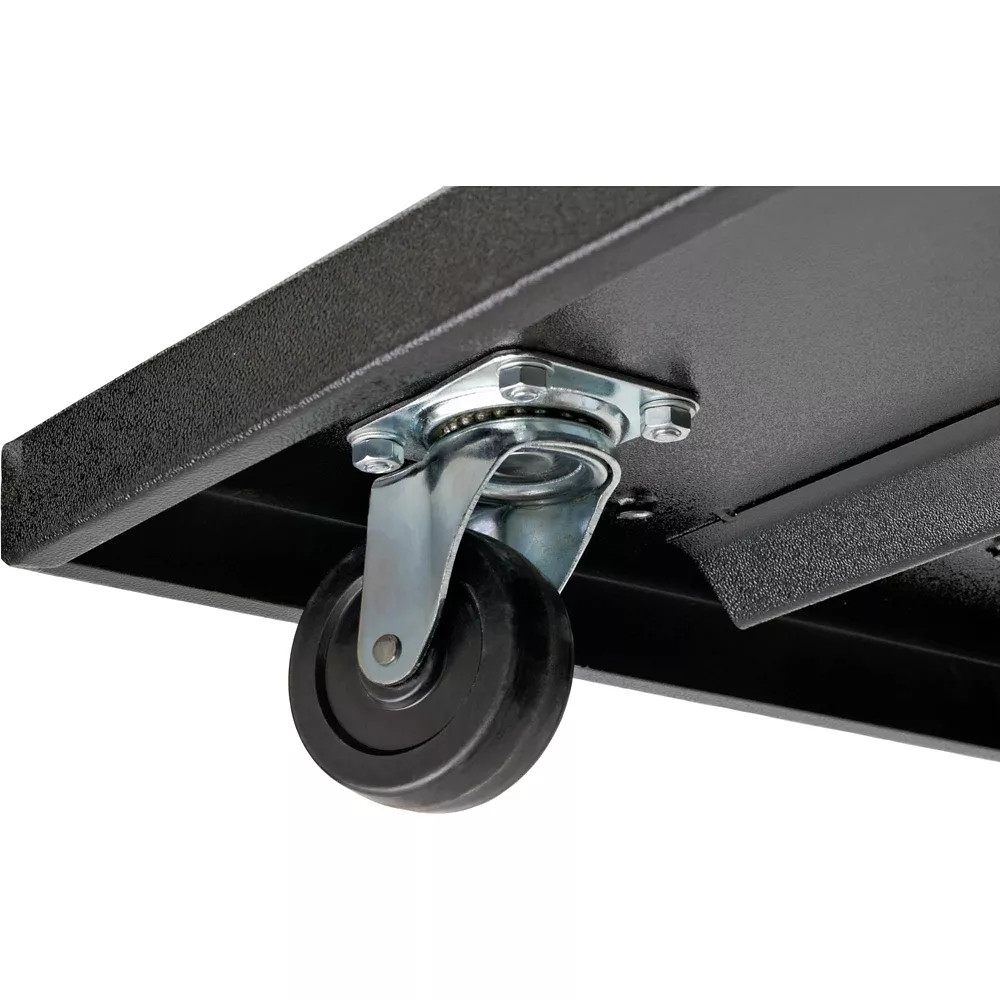

Steel base with casters

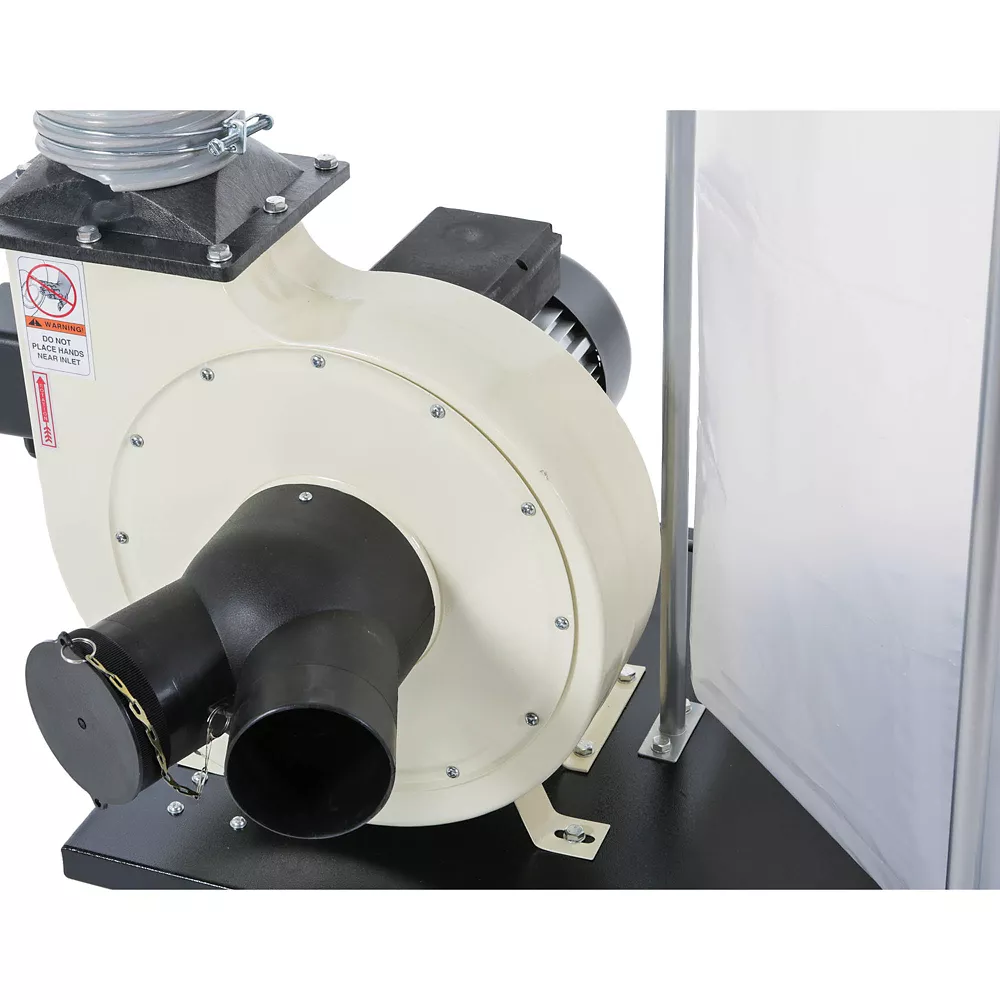

6" inlet has a removable "Y" fitting with two 4" openings
Overall dimensions: 31-1/2" W x 21-1/4" L x 78" H
Approximate shipping weight: 94 lbs.

Shop Fox W1685-1-1/2 HP Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Shop Fox
Country of Origin	Imported
Amperage	16 A
Compatibility	See manual
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 N/A
Filtration Material	Steel
Horsepower	1.5 hp
Hose Diameter	6 in.
Hose Length	0 in.
Maximum Airflow Rate	1240 CFM
Operating Velocity	1240 CFM
Product Height	78 in.
Product Length	21.25 in.
Product Weight	90 lb.
Product Width	33.5 in.
Warranty	2
Manufacturer PartNumber	W1685

Shop Fox W1685-1-1/2 HP Dust Collector Specifications Expand/Collapse Specification Description Brand Shop Fox Country of Origin Imported Amperage 16 A Compatibility View Manual Decibel Rating 0 N/A Phase Single Phase Features No Additional Features Filter Efficiency 0 N/A Filtration Material Steel Power 1.5 hp Pipe Diameter Pipe 6 in. Length 0 in. Maximum Air Flow 1,240 CFM Operating Speed 1,240 CFM Product Height 78 in. Product length 21.25 in. Product weight 90 lbs. Product width 33.5 in. Warranty 2 Manufacturer Part Number W1685
