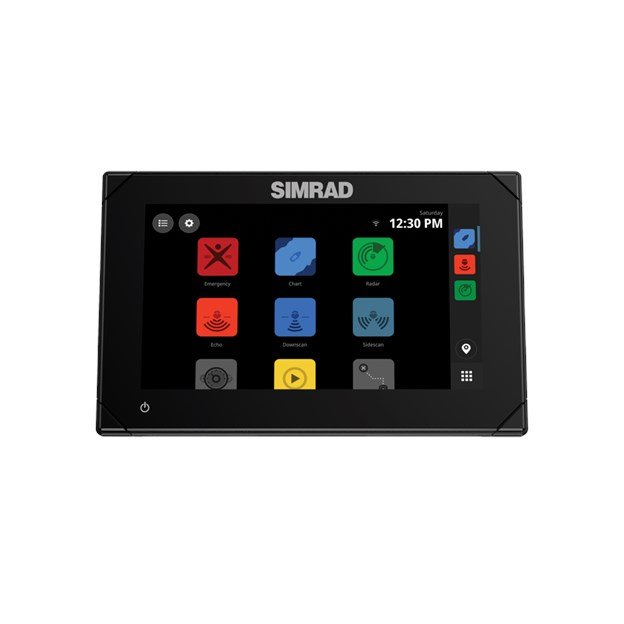

Simrad NSX 3007 7" Chartplotter and Fishfinder Combo with Active Imaging 3-in-1 Transducer Marine Navigation & Instruments
Take your experience to a whole new level with the Simrad(R) NSX™ intelligent chartplotter and fishfinder. With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) DISCOVER The NSX comes fully equipped with integrated sonar, radar and autopilot systems, and with our handy Setup Assistant tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water. With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) support, you'll see everything like never before. The NSX features built-in sonar, full compatibility with radar and autopilot systems, and with our handy Setup Wizard tool, you'll be up and running in no time. HeAll you have to do is choose your next adventure on the water. Discover modern simplicity and rich details. NSX combines a clear, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
Simrad 0015365001 Attributes- Size screen: 7 inches
- Resolution: 1024 x 600 pixels
- Interface: multi-touch screen
- Dimensions: 7.68 inches wide x 3.13 inches ofdepth x 4.84 inches height
- Waterproof: IPX6/IPX7 Waterproof
- Sensor Compatibility: NMEA 2000 Compliant
- Includes a marine-optimized C-MAP(R) DISCOVER™
- High-definition IPS touchscreen with extreme viewing angles, even visible through polarized lenses
- Supports high-resolution views of fish and structures with Active Imaging™ featuring CHIRP and SideScan And DownScan Imaging™, plus 1 kilowatt transducer capacity to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with possibility of extending the system with Sonar Simrad , pilote auto, radar and more
- Faster autorouting with seamless accessibility
- See near and far simultaneously (up to 42nm), with support for HALO radar and get ultra-fast rendering Updates every second
- Stay on course with full Simrad autopilot integration
- Modern, simple interface
- 2 Year Limited Warranty
- NSX_IM_EN.pdf
- NSX_QG_EN.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- NSX-3007_MT_988-12635-002_w .pdf
NSX™ 3007 7" Chartplotter and Sonar with Active Imaging™ 3-in-1 Transducer
Everything about the NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest next-generation highway maps and C-MAP.Discover intuitive touchscreens and simple sonar setup with tips to help you when you need it. Count on high-resolution images from cutting-edge sonar technology. , like FishReveal™, DownScan Imaging™ and SideScan.
Add compatibility with a wide range of 1 kW transducers for even higher target resolution, and there's nothing else between you and your next adventure than the open water.
An intuitive touchscreen experience
Easily access all the features of NSX™ via a modern and simple, including drag-and-drop screen customization and improved day and night modes. Get crystal clear views of map details with the vibrant SolarMAX™ IPS touchscreen – viewable from any angle, in bright sunlight and even through polarized lenses.
Bring navigation to life with NSX™
See chart details in a different way with the next generation C-MAP DISCOVER™ X and REVEAL™ X optimized marine charts for day and night. Experience our fastest highway ever, and with the Simrad Companion app, plan trips, review routes, plot waypoints and sync directly.
Complete suite of Simrad technology at your fingertips
Expand your system with advanced Simrad technology. Experience high-resolution images from cutting-edge sonar technology, like Active Imaging™, plus compatibility with a wide range of 1 kW transducers. Immediately identify hazards and see near and far simultaneously with award-winning HALO pulse compression radars, and stay on course with legendary Simrad autopilots.
Simple to configure, easy to manage
Get up and running fasterment than ever. The Setup Wizard provides step-by-step instructions and guidance throughout your initial setup and during future adjustments. Additionally, Sonar device setup provides easy-to-understand prompts for each step of the process, while the Simrad app provides access to best-in-class planning tools as well as software updates and a Hassle-free data transfer.
Features:
- Includes a marine-optimized C-MAP DISCOVER™ Fresh, intuitive mapping and daily updates – plus support for C-MAP REVEAL™ X Charts
- High-definition IPS touchscreen with extreme viewing angles, visible through polarized lenses
- Active Imaging™ 3-in-1 transducer with CHIRP, SideScan and DownScan Imaging™, plus support for up to 100% transducer capacity1 kW to reach greater depths
- Quickly identify fish with FishReveal™
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Full integration with the ability to expand the system with sonar, autopilot, Simrad radar and more
- Faster highway routing with seamless accessibility
- See near and far simultaneously (up to 48nm), with HALO Radar support and get lightning-fast updates every second
- Stay on track with Full Simrad autopilot integration
- Clean and simple interface
- Simrad app integration – Keep your chart data at your fingertips, on and off the water .
- Third-party application integration
- Wireless connectivity, plus full Ethernet and NMEA 2000 networking capabilities
- IP Video Support
PRODUCT ID: 93526
SKU: NVN-93526
CSKU: CWR-93526
REWRITE: 104637- simrad-nsx-3007-7-combo-chartplotter
MPN: 000-15365-001
UPC: 9420064111909
ASIN:
WSKU: SIM00015365001
SSKU:
KSKU: SIM0015365001
br>GSKU:
MSKU:
LSKU:
NAME: Simrad NSX™ 3007 7-inch Chartplotter and Sonar Combo with Active Imaging™ 3-in-1 Transducer
NAME_EX :
PTITLE: Simrad NSX™ 3007 7" Combo Chartplotter and Sonar with Active Imaging™ 3-in-1 Transducer
TYPE: Navigation and Marine Instruments | GPS Combos - Fish Finder
SELLER: Simrad
ELECTRONICS> MARINE ELECTRONICS> MARINE CHARTS AND GPS
Gtags:
GSpecs:
Simrad NSX™ 3007 7" Chartplotter and Sonar Combo with Active Imaging™ 3-in-1 Transducer Product Description
Take your experience to a whole new level with the Simrad (R) NSX Intelligent Chartplotter and Sonar ™.?With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) DISCOVER Radar and autopilot systems, and with our handy Setup Wizard tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water with an innovative interface and. Featuring powerful navigation capabilities with C-MAP(R) support, you'll see everything like never before. The NSX features full compatibility with sonar, radar and autopilot systems, AndWith our handy Setup Wizard tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water. Discover modern simplicity and rich details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
Simrad 0015365001 Attributes- Screen size: 7 inches
- Resolution: 1024 X 600 pixels
- Interface: Multi-touch screen
- Dimensions: 7.68 inches wide X 3.13 inches deep X 4.84 inches high
- Waterproof: IPX6/IPX7 Waterproof rating
- Sensor compatibility: NMEA 2000 compatible
- Includes a marine-optimized C-MAP(R) DISCOVER™ 'support for C-MAP REVEAL ™ high resolution fish and structures with Active Imaging™ including CHIRP, SideScan and DownScan Imaging™, plus transducer capabilityr of 1 kilowatt to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with the ability to 'expand the system with Simrad sonar, autopilot, radar, etc.
- Faster automatic routing with seamless accessibility
- See near and far simultaneously (up to 'at 42 nm), with support for HALO radar and get lightning-fast updates every second
- Stay on course with full Simrad autopilot integration
- Modern and simple interface
- 2 year limited warranty
- NSX_IM_EN .pdf
- NSX_QG_FR .pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- NSX-3007_MT_988-12635-002_w.pdf
NSX™ 3007 7" Chartplotter and Sonar with Active Imaging™ 3-in-1 Transducer
Everything about NSX™ is designed to bring your fishing adventures closer Enjoy our fastest-ever highway maps and next-generation C-MAP maps and simple fishfinder setup with tips for. help you when you need it Count on high-resolution images from cutting-edge sonar technology, like FishReveal™, DownScan Imaging™ and SideScan.
Add compatibility with a wide range of transducers. of 1 kW for even more target resolution, and there's nothing between you and your next adventure except open water.
An intuitive touchscreen experience
Easily access all NSX™ features through a modern, simple interface, including drag-and-drop screen customization and day and nude modesit improved. Get crystal-clear views of map details with the vibrant SolarMAX™ IPS touchscreen, viewable from any angle, in bright sunlight, and even through polarized lenses.
Give navigation life with NSX™
See chart details in a different way with next-generation C-MAP DISCOVER™ day and night. Experience our fastest highway ever, and with the Simrad Companion app, plan trips, review routes, plot waypoints and sync directly.
Complete suite of Simrad technology at your fingertips
Expand your system with advanced Simrad technology. Experience high-resolution images with cutting-edge sonar technology, such as Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify immediatelyrecognize hazards and see near and far simultaneously with award-winning HALO pulse compression radars, and stay on course with legendary Simrad autopilots.
Simple to set up, easy to manage
Get up and running faster than ever. The Setup Wizard provides step-by-step instructions and guidance throughout your initial setup and during future adjustments. Additionally, Sonar device setup provides easy-to-understand prompts for each step of the process, while the Simrad app provides access to best-in-class planning tools as well as software updates and a Hassle-free data transfer.
Features:
- Includes a marine-optimized C-MAP DISCOVER™ Fresh, intuitive mapping and daily updates – plus support for C-MAP REVEAL™ DownScan Imaging™, plus support for 1 kW transducer capacity to reach greater depths
- Quickly identify fish with FishReveal™
- Setup wizard for getting you up and running quickly, plus simpler sonar setup
- Complete integration with the ability to expand the system with Simrad sonar, autopilot, radar and more
- Faster Autorouting with Seamless Accessibility
- See near and far simultaneously (up to 48nm), with support for HALO radar and get updates ultra-fast day every second
- Stay on track with full Simrad autopilot integration
- Clean and simple interface
- Simrad app integration: keep your chart data at your fingertips, on and off the water
- Simrad app integration third-party applications
- Wireless connectivity, plus full Ethernet and NMEA 2000 networking capabilities
- IP video support
Simrad NSX™ 3007 7" Combo Chartplotter and Fishfinder with 3-in-1 Active Imaging™ Transducer Related ProductsNavico IP Cam-1 Stainless Steel POE IP Camera
Frequently Asked Questions (FAQ) About the Simrad NSX™ 3007 7" Chartplotter and Sonar Combo with Active Imaging™ 3-in-1 Transducer Who is the Simrad?
How to Describe the Chartplotter and Sonar Combo Simrad NSX™ 3007 7" with Active Imaging™ 3-in-1 Probe?
What is the resolution of the product?
Is this product waterproof?
What is the display size of the product?
What is the product control interface?
What is the product control interface?s are the dimensions of the product?
Who is the Simrad? Simrad is part of the Navico family based in Norway, the world leader in marine electronics. Simrad manufactures a complete range of sophisticated marine electronic systems for the recreational and light commercial markets. Simrad products are based on six core areas of expertise: radar, echo sounder, communications, autopilot, navigation and systems integration. How to describe the Simrad NSX™ 3007 7" Chartplotter and Sonar Combo with Active Imaging™ 3-in-1 Transducer? "
Simrad NSX 3007 - Intelligent Chartplotter/Sounder . With Active Imaging 3-IN-1 transducer
Model: 000-15365-001Experience modern simplicity and richness details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS.com touchscreen. The high-definition screen is viewable from any angle, in bright sunlight and through polarized lenses with full touch operation.
See map details in a new way with a C -Next generation MAP DISCOVER ™ Optimized nautical charts developeds for NSX, with a fresh and intuitive graphical presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal C-MAP charts include full vector maps with custom depth shading and high-resolution bathymetry displaying accurate contour lines down to 1 foot level of detail. You can improve route planning and plotting with tide and current projections and our fastest automatic routing ever. Additionally, there is a new map inspection feature with one-touch access to information on locations, POIs, tides, channels and much more. The Simrad Companion app acts as an extension of your NSX with the same mapping experiences and all your map dataaphic on fingertips, on or off water. The app allows you to plan trips, view tracks and plot waypoints on your app and sync directly to your NSX.
NSX opens up a world of possibilities, from the Active Transducer Imaging™ 3-in-1 included with CHIRP Sonar, SideScan and DownScan Imaging™ with system expansion options like autopilot and a wide range of compatible 1 kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning HALO pulse compression radars. See near and far simultaneously (up to 72nm) and be ready instantly with low-power sleep mode. Highlight targets using custom modes such as port, offshore and weather. Known for their legendary performance, Simrad autopilots allow you to proit all your activities. Whether it's game trawling or planning your next destination, we've got you covered. Available for both outboard and inboard engines, our "extra pair of hands" helps run patterns and routes, navigate Access waypoints and stay on course.
With everything from a setup wizard through to Simrad app integration, simple sonar setup and guidance to help you when you need it, NSX brings life on the water to you is easier than ever. The setup wizard helps you with step-by-step instructions to get you up and running quickly, while the Simrad app offers a whole host of added extras. These include hassle-free software updates, planning trips on and off the water, a simplified map display that presents itselfe the same way on all platforms, as well as easy transfer of all data, including routes and waypoints. But that's not all. Sonar Tips offer guidance on what's happening during settings adjustments, and Sonar Device Setup gives you easy-to-understand prompts for each step of the process—you'll be up and running in no time. All that's left to do is choose your next adventure.
Specifications| Display | |
| Size and type | 7 "" SolarMax IPS touchscreen for wide viewing angles, extreme clarity and sunlight visibility with polarized sunglasses |
| Resolution | 1024 x 600 px |
| Viewing angles | 85° (top, bottom, left and right) |
| Screen brightness | >1200 nits |
| Backlight color | White |
| Supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Power | |
| Maximum power consumption | 11 .5 W (830 mA at 13.8 V) |
| Recommended fuse rating | 2A |
| Physical | |
| Dimensions L x H x D | With stand: L: 220mm (8.66"") x H: 145.9mm (5.74"") x D: 79.5mm (3.13"") Without stand, without sunshade : L: 195 mm (7.68"") x H: 123.0 mm (4.84"") x D: 79.5 mm (3.13"") Without stand, with sunshade: L: 199.9 mm (7.87"") x H: 127.9 mm (5.04"") x D: 84.5 mm (3.32"") |
| MountingType | Bracket (supplied), panel mount or flush mount |
| Safety distance of the boussole | 50 cm (1.7 ft) |
| Environmental | |
| Operating temperature range | -15°C to 55°C (5°F to 131°F) |
| Storage temperature range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Moist heat 66°C (150°F) at 95% relative (18 hours) |
| Shock vibration | 100,000 cycles of 20 G |
| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar compatibility | One 9-pin Xsonic 1 kW sonar port. CHIRP single channel, 50/200 khz, HDI, active imaging |
| Ethernet | 1 port (5-pin connector) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| USB | No |
| External storage | 1 MicroSD slot |
| GPS | Internal, 10 Hz, WASS, MSAS, EGNOS |
| GPS correction | Updated high speed 10 Hz (internal) WASS, MSAS , EGNOS, GLONASS |
| GPS position accuracy | Horizontal accuracy 3 m ( 9.8 feet) |
| GPS receiver channels | 32 channels |
| GPS update rate | 10 Hz |
| J1939 | No |
| PcConnectivityConnectivity | No |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with Bluetooth Classic support |
| Languages | English (US), English (UK)ni), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish |
| Supported maps | C-MAP Discover X, C-MAP Reveal Halo Dome radars, Halo open array radars |
| Weather | No |
| AIS | Receive AIS data via NMEA 2000 |
| Digital switching | Simrad COMMAND DDS only when it is marketed |
Box contents:
- Next generation C-MAP charts offer a more detailed view of the underwater world, so you can get the most out of your fishing experience.
- NSX™ is the only chartplotter to offer the 3-in-1 Active Imaging™ transducer, which gives you a clearer picture of what's happening below.
- Thanks to our automatic routing the fastest and best mapping technology, NSX™ makes finding and enjoying fish your time on the water easier than ever.
- With Active Imaging, you'll see fish and structures that others can't see.
- C-MAP charts are the world's most reliable marine cartography.
- Highway is ultra-fast, so you can spend more time fishing and less time sailing.
- The best of the best, NSX™ is our premium fishfinder and chartplotter. range with Active Imaging™ 3-in-1 transducer.
- It's the ultimate fishing companion with features that make finding fish and bait easier.
- The next generation of C-MAP charts offer a more detailed view of the underwater world, so you can get the most out of your fishing experience.
- NSX™ is the only chartplotter to offer a 3-in-1 Active Imaging™ transducer, which gives you a clearer picture of what's happening below.
- Thanks to our routing fastest auto and our best mapping technology, NSX™ makes it easier than ever. to find fish and enjoy your time on the water.
- With Active Imaging, you'll see fish and structures that others can't see.
- Maps C-MAP are the best in the world. the most reliable marine cartography.
- The highway is ultra-fast, you canso spend more time fishing and less time sailing.
- The best of the best, NSX™ is our top-of-the-line fishfinder and chartplotter with Active Imaging™ 3-in-1 transducer .
- It's the ultimate fishing companion with features that make finding fish and bait easier.
