Simrad OP12 autopilot controller Marine Navigation & Instruments
The OP12 wired remote control can be paired with the IS42 digital display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for Simrad multifunction displays. This keyboard complements the low-profile design of our glass-bridge instruments and displays and blends seamlessly into any bar design. Intuitive Operation: A simple push-button interface makes the OP12 easy to use in harsh conditions and responds reliably to wet or gloved hands. Dedicated auto and standby buttons turn autopilot on or off with a single press, so it's easy to free your hands from the wheel or instantly take control whenever you need it. Heading adjustments are also made with a single press of a button, with dual port and starboard buttons to allow heading adjustments in one-degree or ten-degree increments. AssholeAutopilot Control with IS42 Display: Pair the Simrad OP12 keypad with an IS42 digital display to create a fully functional control head for your Simrad autopilot system. M.Multiple keypads and displays can be installed to provide autopilot control from anywhere on board, perfect for twin helm vessels.
Simrad 0013287001 Attributes- Compatibility: Simrad Multifunction Displays
- Screen size: Without screen
- Display type: Not applicable
- Display resolution: Not applicable
- Color: Black
- Includes: With network extension cable and sunshade
- Intuitive operation with waterproof silicone keys
- Combined with an IS42 display for full autopilot control
- Low profile glass headset design
- Easy installation with just one cable
- Guarantee2 year limited
- OP12 -AutopilotController_UG_EN_988-11209-002_w.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- OP12-Triton2-APC_MT_988-11231-001_w.pdf

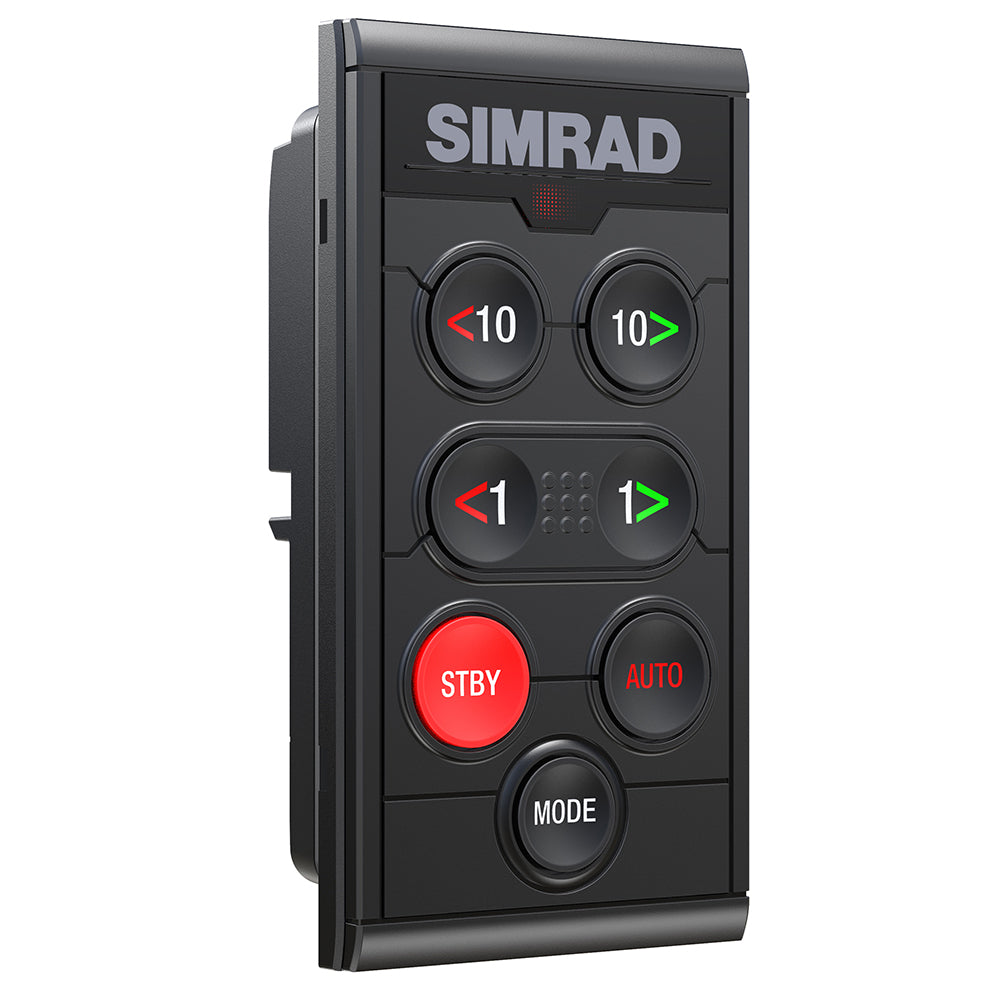

OP12 Autopilot Controller
The OP12 wired remote integrates seamlessly with Simrad autopilot systems to provide intuitive mode control, heading adjustments and power steering. Designed to complement the low-profile design of Simrad Glass Bridge instruments and displays, this remote control can be combined with the IS42 color display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for the GO, NSS and NSO evo2. .
Features:
- Intuitive operation
- Easy installation
- Combine with an IS42 display for complete autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3
- Use with NSS and NSO evo2 MFDs as an add-on Autopilot controller
- Low profile glass helmet design
- Low power consumption
- NMEA 2000 connectivity certified
Specifications:
- Dimensions : 60 x 115 x 32 mm (2.4" x 4.5" x 1.3")
- Weight: 0.12 kg (0.3 lbs)
- Power consumption: 1.4 watts
- Network load: 3 LEN
- Color: black
- Environmental Protection, waterproof: waterproof rating : IPx7
- Environmental protection, humidity: up to 95% relative humidity
- Compass safety distance: 300 mm (1.0" )
- Operating temperature: -15 to +55°C (5°F to +131°F)
- Operating temperature:Storage: -30 to +70°C (-22 to +158°F)
The OP12 wired remote control can be combined with the IS42 digital display to create a remote control. independent autopilot, or used as a dedicated autopilot keypad for Simrad multifunction displays...
PRODUCT ID: 62228
SKU: NVN-62228
CSKU: CWR-62228
REWRITE: 73339- simrad-op12-autopilot-controller
MPN: 000-13287-001
UPC: 9420024155127
ASIN: B01M4N6MBY
WSKU: SIM00013287001
SSKU: SIM-000-13287-001
KSKU: SIM0013287001
GSKU: MSKU:
LSKU:
NAME: Simrad OP12 Autopilot Controller
EX_NAME: SIMRAD OP12 AUTOPILOT CONTROLLER
PTITLE: Simrad OP12 Autopilot Controller
TYPE: Navigation and marine instruments | Autopilots
SELLER: Simrad
VEHICLES & PARTS> VEHICLE PARTS & ACCESSORIES> POWERWATER PARTS & ACCESSORIES> POWERWATER STEERING PARTS> DIRE CABLESPOWERWATER CTION
Simrad Pilot Control, OP12 Keyboard
Simrad OP12 Autopilot Controller
Gtags:
GSpecs:
Simrad OP12 Autopilot Controller Product Description
The OP12 wired remote control can be paired with the IS42 digital display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for Simrad multifunction displays. This keyboard complements the low-profile design of our glass-bridge instruments and displays and blends seamlessly into any bar design. Intuitive Operation: A simple push-button interface makes the OP12 easy to use in harsh conditions and responds reliably to wet or gloved hands. Dedicated auto and standby buttons turn autopilot on or off with a single press, so it's easy to free your hands from the wheel or instantly take control whenever you need it. Heading adjustments are also made with a single press of a button, with dual port and starboard buttons to allowheading adjustments in increments of one degree or ten degrees. Autopilot Control with IS42 Display: Pair the Simrad OP12 keypad with an IS42 digital display to create a fully functional control head for your Simrad autopilot system. Multiple keypads and displays can be installed to provide autopilot control from anywhere on board, perfect for twin-helm vessels.
Simrad 0013287001 Attributes- Compatibility: Simrad multifunction displays
- Screen size: Without screen
- Display type: Not applicable
- Display resolution: Not applicable
- Color: Black
- Includes: With network extension cable and solar protection
- Intuitive operation with waterproof silicone buttons
- Combined with an IS42 display for complete autopilot control
- Low profile glass headset design
- Easy installation with just one cable
- 2 year limited warranty
- OP12-AutopilotController_UG_EN_988-11209 -002_w.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- OP12-Triton2-APC_MT_988-11231-001_w.pdf
OP12 autopilot controller
The remote control wired OP12 integrates seamlessly with Simrad autopilot systems to provide intuitive mode control, heading adjustments and power steering. Designed to complement the discreet design of Simrad Glass Bridge instruments and displays, this remote control can becombined with the IS42 color display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for the GO, NSS and NSO evo2 multifunction displays. .
Features:
- Intuitive operation
- Easy installation
- Combine with an IS42 display for complete autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
- For use with MFDs NSS and NSO evo2 as additional autopilot controller
- Low profile glass bar design
- Low power consumption
- NMEA certified connectivity 2000
Specifications:
- Dimensions: 60 x 115 x 32 mm (2.4" x 4.5" x 1.3")
- Weight: 0.12 kg (0.3 lb)
- Power consumption: 1.4 watts
- Network Load: 3 LEN
- Color: Black
- Environment protectionroning, Waterproof: Waterproof rating: IPx7
- Environmental protection, Humidity: Up to 95% relative humidity
- Compass safety distance: 300 mm (1.0")
- Operating temperature: -15 to +55°C (5°F to +131°F)
- Storage temperature: -30 to +70°C (-22 to +158°F)
The OP12 wired remote control can be paired with the IS42 digital display to create an autopilot controller independent, or used as a dedicated autopilot keypad for Simrad multifunction displays...
Simrad OP12 Autopilot Controller Related ProductsB&G Suncover f/Triton2 Pilot & OP12 Pilot Controller
Frequently Asked Questions (FAQ) about Simrad OP12 Autopilot Controller Who is Simrad?
How to describe Simrad OP12 Autopilot Controller?
What is the product type?
br/> What is the color of the Simrad O autopilot controllerP12?
What is the display type of the product?
What is the screen size of the product?
What is the compatibility of this product?
Who is the Simrad? Simrad is part of the Navico family based in Norway, the world leader in marine electronics. Simrad manufactures a complete range of sophisticated marine electronic systems for the recreational and light commercial markets. Simrad products are based on six main areas of expertise: radar, echo sounder, communications, autopilot, navigation and systems integration. How to describe the Simrad OP12 autopilot controller? The OP12 wired remote control can be paired with the IS42 digital display to create an independent autopilot controller, or used as a dedicated autopilot keypad for Simrad multifunction displays...What is the type of product ? PartsWhat is the color of the driver controllerautomatic Simrad OP12? BlackWhat is the display type of the product? Not applicableWhat is the display size of the product? Without screenHow compatible is this product? Simrad Multifunction Displays
Buy the Simrad OP12 Autopilot Controller at the best price for only $299 at NVN Marine ! Same day dispatch before 3 p.m. Simrad OP12 Autopilot Controller Technical Specifications
| Type: | Marine Navigation & Instruments | Autopilots |
|---|---|
| Supplier: | Simrad |
| Weight: | 0.8lb |
| Type: | Parts |
| Weight shipping: | 0.8 lbs |
|---|---|
| TaiBox sizes: | 5.00 (h) x 6.00 (w) x 9.00 (w) |
| Cubic feet: | 270.0 |
| Returnable: | Yes |
