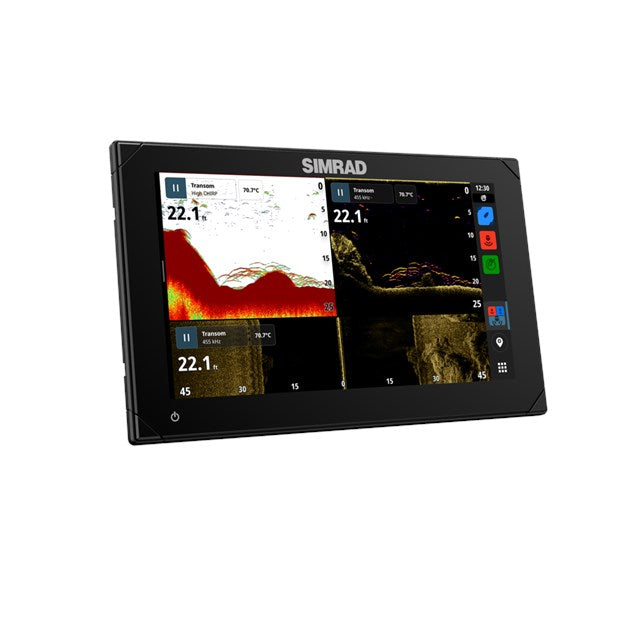

Simrad NSX 3009 9" Chartplotter and Sonar Combo - Screen Only - Without Transducer Marine Navigation & Instruments
Take your experience to a whole new level with the Simrad(R) NSX™ intelligent chartplotter and fishfinder. With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) DISCOVER The NSX comes fully equipped with integrated sonar, radar and autopilot systems, and with our handy Setup Assistant tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water. With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) support, you'll see everything like never before. The NSX features built-in sonar, full compatibility with radar and autopilot systems, and with our handy Setup Wizard tool, you'll be up and running in no time. HeAll you have to do is choose your next adventure on the water. Discover modern simplicity and rich details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
Simrad 0015218001 Attributes- Size screen: 9 inches
- Resolution: 1280 x 720 pixels
- Interface: Multi-touch screen
- Dimensions: 9.4 inches wide x 3.17 inches ofdepth x 5.85 inches height
- Waterproof: IPX6/IPX7 Waterproof
- Sensor Compatibility: NMEA 2000 Compliant
- Includes a marine-optimized C-MAP(R) DISCOVER™>
- High-definition IPS touchscreen with extreme viewing angles, even visible through polarized lenses
- Supports high-resolution views of fish and structures with Active Imaging™ featuring CHIRP and SideScan And DownScan Imaging™, plus 1 kilowatt transducer capacity to reach greater depths
- Setup Wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with possibility of extending the system with Sonar Simrad , pilote auto, radar and more
- Faster autorouting with seamless accessibility
- See near and far simultaneously (up to 42nm), with support for HALO radar and get ultra-fast rendering Updates every second
- Stay on course with full Simrad autopilot integration
- Modern, simple interface
- 2 Year Limited Warranty
- NSX_IM_EN.pdf
- NSX_QG_EN.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- NSX-3009_MT_988-12636-002_w .pdf
NSX™ 3009 9" Chartplotter and Sonar - Screen Only - No Transducer
Everything in the NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest ever highway and next-generation C-MAP maps.ration Discover intuitive touchscreens and a simple sonar setup with tips to help you when you need it. Count on high-resolution images from cutting-edge sonar technology, like FishReveal™. , DownScan Imaging™ and SideScan.
Add compatibility with a wide range of 1 kW transducers for even higher target resolution, and there's nothing else between you and your next adventure than open water.
An intuitive touchscreen experience
Easily access all NSX™ features through a modern, simple interface, including drag-and-drop screen customization and improved day and night modes. Get Crystal. clear videoNew detailed maps with the SolarMAX™ IPS touchscreen – viewable from any angle, in bright sunlight and even through polarized lenses.
Bring navigation to life with NSX ™
See chart details in a different way with the next generation C-MAP DISCOVER™ X and REVEAL™ X optimized marine charts for day and night. Experience our fastest highway ever, and with the Simrad Companion app, plan trips, review routes, plot waypoints and sync directly.
Complete suite of Simrad technology at your fingertips
Expand your system with advanced Simrad technology. Experience high-resolution images from cutting-edge sonar technology, like Active Imaging™, plus compatibility with a wide range of 1 kW transducers. Immediately identify hazards and see near and far simultaneously with award-winning HALO pulse compression radars, and stay on course with legendary Simrad autopilots.
Simple to configure, easy to manage
Get up and running fasterthan ever. The Setup Wizard provides step-by-step instructions and guidance throughout your initial setup and during future adjustments. Additionally, Sonar device setup provides easy-to-understand prompts for each step of the process, while the Simrad app provides access to best-in-class planning tools as well as software updates and a Hassle-free data transfer.
Features:
- Includes a marine-optimized C-MAP DISCOVER™ Fresh, intuitive mapping and daily updates – plus support for C-MAP REVEAL™ X Charts
- High-definition IPS touchscreen with extreme viewing angles, visible through polarized lenses
- Supports high-resolution views of fish and structures with Active Imaging™ with CHIRP, SideScan and DownScan Imaging™,plus 1kW transducer capacity to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Integration complete with capabilitiesTry expanding the system with sonar, autopilot, Simrad radar and more
- Faster highway routing with seamless accessibility
- See up close and far simultaneously (up to 48nm), with HALO radar and get lightning-fast updates every second
- Stay on course with full Simrad autopilot integration
- Clean and simple interface
- Simrad app integration: keep your chart data at your fingertips, on and off the water
- App integration Third-party
- Wireless connectivity, plus full Ethernet and NMEA 2000 networking capabilities
- IP video support
PRODUCT ID: 93523
SKU: NVN-93523
CSKU: CWR-93523
REWRITE: 104634-simrad-nsx -3009-9-combo-chartplotter
MPN: 000-15218-001
UPC: 9420064110056
ASIN:
WSKU: SIM00015218001
SSKU:
KSKU: SIM0015218001
GSKU:
MSKU:
LSKU:
NAME: Simrad NSX™ 3009 9" Chartplotter and Sonar Combo - Display Only - No Transducer
NAME_EX:
PTITLE: Simrad NSX™ 3009 9" Chartplotter and Sonar Combo - Display Only - No transducer>
Gtags:
GSpecs:
Simrad NSX™ 3009 9" Combo Chartplotter and Sonar - Display Only - No Transducer Product Description
Take your experience to a whole new level with the Simrad(R) NSX™ Intelligent Chartplotter and Sonar With a modern, modern interface featuring powerful navigation capabilities with C-MAP(R) DISCOVER Autopilot and with our handy Setup Wizard tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water with an innovative and modern interface packed with powerful capabilities. navigation with C-MAP(.R), you'll see everything like never before The NSX features built-in sonar, full compatibility with radar and autopilot systems, and thanks to our out.It's handy setup wizard, you'll be up and running in no time. now it's choosing your next traveling adventure. Discover modern simplicity and rich details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
Simrad 0015218001 Attributes- Screen size: 9 inches
- Resolution: 1280 x 720 pixels
- Interface: Multi-touch screen
- Dimensions : 9.4 inches wide X 3.17 inches deep X 5.85 inches high
- Waterproof: Waterproof rating IPX6/IPX7
- Sensor compatibility: NMEA 2000 compatible
- Features A Marine-optimized C-MAP(R) DISCOVER™ MAP REVEAL™ Active Imaging™ including CHIRP, SideScan and DownScan Imaging™, plus 1k transducer capabilityilowatt to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with ability to expand system with Simrad sonar, autopilot, radar, etc.
- Faster automatic routing with Seamless Accessibility
- See near and far simultaneously (up to 42 nm ), with support for HALO radar and get lightning-fast updates every second
- Stay on track With full Simrad autopilot integration
- Interface modern and simple
- 2 year limited warranty
- NSX_IM_FR.pdf
- NSX_QG_FR.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- NSX- 3009_MT_988-12636-002_w.pdf
NSX™ 3009 9" Chartplotter and Sonar - Screen Only - No Transducer
All About NSX™ is designed to bring your fishing adventures closer Enjoy our fastest highway maps ever and our next-generation C-MAP maps Discover intuitive touchscreens and simple sonar setup tips for. help you when you need it Count on high-resolution images from cutting-edge sonar technology, like FishReveal™, DownScan Imaging™ and SideScan.
Add compatibility with a wide range of. 1 kW transducers for even higher target resolution, and there's nothing between you and your next adventure except open water.
An intuitive touchscreen experience
strong>
Easily access all NSX™ features through a modern, simple interface, including screen customization.r drag and drop and improved day and night modes. Get crystal-clear views of map details with the vibrant SolarMAX™ IPS touchscreen, viewable from any angle, in bright sunlight, and even through polarized lenses.
Give navigation life with NSX™
See chart details in a different way with next-generation C-MAP DISCOVER™ day and night. Experience our fastest highway ever, and with the Simrad Companion app, plan trips, review routes, plot waypoints and sync directly.
Complete suite of Simrad technology at your fingertips
Expand your system with advanced Simrad technology. Experience high-resolution images from cutting-edge sonar technology, like Active Imaging™, plus compatibility with a wide range of transducersurs of 1 kW. Immediately identify hazards and see near and far simultaneously with award-winning HALO pulse compression radars, and stay on course with legendary Simrad autopilots.
Simple to configure, easy to manage
Get up and running faster than ever. The Setup Wizard provides step-by-step instructions and guidance throughout your initial setup and during future adjustments. Additionally, Sonar device setup provides easy-to-understand prompts for each step of the process, while the Simrad app provides access to best-in-class planning tools as well as software updates and a Hassle-free data transfer.
Features:
- Includes a marine-optimized C-MAP DISCOVER™ fresh and intuitive map and daily updates –plus support for C-MAP REVEAL™ high resolution fish and structure with Active Imaging™ including CHIRP, SideScan and DownScan Imaging™, plus 1 kW transducer capacity to reach greater depths
- Setup wizard to let you 'get up and running quickly, plus simpler sonar setup
- Full integration with the ability to expand the system with Simrad sonar, autopilot, radar and more
- Faster highway routing with seamless accessibility
- See near and far simultaneously (up to 48nm), with support for HALO radar and get lightning-fast updates every second.
- Stay on course with full Simrad autopilot integration
- Clean and simple
- Simrad app integration: keep your chart data at your fingertips, on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000 network capability
- IP video support
Simrad NSX™ 3009 9" Chartplotter and Sonar Combo - Display Only - Without Transducer Related ProductsNavico IP Cam-1 Stainless Steel POE IP Camera
Frequently Asked Questions (FAQ) About Simrad NSX™ 3009 9" Chartplotter and Sonar Combo - Display Only - No Transducer Who is the Simrad?
How to Describe the Simrad NSX™ 3009 9" Combo Chartplotter and Sonar - Display Only - No Transducer ?
What is the resolution of the product?
Is this product waterproof?
What is the display size of the product?
What is the control interface of the product? ?
What are the dimensions of the product?
Who is Simrad? Simrad is part of the Navico family based in Norway, the world leader in marine electronics. Simrad manufactures a complete range of sophisticated marine electronic systems for the recreational and light commercial markets. Simrad products are based on six core areas of expertise: radar, echo sounder, communications, automation, piloting, navigation and system integration. How to describe the Simrad NSX™ 3009 combo chartplotter and sonar 9" - Screen only - No transducer? "
Simrad NSX 3009 - Intelligent chartplotter/sounder. No transducer. C-MAP DISCOVER™ for the marine environment and C-MAP REVEAL™extreme vision views, visible through polarized lenses
Experience modern simplicity with many details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
View map details of a new way with a new generation of optimized nautical charts C-MAP DISCOVERtoes for NSX, with a fresh and intuitive graphical presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal C-MAP charts include full vector maps with custom depth shading and high-resolution bathymetry displaying accurate contour lines down to 1 foot level of detail. You can improve route planning and plotting with tide and current projections and our fastest automatic routing ever. Additionally, there is a new map inspection feature with one-touch access to information on locations, POIs, tides, channels and much more. The Simrad Companion app acts as an extension of your NSX with the same map experiences and all your cart datagraphics at your fingertips, on or off the water. The app lets you take more trips, review tracks and plot waypoints on your app and sync them directly to your NSX.
NSX opens up a world of possibilities, thanks to the Active Imaging™ transducer 3-in-1 included with CHIRP and SideScan sonar. and DownScan Imaging™ to system expansion options such as autopilot and a wide range of compatible 1 kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning HALO pulse compression radars. See near and far simultaneously (up to 72nm) and be ready instantly with low-power sleep mode. Highlight targets using custom modes such as port, offshore and weather. Known for their legendary performance, Simrad autopilots allow you to enjoy tall your activities. Whether it's game trawling or planning your next destination, we've got you covered. Available for both outboard and inboard engines, our "extra pair of hands" helps you follow patterns and routes, navigate to waypoints and stay on course.
With everything From a setup wizard to Simrad app integration, simple sonar setup and guidance to help you when you need it, NSX makes life on the water easier than ever. The setup wizard helps you with step-by-step instructions to get you up and running quickly, while the Simrad app offers a whole host of added extras. These include hassle-free software updates, trip planning on and off the water, a simplified map display that looks greathas the same way on all platforms, as well as easy transfer of all data, including routes and waypoints. But that's not all. Sonar Tips offer guidance on what's happening during settings adjustments, and Sonar Device Setup gives you easy-to-understand prompts for each step of the process—you'll be up and running in no time. All that's left to do is choose your next adventure.
Specifications| Display | |
| Size and type | SolarMax touch screen 9" IPS for wide viewing angles, extreme clarity and visibility in the sun with polarized sunglasses |
| Resolution | 1280 x 720 px |
| Viewing angles | 85° (top, bottom, left and right) |
| Screen brightness | >1200 nits |
| Screen color backlight | White |
| Power | |
| Supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Maximum power consumption | 18.8 W (1360 mA at 13.8 V) |
| Recommended fuse rating | 3A |
| Physics | |
| Dimensions L x H x D | With stand: L: 263.0 mm (10.35"") x H: 172.6 mm (6.80"") x D: 80.6 mm (3.17 "") |
| MountingType | Bracket (supplied), panel mount or flush mount |
| Compass safety distance | 50 cm (1.7 ft) |
| Environment | |
| Operating temperature range | -15°C to 55°C (5°F to 131° F) |
| Storage temperature range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hours) |
| Vibration of shock | 100,000 cycles of 20 G |
| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar compatibility | One 9-pin Xsonic 1 kW sonar port. CHIRP single channel, 50/200 khz, HDI, active imaging |
| Ethernet | 1 port (5-pin connector) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| USB | 1 port (USB A) Output: 5 V DC, 1.5 A |
| External storage | 1 MicroSD slot, 1 port (USB A) |
| GPS | Internal, 10 Hz, WASS, MSAS, EGNOS |
| GPS correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS position accuracy | Horizontal accuracy 3 m (9.8 ft) |
| GPS receiver channels | 32 channels |
| GPS update rate | 10 Hz |
| J1939 | No |
| PcConnectivityConnectivity | No |
| WiFi | IEEE 802.11b/g/ n |
| Bluetooth | Bluetooth 4.0 with Bluetooth Classic support |
| Languages | English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedenis |
| Supported maps | C-MAP Discover X, C-MAP Reveal X |
| Radar compatibility | Halo Dome radars, open array Halo radars |
| Weather | No |
| AIS | Receive AIS data over NMEA 2000 |
| Digital switching | Simrad COMMAND DDS only when it is placed on the market |
Box Contents:
- All the fishing essentials in one package
- Compact and lightweight design
- Easy to install and use
- Clear and simple displayrcustomizable
- The perfect chartplotter and fishfinder for fishing enthusiasts.
- With the fastest highway, C-MAP charts and an easy-to-navigate user interface, NSX™ is the one for you.
- You do not need a transducer with this device.
- You do not need need a transducer with this device.
- You do not need a transducer with this device.
- You do not need a transducer with this device.
- li>
- Display only, no transducer
- Highway routing for the quickest route to your destination
- C-MAP maps from next generation provide the best detail and clarity
- All the fishing essentials in one package
- Compact, lightweight design
- Easy to set up and use
- Clear, customizable
- The perfect chartplotter and fishfinder for fishing enthusiasts.
- With the fastest highway, C-MAP charts and an easy-to-navigate user interface, NSX™ is the one you need. to get.
- You do itYou do not need a transducer with this device.
- Display only, no transducer
- Highway routing for the route faster to your destination
- Next generation C-MAP graphics provide the best detail and clarity
