SPX 12V DC Single Acting Hydraulic Power Unit 1.4 GPM 3/8 in NPT Ports 2 000 PSI 10 Quart Steel tank Hydraulic Pumps & Reservoirs Tractor Repair & Parts

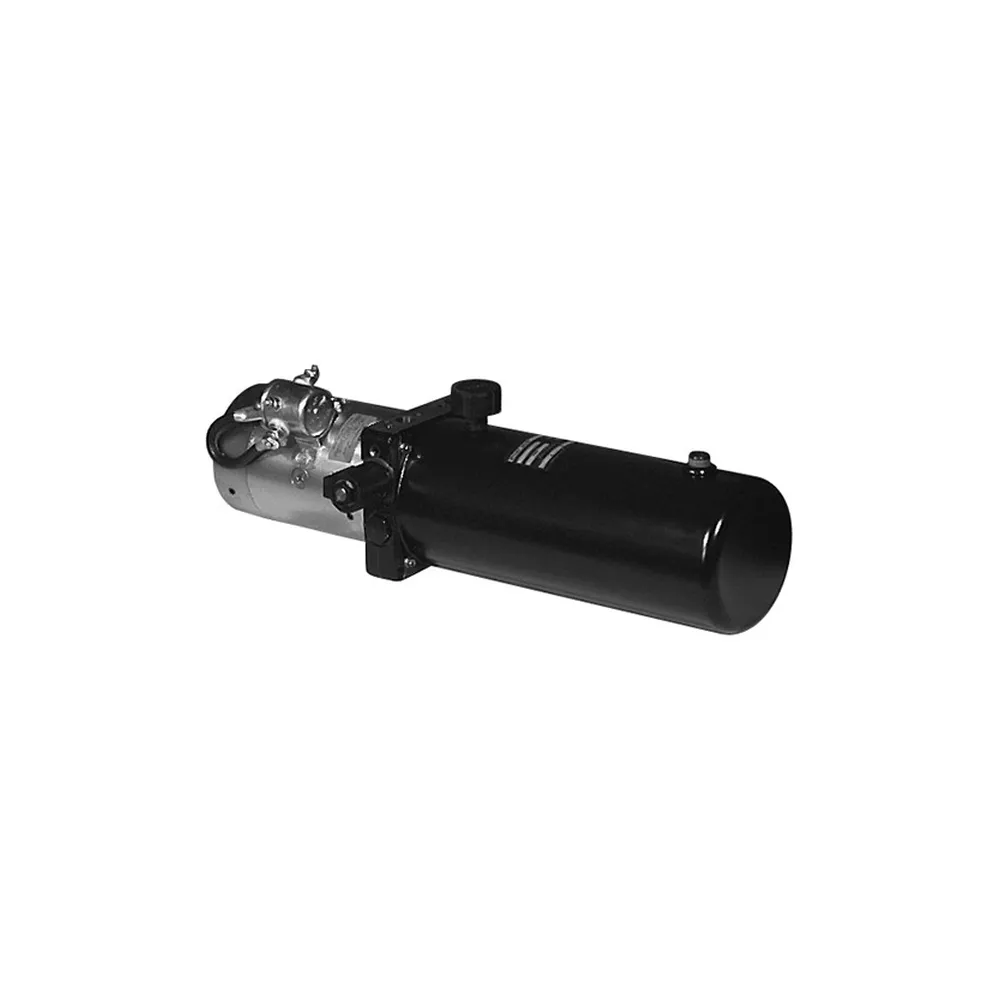

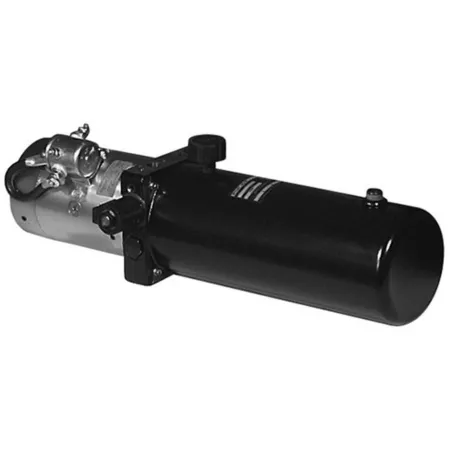

Keep equipment running with the SPX 1.4 GPM 12VDC Single-Acting Hydraulic Power Unit. This hydraulic power unit has an integrated relief valve and a check valve to protect the pump from reverse flow interruptions. Equipped with a 10 qt. rugged steel tank, this hydraulic pump power unit can get the job done in a range of applications. It's ideal for horizontal mounting.

12VDC single acting hydraulic power unit
Power Up and Gravity Down functions except where noted
Check valve to protect pump from reverse flow interruptions
Integrated relief valve
1.4 GPM flow rate
Hydraulic power unit has a 10 qt. steel tank
2,000 PSI operating pressure
3/8 in. NPTF ports
Dimensions of the hydraulic power unit: 24 in. L x 10 in. W x 8 in. H
Solenoid operated
Lift, hold and lower usage
Ideal power unit for horizontal mounting
Note: no remote

Note: This product may require up to 2 additional days for order processing prior to shipping

SPX 12V DC Single Acting Hydraulic Power Unit 1.4 GPM 3/8 in NPT Ports 2 000 PSI 10 Quart Steel tank Hydraulic Pumps & Reservoirs Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Pumps & Reservoirs

Specification	Description
Brand	SPX
Country of Origin	Made in USA
Amperage	230A at 45 CENTISTOKES
Compatible Pipe Material	N/A
Discharge Port	N/A
Engine Displacement	N/A
Features	N/A
Hose Diameter	N/A
Housing Material	Other
Inlet Diameter	N/A
Maximum Flow Rate	1.4 GPM
Maximum Operating Pressure	2,000 PSI
Minimum Operating Pressure	1.4 GPM
Motor Type	Other
Outlet Diameter	N/A
Power Type	None
Product Height	8 in.
Product Length	24 in.
Product Weight	31 lb.
Product Width	10 in.
Suction Port	N/A
Valve Inlet Diameter	N/A
Valve Inlet Type	N/A
Valve Outlet Diameter	N/A
Valve Outlet Type	N/A
Voltage	12V
Warranty	1 Year
Manufacturer PartNumber	251003

SPX 12VDC Single-Acting Hydraulic Power Unit, 1.4 GPM, 3/8 in. NPT Ports, 2,000 PSI, 10 qt. Steel Tank Specifications expand/collapse Specification Description Brand SPX Country of Origin Made in USA Amperage 230 A at 45 CENTISTOKES Compatible Hose Material N/A Discharge Port N/A Engine Displacement N/A Features N/A Hose Diameter N /A Housing Material Other Inlet Diameter N/A Maximum Flow 1.4 GPM Maximum Operating Pressure 2,000 PSI Minimum Operating Pressure 1.4 GPM Motor Type Other Outlet Diameter N/A Power Type None Height of Housing Product 8 in. Product Length 24 in. Product Weight 31 lb. Product Width 10 in. Suction Port N/A Valve Inlet Diameter N/A Valve Inlet Type N/A Valve Outlet Diameter N /A Valve output type N/A Voltage 12 V Warranty 1 year Manufacturer part number 251003
