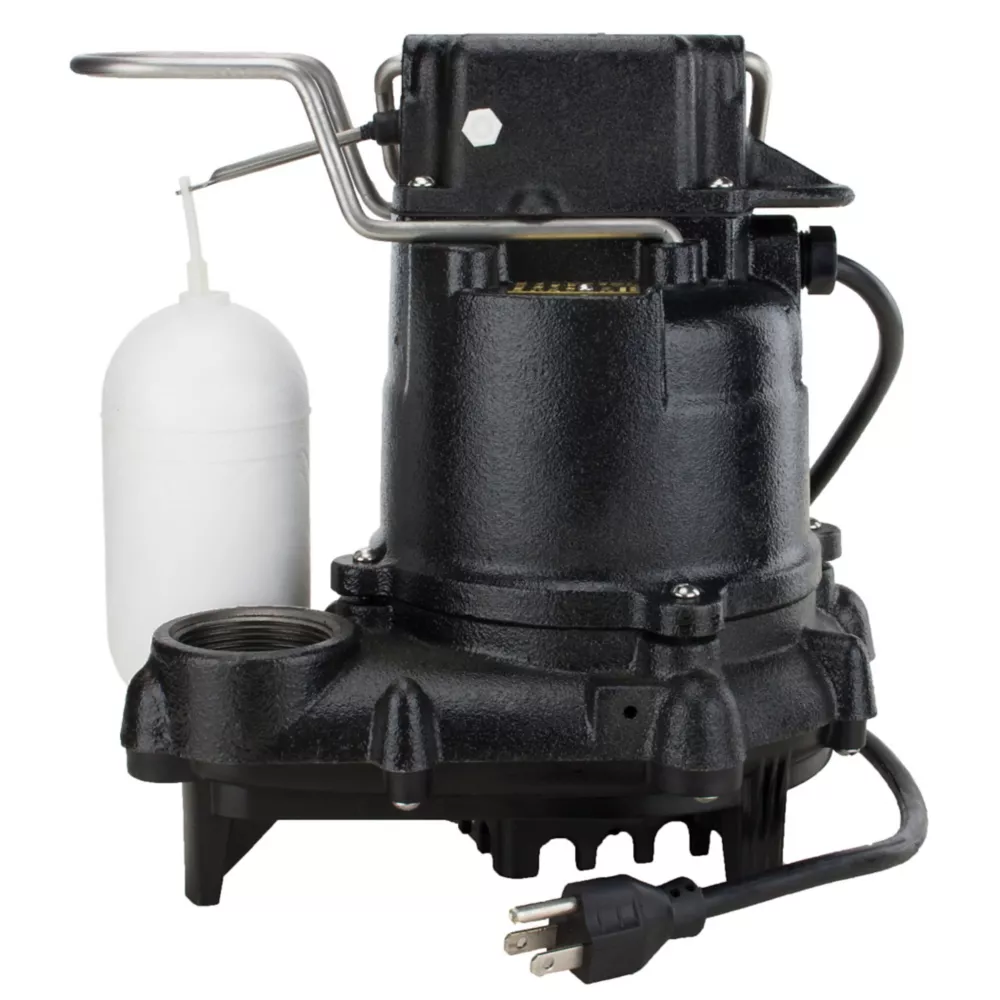

Star Water Systems 1/3 HP 115V Cast Iron Electric Submersible Sump Pump with Vertical Switch 2 880 GPH Sump Pumps Farm & Ranch

The Star Water Systems 1/3 HP Cast Iron Sump Pump is the standard for quality and performance. This pump is designed with epoxy coated cast iron construction, stainless steel components, premium vertical switch, and non-clogging vortex impeller capable of passing 1/2" spherical solids. This pump is Made in the USA using a majority of US content and every pump is 100% water tested before shipment to ensure reliable operation.

Cast iron construction for long life and quiet operation
Corrosion-resistant, powder coated epoxy finish
Non-clogging vortex impeller passes 1/2 in. solids
Solid, buoyant float material and stainless steel float switch arm ensure long term reliability
1-1/2 in. NPT discharge
Thermal overload protection keeps motor from overheating
100% water-tested before shipment for reliable operation
Made in the USA using a majority of US content
3-year limited warranty

Star Water Systems 1/3 HP 115V Cast Iron Electric Submersible Sump Pump with Vertical Switch 2 880 GPH Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	Star Water Systems
Country of Origin	Made in USA
Amperage	9.7 Amp
Basin Diameter	18 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1.5 in.
Discharge Rate at 0 ft.	2,880 GPH
Discharge Rate at 10 ft.	2,040 GPH
Engine Displacement	0 N/A
Features	Epoxy coated cast iron construction, 115V 3/10 HP motor, premium vertical switch, non-clogging vortex impeller capable of passing 1/2 in. solids, thermal overload protection, 100% water tested, Made in the USA using a majority of US content.
Horsepower	0.33 HP
Hose Diameter	1.5 in.
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	2,880 GPH
Maximum Head Lift	18 ft.
Maximum Operating Pressure	8 PSI
Maximum Operating Temperature	130 deg. F
Maximum Solids Diameter	0.5 in.
Maximum Suction Lift	18 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	34 deg. F
Power Type	Electric
Product Height	10.5 in.
Product Length	10.5 in.
Product Weight	22.4 lb.
Product Width	8 in.
Pump Mechanism	Centrifugal
Motor Type	115V Oil Filled
Switch-Off Height	3 in.
Switch-On Height	7.25 in.
Voltage	115v
Warranty	3 Year Limited Warranty
Manufacturer PartNumber	3SEHL

Star Water Systems 1/3 HP 115V Electric Cast Iron Submersible Sump Pump with Vertical Switch, 2,880 GPH Specifications expand/collapse Specification Description Brand Star Water Systems Country of Origin Made in USA Amperage 9.7 A Basin Diameter 18 in. Body Material Cast Iron Compatible Pipe Material PVC Discharge Connection Female Threaded Discharge Port Diameter 1.5 in. Discharge rate at 0 ft. 2,880 GPH Discharge rate at 10 ft. 2,040 GPH Motor Displacement 0 N/A Features Epoxy-coated cast iron construction, 115V 3/10 HP motor, premium vertical switch, non-clogging vortex impeller capable of passing 1/2" solids, guard against thermal overloads. , 100% water tested, made in the USA using majority American content. Horsepower 0.33 HP Pipe Diameter 1.5 in. Inlet Connection None Inlet Diameter 0 N/A Maximum Flow 2,880 GPH Maximum Head Lift 18 feet Maximum Operating Pressure 8 PSI Maximum Operating Temperature 130 deg. F Max diameterimal solids 0.5 in. Maximum suction height 18 ft. Minimum operating pressure 0 N/A Minimum operating temperature 34 deg. F Power Type Electric Product Height 10 Product Length 10.5 in. Product Weight 22.4 lb. Product Width 8 in. Pump Mechanism Motor Type Centrifugal 115V Oil Filled Shut-off Height 3 in. Start-up Height 7.25 in. Voltage 115 V Warranty 3-year limited warranty Manufacturer part number 3SEHL
