Superior Pump 1/2 HP 120V 80 GPM Pre-Assembled Electric Simplex Sewage Pump Kit Sump Pumps Farm & Ranch

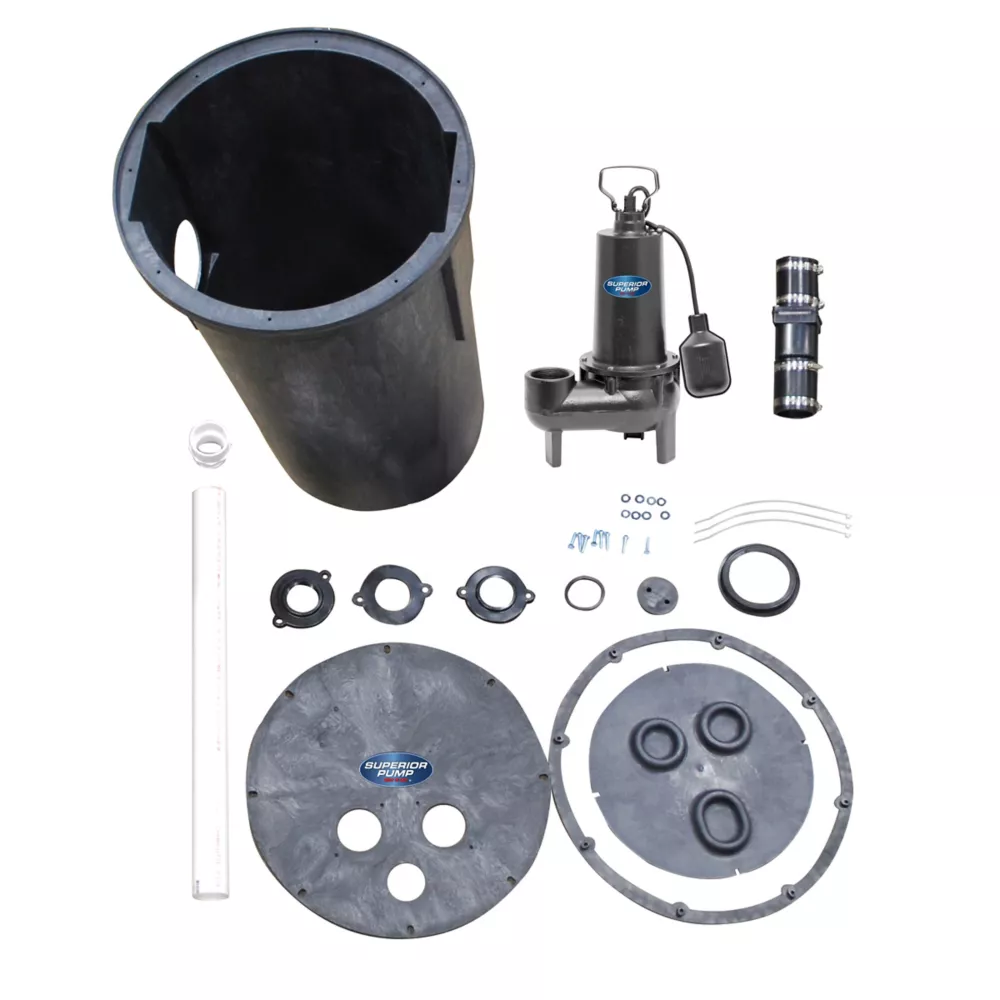

Superior Pump builds pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy duty stainless steel jacketed shaft seals, double o-ring seals on motor plate, and electronically controlled split capacitors. Superior Pump model 93015, 1/2 HP cast iron submersible sewage pump kit, with tethered float switch, will move water up to 4800 gal. per hour. The easy to assemble kit includes an 18x30 in. basin, premium structural foam cover, air tight molded reusable PVC seal, 4 inlet with snap-in-hub, 2 in. rubber boot check valve and includes 2 in. PVC pipe. This kit is UL/cu listed and CSA certified and backed by a 1 year warranty.

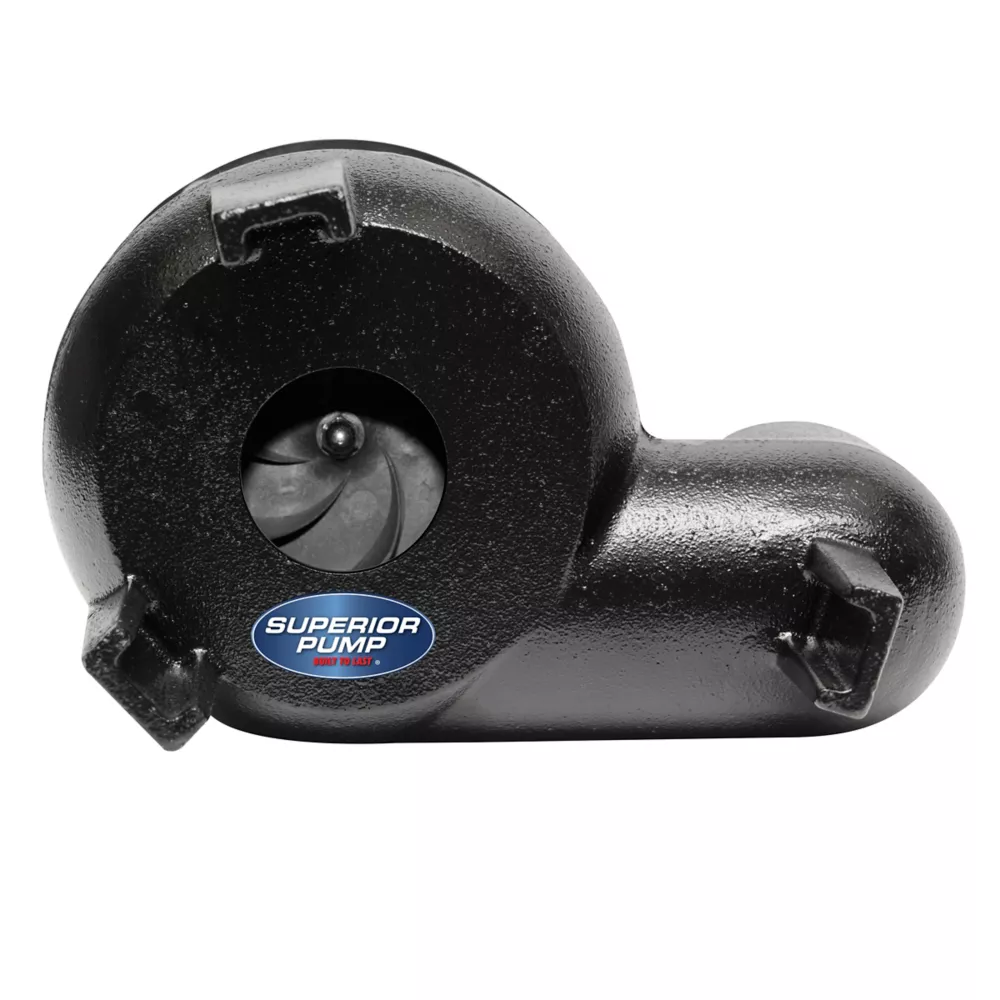

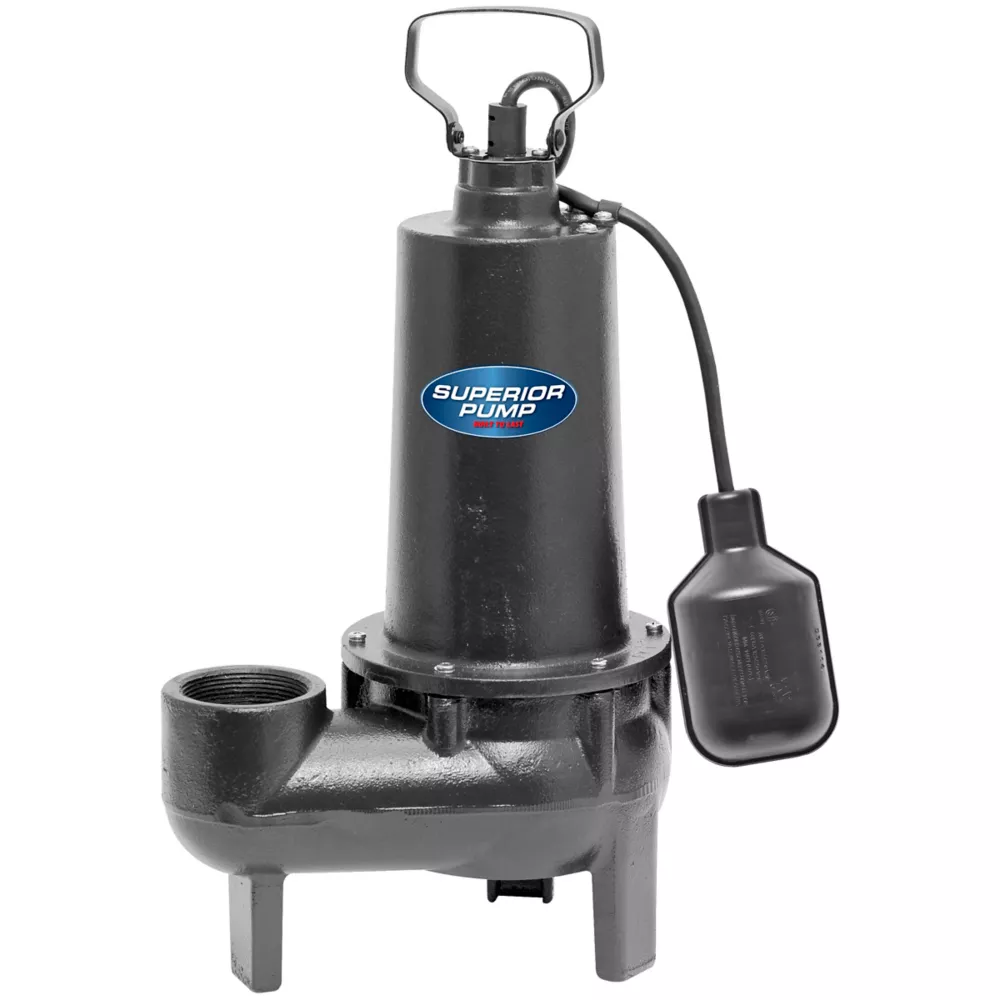

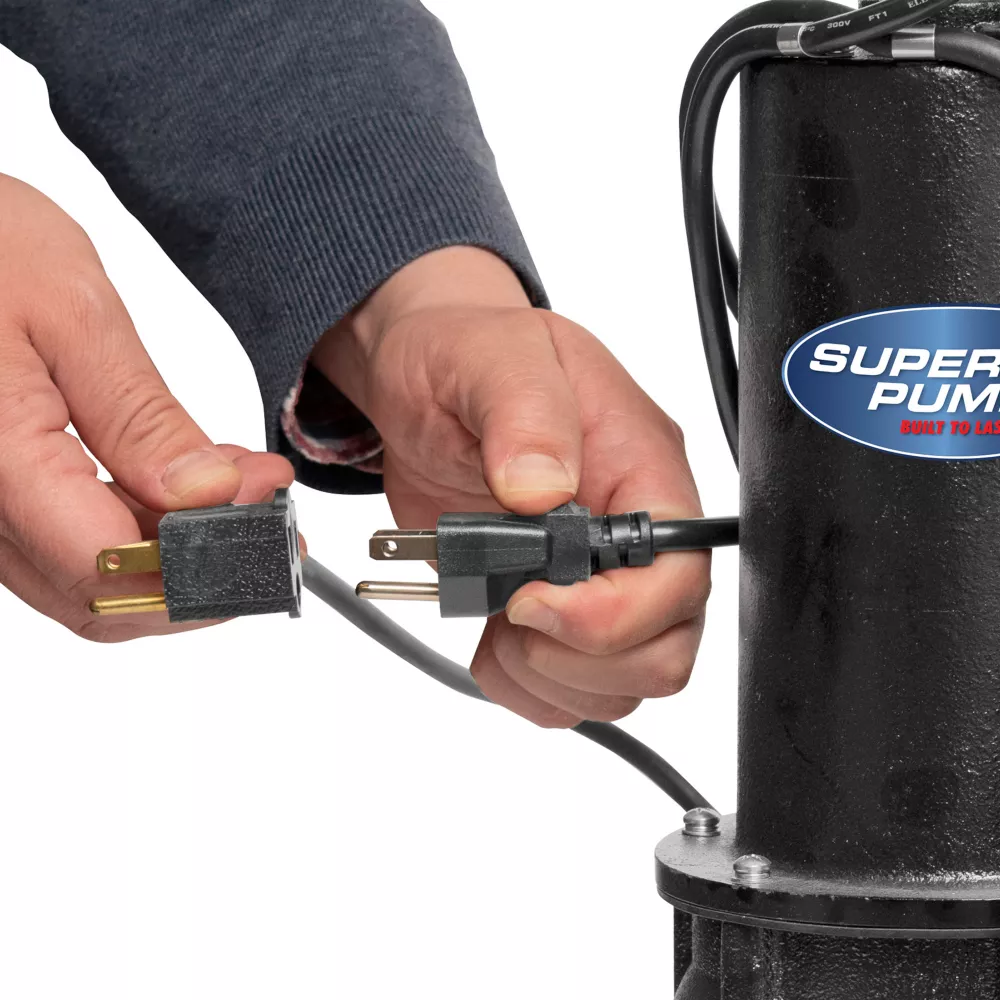

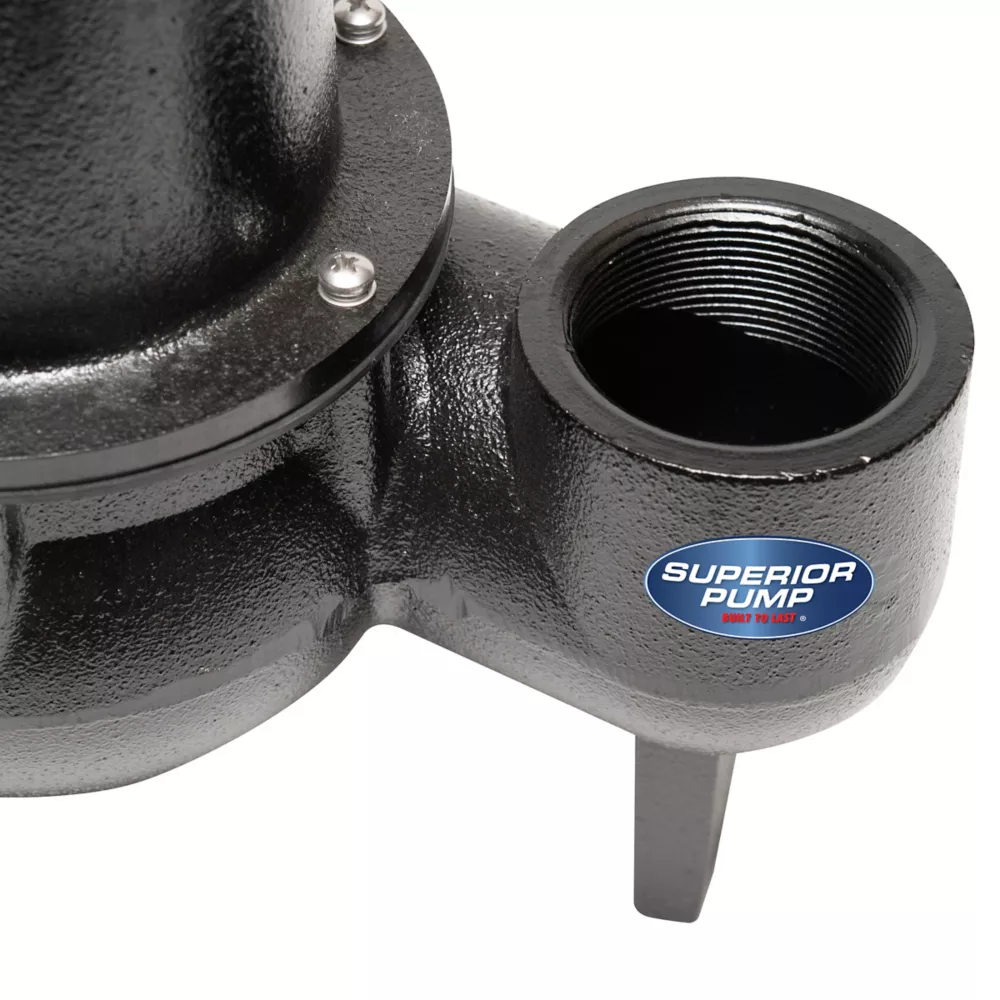

Pump - rugged cast iron construction, tethered float switch, 2 In. NPT discharge, handles 2 In. solids, non-clogging vortex impeller, 10 Ft. power cord with piggy back plug, continuous duty thermally protected split capacitor motor
Pumps up to 4800 gal. per hour, pumps water up to 25 vertical feet

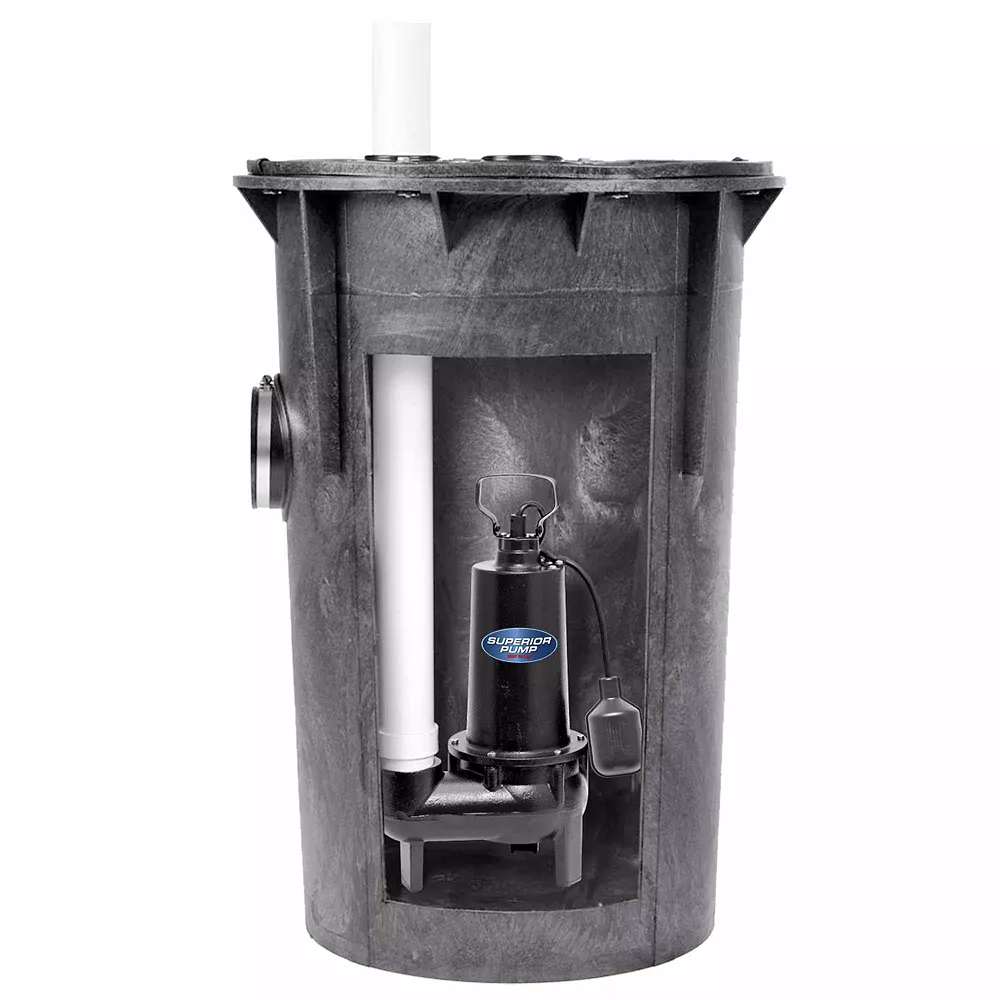

Basin - structural foam construction, corrosion resistant, size 18 In. x 30 In., 4 In. inlet hub, 2 In. discharge and vent, 30 gal. capacity, built-in torque stops
Premium structural foam cover with 8 bolt configuration, air tight molded reusable PVC seal
Check valve features, heavy duty rubber boots, stainless steel clamps, full flow design, 2 in. connections
Snap-in-hub features, high quality rubber construction, fits 4 In. DWV schedule 40/80 pipe, water and vapor tight seal
Easy to assemble
1 Year warranty
Built in thermal overload protection for safety
Permanent split capacitor continuous duty motor
1 Year Warranty

Superior Pump 1/2 HP 120V 80 GPM Pre-Assembled Electric Simplex Sewage Pump Kit Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	Superior Pump
Country of Origin	Imported
Amperage	7.6A
Basin Diameter	18 in.
Body Material	Cast iron
Compatible Pipe Material	ABS
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	80 GPM
Discharge Rate at 10 ft.	60 GPM
Engine Brand	N/A
Engine Displacement	0 cc
Features	Self Priming, Submersible
Fuel Capacity	0 oz.
Horsepower	12 HP
Hose Diameter	0 in.
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	80 GPM
Maximum Head Lift	25 ft.
Maximum Operating Pressure	10.8 PSI
Maximum Operating Temperature	120degF
Maximum Solids Diameter	2 in.
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	10.8 PSI
Minimum Operating Temperature	32degF
Oil Capacity	20 oz.
Power Cord Length	10 ft.
Power Type	Electric
Product Height	36 in.
Product Length	22 in.
Product Weight	50 lb.
Product Width	22 in.
Pump Mechanism	Centrifugal
Motor Type	PSC
Switch-Off Height	8 in.
Switch-On Height	16 in.
Voltage	120V
Warranty	1 Year Limited
Manufacturer PartNumber	93015
