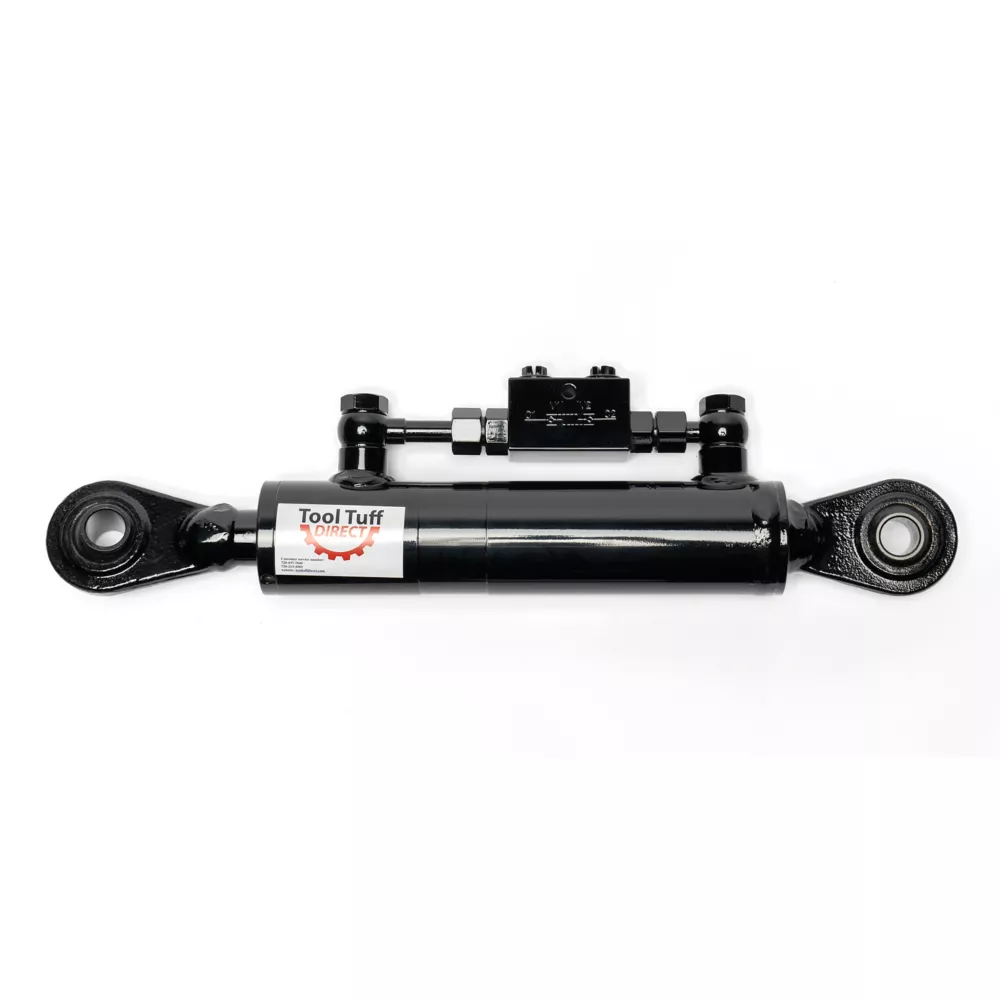

ToolTuff Direct Hydraulic Toplink Cat 1 16-1/8 in to 22-7/16 in. Hydraulic Cylinders Tractor Repair & Parts

Category 1 Hydraulic Top Link with check valve to prevent cylinder drift and hold the cylinder in position. The hydraulic top link is double acting with a high quality chrome plated and polished rod and a honed and finished bore.

16-1/8 in. to 22-7/16 in.
3/4 in. pin holes on both ends

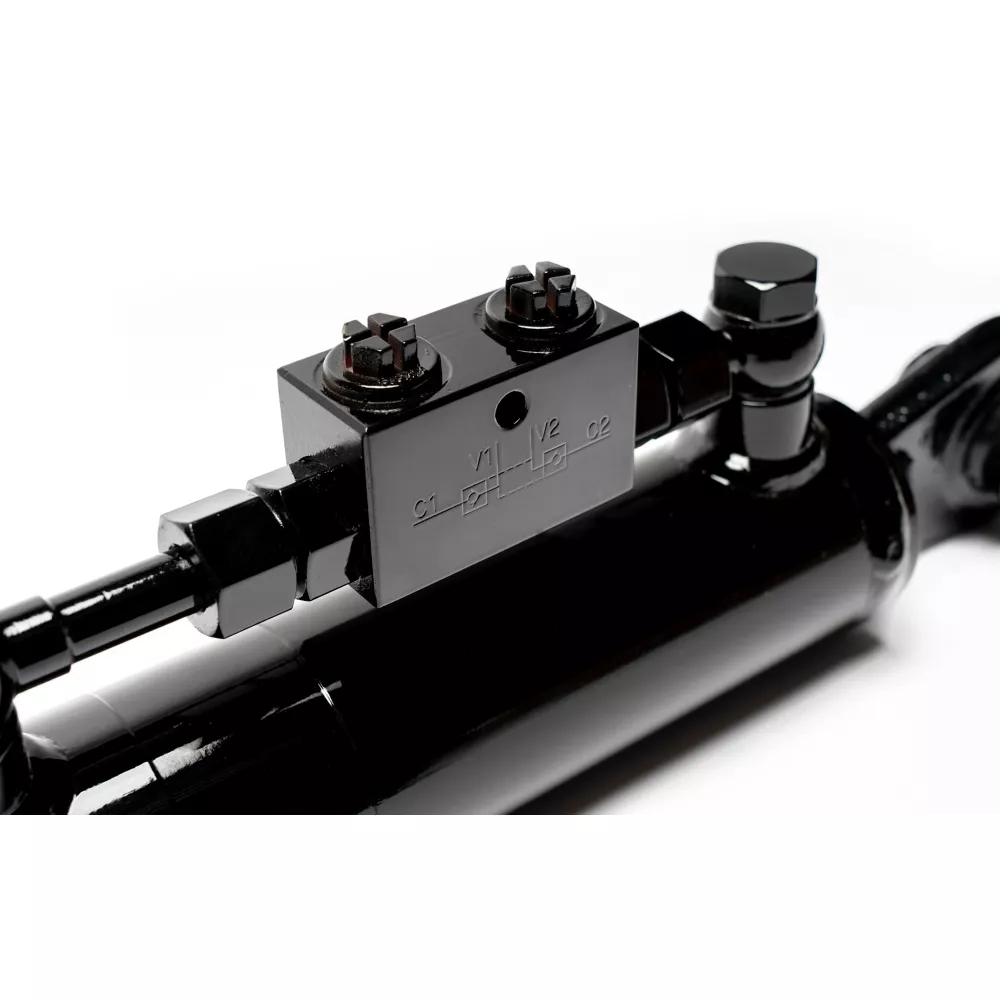

Double-piloted check valve and double-acting cylinder

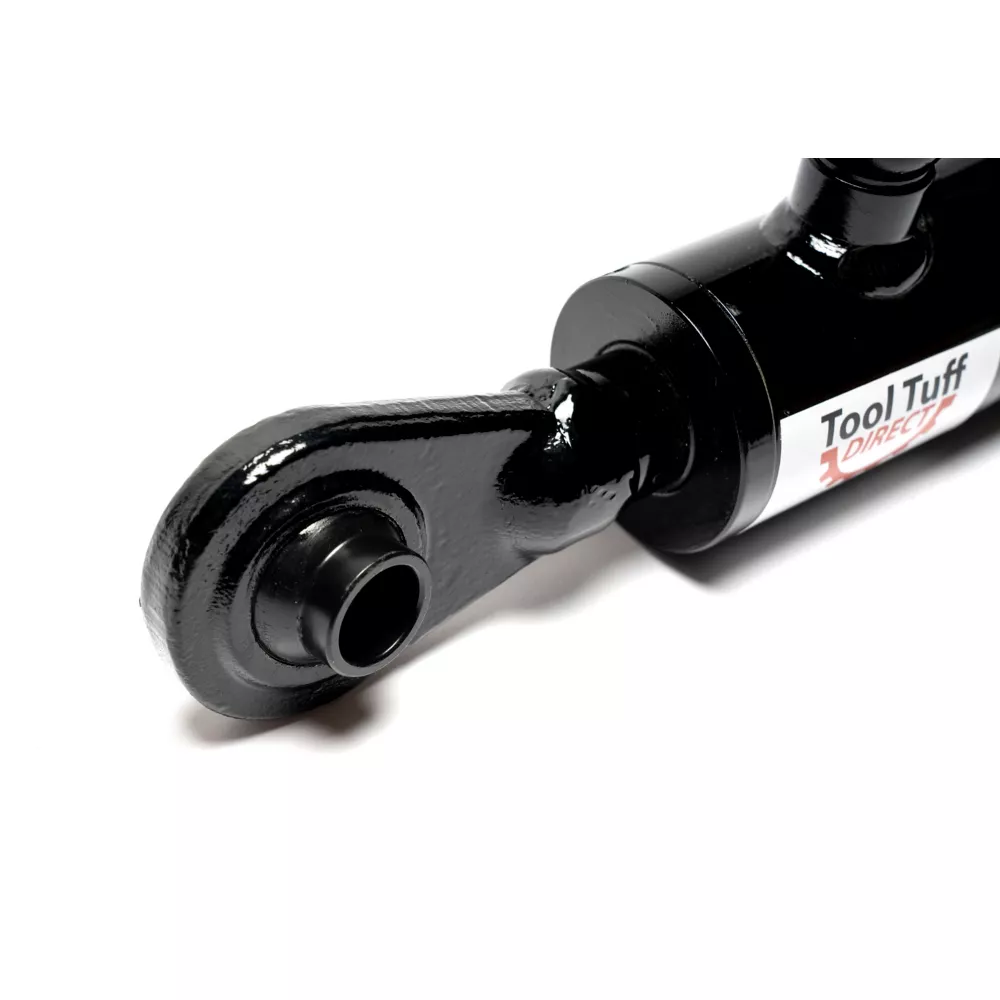

Ball width measures 1-3/4 in.
Ports; 3/8" BSPP G

ToolTuff Direct Hydraulic Toplink Cat 1 16-1/8 in to 22-7/16 in. Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	ToolTuff Direct
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Kubota, Kioti, Ford
Compatibility	Horsepower range of 25-55
Extended Length	22 716 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	4,300 lb.
Model Compatibility	Cat 1
Package Quantity	1
Pin Diameter	34 in.
Port Size	38 in.
Primary Material	Steel
Product Height	2.5 in.
Product Length	18 in.
Product Weight	14 lb.
Product Width	2.5 in.
Retracted Length	16.125 in.
Rod Diameter	1 in.
Single/Double Acting	Double acting
Stroke Distance	6 516 in.
Manufacturer PartNumber	43-080
