Trailer Jack Spring Loaded Drill Jack 2 000 lb Capacity Side Mounted Trailer Jacks Trailer Jacks

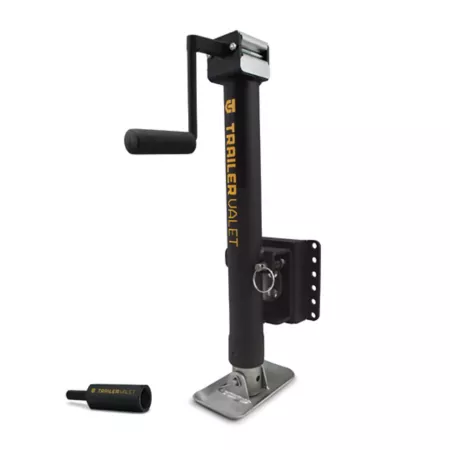

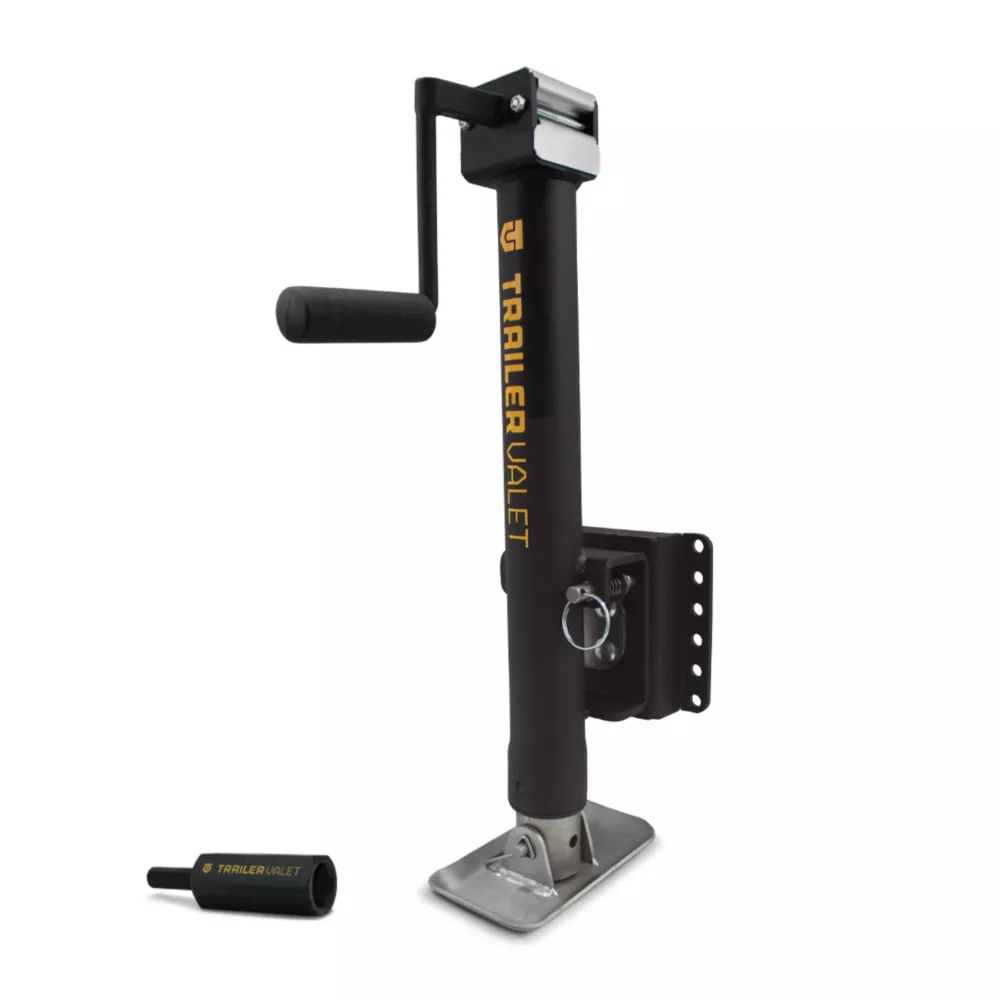

The Trailer Valet 2,000 lb. Side Mounted Spring Loaded Drill Jack is a manual hand-crank jack that has the versatility and capability to be powered by any 18-24V compact drill with the Trailer Valet drill attachment. The drill jack has a lift capacity of 2,000 lb. and its patented gear material composition delivers maximum efficiency while reducing heat retention. The JX 2K side mounted drill jack comes with a pull pin swivel bracket, weather resistant shield protection and is topped with our signature wrinkle black powder coating so that you can go further, longer. It's time to move forward and replace the standard jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. Most electric jacks are not suitable for marine settings and standard and manual swivel jacks can take extensive time and effort to use, so the Trailer Valet JX2 offers a reliable, versatile solution between the 2.- Includes Trailer Valet drill attachment (TVDA), footplate and hand crank
- Zinc-rich coating, nickel plating and finished with Trailer Valet's signature wrinkle black powder coating
- Patented Trailer Valet gear system (12:16 ratio)
- Patented gear material composition delivers maximum efficiency while reducing heat retention
- Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time
- 2,000 lb. weight capacity, ideal for most boat trailers
- Drill jack has a pull-pin swivel mount for easy stow
- Compatible with JX wheel option (TVJXMW), sold separately

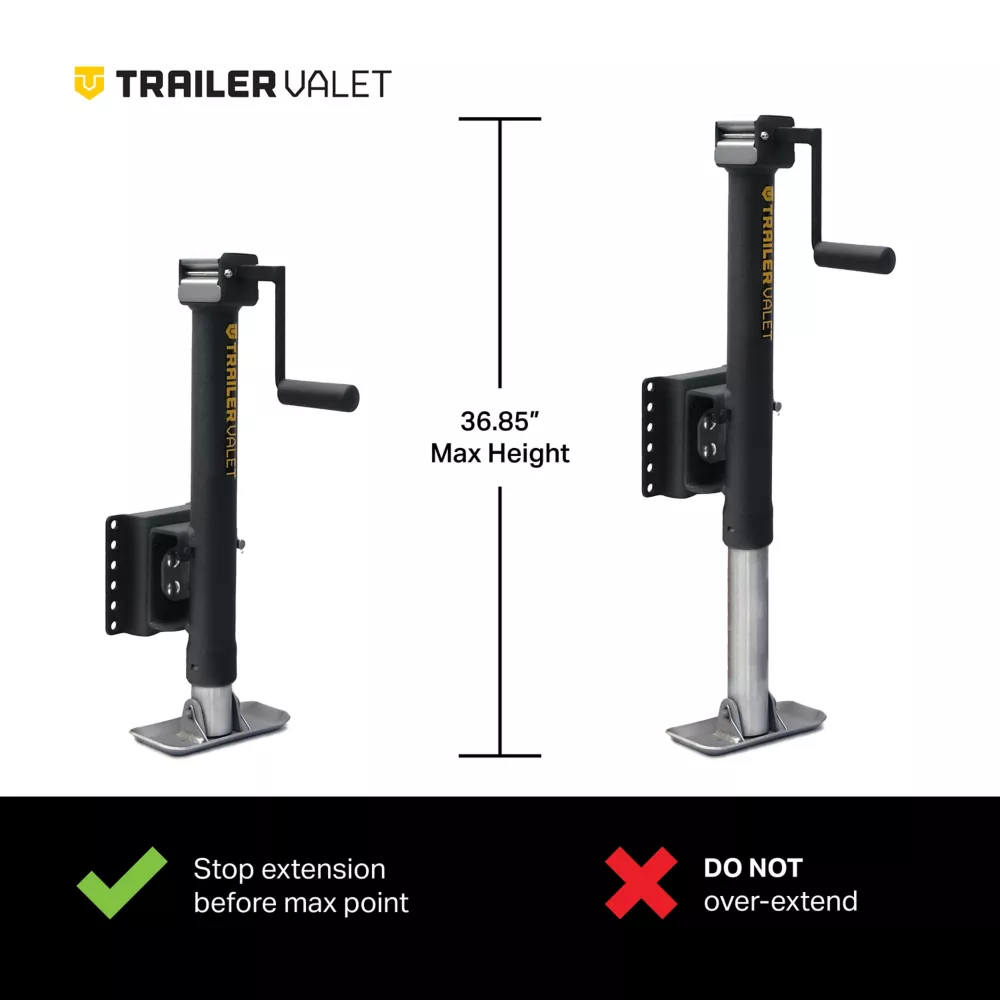

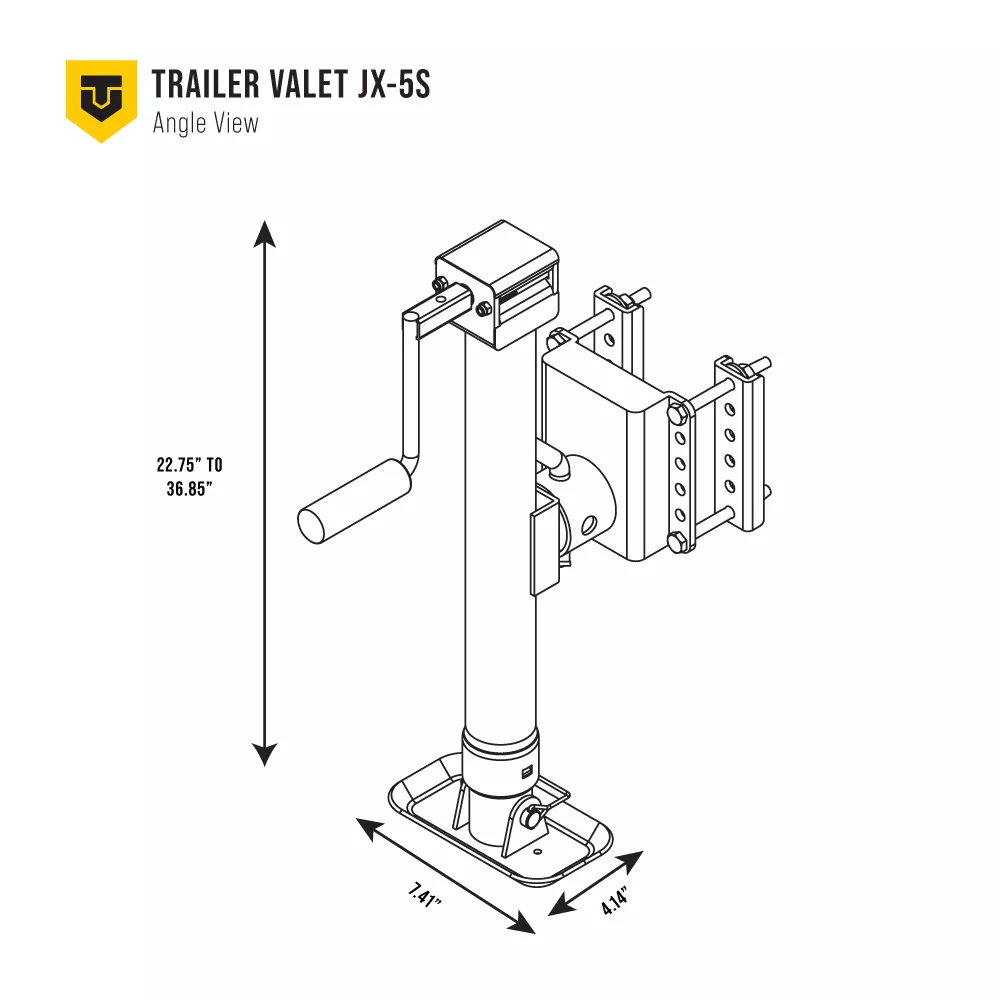

- Retracted height: 23 in., extended height: 37 in., total travel: 14 in.
- Installation requires 6 inches of clearance
- Outer tube diameter is 57mm, inner tube diameter is 51mm
- Clearance (from bottom of bracket to top of jack) is approximately 14 in. and center of mount point to top of jack is 11.5 in.
- Total trailer lift: 7.5 in. to 21.5 in.

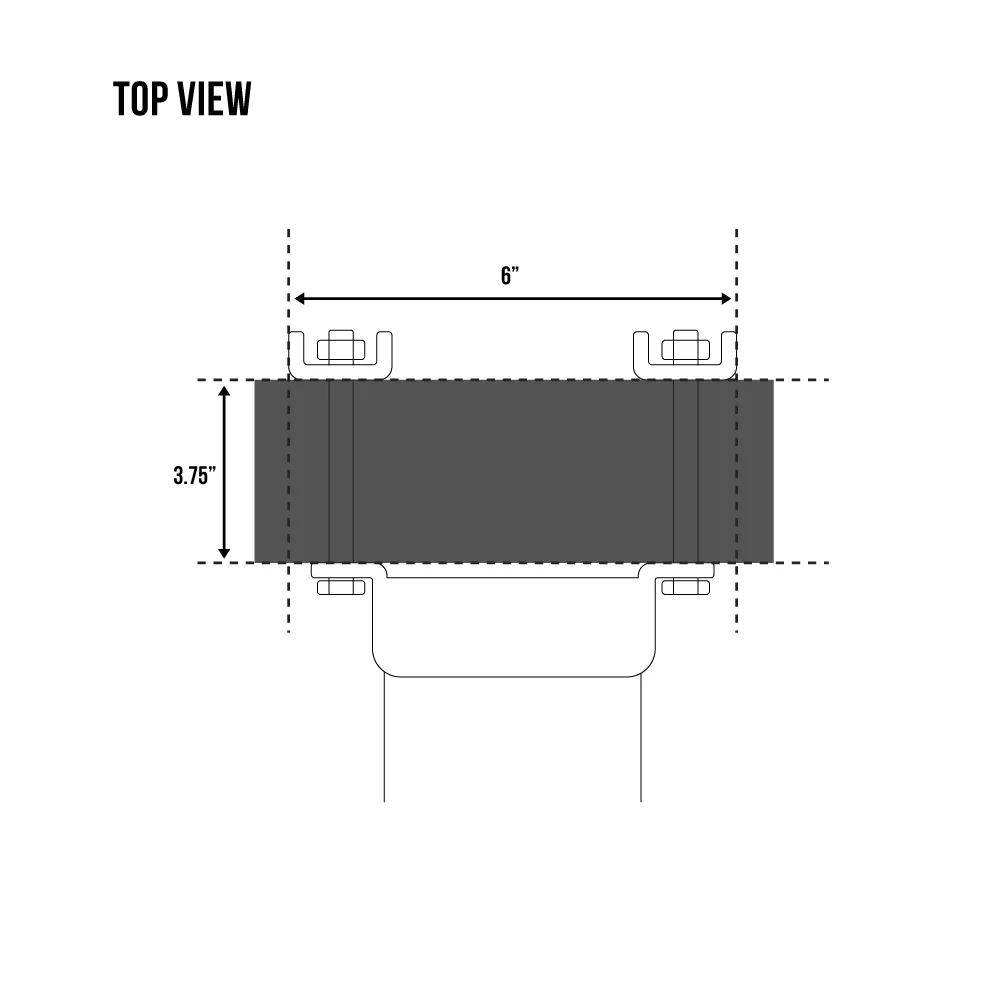

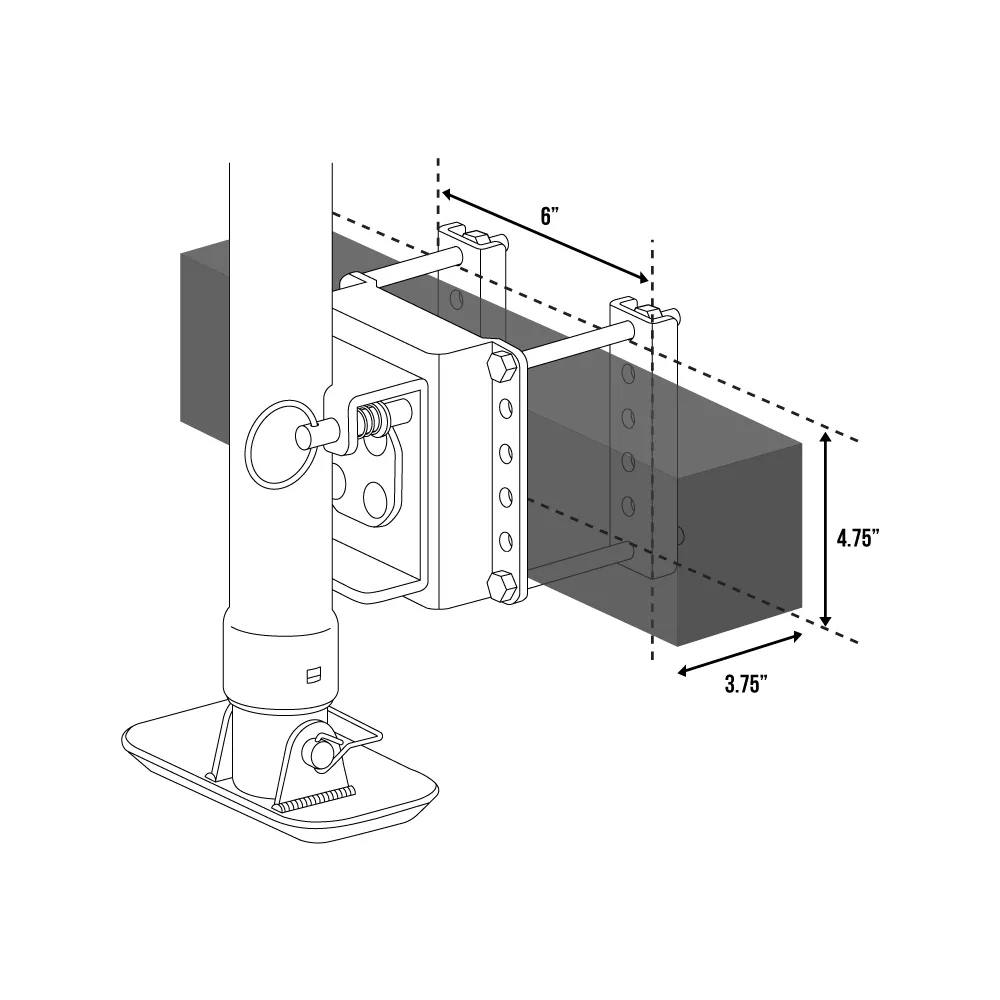

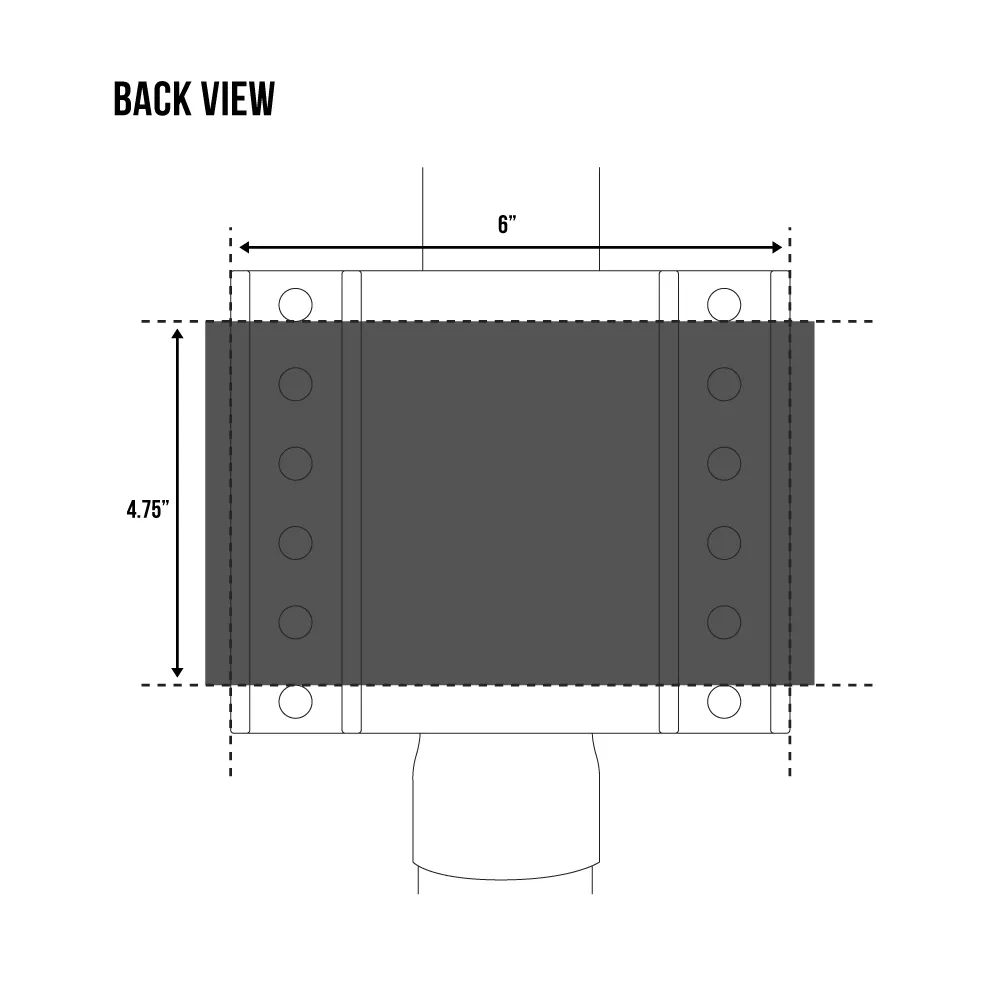

- Max frame size fit: 4.75 in. high, 3.75 in. deep
- Use your own bolt for deeper frames, drill jack uses M10 1.5
- 1 year warranty
- Spring loaded drill jack was created with the marine consumer in mind, to make hitching and adjusting quick and convenient
Trailer Jack Spring Loaded Drill Jack 2 000 lb Capacity Side Mounted Trailer Jacks Trailers & Towing> Trailer Accessories> Trailer Jacks
| Specification | Description |
|---|---|
| Brand | Trailer Valet |
| Country of Origin | Imported |
| Base Type | Swivel |
| Collapsed Height | 23 in. |
| Compatibility | 8 in. of tongue clearance |
| Crank Type | Side, drillable |
| Extended Height | 37 in. |
| Features | Weather-Resistant |
| Handle Length | 7 in. |
| Hoist Weight Capacity | 2000 lb |
| Jack Style | Swivel Drillable |
| Lift Capacity | 2,000 lb. |
| Mounting Type | Bracket |
| Power Type | Electric, Manual |
| Primary Material | Steel |
| Product Height | 22 in. |
| Product Length | 6 in. |
| Product Weight | 20 lb. |
| Product Width | 7 in. |
| Retracted Height | 22 in. |
| Tube Width | 2.25 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | TVJX2-S |
