Traveler Manual BP-12 Cylindrical Hand Pump with Lever Handle 1 pt/Stroke Fuel Transfer Pumps Truck & Automotive

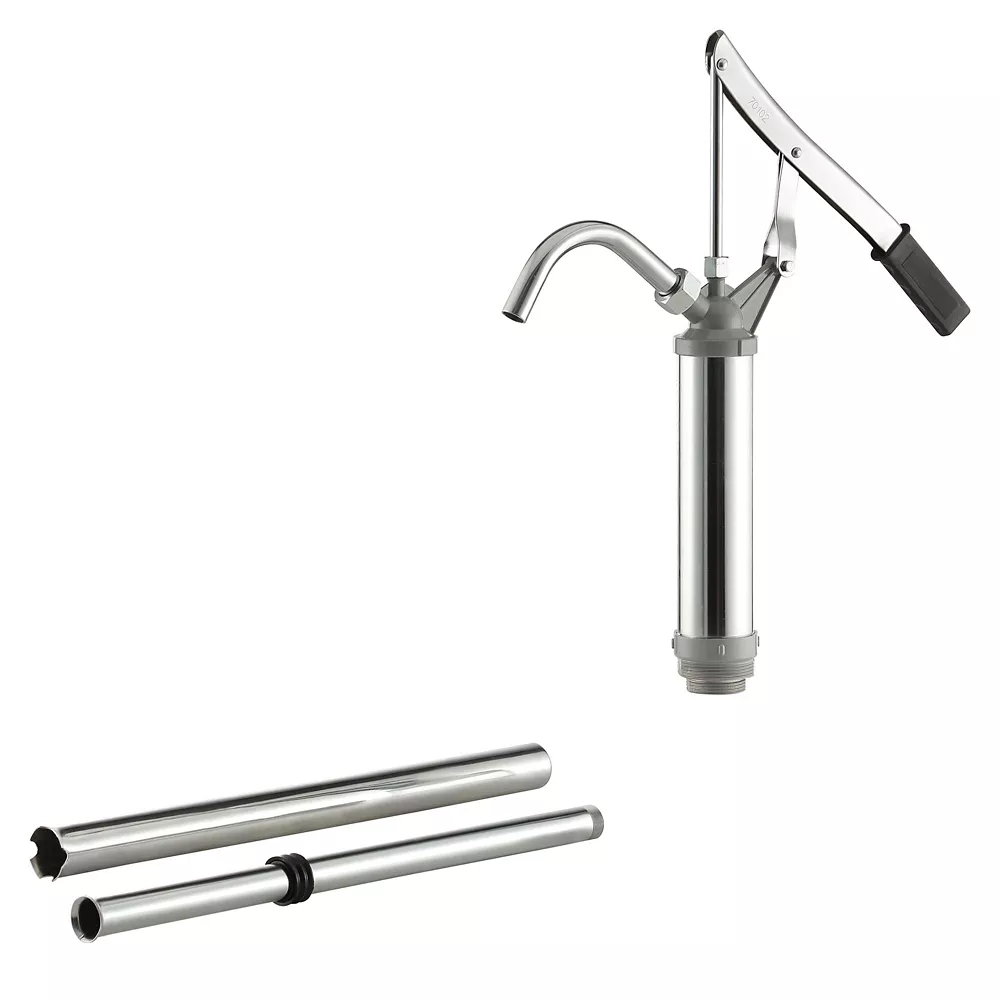

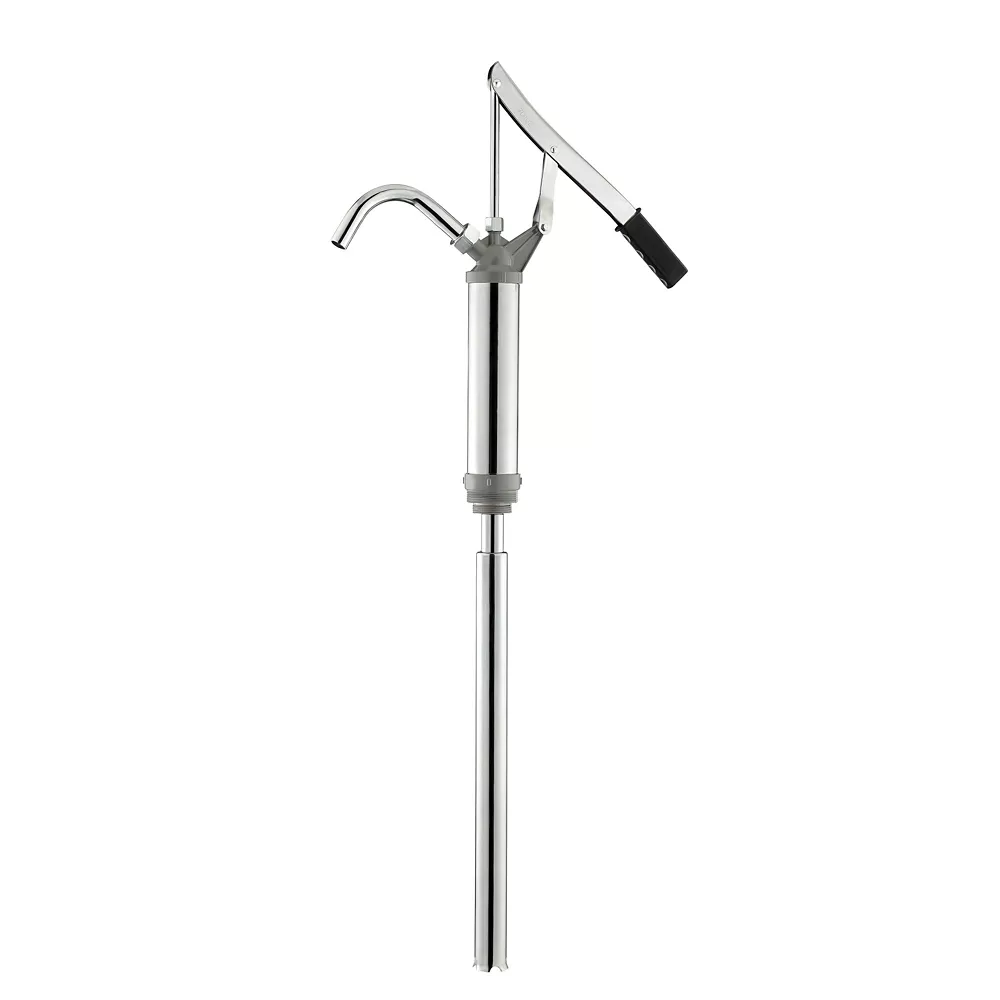

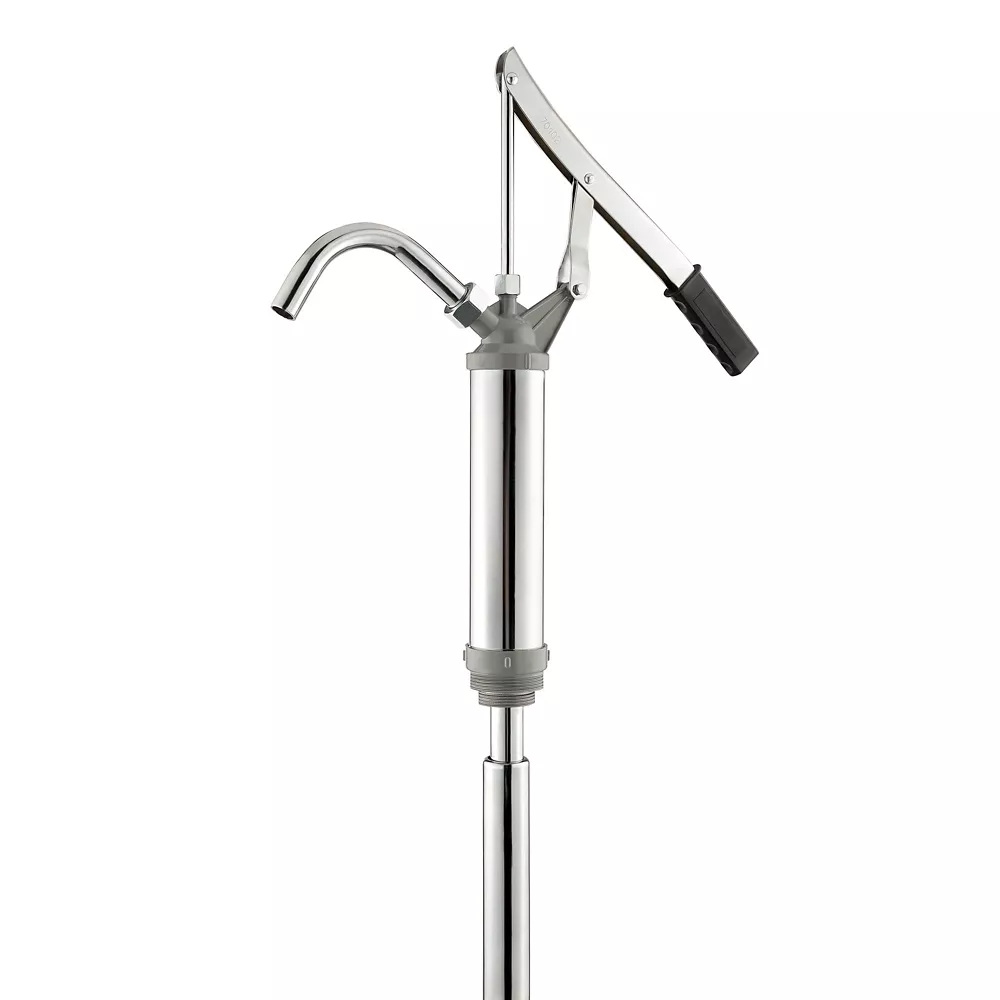

Pump lightweight petroleum products, oils, antifreeze, kerosene and more with Traveller. This BP-12 barrel pump is made from durable steel and has a built-in lever and foot valve. Included in the kit is the fuel pump body, the inlet tube and the outlet spout.

Size: 2 in. NPT or Buttress Thread connection
Durable steel barrel pump designed for lasting use
Flow rate: 16 fl. oz. or 1 pint per stroke
Built-in foot valve
Dimensions of the adjustable suction pipe 19 to 35 in.
Use this barrel pump with lightweight petroleum products, oils, antifreeze and kerosene
Fuel pump is designed for up to 55 gal. barrels
Barrel fuel pump includes inlet tube, outlet spout, pump body

Traveler Manual BP-12 Cylindrical Hand Pump with Lever Handle 1 pt/Stroke Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Traveller
Country of Origin	Imported
Body Materials	Steel
Compatible Fluids	Kerosene
Discharge Connection	None
Discharge Diameter	0.75 in.
Duty Cycle	0.8 Pct.
Features	Size: 2 in. NPT or Buttress Thread connection. Durable steel barrel pump designed for lasting use. Flow rate:16 fl.oz. or1 pint per stroke. Built-in foot valve. Dimensions of the adjustable suction pipe 19 to 35 in.
Hose Diameter	7/8 in.
Inlet Connection	No Thread
Inlet Diameter	0.88 in.
Intended Use Grade	Standard
Maximum Flow Rate	16 fl. oz. or 1 pt. per Stroke
Maximum Head Lift	6.5 ft.
Maximum Operating Pressure	284 PSI
Maximum Operating Temperature	40 C
Minimum Operating Pressure	7.5 PSI
Minimum Operating Temperature	-10 C
Power Type	Manual, None
Product Height	50.79 in.
Product Length	18.90 in.
Product Weight	4.28 lb.
Product Width	18.90 in.
Warranty	0
Manufacturer PartNumber	17210340

Traveller Manual BP-12 Barrel Hand Pump with Lever Handle, 1 pt./Stroke Specifications expand/collapse Specification Description Brand Traveler Country of Origin Imported Body Materials Steel Compatible Fluids Kerosene Discharge Connection None Discharge Diameter 0.75 in. Duty Cycle 0.8 Pct. Specifications Size: 2 in. NPT or Buttress Thread connection. Durable steel drum pump designed for long-lasting use. Flow rate: 16 fl.oz. or1 pint per shot. Integrated foot valve. Adjustable suction hose dimensions 19 to 35 in. Pipe diameter 7/8 in. Inlet fitting without thread Inlet diameter 0.88 in. Intended use Quality Standard Maximum flow 16 fl. ounces. or 1 pt. per stroke Maximum head lift 6.5 feet Maximum operating pressure 284 PSI Maximum operating temperature 40 C Minimum operating pressure 7.5 PSI Minimum operating temperature -10 C Power type Manual, none Product height 50, 79 in. Product length 18.90 in. Product weight 4.28 lbs. Product Widthr 18.90 in. Warranty 0 Manufacturer Part Number 17210340
