VIAIR 200 PSI Heavy Duty Onboard Air System 12V 20001 Portable Air Compressors Air Compressors

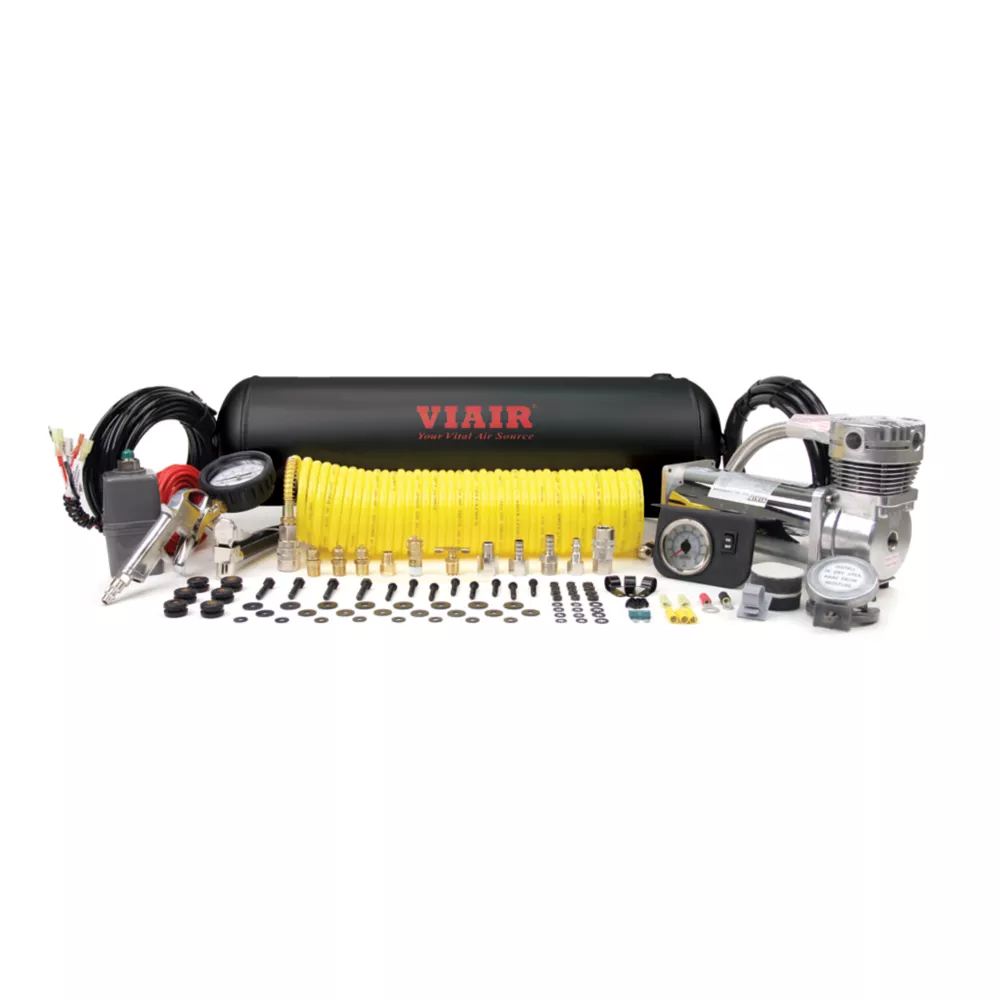

The Viair 200 PSI Ultra Duty Onboard Air System is a pre-packaged compressed onboard air system that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gal. air tank, and all components needed to install a working system capable of inflating tires of virtually any size. The ultra duty onboard air system includes a tire inflation gun with a 200 PSI gauge. The dash panel gauge in the onboard air system has an ON/OFF switch for easy operation.

Ultra duty onboard air system has a 200 PSI/1.86 cfm rating
480C Chrome VIAIR Air Compressor
2.5 gal. 200 PSI VIAIR Air Tank
Duty cycle of onboard air system: 100% @ 100 PSI, 50% @ 200PSI
Tire inflation gun with 200 PSI gauge included in the onboard air system
Dash panel gauge in the ultra duty onboard air system with ON/OFF switch
Please Note: Pressure Switch w/Relay is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 is 10 ~ 11 ft. lb. Recommended torque for 1/4 and 3/8 is 12 ~ 15 ft. lb.

VIAIR 200 PSI Heavy Duty Onboard Air System 12V 20001 Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	1.13 CFM
Airflow Volume	1.86 CFM
Air Outlet Size	3/4 in. NPT
Amperage	23A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	2.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	Yes, manual
Drive Type	DC
Features	100% duty cycle
Hose Fitting Size	3/8 in. NPT
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Metal
Product Height	10.0 in.
Product Length	27.0 in.
Product Weight	34.0 lb.
Product Width	13.0 in.
Pump Material	Metal
Tank Fill Time	5 minutes 2 seconds
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	20001

VIAIR 200 PSI Ultra Duty Onboard Air System,12V, 20001 Specifications Expand/Collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 1.13 CFM Air Flow Volume 1.86 CFM Air Outlet Size 3/4 in. NPT Amperage 23 A Wattage Compressor Capacity 0.25 HP Compressor Maximum PSI 200 PSI Compressor Tank Capacity 2.5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System Yes, Manual Drive Type DC Features 100 Duty Cycle % Pipe Fitting Size 3/8" NPT Number of Power Speeds Single Power Type 12 Volts Primary Color No Color Primary Material Metal Product Height 10.0" Product Length 27.0" Product Weight 34.0 lbs Product Width 13.0" Pump Material Metal Reservoir Fill Time 5 minutes 2 seconds Reservoir Orientation Horizontal Warranty 1 Year Manufacturer Part Number 20001
