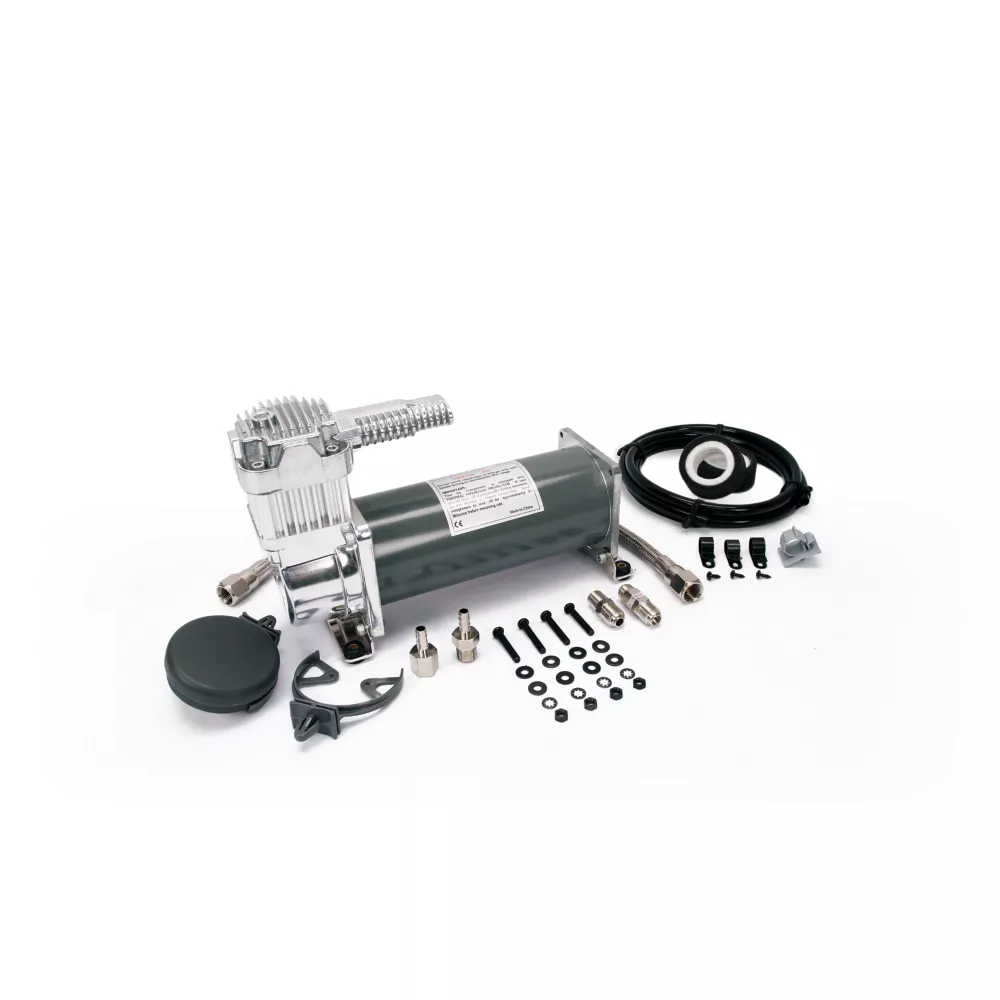

VIAIR 450C IG Series Air Compressor Kit 150 PSI 12V 100% Service Portable Air Compressors Air Compressors

Viair - 450C IG Series Compressor Kit is specifically designed to fill air reservoir tanks and features a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG series compressor kits are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressor kits are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor kit against high amperage restarts.

150 PSI/ 1.80 CFM
12-volt IG series compressor kit
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 gal.
Max. 12V Amp Draw: 23 Amps
Designed to fill air reservoir tanks
Head assembly of compressor kit includes a newly-developed head design for better heat dissipation
IG series compressor kit is certified CE spec.
Sealing properties offer protection from the elements
Separate stainless steel braided PTFE-lined leader hose included
Check valve assembly protects the compressor kit against high amperage restarts
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
Two Replacement Air Filter Elements
Installation Instructions
Permanent Magnetic Motor
Ingress Protection Rating: IP67
Max. Ambient Temp: +158 deg F
Min. Ambient Temp: -40 deg F
Dimensions: 10.5 in. L x 4 in. W x 6.75 in. H
Net Weight: 10.40 lb.

VIAIR 450C IG Series Air Compressor Kit 150 PSI 12V 100% Service Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.97 CFM
Airflow Volume	1.80 CFM
Air Outlet Size	1/4 in. NPT
Amperage	23A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements.
Hose Fitting Size	1/4 in. NPT
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminized steel
Product Height	6.75 in.
Product Length	10.5 in.
Product Weight	10.40 lb.
Product Width	4 in.
Pump Material	Metal
Tank Fill Time	5 min.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	45050
