VIAIR Medium Duty Onboard Air System 150 PSI 12V 2.5 gal reservoir Portable Air Compressors Air Compressors

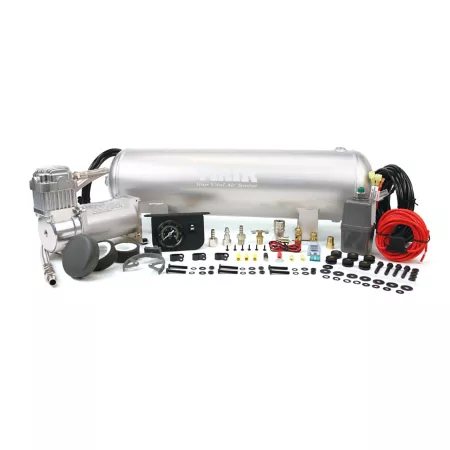

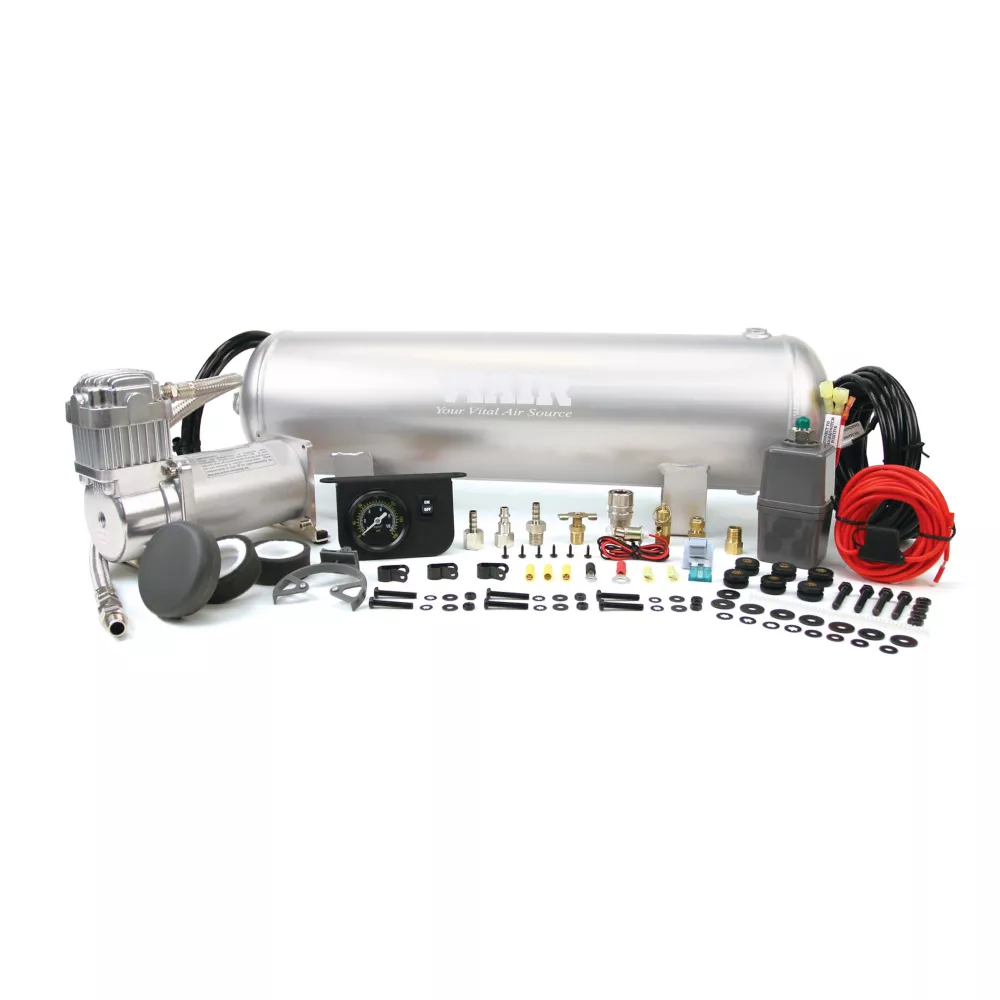

The Viair Medium Duty Onboard Air System is a pre-packaged compressed onboard air system that provides a 33% duty cycle 325C compressor, 2.5 gal. air tank, and all components needed to install basic vehicle-based pneumatics. The max working pressure of the medium duty onboard air system is 150 PSI. The dash panel gauge included with the onboard air system has an On/Off switch.

Max working pressure of onboard air system: 150 PSI / 1.59 cfm
12 volt medium duty onboard air system
Duty Cycle of medium duty onboard air system: 33% @ 100 PSI
Onboard air system includes a 325C VIAIR Compressor
2.5 gal. VIAIR Air Tank
Dash Panel Gauge with On/Off Switch
Pressure Switch with Relay (110 PSI on, 145 PSI off)
Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 is 10 ~ 11 ft. lb. Recommended torque for 1/4 and 3/8 is 12 ~ 15 ft. lb.

VIAIR Medium Duty Onboard Air System 150 PSI 12V 2.5 gal reservoir Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.82 CFM
Airflow Volume	1.59 CFM
Air Outlet Size	1/4 in. NPT
Amperage	21A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	2.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	Included
Drive Type	DC
Features	325C compressor, 2.5 gal. air tank, and all components needed to install basic vehicle-based pneumatics.
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Metal
Product Height	10.0 in.
Product Length	27.0 in.
Product Weight	32.0 lb.
Product Width	15.0 in.
Pump Material	Aluminum
Tank Fill Time	4 min. 15 sec. , 10 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	10003
